SIGLENT SDS2352X-E User Manual

Digital oscilloscope

Hide thumbs Also See for SDS2352X-E:

Service manual (56 pages)

Table Of Contents

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the SDS2352X-E and is the answer not in the manual?

Questions and answers

Summary of Contents for SIGLENT SDS2352X-E

Page 2: Copyright And Declaration
Declaration SIGLENT products are protected by patent law in and outside of the P.R.C. SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at company’s sole decision. Information in this publication replaces all previously corresponding material.
Page 3 SDS2000X-E series oscilloscopes and includes simple tutorials for basic operation of the oscilloscope. The series includes the following models: Model Analog Bandwidth SDS2352X-E 350 MHz bandwidth, 2-channel, 2 GSa/s Sample rate SDS2202X-E 200 MHz bandwidth, 2-channel, 2 GSa/s Sample rate SDS2102X-E...
Page 4: Safety Information
Safety Information Measurement Category Measurement Categories This oscilloscope can make measurements in other circuits that are not directly connected to mains. WARNING This oscilloscope can only be used for measurements within its specified measurement categories. Not to use the product for measurements within other measurement categories, such as CAT II, CAT III, CAT IV.
Page 5: General Safety Summary
General Safety Summary Carefully read the following safety precautions to avoid any personal injury or damage to the instrument and any products connected to it. To avoid potential hazards, please use the instrument as specified. Use Proper Power Line Only the power cord designed for the instrument and authorized by the local country should be used.
Page 6 If you suspect damage occurs to the instrument, have it inspected by qualified service personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by SIGLENT authorized personnel. Do Not Operate in Wet Conditions.
Page 7: Safety Terms And Symbols
Safety Terms and Symbols Terms in this Manual. These terms may appear in this manual: WARNING Warning statements indicate the conditions or practices that could result in injury or loss of life. CAUTION Caution statements indicate the conditions or practices that could result in damage to this product or other property.
Page 8: Working Environment
Working Environment Environment This instrument is intended for indoor use and should be operated in a clean, dry environment. Temperature Operating: 0℃ to +40℃ Non-operation:-20℃ to +60℃ Note: Direct sunlight, radiators, and other heat sources should be taken into account when assessing the ambient temperature. Humidity Operating: 85% RH, 40 ℃, 24 hours Non-operating: 85% RH, 65 ℃, 24 hours...
Page 9 The oscilloscopes may be operated in environments of Pollution Degree II. Note: Degree of Pollution II refers to a working environment which is dry and non-conductive pollution occurs. Occasional temporary conductivity caused by condensation is expected. IP Rating IP20 (as defined in IEC 60529).
Page 10: Ventilation Requirement
Ventilation Requirement This oscilloscope uses a fan to force cooling. Please make sure that the air intake and exhaust areas are free from obstructions and have free air. When using the oscilloscope in a bench-top or rack setting, provide at least 10 cm clearance beside, above and behind the instrument for adequate ventilation.
Page 11 AC Power and Ground Connections The instrument operates with a single-phase, 100 to 240 Vrms (+/-10%) AC power at 50/60 Hz (+/-5%), or single-phase 100 - 120 Vrms (+/-10%) AC power at 400Hz (+/-5%). No manual voltage selection is required because the instrument automatically adapts to line voltage.
Page 12 used for an extended period of time. CAUTION The outer shells of the front panel terminals (CH1, CH2, CH3, CH4, EXT) are connected to the instrument’s chassis and therefore to the safety ground.
Page 13: General Care And Cleaning
General Care and Cleaning Care Do not store or leave the instrument in direct sunshine for long periods of time. WARNING To avoid damage to the instrument or probe, please do not leave them in areas that contain fog, liquid, or solvent. Cleaning Please perform the following steps to clean the instrument and probe:.
Page 14: L'information De Sûreté
L'information de sûreté Résumé général de sûreté Lisez soigneusement les mesures de sécurité suivantes pour éviter n'importe quelles blessures ou les dommages à l'instrument et à tous les produits se sont reliés à eux. Pour éviter des risques, utilisez svp l'instrument comme indiqué. Employez la ligne à...
Page 15 N'importe quel entretien, ajustement ou remplacement particulièrement aux circuits ou aux accessoires doivent être exécutés par le personnel autorisé par SIGLENT. Ne fonctionnez pas en conditions humides. Afin d'éviter de court-circuiter à l'intérieur du dispositif ou de la décharge électrique, svp ne fonctionnez pas dans un environnement humide.
Page 16 Le corps ou l'opérateur responsable devrait se référer au manuel d'instruction pour préserver la protection se permettent par l'équipement. Si l'équipement est utilisé en quelque sorte non indiqué par le fabricant, la protection fournie par l'équipement peut être altérée. On ne permet à aucune pièce du dispositif et de ses accessoires d'être changé ou remplacé, autre qu'autorisé...
Page 17: Limites Et Symboles De Sûreté
Limites et symboles de sûreté Limites en ce manuel. Ces limites peuvent apparaître en ce manuel : Les rapports d'avertissement D'AVERTISSEMENT indiquent les conditions ou les pratiques qui pourraient avoir comme conséquence les dommages ou la perte de la ie. Les rapports d'attention d'ATTENTION indiquent les conditions ou les pratiques qui pourraient avoir comme consequence les dommages à...
Page 18: Catégorie De Mesure
Catégorie de mesure Les oscilloscopes peuvent faire des mesures dans d'autres circuits qui ne sont pas directement reliés aux forces. Pour ne pas employer le produit pour des mesures dans d'autres catégories de mesure, telles que le CAT II, CAT III, CAT IV. Ne pas utiliser l'équipement pour des mesures sur des forces circuite, pour ne pas utiliser l'équipement pour des mesures sur la tension excèdent la gamme de tension décrivent dans le manuel.
Page 19: Environnement De Fonctionnement
Environnement de fonctionnement Environnement Cet instrument est utilisé à l 'intérieur des locaux et doit être utilisé dans un environnement propre et sec. Température ambiante En fonctionnement: 0 ℃ à +40 ℃ Hors fonctionnement: -20 ℃ à +60 ℃ Note: pour évaluer la température de l'environnement, il convient de tenir compte des rayonnements solaires directs, des radiateurs thermiques et d'autres sources de chaleur.
Page 20 Installation (overvoltage) Category Definitions Définition de catégorie d 'installation (surtension) La catégorie II d'installation (surtension) est un niveau de signal applicable aux terminaux de mesure d' équipement reliés au circuit source.Dans ces bornes, des mesures préventives sont prises pour limiter la tension transitoire à un niveau inférieur correspondant.
Page 21: Condition De Ventilation
Condition de ventilation This oscilloscope uses fan to force cooling. Please make sure that the air intake and exhaust areas are free from obstructions and have free air. When using the oscilloscope in a bench-top or rack setting, provide at least 10 cm clearance beside, above and behind the instrument for adequate ventilation.
Page 22 Connexions d'alimentation et de terre L'instrument fonctionne avec une alimentation CA monophasée de 100 à 240 Vrms (+/- 10%) à 50/60 Hz (+/- 5%) ou monophasée 100-120 Vrms (+/- 10%) Alimentation AC à 400 Hz (+/- 5%). Aucune sélection manuelle de la tension n'est requise car l'instrument s'adapte automatiquement à...
Page 23 AVERTISSANT: les enveloppes extérieures des bornes du panneau avant (CH1, CH2, CH3, CH4, EXT) sont connectées au châssis de l'instrument et donc à la terre de sécurité.
Page 24: Soin Général Et Nettoyage
Soin général et nettoyage Ne stockez pas ou ne laissez pas l'instrument en soleil direct pendant de longues périodes. EN AVERTISSANT Pour éviter d'endommager l'instrument, svp ne les laissez pas dans le brouillard, le liquide, ou le dissolvant. nettoyage Veuillez exécuter les étapes suivantes pour nettoyer l'instrument régulièrement selon ses conditions de fonctionnement.
Page 25 appareils électriques utilisés en laboratoire et de mesure - partie 1: prescriptions g énérales. ■ UL 61010-2-030:2018. Prescriptions de sécurité pour les appareils électriques de mesure, de contrôle et de laboratoire - partie 2 - 030: prescriptions spéciales pour les circuits d 'essai et de mesure. Canadian certification ■...
Page 26: Document Overview
Document Overview This manual introduces how to use the digital oscilloscope in details. Quick Start Provide information about preparations before using the instrument and a brief introduction of the instrument. Vertical System Introduce the functions of the vertical system of the oscilloscope. Horizontal System Introduce the functions of the horizontal system of the oscilloscope.
Page 27: Table Of Contents
Table of Content Copyright and Declaration ..................1 Safety Information ....................3 Measurement Category ...................3 General Safety Summary .................4 Safety Terms and Symbols ................6 Working Environment ..................7 Ventilation Requirement ..................9 General Care and Cleaning ................12 L'information de sûreté ..................13 Résumé général de sûreté ................13 Limites et symboles de sûreté...
Page 28 Enable the Channel ..................57 Vertical Scale ....................58 Vertical Position ..................... 59 Coupling ....................... 60 Bandwidth Limit .................... 60 Probe ......................61 Input Impedance ................... 61 Unit ....................... 62 Deskew ......................62 Invert......................62 Trace Visible/Hidden ..................63 Horizontal System ....................64 Horizontal Scale ....................
Page 29 Window Trigger ..................106 Interval Trigger ..................109 Dropout Trigger ..................111 Runt Trigger ..................114 Pattern Trigger ..................116 Serial Trigger and Decode .................. 118 I2C Trigger and Serial Decode ..............119 Setup for I2C Signals ................119 I2C Trigger .................... 120 I2C Serial Decode ..................
Page 30 Voltage Measurements ................. 164 Time Measurements ................166 Delay Measurements................167 Automatic Measurement ................168 All Measurement ..................170 Gate Measurement ..................171 Clear Measurement Parameters ..............171 History ....................... 172 Search ....................... 174 Setting ......................174 Results ......................176 Navigate ......................
Page 31 Update ....................204 Remove Device .................... 205 System Function Setting ..................206 View System Status ..................207 Perform Self Cal ................... 208 Quick-Cal ....................209 Language ....................209 Pass/Fail Test ....................210 Set and Perform Pass/Fail Test .............. 210 Save and Recall Test Mask ..............211 Arbitrary Waveform Generator(Option) ............
Page 32 Content of Figure Figure 1 Front View ..................37 Figure 2 Top View ..................37 Figure 3 Adjust the Supporting Legs............... 38 Figure 4 Connect the Power Supply ..............39 Figure 5 Functional Inspection ............... 40 Figure 6 Front Panel ..................42 Figure 7 Rear Panel ..................
Page 33 Figure 41 CLK Menu ..................125 Figure 42 MISO Menu ................... 126 Figure 43 MOSI Menu ................... 126 Figure 44 SPI TRIG SET Menu ................ 128 Figure 45 SPI Decode Bus Display ..............129 Figure 46 SPI Decode List Display ..............130 Figure 47 UART SIGNAL Menu ...............
Page 34 Figure 85 Adding the Measurement ............. 169 Figure 86 All Parameters Measurement ............170 Figure 87 Gate measurement ............... 171 Figure 88 History ..................172 Figure 89 Search Menu ................174 Figure 90 Search In Run ................176 Figure 91 Search In Stop ................176 Figure 92 Vectors Display ................
Page 35 Figure 129 VARI-LEVEL Menu ................ 235 Figure 130 DISPLAY Menu ................236 Figure 131 DATA Menu ................. 237 Figure 132 Bode Plot List On ................ 237 Figure 133 Bode Plot Interface Connection ........... 238 Figure 134 Sweep Configure Menu ............... 238 Figure 135 Set Sweep Parameters Menu ............
Page 36: Quick Start
Quick Start This chapter introduces the preparations when using the oscilloscope for the first time, the front panel, rear panel and user interface of the oscilloscope. The contents of this chapter:  General Inspection  Appearance and Dimensions  Prepare for Using ...
Page 37: General Inspection
SIGLENT is not responsible for free maintenance/rework or replacement of the unit. Inspect the instrument. In case of any damage, or defect, or failure, notify your SIGLENT sales representative. Check the Accessories. Please check the accessories according to the packing lists. If the accessories...
Page 38: Appearance And Dimensions
Appearance and Dimensions Figure 1 Front View Figure 2 Top View...
Page 39: Prepare For Using
Prepare for Using Adjust the Supporting Legs Adjust the supporting legs properly to use them as stands to tilt the oscilloscope upwards for stable placement of the oscilloscope as well as better operation and observation. Figure 3 Adjust the Supporting Legs...
Page 40: Connect The Power Supply
Connect the Power Supply The power requirements of the oscilloscope are 100-240 Vrms, 50/60Hz or 100-120 Vrms, 440 Hz. Please use the power cord supplied with the instrument to connect the oscilloscope to the power source. Figure 4 Connect the Power Supply Power-on Inspection When the oscilloscope is energized, press the power key at the lower-left corner of the front panel to start the oscilloscope.
Page 41: Function Inspection
Function Inspection Press the Default button on the front panel to restore the instrument to its default configuration. Connect the ground alligator clip of the probe to the “Ground Terminal” under the probe compensation signal output terminal. Compensation Signal Use the probe to connect the input terminal of CH1 of the oscilloscope and the “Compensation Signal Output Terminal”...
Page 42: Probe Compensation
Probe Compensation When the probes are used for the first time, you should compensate the probes to match the input channels of the oscilloscope. Non-compensated or poorly compensated probes may cause measurement inaccuracy or error. The probe compensation procedures are as follows. Perform steps 1, 2, 3 and 4 of “Function Inspection”...
Page 43: Front Panel Overview
Front Panel Overview Figure 6 Front Panel Description Description LCD Display Horizontal Control Universal Knob Trigger Control Common Function Menus Menu on/off Clear Sweeps Menu Softkey Run/Stop One- Button shortcut for Save Decode Analog Channel Auto Setup Power Button Navigate USB Host History Digital Inputs...
Page 44: Rear Panel Overview
Users can control the oscilloscope through this interface. USB Host Communicate with external function generators (SIGLENT SDG and SAG1021) Safety Lock Hole You can lock the instrument to a fixed location using the security lock (not included) via the lock hole.
Page 45: Front Panel Function Overview
Front Panel Function Overview Horizontal :Quickly enter the roll mode. The time base range is from 50 ms/div to 100 s/div. :Enable or disable search function. This function can search for the events that users specify in the acquired data, the results are displayed with white triangle symbol.
Page 46: Vertical
Vertical :Analog input channels. The two channels are marked by different colors which are also used to mark both the corresponding waveforms on the screen and the channel input connectors. Vertical Position Knob : Adjust the vertical position of the current channel waveform.
Page 47: Trigger
Trigger : Press the button to enter the TRIGGER function menu. The oscilloscope provides abundant advanced trigger functions. : Press the button to set the trigger mode to Auto. : Press the button to set the trigger mode to Normal. : Press the button to set the trigger mode to Single.
Page 48: Run Control
Run Control : Press this key to enable the waveform auto setting function. The oscilloscope will automatically adjust the vertical scale, horizontal time base and trigger mode according to the input signal to help configure the instrument to display some waveform information. The oscilloscope may have difficulty showing slow signals (<...
Page 49: Universal Knob
Universal Knob Select the desired submenu. In menu operation, press any menu softkey and turn the Universal Knob to select the desired submenu under the menu and push down the knob to confirm the current submenu. Turn clockwise to increase the display intensity and counterclockwise to decrease.
Page 50: Menu
Menu : Press to enter the CURSOR function menu. The oscilloscope provides manual and track cursor mode. : Press to enter the DISPLAY function menu and quickly enable the persistance function. User can set the grid, intensity, graticule, transparence. : Press to enter the UTILITY function menu to look at the system status, perform a selfcalibration, set the sound, language and so on.
Page 51 80000 frames/trigger events. If sequence function is enabled, it only records the frames which you set, the most you can set is 80000. : Press to enter the DECODE function menu. The oscilloscope supports I2C, SPI, UART, CAN and LIN serial bus decode. : Press to turn off/on the navigate function.
Page 52: Help
Help The oscilloscope has an on line help function that supplies multi-language help information. You can access the help function by pressing any button for 2 seconds and a help window will open with a brief explaination of the selected function. Also all of the submenus include help information.
Page 53: User Interface
User Interface Figure 9 User Interface Product Logo SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD. Channel Label/Waveform Different channels are marked by different colors and the color of the waveform matches the color of the channel. Trigger Status Available trigger status includes: Ready, Auto, Stop, Arm, Trig’d, FStop.
Page 54 Frequency Counter Display the frequency value of the trigger channel. Sampling Rate/ Memory Depth Display the current sampling rate and memory depth. Sa means the current sampling rate and Curr means the current memory depth. Trigger Setup Trigger Type : Display the current trigger type. The trigger type name may be abbreviated if the name is too long to display.
Page 55 corresponding softkey to set the oscilloscope.
Page 56: Security Lock
Security Lock If needed, you can use the security lock (not included) to lock the oscilloscope to a fixed location. The method is as follows, align the lock with the lock hole and plug it into the lock hole vertically, turn the key clockwise to lock the oscilloscope and then pull the key out.
Page 57: Vertical System
Vertical System This chapter introduces how to set the vertical system of the oscilloscope. The contents of this chapter:  Enable the Channel  Vertical Scale  Vertical Position  Coupling  Bandwidth Limit  Probe  Input Impedance  Unit ...
Page 58: Enable The Channel
Enable the Channel The oscilloscope provides 2 analog input channels and provides a vertical control system for each channel. As the vertical system setting methods are the same, this chapter takes CH1 as an example to introduce the setting method of the vertical system.
Page 59: Vertical Scale
Vertical Scale The vertical scale can be adjusted in Coarse or Fine mode. Coarse adjustment (take counterclockwise as an example): Set the vertical  scale in 1-2-5 steps namely 500 uV/div, 1 mV/div, 2 mV/div, 5 mV/div, 10 mV/div …10 V/div. Fine adjustment: Further adjust the vertical scale within a relatively smaller ...
Page 60: Vertical Position
Vertical Position Turn the Vertical Position Knob to adjust the vertical position of the channel waveform. Turn the knob clockwise to increase the vertical position (the channel waveform moves up) while counterclockwise will reduce the vertical position (the waveform moves down). Push the knob to set the vertical position of the channel waveform to zero.
Page 61: Coupling
Coupling Set the coupling mode to filter out undesired signals. For example, the signal under test is a square waveform with DC offset. When the coupling mode is set to DC: The DC and AC components of the signal  under test can both pass the channel.
Page 62: Probe
Probe Set the probe attenuation factor to match the type of the probe that you are using to ensure correct vertical readouts. Press the CH1 button on the front panel; then press the Probe softkey and turn the Universal Knob to select the desired value and push the knob to confirm. The default setup is 1X.
Page 63: Unit
Unit Select the amplitude display unit for the current channel. The available units are volts denoted by “V” and amps shown as “A”. When the unit is changed, the unit displayed in the channel label will change accordingly. Press CH1 button on the front panel to enter the CH1 function menu. Press the Next Page softkey to enter the second page of the CH1 function menu.
Page 64: Trace Visible/Hidden
Trace Visible/Hidden Set whether the current channel waveform is visible. Press CH1 button on the front panel to enter the CH1 function menu. Press the Next Page softkey to enter the second page of the CH1 function menu. Press the Trace softkey to visible or hidden the channel waveform.
Page 65: Horizontal System
Horizontal System This chapter introduces how to set the horizontal system of the oscilloscope. The contents of this chapter:  Horizontal Scale  Trigger Delay  Roll  Zoom...
Page 66: Horizontal Scale
Horizontal Scale Turn the Horizontal Scale Knob on the front panel to adjust the horizontal time base. Turn clockwise to reduce the horizontal time base and turn counterclockwise to increase. The time base information at the upper left corner of the screen will change accordingly during the adjustment.
Page 67: Trigger Delay
Trigger Delay Turn the Position Knob on the front panel to adjust the trigger delay of the waveform. During modification, all waveforms will move left or right and the trigger delay message at the upper-right corner of the screen will change accordingly.
Page 68: Roll
Roll Press the Roll button to enter the roll mode. In the Roll mode the waveform moves slowly across the screen from right to left. It only operates on time base settings of 50 ms/div and slower. If the current time base setting is faster than the 50 ms/div limit, it will be set to 50 ms/div when Roll mode is entered.
Page 69: Zoom
Zoom Zoom is a horizontally expanded version of the normal display. You can use Zoom to locate and horizontally expand part of the normal window for a more detailed (higher- resolution) analysis of signals. Press the Horizontal Scale Knob on the front panel to turn on the zoom function, and press the button again to turn off the function.
Page 70 event, and positive values indicate you're looking at the waveform after the trigger event. To change the time base of the normal window, turn off Zoom; then, turn the Horizontal Scale Knob.
Page 71: Sample System
Sample System This chapter introduces how to use the run control and set the sampling system of the oscilloscope. The contents of this chapter:  Run Control  Overview  Memory Depth  Sampling Mode  Interpolation Method  Acquisition Mode ...
Page 72: Run Control
Run Control Press the Run/Stop or Single button on the front panel to run or stop the sampling system of the scope. When the Run/Stop button is green, the oscilloscope is running, that is,  acquiring data when trigger conditions are met. To stop acquiring data, press the Run/Stop button.
Page 73: Overview
Overview To understand the oscilloscope's sampling and acquisition modes, it is helpful to understand sampling theory, sample rate, oscilloscope bandwidth and sample rate. Sampling Theory The Nyquist sampling theorem states that for a limited bandwidth (band- limited) signal with maximum frequency f , the equally spaced sampling frequency f must be greater than twice the maximum frequency f , in order to have the signal...
Page 74: Bandwidth And Sample Rate
Waveform Leakage: When the sample rate is too low, the waveform rebuilt from the sample data does not reflect all the actual signal information. Bandwidth and Sample Rate An oscilloscope's bandwidth is typically described as the lowest frequency at which input signal sine waves are attenuated by 3 dB (- 30% amplitude error).
Page 75 However, digital signals have frequency components above the fundamental frequency (square waves are made up of sine waves at the fundamental frequency and an infinite number of odd harmonics), and typically, for 500 MHz bandwidths and below, oscilloscopes have a Gaussian frequency response. So, in practice, an oscilloscope's sample rate should be four or more times its bandwidth: f = 4fBW.
Page 76: Memory Depth
Memory Depth Memory depth refers to the number of waveform points that the oscilloscope can store in a single trigger sample and it reflects the storage ability of the sample memory. The oscilloscope provides up to 28 Mpts memory depth. Press the Acquire button on the front panel;...
Page 77: Interpolation Method
Interpolation Method Under real-time sampling, the oscilloscope acquires the discrete sample values of the waveform being displayed. In general, a waveform of dots display type is very difficult to observe. In order to increase the visibility of the signal, the digital oscilloscope usually uses interpolation to “connect the dots”...
Page 78 Figure 13 x Interpolation Figure 14 Sin(x)/x Interpolation...
Page 79: Acquisition Mode
Acquisition Mode The acquisition mode is used to control how to generate waveform points from sample points. The oscilloscope provides the following acquisition mode: Normal, Peak Detect, Average and Eres. Press the Acquire button on the front panel to enter the ACQUIRE function menu;...
Page 80 pulse of the signal that might be lost. In this mode, signal confusion can be prevented but the noise displayed would be larger. In this mode, the oscilloscope can display all the pulses with pulse widths at least as wide as the sample period. Figure 16 Pulse With 0.01% Duty, Normal Mode Figure 17 Pulse With 0.01% Duty, Peak Detect Mode...
Page 81: Average
Average In this mode, the oscilloscope averages the waveforms from multiple samples to reduce the random noise of the input signal and improve the vertical resolution. The greater the number of averages is, the lower the noise will be and the higher the vertical resolution will be but the slower the response of the displayed waveform to the waveform changes will be.
Page 82: Eres
Figure 19 With Random Noise, Average Mode Eres This mode uses oversampling to average the neighboring points of the sample waveform to reduce the random noise on the input signal and generate much smoother waveforms on the screen. This is generally used when the sample rate of the digital converter is higher than the storage rate of the acquisition memory.
Page 83: Horizontal Format
Horizontal Format Press the Acquire button on the front panel; then press the XY soft key to set the XY(On) or YT(Off) mode. The default setup is YT. Display channel Y input amplitude (typically voltage) vs. time. This is the normal viewing mode for the oscilloscope.
Page 84 angle obtained should be within quadrant I and IV, namely within (0 to π/2) or (3π/2 to 2π). If the principal axis of the ellipse is within quadrant II and IV, the phase deviation angle obtained should be within quadrant II and III, namely within (π/2 to π) or (π...
Page 85: Sequence Mode
Sequence Mode Sequence Mode provides faster data collection, but does not display waveforms during sampling process. It improves the waveform capture rate, delivering up-to 400,000 wfs/s. So it can capture the small probability events effectively. The oscilloscope runs and fills a memory segment for each trigger event and continues to trigger until memory is filled.
Page 86 Figure 21 HISTORY Function Menu Press the List softkey to turn on the list display. The list records the acquisition time of every frame and shows the frame number that displaying on the screen. Press the Frame No. softkey; and then turn the Universal Knob to select the frame to display.
Page 87: Trigger
Trigger The trigger mode is the most useful setting to help isolate signals of interest. When a waveform in the waveform stream meets the trigger condition, the oscilloscope captures this waveform as well as the neighboring part and displays them on the screen.
Page 88  Trigger Mode  Trigger Level  Trigger Coupling  Holdoff  Noise Rejection  Trigger Type...
Page 89: Trigger Source
Trigger Source The oscilloscope’s trigger source includes analog channels, EXT, EXT/5 and the AC Line. Press the Setup button on the front panel to enter the TRIGGER function menu; press the Source softkey and then turn the Universal Knob to select the desired trigger source.
Page 90: Trigger Mode
Trigger Mode The oscilloscope’s trigger mode includes auto, normal and single. The trigger mode affects the way in which the oscilloscope searches for the trigger. After the oscilloscope starts running, the oscilloscope operates by first filling the pre-trigger buffer. It starts searching for a trigger after the pre-trigger buffer is filled and continues to flow data through this buffer while it searches for the trigger.
Page 91 To capture burst or other unusual signals. ...
Page 92: Trigger Level
Trigger Level Trigger level and slope define the trigger point, You can adjust the trigger level for a selected analog channel by turning the Trigger Level Knob. You can push the Trigger Level Knob to set the level to the waveform's 50% value immediately.
Page 93: Trigger Coupling
Trigger Coupling Press the Setup button on the front panel to enter the TRIGGER function menu, and then press the Coupling softkey and turn the Universal Knob or press the Coupling softkey continually to select the desired coupling mode. The oscilloscope provides 4 kinds of trigger coupling modes: DC: Allow DC and AC components into the trigger path.
Page 94: Holdoff
Holdoff Trigger holdoff can be used to stably trigger complex waveforms (such as a series of pulses). Holdoff time is the amount of time that the oscilloscope waits before re-arming the trigger circuitry. The oscilloscope will not trigger until the holdoff time expires.
Page 95: Noise Rejection
Noise Rejection Noise Reject adds additional hysteresis to the trigger circuitry. By increasing the trigger hysteresis band, you reduce the possibility of triggering on noise. However, this also decreases the trigger sensitivity so that a slightly larger signal is required to trigger the oscilloscope.
Page 96 Figure 23 Noise Rejection enabled If the signal you are probing is noisy, you can set up the oscilloscope to reduce the noise in the trigger path and on the displayed waveform. First, stabilize the displayed waveform by removing the noise from the trigger path. Second, reduce the noise on the displayed waveform.
Page 97: Trigger Type
Trigger Type The oscilloscope provides abundant advanced trigger functions, including various serial bus triggers.  Edge trigger  Slope trigger  Pulse trigger  Video trigger  Window trigger  Interval trigger  Dropout trigger  Runt trigger  Pattern trigger...
Page 98: Edge Trigger
Edge Trigger Edge trigger distinguishes the trigger points by seeking the specified edge (rising, falling, alter) and trigger level. Press the Setup button on the front panel to enter the TRIGGER system function menu. Press the Type softkey; turn the Universal Knob to select Edge and then push the knob to confirm.
Page 99 "Holdoff", "Trigger Coupling" and "Noise Rejection" for details.
Page 100: Slope Trigger
Slope Trigger The slope trigger looks for a rising or falling transition from one level to another level in greater than or less than a certain amount of time. In the oscilloscope, positive slope time is defined as the time difference between the two crossing points of trigger level line A and B with the positive edge as shown in the figure below.
Page 101 Figure 25 Slope Trigger Press the Limit Range softkey; then turn the Universal Knob to select the desired slope condition, and push down the knob to confirm. <= (less than a time value): Trigger when the positive or negative slope ...
Page 102: Pulse Trigger
Pulse Trigger Trigger on the positive or negative pulse with a specified width. Press the Setup button on the front panel to enter the TRIGGER function menu. Press the Type softkey; turn the Universal Knob to select Pulse and then push the knob to confirm.
Page 103 and lower than the specified upper limit of the set time value. For example, for a positive pulse, if you set t (pulse real width) ≥ 100 ns and t ≤ 300 ns, the waveform will trigger. --][-- (outside a range of time value): Trigger when the positive or negative ...
Page 104: Video Trigger
Video Trigger Video triggering can be used to capture the complicated waveforms of most standard analog video signals. The trigger circuitry detects the vertical and horizontal interval of the waveform and produces triggers based on the video trigger settings you have selected. The oscilloscope supports standard video signal field or line of NTSC (National Television Standards Committee), PAL (Phase Alternating Line) HDTV (High Definition Television) and custom video signal triggers.
Page 105 (line value)/7 (line value)/8 The table below takes Of Lines as 800 as an example to explain the relation between Of Lines, Of Fields, Interlace, Trigger Line and Trigger Field. Of Lines Of Fields Interlace Trigger Line Trigger Field 1,2,4 or 8 1, 1~2, 1~4, 1~8 1,2,4 or 8 1, 1~2, 1~4, 1~8...
Page 106 confirm. Figure 27 Video Trigger To Use Custom Video Trigger Custom video trigger supports frame rates of 25 Hz, 30 Hz, 50 Hz and 60 Hz, and the line range is available from 300 to 2000. The steps below show how to set a custom trigger.
Page 107: Window Trigger
Window Trigger Windows trigger provides a high trigger level and a low trigger level. The instrument triggers when the input signal passes through the high trigger level or the low trigger level. There are two kinds of window types: Absolute and Relative. They have different trigger level adjustment methods.
Page 108 the lower trigger level. Figure 28 Absolute Window Trigger To set window trigger via Relative window type: Press the Setup button on the front panel to enter the TRIGGER system function menu. Press the Type softkey; then use the Universal Knob to select Window and push down the knob to confirm.
Page 109 Figure 29 Relative Window Trigger Coupling and noise reject can be set in window trigger, see the sections "Trigger Coupling" and "Noise Rejection" for details.
Page 110: Interval Trigger
Interval Trigger Trigger when the times difference between the neighboring rising or falling edges meets the time limit (<=, >=, [--,--], --][--). To set interval trigger: Press the Setup button on the front panel to enter the TRIGGER system function menu.
Page 111 Figure 30 Interval Trigger Coupling and noise reject can be set in interval trigger, see the sections "Trigger Coupling" and "Noise Rejection" for details.
Page 112: Dropout Trigger
Dropout Trigger Dropout trigger includes two types: edge and state. Edge Trigger when the time interval (△T) from when the rising edge (or falling edge) of the input signal passes through the trigger level to when the neighboring rising edge (or falling edge) passes through the trigger level is greater than the timeout time set, as shown in the figure below.
Page 113 Figure 31 Edge Dropout Trigger To set state Dropout trigger: Press the Setup button to enter the TRIGGER system function menu. Press the Type softkey; then turn the Universal Knob to select Dropout and push down the knob to confirm. Press the Source softkey;...
Page 114 Figure 32 State Dropout Trigger Coupling and noise reject can be set in dropout trigger, see the sections "Trigger Coupling" and "Noise Rejection" for details.
Page 115: Runt Trigger
Runt Trigger The Runt trigger looks for pulses that cross one threshold but not another as shown in the picture below. A positive runt pulse across through a lower threshold but not an upper  threshold. A negative runt pulse across through an upper threshold but not a lower ...
Page 116 Figure 33 Runt Trigger Coupling and noise reject can be set in runt trigger, see the sections "Trigger Coupling" and "Noise Rejection" for details.
Page 117: Pattern Trigger
Pattern Trigger The Pattern trigger identifies a trigger condition by looking for a specified pattern. The pattern trigger can be expanded to incorporate delays similar to other triggers. Pattern durations are evaluated using a timer. The timer starts on the last edge that makes the pattern “true”.
Page 118 value. Press the Holdoff Close softkey to turn on the Holdoff function; then turn the Universal Knob to select the desired value. Figure 34 Pattern Trigger Holdoff can be set in pattern trigger, see the sections "Holdoff" for details.
Page 119: Serial Trigger And Decode
Serial Trigger and Decode The oscilloscope provides I2C, SPI, UART, CAN and LIN serial trigger and decode. This chapter introduces the method of triggering and decoding these serial signals in detail. The contents of this chapter:  I2C Trigger and Serial Decode ...
Page 120: I2C Trigger And Serial Decode
I2C Trigger and Serial Decode Please read “Setup for I2C Signals”, “I2C Trigger” and “I2C Serial Decode” to trigger and decode the signals. Setup for I2C Signals Setting the I2C (Inter-IC bus) signal includes two steps: connecting the serial data signal (SDA) and serial clock signal (SCL) to oscilloscope, specifying the threshold voltage of each input signal.
Page 121: I2C Trigger
I2C Trigger This part introduces the eight kinds of trigger conditions (Start, Stop, Restart, No Ack, EEPROM, 7 Addr&Data, 10 Addr&Data and Data Length) and the methods of setting them. Trigger conditions: Start Condition— The oscilloscope will be triggered when the SDA signal ...
Page 122 If you have set either Data1’s or Data2’s value, and the signal has a  data is the same as that value. If you have set both Data1’s and Data2’s value, the signal should have two consecutive data values, the first data’s value is Data1, second data value is Data2.
Page 123 Data Length — When SDA data’s length is equal to the value of Byte Length  and address’s length is the same as set value, the oscilloscope will be triggered. Byte length is in the range of 1 to 12 bits. Operation steps: Press Setup to enter the TRIGGER function menu.
Page 124: I2C Serial Decode
I2C Serial Decode After completing the setup of I2C signal and trigger, we will decode I2C signals. Operation steps as follows. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. Press Display and select On to enable onscreen display of the result of decoding.
Page 125 Figure 39 I2C Decode List Display...
Page 126: Spi Trigger And Serial Decode
SPI Trigger and Serial Decode Please read “Setup for SPI Signals”, “SPI Trigger” and “SPI Serial Decode” to trigger and decode the signals. Setup for SPI Signals Setting the SPI (Serial Peripheral Interface) signal includes two steps: connecting the CLK, MISO, MOSI and CS signals to the correct channels of the oscilloscope and specifying the parameters of each input signal.
Page 127 Press the Threshold softkey to set the SPI MISO signal’s threshold voltage level by Universal Knob. The threshold voltage level is for decoding, and it will be used as the trigger voltage level when the trigger type is set to serial.
Page 128 Press the Bit Order softkey to select the bit order (LSB or MSB).
Page 129: Spi Trigger
SPI Trigger This part will provide a brief introduction and description for the operation of the SPI trigger. Press Setup key to enter the TRIGGER function menu. Press Type and select Serial. Press Protocol and select SPI. Press Trigger Setting softkey. Figure 44 SPI TRIG SET Menu Press the Trigger Type softkey to select the trigger condition.
Page 130: Spi Serial Decode
SPI Serial Decode After completing the setup of SPI signal and trigger, the scope can decode SPI signals. Operation steps are as follows. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. Press Display and select On to display the result of decoding. Press List to enter the LIST function menu.
Page 131 Figure 46 SPI Decode List Display...
Page 132: Uart Trigger And Serial Decode
UART Trigger and Serial Decode Please read “Setup for UART Signals”, “UART Trigger” and “UART Serial Decode” to trigger and decode the signals. Setup for UART Signals Press the Decode key to enter the DECODE function menu. Press the Decode softkey and select the desired slot (Decode1 or Decode2). Press Protocol softkey and then select UART by turning Universal Knob.
Page 133: Uart Trigger
UART Trigger This part shows a brief introduction and description for the operation of the UART trigger. Press Setup key to enter the TRIGGER function menu. Press Type and select Serial. Press Protocol and select UART. Press Trigger Setting softkey to enter UART TRIG SET menu. Figure 49 UART TRIG SET Menu Press the Source Type softkey to select the source of trigger (RX or TX).
Page 134: Uart Serial Decode
UART Serial Decode After completing the setup of UART signal and trigger, the scope can decode UART signals. Operation steps are as follows. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. Press Display and select On to display the result of decoding. Press List to enter the LIST function menu.
Page 135 Figure 52 UART Decode Bus Display The lists of decoding result: Time (timestamp) — The horizontal displacement between current frame and  trigger position. RX — The receiving channel.  TX — The transmitting channel.  RX Err— Parity error or unknown error in the data received. ...
Page 136: Can Trigger And Serial Decode
CAN Trigger and Serial Decode The oscilloscope can also decode CAN signals. The following sections “Setup for CAN Signals”, “CAN Trigger” and “CAN Serial Decode” provide instructions for triggering and decoding the CAN signals. Setup for CAN Signals Press the Decode key to enter the DECODE function menu. Press the Decode softkey and select the desired slot (Decode1 or Decode2).
Page 137: Can Trigger
CAN Trigger This part will provide a brief introduction and description for the operation of the CAN trigger. Trigger conditions: Start— The oscilloscope will be triggered at the start bit of a frame.  Remote — The oscilloscope will be triggered by a remote frame with specified ...
Page 138: Can Serial Decode
Figure 55 CAN Trigger CAN Serial Decode After completing the setup of can signal and trigger, we will decode CAN signals. Operation steps as follows. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. Press Display and select On to display the result of decoding. Press List to enter the LIST function menu.
Page 139 The CRC field is displayed in frame.  indicates there is not enough space on the display to show complete  content of a frame and some content is hidden. Figure 56 CAN Decode Bus Display The list of decoding result: Time (timestamp) —...
Page 140: Lin Trigger And Serial Decode
LIN Trigger and Serial Decode The following section describes “Setup for LIN Signals”, “LIN Trigger” and “LIN Serial Decode” and includes instructions ontriggering and decoding LIN signals. Setup for LIN Signals There are two steps of setting the LIN signal: connecting the signal to oscilloscope and specifying the parameters of each input signal.
Page 141: Lin Trigger
LIN Trigger This part will provide a brief introduction and description for the operation of the LIN trigger. Trigger conditions: Break — The oscilloscope will be triggered at the position of the break  field’s break delimiter. ID (Frame ID) — The oscilloscope will be triggered at the position of the ...
Page 142 Figure 59 LIN Trigger...
Page 143: Lin Serial Decode
LIN Serial Decode After completing the setup of the LIN signal and trigger, we will decode LIN signals. Operation steps are as follows. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. Press Display and select On to display the result of decoding. Press List to enter the LIST function menu.
Page 144 indicates there is not enough space on the display to show complete  content of a frame and some content is hidden. Figure 61 LIN Decode Bus Display The list of decoding result: Time (timestamp) — The horizontal displacement between the current frame ...
Page 145: Reference Waveform
Reference Waveform The oscilloscope can save analog or math waveforms to the reference waveform locations in the oscilloscope. Then, a reference waveform can be displayed and compared against other waveforms. All reference waveforms can be displayed at one time. The contents of this chapter: Save REF Waveform to Internal Memory ...
Page 146: Save Ref Waveform To Internal Memory
Save REF Waveform to Internal Memory Do the following steps to save the REF waveform to internal memory: Press the REF button on the front to enter the REF WAVE function menu. Note that when the time horizontal format is in X-Y mode, REF function cannot be enabled.
Page 147: Adjust Ref Waveform
Adjust REF Waveform Please refer to the “To Display REF Waveform” above to display the desired reference waveform. Press the Scale and Position softkey and turn the Universal knob to adjust the vertical scale and position of the reference waveform. The vertical scale and position information display at the middle of the screen.
Page 148: Math
Math The oscilloscope supports many math operations between analog channels including addition (+), subtraction (-), multiplication (*), division (/), FFT, differential (d/dt), integral (∫dt), square root (√). The resulting math waveform is displayed in white and labeled with “M”. You can use cursors to measure math waveforms.
Page 149: Units For Math Waveforms
Units for Math Waveforms Use the channel function menu to set the unit of each channel to “V” or “A”. The oscilloscope math operation includes units as below: Math Operation Unit Addition (+)or subtraction (-) V, A or U multiplication (*) 2, A 2 or W (Volt-Amp) ∧...
Page 150 Figure 64 CH1+CH1 Waveform If you want to invert the math waveform, press the Invert softkey and set the option to On to invert the display of the math waveform.
Page 151: Multiplication And Division
Multiplication and Division Math operators perform arithmetic multiplication or division on any two analog input channels. When you select multiplication or division, the Source A and Source B values are multiplied or divided point by point and the result is displayed. Press the Math button on the front panel to enter the MATH function menu.
Page 152: Fft Operation
FFT Operation FFT is used to compute the fast Fourier transform using analog input channels. FFT takes the digitized time record of the specified source and transforms it to the frequency domain. When the FFT function is selected, the FFT spectrum is plotted on the oscilloscope display as magnitude in dBV versus frequency.
Page 153 window function according different waveforms their characteristics. Please read the table below carefully to make an appropriate option according to the input signal. Window Applications and Characteristics These are normally used when the signal is transient (completely contained in the time-domain window) or known Rectangle to have a fundamental frequency component that is an integer multiple of the fundamental frequency of the window.
Page 154 Press the Unit softkey to select the unit of vertical axis. The units of the  vertical axis can be dBVrms, dBm, Vrms or dBArms, Arms, which use a logarithmic scale or a linear scale to display vertical amplitude respectively. Press the Ext Lode softkey and then turn the Universal Knob to select the ...
Page 155 Figure 72 FFT Markers Menu Press Markers Control softkey to enter MARKER Menu.  Figure 73 Marker Control Menu Press the Marker softkey continuously to select the marker number from NO.1~NO.8. Press the Show Marker softkey continuously to turn on or off the selected mark.
Page 156 Figure 74 FFT Waveform To measure FFT waveform: To make cursor measurements, press the Cursors button, and then press the Mode softkey to select On to turn the cursors, Use the X1 and X2 cursors to measure frequency values and the difference between two frequency values (ΔX). Use the Y1 and Y2 cursors to measure amplitude in dB and difference in amplitude (ΔY).
Page 157: Math Function Operation
Math Function Operation The oscilloscope supports differential (d/dt), integral (∫dt) and square root ( math functions. Differentiate d/dt (differentiate) calculates the discrete time derivative of the selected source. Where: d = differential waveform.  y = channel 1, 2 data points. ...
Page 158 differentiate function.
Page 159 Integrate dt (integrate) calculates the integral of the selected source. You can use integrate to calculate the energy of a pulse in volt- seconds or measure the area under a waveform. dt plots the integral of the source using the "Trapezoidal Rule". The equation is: Where: I = integrated waveform.
Page 160 Figure 77 Integral with Offset Square Root Square root ( ) calculates the square root of the selected source. Where the transform is undefined for a particular input, holes (zero values) appear in the function output. Figure 78 Square Root...
Page 161: Cursors
Cursors Cursors are horizontal and vertical markers that indicate X- axis values and Y- axis values on a selected waveform source. You can use cursors to make custom voltage, time measurements on oscilloscope signals. X Cursors X cursors are vertical dashed lines that adjust horizontally and can be used to measure time (when the source is FFT waveform, X cursors measure frequency) X1 cursor is the left (default position) vertical dotted line;...
Page 162: Make Cursor Measurements
Make Cursor Measurements Press the Cursors button on the front panel to enter the CURSOR function menu. Press the Mode softkey and set the option to On. Press the Source softkey, and then use the Universal Knob to select the desired source.
Page 163 Figure 79 Measure Pulse Width...
Page 164: Measure
Measure The oscilloscope provides measurements of 38 waveform parameters and the statistics. It contains voltage, time and delay parameters. Voltage, time and delay parameters are under Type option. The results of the last four selected measurements are displayed at the bottom of screen and above the menu.
Page 165: Type Of Measurements
Type of Measurements Voltage Measurements Voltage measurements include 17 kinds of voltage parameter measurements. Figure 80 Voltage Measurements Peak-Peak: Difference between maximum and minimum data values. Maximum: Highest value of the input waveform. Minimum: Lowest value of the input waveform. Amplitude: Difference between the top and the base in a bimodal signal, or between max and min in a unimodal signal.
Page 166 Figure 81 Overshoot 14. Preshoot: Preshoot is distortion that precedes a major edge transition expressed as a percentage of amplitude. RPRE means rising edge preshoot and FPRE means falling edge preshoot. Figure 82 Preshoot 15. Level@X: The voltage value between the trigger point and the vertical position of the channel.
Page 167: Time Measurements
Time Measurements Time measurements include 11 kinds of time parameter measurements. Figure 83 Time Measurements Period: Period for every cycle in the waveform at the 50% level and positive slope. Freq: Frequency for every cycle in the waveform at the 50% level and positive slope.
Page 168: Delay Measurements
Delay Measurements Delay measurements measure the time different between arbitrary two channels, including 10 kinds of delay measurements. Phase: Calculate the phase difference between two edges. FRFR: Time between the first rising edges of the two channels. FRFF: Time from the first rising edge of channel A and the first falling edge of channel B.
Page 169: Automatic Measurement
Automatic Measurement Perform the steps below and select voltage or time parameters to make automatic measurement. Press the Measure button on the front panel to enter the MEASURE function menu. At the same, the Peak-Peak and Period are enabled with the current trigger channel.
Page 170 Figure 85 Adding the Measurement “ ”...
Page 171: All Measurement
All Measurement All measurement could measure all the voltage, time and delay parameters of the current measurement source and display the results on the screen. Figure 86 All Parameters Measurement Do the following steps to make all parameters measurement. Press the Measure button on the front panel to enter the MEASURE function menu.
Page 172: Gate Measurement
Gate Measurement The SDS2000X-E supports gated measurements and performs the selected measurement within the upper and lower limits of the gate. Setting the gate will affect the measurement of all voltage, time, and delay parameters. Press Measure → Gate → On to open the gate measurement. Press Gate A to move the position of gate A by the Universal Knob.
Page 173: History
History The history function can record the waveforms of the input channels before pressing the Run/Stop button. In the run state, the oscilloscope records input waveforms continuously. After the memory reaches the maximum frame, the new frames will cover the old frames. The first frames acquired are the first to be covered..
Page 174 The maximum frame number is determined by the current sampling point  (Current value) and sample rate. When pressing the Run/Stop button or enabling the history function, you  may not get the maximal frames. This is because the memory buffer has not filled.
Page 175: Search
Search SDS2000X-E provides an active search function that can search for the events that users specify in the acquired data. This is similar to applying a “second trigger” to the collected data set. Each event that meets this “secondary trigger” search criteria will be displayed with white triangle symbols for easy identification.
Page 176 Search Mode Setting Menu Description Edge Slope includes Rising, Falling, Either. Slope Slope includes Rising, Falling Limit Range includes four types: <=, >=, [--,--] and --][-- . Users can select the desired type and then input the time value. Pulse Polarity includes Positive and Negative Limit Range includes four types: <=, >=, [--,--] and --][-- .
Page 177: Results
Results Figure 90 Search In Run When the acquisition is started, “Event Num:7” means the total number of events. Figure 91 Search In Stop When the acquisition is stop,” Event Num:4/7” indicates the current event number/total events number. The current event is the closest event to the middle of...
Page 178 the screen.
Page 179: Navigate
Navigate SDS2000X-E provides three navigation type: Search Event, Time, and History Frame. Time Navigate Press Navigate on the front panel to enter the NAVIGATE function menu. Press Type softkey In the NAVIGATE function menu, then, select Time. There are two ways to navigate time. Press Time softkey, then, turn the Universal Knob to select the desired value or press the Universal Knob then enter the value by the pop-up keyboard.
Page 180 Press Type in the NAVIGATE function menu; then, select Search Event. There are two ways to navigate search events. Press Event Num softekey, then, turn the Universal Knob to select the desired value or press the Universal Knob then enter the value by the pop-up keyboard.
Page 181: Display
Display You can set the display type, color, persistence, grid type, waveform intensity, grid brightness and transparence. The contents of this chapter:  Display Type  Color Display  Persistence  Clear the Display  Grid Type  Intensity  Grid Brightness ...
Page 182: Display Type
Display Type Press the Display button on the front panel, and then press the Type softkey to select Vectors or Dots display type. Vectors: The sample points are connected by lines and displayed. Normally,  this mode can provide the most vivid waveform to view the steep edge of the waveform (such as Sine waveform).
Page 183: Color Display
Figure 93 Dots Display Color Display The SIGLENT color temperature display assigns the color temperature to the frequency of occurence for a waveform. The greater the frequency of occurrence, the warmer the color is (red). If the frequency of occurrence is low, the colder the color is (blue/violet).
Page 184: Persistence
Persistence With persistence, the oscilloscope updates the display with new acquisitions, but does not immediately erase the results of previous acquisitions. All previous acquisitions are displayed with reduced intensity. New acquisitions are shown in their normal color with normal intensity. Do the following steps to set and clear persistence: Press the Display/Persist button on the front panel to enter the DISPLAY function menu.
Page 185: Clear The Display
accumulate acquisitions again. To return to the normal display mode, turn off persist and the previous acquisitions will be clear at once. Clear the Display Press the Display button on the front panel to enter the DISPLAY function menu; press the Clear Display softkey to clear all the waveforms displaying on the screen and acquire and display new waveforms.
Page 186: Grid Brightness
Increasing the intensity lets you see the maximum amount of noise and infrequently occurring events. Reducing the intensity can expose more detail in complex signals as shown in the following figures. Grid Brightness Do the following steps to adjust the grid brightness: Press the Display button on the front panel to enter the DISPLAY function menu.
Page 188: Save And Recall
Save and Recall Oscilloscope setups, waveforms, pictures, and CSV files can be saved to internal oscilloscope memory or to a USB storage device. The saved setups, waveforms can be recalled later. The oscilloscope provides an USB Host interface on the front panel to connect an USB device for external storage.
Page 189: Save Type
Save Type The oscilloscope supports setups, waveforms, pictures and CSV files storage. The default save type is setups. 1. Setups The default storage type of the oscilloscope. Setups store the settings of the oscilloscope in internal or external memory. Setup files terminate with “*.set” file extension.
Page 190 the parameters storage function. 8. Matlab The oscilloscope saves the waveform data in external memory with the “*.dat” file extension. The data of all the channels turned on can be saved in the same file. The recall of Matlab file is not supported. 9.
Page 191: Internal Save And Recall
Internal Save and Recall Internal save and recall support Setups in Save/Recall. In the following part, the save and recall method and procedures are introduced. Save the specified oscilloscope setting in internal memory.  Connect the signal to the oscilloscope and obtain a stable display. Press Save/Recall button on the front panel to enter the SAVE/RECALL function menu.
Page 192: External Save And Recall
External Save and Recall Before using external storage and recall, make sure that the USB flash device is connected correctly. External storage supports all the types of files in save, but only support settings and reference waveform recall. Save the specified type of file in the external USB flash device. ...
Page 193 Figure 97 Select Save Location After the save position is selected, press the New softkey to turn on the interface as shown in the figure below. Refer to the descriptions in “To Create a new file or folder” to create a new file name. Figure 98 File Name Dialogue Press the Press To Save softkey to save the current setup to the external USB storage device.
Page 194 Load the specified type of file in the external USB storage device.  Press the Save/Recall button on the front panel to enter the SAVE/RECALL function menu. Press the Recall softkey to enter the RECALL menu. Press the Type softkey to select Setup or Waveform. Press the Recall from softkey to select External.
Page 195: Disk Management
Disk Management Disk management aims at the save and recall operations after the oscilloscope is connected with a USB storage device. Before using an external disk, make sure that the USB storage device is connected correctly. Execute the following operations through the disk management menu: ...
Page 196: Create A New File Or Folder
Create a New File or Folder This operation is only valid in external storage. The oscilloscope supports English as the input language. The file name or folder name can contain letters, numbers, underscores and spaces. Let’s use an example to introduce how to create a file or folder.
Page 197: Delete A File Or Folder
Delete a File or Folder This operation is only valid in external storage. Press the Save/Recall button on the front to enter the SAVE/RECALL function menu. Press the Save softkey, and then turn the Universal Knob to select one of the type (if select Setups, please set the Save To option to External).
Page 198: Digital Channels (Option)
Digital Channels (Option) This chapter describes how to use the digital channels of the scope as a Mixed-Single Oscilloscope (MSO). To perform MSO operations, the oscilloscope must have the digital channels enabled (Part number SDS2000X-E-16LA) and the external module (Part number SLA1016).
Page 199: Connect The Digital Probes
Connect the Digital Probes 1. If necessary, turn off the power supply to the device-under-test. Turning off the power to the device-under-test prevents damage that  might occur if you accidentally short lines together while connecting probes. You can leave the oscilloscope powered on because no voltage appears at the probes.
Page 200: Acquire Digital Waveform
Acquire Digital Waveform Press the Digital button on the front panel to open the digital channels and start acquiring digital channel waveforms. For digital channels, each time the oscilloscope takes a sample it compares the input voltage to the logic threshold. If the voltage is above the threshold, the oscilloscope stores a 1 in the sample memory;...
Page 201: Digital Channels Position
Figure 102 Low Display Type The display type control lets you spread out or compress the digital traces vertically on the display for more convenient viewing. Digital Channels Position Press the Digital button on the front panel to open the DIGITAL function menu and display the digital channel waveforms.
Page 202: All Digital Channels
All Digital Channels Press the Digital button on the front panel to open the DIGITAL function menu. Press the Channel Group softkey to select On or Off to switch all digital channels which in this group on or off. Also, under the DIGITAL function menu, press the Digital button on the front panel to switch all digital channels off.
Page 203: Digital Bus
Digital Bus Digital channels may be grouped and displayed as a bus, with each value displayed at the bottom of the display in hex or binary. You can create up two buses. To configure and display each bus, do the following steps: Press the Digital button on the front panel to open the DIGITAL function menu and display the digital channel waveforms.
Page 204: Deskew
Figure 105 Digital Bus Deskew Press the Digital button on the front panel to open the DIGITAL function menu and display the digital channel waveforms. Press the Deskew softkey, and then turn the Universal Knob to select to change deskew.
Page 205: System Setting
System Setting System Status Press Digital→NextPage2/2 → System ,then select the System Status option to view the digital system information , including software version, hardware version, and serial number. After finished, press the return softkey to quit the interface of system information.
Page 206: Remove Device
Figure 107 Digital Update Interface After the updating is finished, the Digital device will automatically be disconnected and display a message “Update completed. Please reconnect Digital device!” Note：Don't cut off the power during the update！ Remove Device Press Digital→NextPage2/2→RemoveDevice and the oscilloscope interface will display "Digital device removed!".
Page 207: System Function Setting
System Function Setting This function module supports the oscilloscope’s system-related function, such as system status, language, sound and some other advanced setting, such as self calibration, update and remote interface configure. The contents of this chapter:  View System Status ...
Page 208: View System Status
View System Status Do the following steps to view the system status: Press the Utility button on the front to enter the UTILITY function menu. Press the System Status softkey to view the system status of the oscilloscope. The system status includes the information below: Startup Times: Record the boot-strap times of the oscilloscope.
Page 209: Perform Self Cal
Perform Self Cal The self-calibration program can quickly make the oscilloscope reach the best working state to get the most precise measurement values. You can perform self-calibration at any time especially when the change of the environment temperature is up to or more than 5 ℃. Make sure that the oscilloscope has been warmed up or operated for more than 30 minutes before performing a self-calibration.
Page 210: Quick-Cal
Quick-Cal Quick calibration can correct the measurement deviation caused by temperature, so that you can get more accurate measurements If the ambient temperature of your current operating oscilloscope is unstable, press Utility → Quick-Cal softkey to select On to enable quick calibration. Sound When the sound is enabled, you can hear the sound of the beeper when you press a function key or a menu softkey or when the prompt message pops up.
Page 211: Pass/Fail Test
Pass/Fail Test One way to verify a waveform's compliance to a particular set of parameters is to use pass/fail testing. A pass/fail defines a region of the oscilloscope's display in which the waveform must remain in order to comply with chosen parameters. Compliance to the mask is verified point- by- point across the display.
Page 212: Save And Recall Test Mask
Press the Mask Setting softkey to enter the MASK function menu. Press the X Mask or Y Mask softkey; and then turn the Universal Knob to select the desired value. The range is from 0.02div to 4div. Press the Create Mask softkey to create the mask. Whenever the Create Mask softkey is pressed the old mask is erased and a new mask is created.
Page 213 Press the Utility button on the front panel to enter the UTILITY function menu. Press the Next Page softkey to go to the second page of the UTILITY function menu. Press the Pass/Fail softkey to enter the PASS/FAIL function menu. Press the Enable Test softkey to select On to enable the pass/ fail test.
Page 214 Press the Mask Setting softkey to enter the MASK function menu. Press the X Mask or Y Mask softkey; and then turn the Universal Knob to select the desired value. Press the Location softkey to select External. Press the Save softkey to enter the file SAVE/RECALL system. 10.
Page 215: Arbitrary Waveform Generator(Option)
Arbitrary Waveform Generator(Option) SDS2000X-E supports an external Arbitrary Waveform Generator (AWG), which can easily and quickly provide multiple input signals to users. The AWG provides two kinds of waveforms: standard waveforms like sine and square waves and the arbitrary waveform generator which provides built-in waveforms as well as the ability to create custom waveforms.
Page 216: Output
Output Connect the AWG with a USB cable. After a few moments, the oscilloscope interface will indicate "AWG device connection success", Press the Utility → Next Page4/4 → AWG to enter the function menu interface of the AWG system as shown below, including: Output, Wave, Setting, System, Remove Device.
Page 217 The following table shows the waveform type and its corresponding characteristics. The available waveform parameters depend on the waveform type. Each availale parameter can be adjusted using the Universal Knob and the corresponding function software under the menu. Offset Wave Frequency Amplitude Parameters...
Page 218 Figure 113 Built-in Arb interface...
Page 219: Setting
Setting Figure 114 AWG Setting Interface Output Load Press Utility → NextPage4/4 → AWG → Setting → Output Load to set High-Z or 50Ω. Sync Output Press Utility → NextPage4/4 → AWG → Setting → Sync Output, the AWG provides Sync Output through the [Aux In/Out] connector on the rear panel.
Page 220: Systems
on the scope , set CH2 to DC coupling, open bandwidth limit, and probe attenuation to 1X. Adjust the voltage of channel 2 channel to 1 mV/div, and make the waveform visible in the oscilloscope interface, press the Measure and measure the mean value of channel 2.
Page 221 steps below: Insert U-disk with a firmware update file (*.ads file extension) to USB host interface on the front panel of the oscilloscope. Upon recognition of a valid USB drive, the scope will display the following message: “USB flash drive detected”...
Page 222: Remove Device
Remove Device Press Utility→ NextPage4/4 → AWG → RemoveDevice and the oscilloscope interface display "AWG device removed!" the USB device can be removed.
Page 223: Io Set
IO Set The oscilloscope provides abundant IO interfaces, including: USB Device, LAN and WLAN. USB Device Perform the following steps to set the oscilloscope to communicate with a computer via USB: Install the USBTMC device driver on computer. National Instruments VISA library is recommended and can be downloaded from the National Instruments website.
Page 224: Wlan (Option)
Figure 117 LAN Setting Interface WLAN (Option) Do the following steps to set the oscilloscope to communicate with a computer via WLAN: Connect the oscilloscope USB Host to your wireless network adapter, and make sure your local wireless network is normal. Press the Utility button on the front panel to enter the UTILITY function menu.
Page 225 Use EasyScopeX or NI Visa to communicate with the oscilloscope. Figure 118 WIFI setting menu...
Page 226: Web Server
Web Server SDS2000X-E provides the web server function, you can access and control the oscilloscope using a web browser. Connect the oscilloscope to your LAN (or WLAN), then type the oscilloscope's IP address in the web browser. The oscilloscope's web interface is displayed.
Page 227: Update Firmware And Configuration
Update Firmware and Configuration The firmware and configuration can be updated directly via USB flash drive. Do the following steps to update the firmware: Insert the USB flash drive which contains the correct firmware and the configure files into the USB host interface on the front panel of the oscilloscope.
Page 228: Do Self-Test
Do Self-Test Self-tests include screen test, keyboard test, and LED test. Self-tests used to test the screen, buttons, knobs and LED lights whether works well. Screen Test Press the Utility button on the front panel to enter the UTILITY function menu. Press the Next Page softkey to go to the second page of the UTILITY function menu.
Page 229: Keyboard Test
Keyboard Test Keyboard test is used to check the functionality of the keys and knobs on the front panel. To perform a keyboard test, please follow these steps: Press the Utility button on the front panel to enter the UTILITY function menu. Press the Next Page softkey to go to the second page of the UTILITY function menu.
Page 230: Led Test
LED Test LED test is used to confirm the operation of the LEDs that are used to backlight certain buttons on the front panel. Press the Utility button on the front panel to enter the UTILITY function menu. Press the Next Page softkey to go to the second page of the UTILITY function menu.
Page 231: Screen Saver
Screen Saver When the oscilloscope enters the idle state and holds for a certain period of time, the screen saver program will be enabled. Do the following steps to set the screen saver time: Press the Utility button on the front panel to enter the UTILITY function menu. Press the Next Page softkey to go to the second page of the UTILITY function menu.
Page 232: Reference Position
Reference Position The reference position setting determines the physicial point that the oscilloscope uses during vertical and horizontal scale changes. In some situations, it is more convenient to use a fixed position on the display. Press the Utility button on the front panel and then press the Reference Pos. softkey to enter the Reference POS menu.
Page 233: Option Management
Option Management The SDS2000X-E provides multiple options to fulfill your measurement requirements. Please contact your SIGLENT sales representative or SIGLENT technical support to order the corresponding options. You can view the options currently installed on the oscilloscope or activate the newly purchased option license codes through this menu.
Page 234 key. Press the Clean softkey or the Backspace softkey to delete the incorrect  character. Press the Information softkey to view the option information. Figure 126 Option Information...
Page 235: Bode Plot Ii
Bode Plot II The bode plot application for the SDS2000X-E controls an external arbitrary waveform generator(only Siglent’s arbitrary waveform generator can be supported) to sweep a sine wave across a range of frequencies while measuring the input to and output from a device under test (DUT). At each frequency point, gain and phase are measured and displayed on the Bode plot.
Page 236 pop-up dialog box. Press the Connection Test softkey to check the connection.  Press the Sweep Type softkey to select Simple or Vari-level. Press the Set Vari-level softkey to enter the VARI-LEVEL menu. Figure 129 VARI-LEVEL Menu Press the Profile softkey to select the profile (Profile A~ Profile D). ...
Page 237 Press the Set Channel softkey to enter the SET CHANNEL menu. Press the DUT Input softkey to select the corresponding input signal  channel. Press the DUT Output 1 soft key to select the corresponding output signal channel. Press the Channel Gain softkey continuously to select the gain type as ...
Page 238 Figure 131 DATA Menu Press the List softkey repeatedly to turn the Bode plot data list on or off. After turning on the list, press the Scroll soft key and turn the Universal Knob to select the frequency point, as shown below. Figure 132 Bode Plot List On Press Save softkey (Recall softkey) to enable the bode plot save (recall) function.
Page 239: Example
Example The following are examples to familiarize you with bode plot. Simple Sweep Operation  Vari-level Sweep Operation  Simple Sweep Operation Press Utility button on the front panel to enter the UTILITY function menu, and then press the Next Page soft key to enter the second page. Press Bode Plot Ⅱ to enter the BODE PLOT function menu.
Page 240 Figure 136 Set Stimulus Menu Press Set Channel to enter Set Channel menu. In this example, set DUT Input to “CH1”, and DUT Output 1 to “CH2”. Since we want to maximize measurement dynamic range, set Channel Gain to “Auto”. Then return to the Configure menu.
Page 241: Vari-Level Sweep Operation
Vari-level Sweep Operation Press Utility button on the front panel to enter the UTILITY function menu, and then press the Next Page soft key to enter the second page. Press Bode Plot Ⅱ to enter the BODE PLOT function menu. Press Config to enter Configure menu. Press Source to enter Source menu to select the waveform generator.
Page 242 Figure 141 Set Vari-level Parameters Menu 10. The Set Sweep and Set Stimulus in Vari-level editor are similar to that in the Simple sweep mode, but they are independently configured and do not affect each other. These options in Vari-level mode do not have frequency and amplitude input because they are specified in the spreadsheet.
Page 243 Figure 143 Bode Plot Sweep Curve...
Page 244: Factory Setup
Factory Setup Oscilloscopes can be complicated devices, and having a way to return the instrument to a known state can be the fastest way to getting your instrument configured quickly. This is especially true when a single instrument has multiple users.
Page 245: Troubleshooting
The commonly encountered failures and their solutions are listed below. When you encounter those problems, please solve them following the corresponding steps. If the problem remains still, please contact SIGLENT as soon as possible. The screen is still dark (no display) after power on: Check whether the power is correctly connected.
Page 246 Make sure that the USB storage device being used is flash storage type. This oscilloscope does not support hardware storage type. Restart the instrument and then insert the USB storage device to check it. If the USB storage device still cannot be used normally, please contact SIGLENT.

This manual is also suitable for:

Sds2000x-e series Sds2002x-e

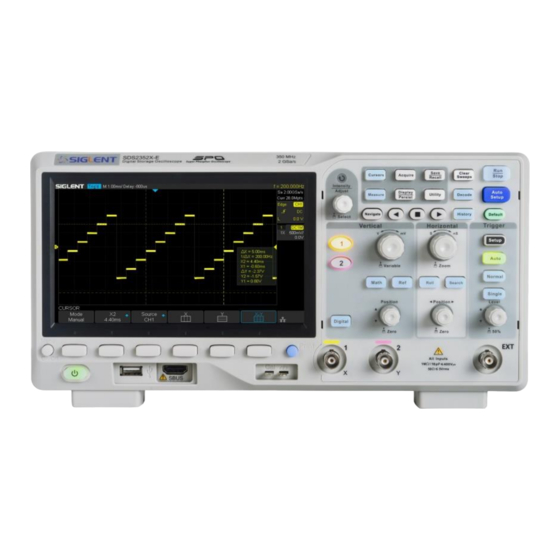

SIGLENT SDS2352X-E User Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIGLENT SDS2352X-E

Summary of Contents for SIGLENT SDS2352X-E
