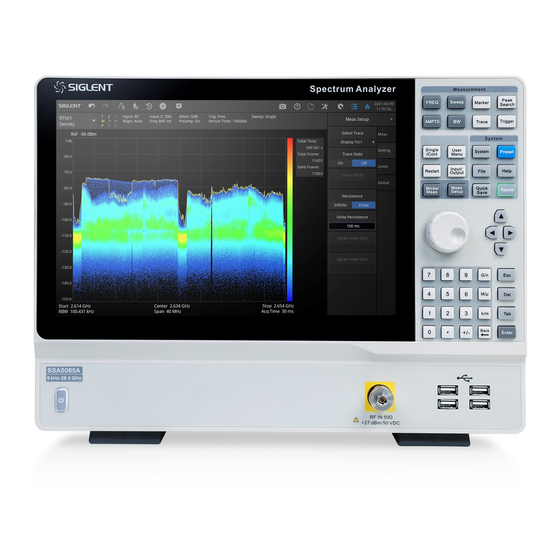

Page 1 SSA5085A SSA5083A Spectrum Analyzer User Manual EN_01A...
Page 3 Declaration SIGLENT products are protected by patent law worldwide SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at company’s sole decision. Information in this publication replaces all previously corresponding material.
Page 5 This manual includes important safety and installation information related to the SSA5000A series of spectrum analyzer, and simple tutorials for basic operation of the instrument. The series includes the following models: Model Frequency SSA5083A 13.6 GHz SSA5085A 26.5 GHz User Manual...
Page 6 Important Safety Information This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition. General Safety Summary Carefully read the following safety precautions to avoid personal injury and prevent damage to the instrument and any products connected to it.
Page 7 Be sure to pull out the power supply when repairing the equipment. Live line operation is strictly prohibited. The equipment can only be powered on when the maintenance is completed and the maintenance is confirmed to be successful. Identification of Normal State of Equipment. After the equipment is started, there will be no alarm information and error information at the interface under normal conditions.
Page 8 Safety Terms and Symbols When the following symbols or terms appear on the front or rear panel of the instrument or in this manual, they indicate special care in terms of safety. This symbol is used where caution is required. Refer to the accompanying information or documents to protect against personal injury or damage to the instrument.
Page 9 The instrument is used indoors and should be operated in a clean and dry environment with an ambient temperature range. Note: Direct sunlight, electric heaters, and other heat sources should be considered when evaluating the ambient temperature. Warning: Do not operate the instrument in explosive, dusty, or humid environments.
Page 10 Note: Degree of Pollution II refers to a working environment that is dry and non-conductive pollution occurs. Occasional temporary conductivity caused by condensation is expected. IP Rating IP20 (as defined in IEC 60529). Cooling Requirements This instrument relies on the forced air cooling with internal fans and ventilation openings. Care must be taken to avoid restricting the airflow around the apertures (fan holes) at each side of the analyzer.
Page 11 The instrument includes a grounded cord set containing a molded three-terminal polarized plug and a standard IEC320 (Type C13) connector for making line voltage and safety ground connection. The AC inlet ground terminal is connected directly to the frame of the instrument. For adequate protection against electrical shock hazards, the power cord plug must be inserted into a mating AC outlet containing a safety ground contact.
Page 12 Abnormal Conditions Do not operate the analyzer if there is any visible sign of damage or has been subjected to severe transport stresses. If you suspect the analyzer’s protection has been impaired, disconnect the power cord and secure the instrument against any unintended operation. Proper use of the instrument depends on careful reading of all instructions and labels.
Page 13 Informations essentielles sur la sécurité Ce manuel contient des informations et des avertissements que les utilisateurs doivent suivre pour assurer la sécurité des opérations et maintenir les produits en sécurité. Exigence de Sécurité Lisez attentivement les précautions de sécurité ci - après afin d 'éviter les dommages corporels et de prévenir les dommages aux instruments et aux produits associés.
Page 14 autorisation. L'équipement contient des condensateurs, de l'alimentation électrique, des transformateurs et d'autres dispositifs de stockage d'énergie, ce qui peut causer des blessures à haute tension. Les dispositifs internes de l'équipement sont sensibles à l'électricité statique. Le contact direct peut facilement causer des blessures irrécupérables à l'équipement. L'équipement doit être retourné...
Page 15 L'organisme ou l'opérateur responsable doit se référer au cahier des charges pour protéger la protection offerte par le matériel.La protection offerte par le matériel peut être compromise si celui - ci est utilisé de manière non spécifiée par le fabricant. Aucune pièce du matériel et de ses annexes ne peut être remplacée ou remplacée sans l'autorisation de son fabricant.
Page 16 Termes et symboles de sécurité Lorsque les symboles ou termes suivants apparaissent sur le panneau avant ou arrière de l'instrument ou dans ce manuel, ils indiquent un soin particulier en termes de sécurité. Ce symbole est utilisé lorsque la prudence est requise. Reportez-vous aux informations ou documents joints afin de vous protéger contre les blessures ou les dommages à...
Page 17 Environnement L'instrument doit être utilisé à l'intérieur dans un environnement propre et sec dans la plage de température ambiante. Note: la lumière directe du soleil, les réchauffeurs électriques et d'autres sources de chaleur doivent être pris en considération lors de l'évaluation de la température ambiante. Attention: ne pas utiliser l'instrument dans l'air explosif, poussiéreux ou humide.
Page 18 La catégorie II d'installation (surtension) désigne le niveau local de distribution d 'énergie d' un équipement conçu pour accéder à un circuit alternatif (alimentation alternative). Degré de pollution Un instruments peut être utilisé dans un environnement Pollution Degree II. Note: Pollution Degree II signifie que le milieu de travail est sec et qu'il y a une pollution non conductrice.Parfois, la condensation produit une conductivité...
Page 19 Remarque: l'instrument s'adapte automatiquement à l'entrée de ligne CA dans les plages suivantes: Plage de tension: 90 - 264 Vrms 90 - 132 Vrms Gamme de fréquences: 47 - 63 Hz 380 - 420 Hz L'instrument comprend un jeu de cordons mis à la terre contenant une fiche polarisée à trois bornes moulée et un connecteur standard IEC320 (Type C13) pour établir la tension de ligne et la connexion de mise à...
Page 20 Avertissement: risque de choc électrique! Aucune pièce réparable par l'opérateur à l'intérieur. Ne retirez pas les capots. Confiez l'entretien à un personnel qualifié Conditions anormales Utilisez l'instrument uniquement aux fins spécifiées par le fabricant. N'utilisez pas la lunette s'il y a des signes visibles de dommages ou si elle a été soumise à de fortes contraintes de transport.
Page 21 Canadian certification ■ CAN/CSA-C22.2 No. 61010-1:2012/A1:2019-07. Prescriptions en matière de sécurité pour les appareils électriques utilisés en laboratoire et de mesure - partie 1: prescriptions générales. ■ CAN/CSA-C22.2 No. 61010-2-030:2018. Prescriptions de sécurité pour les appareils électriques de mesure, de contrôle et de laboratoire - partie 2 - 030: prescriptions spéciales pour les circuits d 'essai et de mesure.
Page 22: Table Of Contents
CONTENTS QUICK START ........................1 ....................1 ENERAL NSPECTION ....................2 REPARING FOR 1.2.1 Appearance and Dimension ................... 2 1.2.2 Connect to AC Power Supply ................. 2 ......................3 RONT ANEL ........................ 4 ANEL ......................6 NTERFACE ............... 8 OUCH SCREEN AND MOUSE OPERATION ....................
Page 23 3.3.2 Sweep Type Rules ....................22 3.3.3 Sweep Points ......................22 3.3.4 Sweep Time & Sweep Time Rules ............... 23 3.3.5 Sweep Time Estimate ................... 25 3.3.6 Sweep/Measure ....................25 ........................ 26 MPLITUDE 3.4.1 Ref Level ....................... 26 3.4.2 Attenuator ......................26 3.4.3 RF Preamp ......................
Page 24 3.7.5 Relative To ......................52 3.7.6 Readout Type ....................... 52 3.7.7 Marker Couple ...................... 53 3.7.8 Marker Lines ......................54 3.7.9 Marker Table ......................54 3.7.10 Marker -> ......................55 3.7.11 Marker Fn ......................57 3.7.12 Peak Search ......................60 ..........................
Page 25 4.4.1 Ref Level ......................111 4.4.2 Attenuator ......................112 4.4.3 RF Preamp ......................113 4.4.4 Scale ........................113 4.4.5 Unit........................114 ........................115 RIGGER 4.5.1 Free Run ......................115 4.5.2 PvT........................115 4.5.3 External ....................... 116 4.5.4 FMT........................117 ........................119 RACE 4.6.1 Select Trace ......................
Page 26 5.1.1 Settings ....................... 142 5.1.2 Demod ........................ 143 5.1.3 Filter ........................147 5.1.4 Burst/sync Search ....................149 5.1.5 BERT ........................153 (AMA) ..............154 NALOG ODULATION NALYSIS 5.2.1 Demod Type ....................... 155 5.2.2 IFBW ........................155 5.2.3 EqLPF ......................... 156 5.2.4 Average.......................
Page 27 5.8.4 Trace Display and Layout （） ..............170 5.8.5 Select Trace ......................170 5.8.6 Num of Traces ....................171 5.8.7 Data ........................171 5.8.8 Format ........................ 171 5.8.9 Eye Length ......................173 5.8.10 Symbol Table ...................... 173 ........................173 ARKER 5.9.1 Select Marker &...
Page 28 7.2.6 Reset&Clear ....................... 189 ......................190 LIGNMENTS ......................... 191 ........................191 ISPLAY ........................192 OWER ....................... 193 7.7.1 Screen Test ......................193 7.7.2 Keyboard Test ..................... 193 7.7.3 LCD Test ......................193 7.7.4 Touch Test ......................193 REMOTE CONTROL ....................194 ..............
Page 29 10.2 ....................225 ROUBLESHOOTING User Manual...
Page 31: Quick Start
If the instrument is found to be damaged, defective or fails in electrical or mechanical tests, please contact SIGLENT. Check the accessories Please check the accessories according to the packing list in the box. If the accessories are incomplete or damaged, please contact your SIGLENT sales representative. User Manual...
Page 32: Preparing For Use
Preparing for Use 1.2.1 Appearance and Dimension Adjust the supporting legs properly to use them as stands to tilt the analyzer upwards for stable placement as well as easier operation and observation of the instrument display. Unit:mm Figure 1-1 Front and lateral View 1.2.2 Connect to AC Power Supply The spectrum analyzer accepts 100-240V, 50/60Hz or 100-120V 400Hz AC power supply.
Page 33: Front Panel
Long press: To Stand by status without current state saved Function Keys Function and control input The analyzer can serve as a “host” device to connect USB USB Host memory, USB mouse and keyboard, SIGLENT USB-GPIB adaptor, etc 2.92 mm male connector, compatable with 2.92mm/3.5mm/SMA RF Input connector mechanically...
Page 34: Rear Panel
Rear Panel 9 10 11 12 Figure 1-4 Rear Panel Table 1-2 Rear Panel Name Description Pull up the handle vertically for easy carrying of the instrument. Handle When you do not need the handle, press it down.。 Safety If needed, you can use a security lock(purchased separately) to lock Lock Hole the analyzer to a desired location.
Page 35 Through this interface, the analyzer can be connected to PC for Device remote control. Output the LCD screen display content of the analyzer and connect HDMI it to the external monitor through HDMI cable for synchronous display. 3.5 mm audio cable jack, which can be externally connected with Audio headphones or speakers to monitor the audio demodulation output of modulated signals.
Page 36: User Interface
Figure 1-5 User Interface of spectrum analyzer mode Table 1-3 Spectrum Analyzer Mode User Interface Name Description SIGLENT SIGLENT logo Indicate the current working mode and measurement Mode/Measure function of the analyzer, and click to switch, such as spectrum analysis mode, real-time spectrum mode, etc.
Page 37 Indicate and control the main sweep parameters, such as Sweep Parameter frequency, resolution, scanning time, etc. Menu Complete the parameter setting of the analyzer. Control the opening and closing of the menu area. After Menu Switch closing, a larger measurement result area can be displayed. Indicates and controls the connection status of LAN, USB Interface Status memory and other devices.
Page 38: Touch Screen And Mouse Operation
Touch screen and mouse operation The analyzer provides a 12.1 inch multi-touch screen and supports various gesture operations including: ◆ Press or click on the upper-right-corner of the screen to enter the main menu ◆ Swipe up and down or left and right in the waveform area to change the X-axis center coordinate or Y-axis reference level ◆...
Page 39: Firmware Operation
Firmware Upgrade Follow this procedure to update the instrument firmware: Download the firmware package from an official SIGLENT website. Extract and copy the .ADS file into the root directory of an USB stick. Plug the USB stick into the USB Host connector. Press System > “System”-> “Update”; find the .ADS file in USB stick.
Page 40: 1.10 Remote Control
For more details, refer to the ‘Programming Guide’ or contact your nearest SIGLENT office. 1.11 Service and Support SIGLENT warrants that the products that it manufactures and sells will be free from defects in materials and workmanship for a period of three years (accessories for a period of one year) from the date of shipment from an authorized Siglent distributor.
Page 41: Mode & Measurement
2 Mode & Measurement The analyzer operates in multiple operating modes, each of which contains several measurements： ⚫ Spectrum Analyzer Mode(GPSA)： Swept Spectrum Analyzer（Swept SA） Channel Power（CH Power） Adjacent Channel Power Ratio（ACPR） Occupied BW（OBW） T-Power（T-Power） Third Order Intercept（TOI） Spectrum Monitor（Spectrum Monitor） Carrier Noise Ratio（CNR）...
Page 42 The analyzer supports the creation of multiple independent modes / measurements, but only one of them can be activated at the same time. At this time, other measurements enter the background. Wait until the next activation to restore the state before switching The entry of the mode / measurement switching window also represents the currently running mode / measurement Mode selection...
Page 43: Spectrum Analyzer Mode
3 Spectrum Analyzer Mode The ‘Spectrum Analyzer’ mode is the default mode of the analyzer. Frequency & Span 3.1.1 Frequency & Span Set the frequency-related parameters and functions of the analyzer. The sweep will restart every time the frequency parameters are modified. The frequency range of a channel can be expressed by these parameters: Start Frequency, Center Frequency, Stop Frequency and Span.
Page 44 Command Format [:SENSe]:FREQuency:STOP [:SENSe]:FREQuency:STOP? Instruction Sets the stop frequency of the spectrum analyzer. Gets the stop frequency. Parameter Type Float, unit: Hz, kHz, MHz, GHz Parameter 100 Hz ~ 28 GHz Range Zero Span: 0 ~ 28 GHz Return Float, unit: Hz Example :FREQuency:STOP 1.0 GHz Command Format...
Page 45: Axis Scale
Command Format [:SENSe]:FREQuency:SPAN:PREVious Instruction Sets the frequency span to the previous span setting. Example :FREQuency:SPAN:PREVious Command Format [:SENSe]:FREQuency:SPAN:HALF Instruction Sets the frequency span to half of the current span setting. Example :FREQuency:SPAN:HALF Command Format [:SENSe]:FREQuency:SPAN:DOUBle Instruction Sets the frequency span to double the current span setting. Example :FREQuency:SPAN:DOUBle 3.1.2...
Page 46: Freq Step
Command Format [:SENSe]:FREQuency:OFFSet [:SENSe]:FREQuency:OFFSet? Instruction Sets the frequency offset of the spectrum analyzer. Gets the frequency offset. Parameter Type Float, unit: Hz, kHz, MHz, GHz Parameter Range -100 GHz ~ 100 GHz Return Float, unit: Hz Example :FREQuency:OFFSet 1 GHz 3.1.4 Freq Step Setting the value of Freq Step will change the direction key step of center frequency, start...
Page 47: Signal Track
3.1.5 Signal Track Turn on or off the signal tracking function. It is used to track the signal whose frequency is unstable and the instantaneous change of the amplitude is less than 3 dB. By marking cursor 1 on the measured signal, the change of the measured signal can be tracked and measured all the time.
Page 48: Auto Tune
Command Format :CALCulate:MARKer:TRCKing[:STATe] OFF|ON|0|1 :CALCulate:MARKer:TRCKing[:STATe]? Instruction Sets the signal track state Gets the signal track state Parameter Type Boolean Parameter Range OFF|ON|0|1 Return Example :CALCulate:MARKer:TRCKing ON 3.1.6 Auto Tune Automatically search the signal in the full frequency band and adjust the frequency and amplitude parameters to the best state.
Page 49: Video Bandwidth
analyzer is in Auto mode). ⚫ Generally, the frequency resolution ability is affected by RBW, RBW Filter shape factor, LO Phase noise, and LO Residual FM. ⚫ RBW varies with the span (non-zero span) in Auto RBW mode. ⚫ Under EMI filter, RBW can only be set to 200 Hz, 9 kHz, 120 kHz and 1 MHz with a 6dB shape factor.
Page 50: V/R Ratio
Command Format [:SENSe]:BWIDth:VIDeo [:SENSe]:BWIDth:VIDeo? Instruction Specifies the video bandwidth. Gets the video bandwidth. Parameter Type Discrete Parameter Range 1Hz、3Hz、10 Hz、30 Hz、100 Hz、300 Hz、1 kHz、3 kHz、10 kHz、30 kHz、 100 kHz、300 kHz、1 MHz、3 MHz、10 MHz Return Float, unit: Hz Example :BWIDth:VIDeo 10 kHz Command Format [:SENSe]:BWIDth:VIDeo:AUTO OFF|ON|0|1 [:SENSe]:BWIDth:VIDeo:AUTO?
Page 51: Filter Type
3.2.4 Filter Type EMI filter according to CISPR16 standard. Different from ordinary RBW filter, EMI filter support -6dB bandwidth. Support bandwidth 200Hz, 9kHz, 120kHz, 1MHz. Command Format [:SENSe]:FILTer:TYPE EMI|GAUSS [:SENSe]:FILTer:TYPE? Instruction Sets filter type Gets filter type Parameter Type Enumeration Parameter Range EMI|GAUSS Return...
Page 52: Sweep Type Rules
Gets sweep mode. Parameter Type Enumeration Parameter Range AUTO|FFT|SWEep Return Enumeration Example :SWEep:MODE SWEep Command Format [:SENSe]:SWEep:MODE AUTO|FFT|SWEep [:SENSe]:SWEep:MODE? Instruction Sets sweep mode auto state. Gets sweep mode auto state. Parameter Type Boolean Parameter Range OFF|ON|0|1 Return Example :SWEep:MODE AUTO 1 3.3.2 Sweep Type Rules Speed first.
Page 53: Sweep Time & Sweep Time Rules
sweep time, and increase the time of data processing and remote access to data, and reduce the response rate. Under the influence of the scheme, when the sweep type is FFT, the sweep points cannot remain effective all the time, and the actual output points may be less than the sweep points in some states.
Page 54 Users can also manually set the sweep time based on actual requirements.But it needs to be satisfied: = = When Span>0: When Span=0: In general, the manual sweep time should not be longer than the automatic sweep time in this condition.
Page 55: Sweep Time Estimate
3.3.5 Sweep Time Estimate The estimated sweep time represents the time actually consumed by each sweep, including data sampling time (sweep time) and related scheduling time. The estimated sweep time cannot be modified。 3.3.6 Sweep/Measure Sweep/Measure Single/Continue controls analyzer to perform single or continuous sweep/measure, Restart Restart the current sweep or measure.
Page 56: Amplitude
Amplitude Set the amplitude parameters of the analyzer. Through modifying these parameters, signals under measurement can be displayed in a proper mode for easier observation and minimum error. Any change of Ref Level, Attenuator Value, Preamp mode and Ref Offset will restart sweep. 3.4.1 Ref Level Set the maximum power or voltage that can be currently displayed in the trace window.
Page 57: Rf Preamp
Input attenuation can be set up to auto or manual mode. Auto mode: the attenuation value is automatically adjusted according to the state of ⚫ preamplifier and the current reference level. ⚫ The maximum input attenuation can be set to 31 dB. When the set parameters do not meet the above formula, you can adjust the reference level.
Page 58: Y Axis Unit
Parameter Type Boolean Parameter Range OFF|ON|0|1 Return Example :POWer:GAIN ON 3.4.4 Y Axis Unit Sets the display unit of magnitude. Command format :UNIT:POWer DBM|DBMV|DBUV|V|W :UNIT:POWer? Instructions Sets/gets the display unit of magnitude Parameter Type Enumeration Parameter Range DBM|DBMV|DBUV|DBUA|V|W Return Enumeration：DBM|DBMV|DBUV|V|W Example :UNIT:POWer DBMV 3.4.5...
Page 59: Ref Offset
Where, R denotes the reference impedance. The default value is 50Ω and can be adjusted by pressing “Correction -> RF input”. The “75 Ω” impedance is just a numeric value, not a real impedance. Setting the RF input to 75 Ω will not change the actual input impedance. A 75 Ω feed-through adapter is required to match 75 Ω...
Page 60: Trigger
Command format :DISPlay:WINDow:TRACe:Y:SCALe:RLEVel:OFFSet :DISPlay:WINDow:TRACe:Y:SCALe:RLEVel:OFFSet? Instructions Sets/gets the frequency offset Parameter Type Float Parameter Range -100 dB~100 dB Return Float，unitdB Example :DISPlay:WINDow:TRACe:Y:SCALe:RLEVel:OFFSet 2 Trigger The analyzer provides a variety of trigger functions, users can choose from the trigger menu. 3.5.1 Trigger Source The analyzer provides a variety of trigger sources to suit different trigger requirements.
Page 61: Trigger Level
synchronization Src. You can synchronize periodic signals with external events (using periodic synchronization Src) to get closer to a reliable trigger signal. If the synchronization source is not selected (off state), the internal timer will not synchronize with any external timed events. Command format :TRIGger[:SEQuence]:SOURce :TRIGger[:SEQuence]:SOURce?
Page 62: Trigger Delay
Command format :TRIGger[:SEQuence]: {type}:SLOPe :TRIGger[:SEQuence]: {type}:SLOPe? Instructions sets the trigger edge. gets the trigger edge. {type}: " VIDeo ", " EXTernal " Parameter Type Enumeration Parameter Range "POS", "NEG" Return "POS", "NEG" Example :TRIGger: EXTernal:SLOPe :TRIGger: VIDeo:SLOPe? 3.5.4 Trigger Delay When scanning is at zero span, negative delay can be set .
Page 63: Zero Span Trigger Delay Compensation (External Trigger Only)
3.5.5 Zero Span Trigger Delay Compensation (external trigger only) In normal cases, after the trigger is generated, the data is displayed and the data is triggered at the same time. However, the processing time of the trigger path and the data path is different. As a result, the data displayed at the trigger time is the previous data.
Page 64: Reset Time Offset Display
Command format :TRIGger[:SEQuence]:FRAMe:OFFSet :TRIGger[:SEQuence]:FRAMe:OFFSet? Instructions Set/Query Period Trigger period offset Parameter Type Float Parameter Range 0s~10s Return Float Example :TRIGger:FRAMe:OFFSet 1s 3.5.8 Reset Time Offset Display Reset the display of cycle trigger time offset. Command format :TRIGger[:SEQuence]:FRAMe:OFFSet:DISPlay:RESet Instructions Reset Period trigger offset return to zero Example :TRIGger:FRAMe:OFFSet:DISPlay:RESet 3.5.9...
Page 65: Gate Source
Command format :TRIGger[:SEQuence]:FRAMe:SYNC :TRIGger[:SEQuence]:FRAMe:SYNC? Instructions Set/Query the type of periodic synchronization Parameter Type Enumeration Parameter Range "OFF", "EXT" Return "OFF", "EXT" Example :TRIGger:FRAMe:SYNC EXT 3.5.10 Gate Source Select a gate source for gate measurement. The optional sources are external source and periodic source.
Page 66 Gate On 3.5.11.1 Turn on or off the gate function. When this function is enabled, the gate settings view is closed Command format [:SENSe]:SWEep:EGATe[:STATe] [:SENSe]:SWEep:EGATe[:STATe]? Instructions Set or query the gate switch Parameter Type Boolean Parameter Range Return Example :SWEep:EGATe 1 Gate Method 3.5.11.2 Configure the gate method.
Page 67 detects the trigger of the gate source at the same time. After the trigger of the gate source, the gate signal is determined according to the gate delay and the gate width. When the gate signal is low, the output data is a constant value; when the gate signal is high, the spectrum swept at this time is output.
Page 68 Command format [:SENSe]:SWEep:EGATe:DELay [:SENSe]:SWEep:EGATe:DELay? Instructions Set or query the gate delay Parameter Type Float Parameter Range Swept：8.906us~25s Zero span：1.894us~25s Return Float Example SWEep:EGATe:DELay 0.005 Gate View 3.5.11.5 When Turn on this view: ⚫ Disable the gate on/off and the gate function. ⚫...
Page 69: Trace
Return Float Example :SWEep:EGATe:VIEW:STARt 1s Command format [:SENSe]:SWEep:EGATe:TIME [:SENSe]:SWEep:EGATe:TIME? Instructions Set/Query the gate View time Parameter Type Float Return Float Example [:SENSe]:SWEep:EGATe:TIME 1s Trace Figure 3-3 trace select The sweep signal is displayed as a trace on the screen. Command format :TRACe[1]|2|3|4|5|6 [:DATA]? Instructions Get trace data...
Page 70: Select Trace
Instructions Sets/gets the format of trace data read Parameter Type Enumeration Parameter Range ASCii Floating 32 位 REAL32| Floating 64 位 REAL Return Enumeration：ASCii|REAL| REAL32 Example :FORMat ASCii 3.6.1 Select Trace The analyzer allows for up to four traces to be displayed at the same time. Each trace has its own color (Trace A - Yellow, Trace B - Purple, Trace C - Light blue and Trace D - Green).
Page 71: Trace State
Deviation, AM NRSC, and frequency hopping or drift. Min Hold Display the minimum value from multiple sweeps for each point of the trace and update the data if a new minimum is generated in successive sweeps. View Freezes and holds the amplitude data of the selected trace. The trace data is not updated as the analyzer sweeps.
Page 72: Detect
Refreshed and displayed trace data. View The trace data will not be refreshed, and the current latest trace will be displayed in a fixed frame. Blank Trace data is no longer refreshed or displayed Background Refreshed trace data but no display. Command format :TRACe[1]|2|3|4|5|6:DISPlay[:STATe] :TRACe[1]|2|3|4|5|6:DISPlay[:STATe]?
Page 73 For each trace point, Negative Peak detector displays the minimum value of data sampled within the corresponding time interval. Sample For each trace point, Sample detector displays the transient level corresponding to the central time point of the corresponding time interval. This detector type is applicable to noise or noise-like signal.
Page 74: Math
Return Example :DETector:TRACe3:AUTO 1 :DETector:TRACe:AUTO:ALL 3.6.5 Math Set the computational method of the math trace. Output Z The Math result is denoted by the Z variable and can be displayed by trace A, B, C, or D. Input X, Y Input X, Y can be applied to trace A, B, C, or D.
Page 75: Normalize
Command format :CALCulate[:SELected]:MATH:FUNCtion :CALCulate[:SELected]:MATH:FUNCtion? Instructions Sets/gets the trace calculation type Parameter Type Enumeration Parameter Range PDIF：Power subtracting PSUM：Power up LOFF：Logarithmic deviation LDIF：Logarithmic subtraction Return Enumeration Example :CALCulate:MATH:FUNCtion PDIF Command format :TRACe[1]|2|3|4|5|6:MATH:OFFSet :TRACe[1]|2|3|4|5|6:MATH:OFFSet? Instructions Set the LOG OFFSET constant Ask for the LOG OFFSET constant Parameter Type Integer Parameter Range...
Page 76 Command format :CALCulate:NTData:STORE:REF Instructions Set normalization to save the reference trace Example :CALCulate:NTData:STORE:REF Command format :CALCulate:NTData[:STATe] OFF|ON|0|1 :CALCulate:NTData[:STATe]? Instructions Set/read switch normalization Parameter Type Boolean Parameter Range Return Example :CALCulate:NTData 1 Command format :DISPlay:WINDow:TRACe:Y[:SCALe]:NRLevel :DISPlay:WINDow:TRACe:Y[:SCALe]:NRLevel? Instructions Sets/gets the normalized reference level Parameter Type Float，unitdB Parameter Range...
Page 77: Trace Function
3.6.7 Trace Function Trace function supports the following operations on the specified trace Trace Copy Copy data from the source trace to the destination trace. After copying, the trace state of the target trace is automatically changed to view. Trace Exchange Exchange the data of the source trace with the data of the target trace.
Page 78: Marker & Peak
Marker & Peak The marker appears as a rhombic sign (as shown below) for identifying points on a trace. You can easily read the amplitude, frequency and sweep time of the marked point on the trace. ⚫ The analyzer allows for up to eight/four pairs of markers to be displayed at one time, but only one pair or a single marker is active every time.
Page 79: Marker Type
3.7.3 Marker Type Normal 3.7.3.1 One of the marker types. It is used to measure the X (Frequency or Time) and Y (Amplitude) values of a certain point on the trace. When selected, a marker with the number of the current marker (such as “...
Page 80 change by the trace and can only be changed through the menu. The fixed marker is marked with "+". After the marker selects “Delta”, the original marker will become the delta measurement marker, and the related marker of the incrementing sequence number will become the reference “fixed” marker 3.7.3.4 Turn off the marker currently selected.
Page 81: Marker Postion
Only valid when the current cursor is a differential marker Example :CALCulate:MARKer2:RESEt:DELTa 3.7.4 Marker Postion Displays and sets the position of the marker. Only the x-axis position can be set. Command format :CALCulate:MARKer[1]|2|3|4|5|6|7|8:X :CALCulate:MARKer[1]|2|3|4|5|6|7|8:X? Instructions Sets/gets the value of the marker point X axis This command takes effect only when the marker mode is not OFF：...
Page 82: Relative To
Return Float，unitdBm Example :CALCulate:MARKer1:Y? Return：-25 3.7.5 Relative To “Relative to” is used to measure the delta values of X (Frequency or Time) and Y (Amplitude) between two markers which can mark on different traces. After the marker selects “Delta”, the original marker will become the delta measurement marker, and the related marker of the incrementing sequence number will become the reference “fixed”...
Page 83: Marker Couple
Note: This type is invalid in Zero span. Time In this type, the Normal marker shows the time difference between the marker and the start of the sweep; while Delta marker and Delta Pair marker show the sweep time difference between the delta marker and reference marker.
Page 84: Marker Lines
Command format :CALCulate[:SELected]:MARKer:COUPle :CALCulate[:SELected]:MARKer:COUPle? Instructions Set/query the marker coupling switch Parameter Type Boolean Parameter Range ON|OFF|0|1 Return Example :CALCulate:MARKer:COUPle 1 :CALCulate:MARKer:COUPle? 3.7.8 Marker Lines Mark the marker with the intersection of horizontal and vertical lines, which is more convenient to query the marker position in the waveform area.
Page 85: Marker
Return Example :CALCulate:MARKer:TABLe ON 3.7.10 Marker -> M->CF 3.7.10.1 Set the center frequency of the analyzer to the frequency of the current marker. ⚫ If the Normal marker is selected, the center frequency will be set to the frequency of the current marker.
Page 86 ⚫ If the Normal marker is selected, the start frequency will be set to the frequency of the current marker. ⚫ If the Delta or Delta Pair marker is selected, the start frequency will be set to the frequency of the Delta Marker.
Page 87: Marker Fn
center frequency. Example :CALCulate:MARKer2:RLEVel ΔM->Span 3.7.10.6 Set the span of the analyzer to the frequency difference between the two markers in Delta marker type. ⚫ If the Normal marker is selected, this function is invalid. ⚫ The function is invalid in Zero span. Command format :CALCulate:MARKer[1]|2|3|4|5|6|7|8:DELTa[:SET]:SPAN Instructions...
Page 88 Instructions Set/Get marker function Parameter Type Enumeration Parameter Range OFF：normal NOISe：noisy marker NDB：N dB marker Return Enumeration: OFF|NOISe|NDB Example :CALCulate:MARK1:FUNCtion NOISe N dB BW 3.7.11.1 Enable the N dB BW measurement or set the value of N dB. The N dB BW denotes the frequency difference between two points that are located on both sides of the current marker and with N dB fall (N Less than or equal to 0) or rise (N>0) in amplitude as shown in the figure on the next page.
Page 89 Parameter Type Float Parameter Range -100 dB ~ 100 dB Return Float Example :CALCulate:MARK1:BANDwidth:NDB 10 DB Command format :CALCulate:MARKer[1]|2|3|4|5|6|7|8:BANDwidth:RESult? Instructions Result of setting/reading N dB bandwidth Return Float Example :CALCulate:MARK1:BANDwidth:RESult? Freq Counter 3.7.11.2 Turn on or off the frequency counter. The frequency readout is accuracy is up to 0.01 Hz. ⚫...
Page 90: Peak Search
Normal type automatically; then measure the average noise level at the marked point and normalize this value to 1 Hz bandwidth. During this process, certain compensation is always made based on the detection and trace types. The measurement will be more precise if RMS Avg or Sample detection type is used.
Page 91 Command format :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MAXimum Instructions Marker searches for peaks and marks them with the specified marker (If peak-to-peak value is on, peak-to-peak value search is carried out; otherwise, single peak value search is carried out, refer to the command:CALCulate:MARKer[1]|2|3|4|5|6|7|8:PTPeak:STATe Search criteria include peak type, absolute threshold, and relative offset :CALCulate:MARKer:PEAK:SEARch:MODE :CALCulate:MARKer:PEAK:THReshold :CALCulate:MARKer:PEAK:EXCursion）...
Page 92 Command format :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MAXimum[:SET]:CENTer Execute peak search and set the center frequency of the analyzer to the Instructions frequency of the peak Example :CALCulate:MARKer1:MAXimum:CENTer Peak Config 3.7.12.2 Define the conditions of peak search for various peak searches. A real peak should meet the requirements of both the “Peak Threshold”...
Page 93 :CALCulate:MARKer:PEAK:EXCursion? Instructions Sets/gets a relative threshold for the peak search criteria Parameter Type Float，unitdB Parameter Range 0 ~ 200.0 dB Return Float，unitdB Example :CALCulate:MARKer:PEAK:EXCursion 10 Command format :CALCulate:MARKer:PEAK:EXCursion:STATe :CALCulate:MARKer:PEAK:EXCursion:STATe? Instructions Set and obtain the relative threshold switch Parameter Type Boolean Parameter Range OFF|ON|0|1 Return...
Page 94 Instructions Set/Query the switch of the peak value table Parameter Type Boolean Parameter Range ON|OFF|0|1 Return Example :CALCulate:MARKer:PEAK:TABLe ON Command format :CALCulate:PEAK:TABLe? Instructions Get peak table data Return String Example :CALCulate:PEAK:TABLe? Sort Order 3.7.12.5 Sort all signals in the peak table by the specific order. Sort order based on the frequency / time(zero span)、ampt or delta to limit.
Page 95: Limit
Instructions Peak sorting based on limit selection Parameter Type Integer Parameter Range Return Example :CALCulate:MARKer:PEAK:TABLe:DTLimit 5 :CALCulate:MARKer:PEAK:TABLe:DTLimit? Command format :CALCulate:MARKer:PEAK:TABLe:DTLimit:STATe 0|1 :CALCulate:MARKer:PEAK:TABLe:DTLimit:STATe? Instructions Set/Query the switch of the peak value table Parameter Type Boolean Parameter Range ON|OFF|0|1 Return Example :CALCulate:MARKer:PEAK:TABLe:DTLimit:STATe ON Limit The analyzer supports Pass/Fail test function.
Page 96: Limit Margin
3.8.3 Limit Margin Set the margin for selected limit. When trace is between limit and margin, it will be displayed as Fail Margin. Command format :CALCulate:LLINe[1]|2|3|4|5|6:MARGin :CALCulate:LLINe[1]|2|3|4|5|6:MARGin? Instructions Sets/gets the limit margin value Parameter Type Float Parameter Range -100 dB ~ 100dB Return Float Example...
Page 97 User Manual...
Page 98: Limit Edit
3.8.5 Limit Edit Edit the properties of slected limit. Figure 3-5 limit edit Table 3-1 Limit1 Edit Menu Function Explanation Type Select upper or lower limit type. The default value is Upper. Mode Select limit line or limit point. The default value is Line. Set the number of the point to be edited if you selected the point type, and the range is 1 ~ 100.
Page 99 Command format :CALCulate:LLINe[1]|2|3|4|5|6:Offset:X :CALCulate:LLINe[1]|2|3|4|5|6:Offset:X? Instructions Set the limit point template frequency offset Gets the limit point template frequency offset Parameter Type Float Parameter Range 0 ~ 26.5G Return Float Example :CALCulate:LLINe[1]|2|3|4|5|6:Offset:X 1MHz Command format :CALCulate:LLINe[1]|2|3|4|5|6:Offset:Y :CALCulate:LLINe[1]|2|3|4|5|6:Offset:Y? Instructions Sets the limit point template amplitude offset Gets the limiter template amplitude offset Parameter Type Float...
Page 100 val2：Ampl：Float Parameter Range val1：related with Span val2：-400 dBm~330 dBm Example :CALCulate:LLINe1:ADD 100,-20 :CALCulate:LLINe2:POINt:DELete 2 Command format :CALCulate:LLINe[1]|2|3|4|5|6:DELete :CALCulate:LLINe:ALL:DELete Instructions Delete specified restrictions Delete all restrictions Example :CALCulate:LLINe1:DELete :CALCulate:LLINe:ALL:DELete Command format :CALCulate:LLINe[1]|2|3|4|5|6:TRACe :CALCulate:LLINe[1]|2|3|4|5|6:TRACe? Instructions Select the limit trace Parameter Type Integer Parameter Range Return Example...
Page 101 Command format :CALCulate:LLINe[1]|2|3|4|5|6:AMPLitude:INTerpolate:TYPE :CALCulate:LLINe[1]|2|3|4|5|6:AMPLitude:INTerpolate:TYPE? Instructions Set or query the range difference type Parameter Type Enumeration Parameter Range LOG|LIN Return LOG|LIN Example :CALCulate:LLINe1: AMPLitude:INTerpolate:TYPE LOG Command format :CALCulate:LLINe[1]|2|3|4|5|6: AMPLitude:CMODe :CALCulate:LLINe[1]|2|3|4|5|6: AMPLitude:CMODe? Instructions Set or query the amplitude reference type Parameter Type Enumeration Parameter Range FIXed|RELAtive...
Page 102: Limit Test
3.8.6 Limit Test Enable or disable the limit test function. Figure 3-6 test results Command format :CALCulate:LLINe:TEST :CALCulate:LLINe:TEST? Instructions Sets/gets the status of the test switch Parameter Type Boolean Parameter Range OFF|ON|0|1 Return Example :CALCulate:LLINe:TEST 1 Command format :CALCulate:LLINe[1]|2|3|4|5|6:FAIL? Instructions Query limit test results.
Page 103 Buzzer Turn on or off the buzzer. When the buzzer is on, it beeps when the test result is “Fail”. Command format :CALCulate:LLINe:CONTrol:BEEP :CALCulate:LLINe:CONTrol:BEEP? Instructions Sets/gets the restricted buzzer Parameter Type Boolean Parameter Range OFF|ON|0|1 Return Example :CALCulate:LLINe:CONTrol:BEEP OFF Command format :CALCulate:LLINe:FAIL:STOP :CALCulate:LLINe:FAIL:STOP? Instructions...
Page 104: Meas & Meas Setup
Meas & Meas Setup Provide optional measurement functions. When activated, the screen will be divided into two parts. The above part is the measure screen which displays traces, and the other part is used to display measurement results. 3.9.1 Swept SA The Swept SA measurement lets you perform “traditional”...
Page 105 In this Average type, all filtering and averaging processes work on the voltage of the envelope of the signal. This scale is suitable for observing rise and fall behavior of AM or pulse-modulated signals such as radar and TDMA transmitters. Command format [:SENSe]:AVERage:TYPE LOGPower|POWer|VOLTage [:SENSe]:AVERage:TYPE?
Page 106 Command format [:SENSe]:AVERage:TRACe[1]|2|3|4|5|6? [:SENSe]:AVERage:TRACe[1]|2|3|4|5|6:CLEar Instructions The current average number of times the trace has been obtained Restart average Example :AVERage:TRACe2 ? :AVERage:TRACe2:CLEar Tune & Radio 3.9.1.3 ⚫ Demod(AM/FM) Sets the demodulation type of AM,FM or OFF demod. Default setting is OFF demod. When AM(or FM) demodulation is turned on, the system automatically opens a cursor to position it at the center frequency, and perform AM(or FM) demodulation for this frequency point.
Page 107 Command format [:SENSe]:DEMod:EPHone OFF|ON|0|1 [:SENSe]:DEMod:EPHone? Instructions Switch the headset Parameter type Boolean Parameter Range OFF|ON|0|1 Return Example :DEMod:EPHone ON Command format [:SENSe]:DEMod:VOLume [:SENSe]:DEMod:VOLume? Instructions Adjust the volume Parameter type Integer Parameter Range 0 ~ 10 Return Integer Example :DEMod:VOLume 10 Command format [:SENSe]:DEMod:TIME [:SENSe]:DEMod:TIME?
Page 108 Command format :COUPle:ALL Instructions Automatic coupling Example :COUPle:ALL Display line 3.9.1.5 The amplitude line can be used as a reference for the amplitude readout or as a threshold condition for the peak display in the peak table. The frequency line can be used as a reference for frequency readout. Command format :DISPlay:WINDow:TRACe:Y:DLINe :DISPlay:WINDow:TRACe:Y:DLINe?
Page 109 Command format :DISPlay:WINDow:TRACe:X:FLINe:STATe :DISPlay:WINDow:TRACe:X:FLINe:STATe? Instructions Set/get frequency display line automatically Parameter type Boolean Parameter Range OFF|ON|0|1 Return Example :DISPlay:WINDow:TRACe:X:FLINe:STATe 1 Gloabl 3.9.1.6 The global center frequency causes the current center frequency to act on other measurements/swep. Command format :INSTrument:COUPle:FREQuency:CENTer :INSTrument:COUPle:FREQuency:CENTer? Instructions Enable/disable the global center frequency Parameter Type...
Page 110: Channel Power
3.9.2 Channel Power Measure the power and power density within the specified channel bandwidth. When this function is enabled, the span and resolution bandwidth are automatically adjusted to smaller values. Select Channel Power and press Meas Setup to set the corresponding parameters. Figure 3-8 Channel Power Measurement Results: Channel power and power spectral density.
Page 111 Average Mode 3.9.2.1 Select the type of control used for the averaging function. This determines the average operation after the specified number of data acquisitions (average count) has been reached. Options include: Exponen ： tialr The measure average operation continuously calculates a weighted average for each index using a specified number of averages.
Page 112 PSD Unit 3.9.2.3 Select power spectral density unit, optional dBm/Hz、dBm/MHz. Command format :UNIT:CHPower:POWer:PSD :UNIT:CHPower:POWer:PSD? Instructions Select the power spectral density unit Parameter type Enumeration Parameter Range DBMHZ|DBMMHZ Return DBMHZ|DBMMHZ Example :UNIT:CHPower:POWer:PSD DBMHZ :UNIT:CHPower:POWer:PSD? User Manual...
Page 113: Acpr
3.9.4 ACPR Measure the power of the main channel and adjacent channels as well as the power difference between the main channel and each of the adjacent channels. When this function is enabled, the span and resolution bandwidth of the analyzer are adjusted to smaller values automatically. Select ACPR and press Meas Setup to set the corresponding parameters.
Page 114 Return Float，unitdBm Example :MEASure:ACPRatio:ACPower:MAIN? Command format :MEASure:ACPRatio:LOWer? :MEASure:ACPRatio:UPPer? Instructions Obtain the low frequency/high frequency adjacent channel power ratio Return Float，unitdBm Example :MEASure:ACPRatio:LOWer? Average Mode 3.9.4.1 Select the type of control used for the averaging function. This determines the average operation after the specified number of data acquisitions (average count) has been reached.
Page 115 Instructions Set the bandwidth of the adjacent channel Obtain the bandwidth of the adjacent channel Parameter type Float，unitHz、kHz、MHz、GHz Parameter Range related with Span Return Float，unitHz Example :ACPRatio:OFFSet:BWIDth 20 MHz Adjacent Chn 3.9.4.3 Set the frequency width of the adjacent channels. The adjacent channel bandwidth is related to the main channel bandwidth.
Page 116 Example :ACPRatio:OFFSet 20 MHz PSD Unit 3.9.4.5 Select power spectral density unit, optional is dBm/Hz、dBm/MHz. Command format :UNIT: ACPRatio:POWer:PSD :UNIT: ACPRatio:POWer:PSD? Instructions Select the power spectral density unit Parameter Type Enumeration Parameter Range DBMHZ|DBMMHZ Return DBMHZ|DBMMHZ Example :UNIT: ACPRatio:POWer:PSD DBMHZ :UNIT: ACPRatio:POWer:PSD? User Manual...
Page 117: Obw
3.9.5 Integrates the power within the whole span and calculates the bandwidth occupied by this power according to the specified power ratio. The OBW function also indicates the difference (namely “Transmit Freq Error”) between the center frequency of the channel under measurement and the center frequency of the analyzer.
Page 118 Command format :MEASure:OBWidth:OBWidth:FERRor? Instructions Get transmission frequency error Return Float，unitHz Example :MEASure:OBWidth:OBWidth:FERRor? Average Mode 3.9.5.1 Select the type of control used for the averaging function. This determines the average operation after the specified number of data acquisitions (average count) has been reached. Options include: Exponen ：...
Page 119 Return Float Example :OBW:PERCent 50 Power Reference 3.9.5.3 Select the power reference type. ⚫ Total Power: The measurement result will display the power in the entire span. ⚫ OBW power: The measurement result will display the occupied power. Command format [:SENSe]:OBWidth:PREFerence [:SENSe]:OBWidth:PREFerence? Instructions...
Page 120 Power integration mode 3.9.5.5 Set the power integration mode to Normal or From-Center. Command format [:SENSe]:OBWidth:INTegration[:METHod] [:SENSe]:OBWidth:INTegration[:METHod]? Instructions Set integral type Get integral type Parameter type Enumeration NORMal|ICENter Return Enumeration Example :OBWidth:INTegration ICENter User Manual...
Page 121: T-Power
3.9.6 T-Power The system enters Zero span and calculates the power within the time domain. The types of powers available include Peak, Average and RMS. Select T-Power and press Meas Setup to set the corresponding parameters. Figure 3-11 T-Power Measurement Results: T-Power T-Power: The power of the signal from the start line to the stop line.
Page 122 The measure average operation continuously calculates a weighted average for each index using a specified number of averages. Repeat： Each time the specified average is reached, the measurement resets the average counter. Command format [:SENSe]: TPOWer:AVERage:TCONtrol [:SENSe]: TPOWer:AVERage:TCONtrol? Instructions Sets/gets average mode Parameter Type Enumeration Parameter Range...
Page 123 Parameter Range 0 ~ 1000 s Return Float，time unit：s Example :TPOWer:LLIMit 100 Stop line 3.9.6.4 Set the right margin (in time unit) of T-Power measurement. The data calculated under this measurement is between the start line and stop line. Command format [:SENSe]:TPOWer:RLIMit [:SENSe]:TPOWer:RLIMit? Instructions...
Page 124: Toi
3.9.7 Automatic measurement of IP3 (Third order Intercept Point), including the power of fundamental wave and the Third order in the power, and calculate the adjustable Intercept Point. Figure 3-12 TOI TOI is an automatic measurement. There are no user controlled parameters. Command format :MEASure:TOI? Instructions...
Page 125 Command format :MEASure:TOI:IP3? Instructions Read the smaller value in the third-order intermodulation cutoff (Intercept) of low frequency TOI(Lower 3rd) and high frequency TOI(Upper 3rd) Return Float Example :MEASure:TOI:IP3? Average Mode 3.9.7.1 Select the type of control used for the averaging function. This determines the average operation after the specified number of data acquisitions (average count) has been reached.
Page 126: Spectrum Monitor
3.9.8 Spectrum Monitor Display the power of the swept spectrum as an intensity color map commonly referred to as a waterfall chart. Select Spectrum Monitor and press Meas Setup to set the corresponding parameters. Figure 3-13 Spectrum Monitor Display the power of spectrum of successive scans as a color map. Also call a waterfall chart. Measurement Parameter: Spectrogram, Restart.
Page 127 Command format [:SENSe]:SPECtrogram:RESTart Instructions Spectrum rescanning Parameter type Boolean Parameter Range Return Example [:SENSe]:SPECtrogram:RESTart Average Mode 3.9.8.1 Select the type of control used for the averaging function. This determines the average operation after the specified number of data acquisitions (average count) has been reached. Options include: Exponen ：...
Page 128: Cnr
3.9.9 Measure the power of the carrier and noise of the specified bandwidth and their ratio. Select CNR and press Meas Setup to set the corresponding parameters. Figure 3-14 CNR Measurement Results: C/N, Carrier Power, Noise Power. C/N: the ratio of Carrier Power to Noise Power. Carrier Power: the total power of the carrier bandwidth.
Page 129 Average Mode 3.9.9.1 Select the type of control used for the averaging function. This determines the average operation after the specified number of data acquisitions (average count) has been reached. Options include: Exponen ： tialr The measure average operation continuously calculates a weighted average for each index using a specified number of averages.
Page 130 Noise BW 3.9.9.3 Set the bandwidth of the noise to be measured. Command format [:SENSe]:CNRatio:BANDwidth:NOISe [:SENSe]:CNRatio:BANDwidth:NOISe? Instructions Sets/gets bandwidth of the noise Parameter Type Float，Unit: Hz、kHz、MHz、GHz Parameter Range 100 Hz~3.2 GHz Return Float，Unit: Hz Example :ACPRatio:OFFSet:BWIDth 20 MHz Freq Offset 3.9.9.4 Set the difference between carrier center frequency and noise center frequency.
Page 131: Harmonics
3.9.10 Harmonics The harmonic power and total harmonic distortion of carrier signal are measured. The maximum measurable harmonic is 10th harmonic. The fundamental wave amplitude of carrier signal must be greater than - 50 dBm, otherwise the measurement result is invalid. Figure 3-15 Harmonics Measurement Results: 3.9.10.1...
Page 132 Return Float，unitHz Example HARMonics:FREQuency:FUNDamental 20 MHz Command format [:SENSe]:HARMonics:FREQuency:FUNDamental:AUTO [:SENSe]:HARMonics:FREQuency:FUNDamental:AUTO? Instructions Set the fundamental frequency Get the fundamental frequency Parameter type Boolean Parameter Range Return Example HARMonics:FREQuency:FUNDamental 20 MHz Freq Step 3.9.10.3 Set the harmonic step. In auto mode, the frequency of a harmonic is a multiple of the fundamental frequency.
Page 133 Harmonic Num 3.9.10.4 Set the total number of the harmonics to be measured. Command format [:SENSe]:HARMonics:NUMBer [:SENSe]:HARMonics:NUMBer? Instructions Set harmonic number Querying harmonic number Parameter Type Integer Parameter Range 2 ~ 10 Return Integer Example :HARMonics:NUMBer 5 Select Harmonic 3.9.10.5 When "All "...
Page 134: Real-Time Spectrum Analyzer Mode
4 Real-Time Spectrum Analyzer Mode This chapter introduces the function keys and menu functions of the front panel under the Real-Time Spectrum Analyzer Mode. Frequency & SPAN 4.1.1 Frequency & Span Set the frequency-related parameters and functions of the analyzer. The sweep will restart every time the frequency parameters are modified.
Page 135 Command Format [:SENSe]:FREQuency:STOP [:SENSe]:FREQuency:STOP? Instruction Sets the stop frequency of the spectrum analyzer. Gets the stop frequency. Parameter Type Float, unit: Hz, kHz, MHz, GHz Parameter Range 5kHz ~ 28 GHz Return Float, unit: Hz Example :FREQuency:STOP 1.0 GHz Command Format [:SENSe]:FREQuency:SPAN [:SENSe]:FREQuency:SPAN? Instruction...
Page 136: Freq Offset
4.1.2 Freq Offset Set the frequency offset value to illustrate the frequency conversion between the measured device and the input of the spectrum analyzer. ⚫ This parameter does not affect any hardware settings of the spectrum analyzer, but only changes the display values of center frequency, start frequency and stop frequency. ⚫...
Page 137 Command Format [:SENSe]:FREQuency:CENTer:STEP:AUTO OFF|ON|0|1 [:SENSe]:FREQuency:CENTer:STEP:AUTO? Instruction Specifies whether the step size is set automatically based on the span. Gets center frequency step mode. Parameter Type Boolean Parameter Range OFF|ON|0|1 Return Example :FREQuency:CENTer:STEP:AUTO OFF Set the RBW (Resolution Bandwidth) and filter type. Resolution Bandwidth. Set the resolution bandwidth in order to distinguish between signals which have frequency components that are near one another.
Page 138 Command Format [:SENSe]:BWIDth[:RESolution] [:SENSe]:BWIDth[:RESolution]? Instruction Specifies the resolution bandwidth. For numeric entries, all RBW types choose the nearest (arithmetically, on a linear scale, rounding up) available RBW to the value entered. Parameter Type Float, unit: Hz Parameter Range None Return Float, Unit: Hz Example :BWIDth?
Page 139: Sweep
Sweep Sets parameters about the Sweep functions, including acquisition time, sweep mode, sweep times, etc. 4.3.1 Acquisition Time Set the acquisition time of real-time spectrum analyzer within the real-time analysis span. The acquisition time can be set in “Auto” or “Manual” mode and the default is “Auto”. Command Format [:SENSe]:ACQuisition:TIME [:SENSe]:ACQuisition:TIME？...
Page 140 Numbers 4.3.2.2 Set the sweeps times for a single sweep. In single sweep mode, the system executes the specified sweeps times and the number shown on the icon in the status bar at the left of the screen varies with the process of the sweep. Continue 4.3.2.3 Set the sweep mode to “Continue”.
Page 141: Amplitude
Command Format :INITiate:Pause Instruction Pause current sweeep (pause at the end of the current sweep). Parameter Type None Parameter Range None Return None Example :INITiate:Pause Restart 4.3.2.5 Restart will clear all historical data, and restart sweeping to records new data. Command Format :INITiate[:IMMediate] Instruction...
Page 142: Attenuator
limit of the current dynamic range of the spectrum analyzer. When the energy of the signal to be measured exceeds the reference level, it may produce nonlinear distortion or even overload alarm. It is necessary to know the nature of the signal to be measured and carefully select the reference level to obtain the best measurement effect and protect the spectrometer.
Page 143: Rf Preamp
Instructions Sets/gets the attenuation value Parameter type Integer Parameter Range 0 dB ~ 51 dB Return Integer，unitdB Example :POWer:ATTenuation 10 4.4.3 RF Preamp Control the state of the internal preamplifier (PA) located in the RF input signal path. When the signal-under-measurement is small, turning on the preamplifier can reduce the displayed average noise level to aid distinguishing small signals from the noise.
Page 144: Unit
Return Float，unitdB Example :DISPlay:WINDow:TRACe:Y:PDIVision 10 dB 4.4.5 Unit The unit can be dBm, dBmV, dBuV, Volts and Watts. The default unit is dBm. The conversion between units is as follows: Volts dBm = 10lg⁡ ( × Volts dBμV = 20lg⁡ ( 1μV Volts dBmV = 20lg⁡...
Page 145: Trigger
Trigger The trigger type can be PvT, frequency template trigger (FMT), Free Run and External. Command format :TRIGger[:SEQuence]:SOURce IMMediate|PVT|EXTernal :TRIGger[:SEQuence]:SOURce? Instructions Setting the Trigger Type Get trigger type Parameter type Enumeration Parameter Range IMMediate: Free to trigger PVT: pvttrigger EXTernal:external trigger Return Enumeration：IMM| PVT |EXT Example...
Page 146: External
Example :TRIGger:LEVel:LEVel 0.5 dBm Trigger Delay 4.5.2.2 Set the trigger delay when PVT is triggered Command format :TRIGger[:SEQuence]:LEVel:DELay :TRIGger[:SEQuence]:LEVel:DELay? Instructions Set the PVT trigger delay Gets the PVT trigger delay Parameter type Float，unitks、s、ms、us、ps、ns Parameter Range 0~10s Example :TRIGger[:SEQuence]:LEVel: DELay 2 4.5.3 External In this mode, an external signal (TTL signal) is input from the [TRIGGER IN] connector at the rear...
Page 147: Fmt
Command format :TRIGger[:SEQuence]:EXTernal:DELay :TRIGger[:SEQuence]:EXTernal:DELay? Instructions Set the EXTernal trigger delay Gets the EXTernal trigger delay Parameter type Float，unitks、s、ms、us、ps、ns Parameter Range 0~10s Return Float Example :TRIGger[:SEQuence]: EXTernal: DELay 2 4.5.4 Real-time frequency template limiting allows users to limit acquisition based on specific events in the frequency domain.
Page 148 Parameter Range ON|OFF|0|1 Return Example :TRIGger:FMT:STATe on Template FMT Action 4.5.4.3 ⚫ Normal Display the fmt area on the screen after Out of fmt mask ⚫ Beep A beep is emitted after Out of fmt mask. ⚫ Stop The waveform stops refreshing after Out of fmt mask. Command format :TRIGger[:SEQuence]:FMT:ACTion NORMal|BEEPer|STOP :TRIGger[:SEQuence]:FMT:ACTion?
Page 149: Trace
Trace The sweep signal is displayed as a trace on the screen. Command format :TRACe[1]|2|3 [:DATA]? Instructions Get trace data Return String Example :TRACe:DATA? Command format :TRACe[:DATA]:SPECtrum? Instructions Obtain SPECtrum data Return String Example :TRACe: SPECtrum? Command format :TRACe[:DATA]:PVT? Instructions Obtain PVT data Return String...
Page 150: Trace State
maximum level is detected in successive sweeps. ⚫ Min Hold Display the minimum value from multiple sweeps for each point of the trace and update the data if a new minimum is generated in successive sweeps. Command format :TRACe[1]|2|3:TYPE WRITe|MAXHold|MINHold| AVERage :TRACe[1]|2|3:TYPE? Instructions Sets/gets the display type of trace...
Page 151: Detect
4.6.4 Detect The analyzer displays the sweep signal on the screen in the form of a trace. For each trace point, the analyzer always captures all the data within a specific time interval and processes (Peak, Average, etc.) the data using the detector currently selected, then it displays the processed data (a single data point) on the screen.
Page 152: Marker & Peak
Instructions Sets/Gets the trace detection type Parameter type Enumeration NEG|POS|SAMP|AVER|NORMAL Parameter Range NORMAL: standard NEGative: NEGative peak value POSitive: indicates a POSitive peak value SAMPle: SAMPle Return Enumeration：NEG|POS|SAMP|AVER|NORMAL Example :DETector:TRACe:PVTime AVERage Command format [:SENSe]:DETector:TRACe:SPECtrogram [:SENSe]:DETector:TRACe:SPECtrogram? Instructions Sets/Gets the trace detection type Parameter type Enumeration NEG|POS|SAMP|AVER|NORMAL Parameter Range...
Page 153 Command format :CALCulate:MARKer[1]|2|3|4|5|6|7|8:X :CALCulate:MARKer[1]|2|3|4|5|6|7|8:X? Instructions Sets/gets the value of the marker point X axis This command takes effect only when the marker mode is not OFF： :CALCulate:MARKer[1]|2|3|4|5|6|7|8:STATe :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MODE If the marker readout type is frequency, the parameter is frequency. When the marker readout type is time, the value is time. Reference commands::CALCulate:MARKer[1]|2|3|4|5|6|7|8:X:READout frequency ，Float，unitHz、kHz、MHz、GHz，default Hz Parameter type...
Page 154: Select Trace
4.7.2 Select Trace Select the trace to be marked by the current marker. Valid selections include A, B, C. Command format :CALCulate:MARKer[1]|2|3|4|5|6|7|8:TRACe 1|2|3|4|5|6 :CALCulate:MARKer[1]|2|3|4|5|6|7|8:TRACe? Instructions Sets/Gets the marker trace Parameter type Enumeration Parameter Range 1|2|3|4|5|6 Return Enumeration Example CALCulate:MARK:TRAC 1 4.7.3 Marker Type Marker supports 4 types: normal, differential, fixed, off.
Page 155 related marker is in the "fixed" state by default (the X-axis and Y-axis positions are fixed), but the X-axis can be adjusted by changing to the "normal" state. ⚫ The first row in the upper right corner of the trace area shows the frequency (or time) difference and amplitude difference between the two markers;...
Page 156: Relative To
4.7.4 Relative To “Relative to” is used to measure the delta values of X (Frequency or Time) and Y (Amplitude) between two markers which can mark on different traces. After the marker selects “Delta”, the original marker will become the delta measurement marker, and the related marker of the incrementing sequence number will become the reference “fixed”...
Page 157: Minimum Peak
4.7.7 Minimum Peak Searches for min peaks and marks them with specified cursors. imum Command format :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MINimum Instructions Marker searches for the minimum peak and marks it with the specified marker Example :CALCulate:MARKer4:MINimum 4.7.8 Left Peak Search for and mark the nearest peak which is located at the left side of the current peak and meets the peak search condition.
Page 158: Countinuous Peak
4.7.11 Countinuous Peak Enable or disable continuous peak search. The default is Off. When enabled, the system will always execute a peak search automatically after each sweep in order to track the signal under measurement. Command format :CALCulate:MARKer[1]|2|3|4|5|6|7|8:CPSearch[:STATe] :CALCulate:MARKer[1]|2|3|4|5|6|7|8:CPSearch[:STATe]? Instructions Enable the continuous peak search function Gets the status of the continuous peak search function switch Parameter type...
Page 159 the Delta Marker. Command format :CALCulate:MARKer[1]|2|3|4|5|6|7|8[:SET]:STARt Instructions Sets/gets the value of the marker X axis to the starting frequency, valid when the marker is on Example :CALCulate:MARKer1:STARt M->Stop Freq 4.7.12.3 Set the stop frequency of the analyzer to the frequency of the current marker. ⚫...
Page 160: Meas & Meas Setup
Meas & Meas setup The real-time spectrum analyzer Mode provides several observation window combinations, including Density, spectrum+spectrogram, spectrogram, PvT, 3D+spectrogram. Command format :DISPlay:VIEW[:SELect] {type} :DISPlay:VIEW[:SELect]? Instructions Sets the current display view. Query the current view. Parameter type Enumeration Parameter Range DENSity：Density spectrum SSPectrum：Spectrum + spectrum SPECtrogram：spectrum...
Page 161: Spectrogram
The “Density” view provides a good understanding of the frequency band and signals.Since the measurements are gap free and all signal samples are represented in the display, it is possible to see most of the signals in the band at a glance or over a short measurement time.Individual display updates combine thousands of spectra and shows the signal dynamics and unexpected behavior.
Page 162: Spectrum + Spectrogram
signal amplitude. The information area in the upper left corner of the “Spectrogram” display shows the real-time of the latest spectral data (relative to the start measurement), the total number of generated waveform frames, and the waveform display range. In the "paused" state, the user can observe the historical trace by moving display trace (D1, D2), or the historical range of the waveform data displayed in the waveform area by view start and view end.
Page 163: Pvt
The top view is spectrum which is shown as amplitude vs. frequency, and the bottom view si spectrogram which is mentioned above. The display trace (D1, D2) specified in the spectrogram is shown as amplitude vs. frequency in the spectrum. The traces in the spectrum view will refresh when modifying the positions on the y-axis of display trace (D1, D2) in the spectrogram, and when the frequency of the maker in the spectrum view is modified, the maker in the spectrogram will also move on the x-axis.
Page 164 Average | Hold Times 4.8.5.1 Average|Hold Times N, which is the counter when the trace type in Density view is "Average", "Max Hold" and "Min Hold". In a single measurement (Single), and any valid trace type is "average", "max hold" or "min hold", the sweep stops when the counter reaches N. Larger average | hold times can reduce the influence of noise or other random signals, thereby highlighting stable signal characteristics in the signal.
Page 165 Instructions Turn on or off afterglow Unlimited mode. Query the setting status of unlimited afterglow mode. Parameter type Boolean Parameter Range OFF|ON|0|1 Return Example :DISP:VIEW:DENS:PERS:INF ON Display Trace 4.8.5.3 Controls the frame number of the spectrum where traces D1 and D2 are displayed. ⚫...
Page 166 Select trace D1 or D2, D1 and D2 will be displayed in different colors. It takes effect under Spectrum, Spectrum+Spectrum, and PvT. Under Spectrum + Spectrum, PvT, the selected trace will be displayed in the foreground, and the other trace will be covered. ⚫...
Page 167 Instructions Set global CF Get global CF Parameter type Boolean Parameter Range Return Example :INSTrument:COUPle:FREQuency:CENTer 0 :INSTrument:COUPle:FREQuency:CENTer? Limit 4.8.5.6 RTSA masks allow users to limit acquisitions based on specific events in the frequency domain, this feature also only works in Density mode. The user can customize the mask data and select the frequency template mask type (upper or lower) according to actual needs, and can also set the mask action (normal, buzzer and stop), the user can define up to 6 different templates, the defined frequency template can be saved as a LIM file.
Page 168 Command format :CALCulate:LLINe[1]|2|3|4|5|6:TYPE UPPer|LOWer :CALCulate:LLINe[1]|2|3|4|5|6:TYPE? Instructions Sets/Gets the restriction type Parameter type Enumeration Parameter Range UPPer|LOWer Return Enumeration Example :CALCulate:LLINe1:TYPE LOWer Command format :CALCulate:LLINe[1]|2|3|4|5|6:Offset:X :CALCulate:LLINe[1]|2|3|4|5|6:Offset:X? Instructions Set the limit point template frequency offset Gets the limit point template frequency offset Parameter type Float Parameter Range...
Page 169 Example :CALCulate:LLINe2:DATA 100,-20,200,-25(Add two points: (100，-20) and (200，-25)） :CALC:LLINe1:DATA? Command format :CALCulate:LLINe[1]|2|3|4|5|6:ADD val1,val2 :CALCulate:LLINe[1]|2|3|4|5|6:POINt:DELete Instructions Add limit point Delete limit points val1：frequency ：Float, Parameter type val2：Ampl：Float Parameter Range val1：related with Span val2：-400 dBm~330 dBm Example :CALCulate:LLINe1:ADD 100,-20 :CALCulate:LLINe2:POINt:DELete 2 Command format :CALCulate:LLINe[1]|2|3|4|5|6:DELete :CALCulate:LLINe:ALL:DELete Instructions...
Page 170 Example :CALCulate:LLINe1:FREQuency:INTerpolate:TYPE LOG Command format :CALCulate:LLINe[1]|2|3|4|5|6:FREQuency:CMODe :CALCulate:LLINe[1]|2|3|4|5|6:FREQuency:CMODe? Instructions Set or query the frequency reference type Parameter type Enumeration Parameter Range FIXed|RELAtive Return FIXed|RELAtive Example :CALCulate:LLINe2:FREQuency:CMODe FIX Command format :CALCulate:LLINe[1]|2|3|4|5|6:AMPLitude:INTerpolate:TYPE :CALCulate:LLINe[1]|2|3|4|5|6:AMPLitude:INTerpolate:TYPE? Instructions Set or query the range difference type Parameter type Enumeration Parameter Range LOG|LIN...
Page 171 Command format :CALCulate:LLINe[1]|2|3|4|5|6:BUILd :CALCulate:LLINe[1]|2|3|4|5|6:BUILd? Instructions Fitting a trace Parameter type Integer Parameter Range Return Example :CALCulate:LLINe2: BUILd 1 :CALCulate:LLINe2: BUILd? ⚫ Template switch All templates are valid or invalid. ⚫ Template limit action Normal: Displays the restricted area on the screen after exceeding the restricted range. Beep: A beep sounds when the limit is exceeded.
Page 172: Modulation Analyzer Mode
5 Modulation Analyzer Mode MA mode includes digital modulation analysis (DMA) and analog modulation analysis (AMA). Press Mode key to select and add the expected mode to window management. Press Meas Setup key to enter the corresponding measurement parameter configuration menu.
Page 173: Demod
Parameter Range 1 ~ 1000 Return Integer Example :AVERage:COUNt 20 Statistic 5.1.1.2 Turn on the statistics function, the measurement results will display the maximum and minimum values of the statistics, turn off the statistics function, the measurement results will only display the real-time measurement value.
Page 174 Command format [:SENSe]:DDEMod:MODulation [:SENSe]:DDEMod:MODulation? Instructions Sets the digital demodulation type Gets the digital demodulation type Parameter type Enumeration Parameter Range ASK2 BPSK QPSK PSK8 DBPSK DQPSK DPSK8 OQPSK PI4DQ PI8D8 QAM16 QAM32 QAM64 QAM128 QAM256 FSK2 FSK4 FSK8 FSK16 Return Enumeration Example :DDEMod:MODulation FSK8...
Page 175 Command format :READ:DDEMod? Instructions Obtain digital demodulation results if demod type is ASK it will return: ASK err rms (% rms) ASK err peak (% pk) symbol position of ASK err peak carrier power carrier offset ASK depth If demod type is FSK it will return: 1.FSK err rms (% rms) 2.FSK err peak (% pk) 3.symbol position of FSK err peak...
Page 176 Symbol Rate 5.1.2.2 Set the analyzer symbol rate (symbols per second) to match the system (signal). The symbol rate setting is limited by the analyzer maximum bandwidth (BW_max). Command format :DDEMod[:FORMat]:SRATe :DDEMod[:FORMat]:SRATe? Instructions Sets the digital demodulation symbol rate Read digital demodulation symbol rate Parameter type Integer Parameter Range...
Page 177: Filter
Meas Interval 5.1.2.4 Set the length of digital demodulation analysis and display. Command format [:SENSe]:DDEMod[:FORMat]:RLENgth [:SENSe]:DDEMod[:FORMat]:RLENgth? Instructions Set digital demodulation measurement length Get digital demodulation measurement length Parameter type Integer Parameter Range 16 ~ 4096 Return Integer Example :DDEMod:RLENgth 200 Constelletion Setting 5.1.2.5 Edit the symbol order of constellation positions.
Page 178 HSIN Return Example :DDEMod:FILTer HSIN Ref Filter 5.1.3.2 Enable and select Ref Filter. Ref Filters that can be set include: ⚫ Sqrt Nyquist ⚫ Nyquist ⚫ Gauss ⚫ Half Sine Command format [:SENSe]:DDEMod:FILTer:REFerence [:SENSe]:DDEMod:FILTer:REFerence？ Instructions Sets the digital demodulation reference filter Query digital demodulation reference filter Parameter type Enumeration...
Page 179: Burst/Sync Search
Example :DDEMod:FILT:RLENgth 5 Alpha/BT 5.1.3.4 Sets the filter alpha characteristic value of the Sqrt Nyquist raised cosine and root raised cosine Nyquist filters used by the analyzer, or the BT value of the Gauss filter. This feature applies to Meas Ref Filter and Ref Filter. Command format [:SENSe]:DDEMod:FILTer:ABT [:SENSe]:DDEMod:FILTer:ABT?
Page 180 Burst Search 5.1.4.2 Burst search measures the burst power (pulses) in a signal and uses this to segment and isolate the signal for subsequent display and analysis.Using burst search, you can avoid the interference of invalid signals to the analysis process. Command format [:SENSe]:DDEMod:SYNC:BURSt[:STATe] [:SENSe]:DDEMod:SYNC:BURSt[:STATe]?
Page 181 Parameter type Float Parameter Range 10us~10ms Return Float Example :DDEMod:SYNC:BURSt:MINLength 0.5ms Burst Min Gap 5.1.4.5 Setting the min gap for the rising and falling edges of the burst. Represents the minimum distance (in "symbols") between adjacent bursts. The default value is 1 symbol in order to make sure that the burst search finds bursts that are very close to each other.
Page 182 Instructions Set the synchronization search switch Query the synchronization search switch Parameter type Boolean Parameter Range OFF|ON|0|1 Return Enumeration Example :DDEMod:SYNC:SWORd ON Sync Offset 5.1.4.7 Specifies the time (in symbols) between the start of the measurement data and the start of the sync word.
Page 183: Bert
5.1.5 BERT Bit error rate test function, that is, the analyzer uses the measurement result of the current demodulation analysis and the preset reference signal to compare by bit to obtain the bit error rate. Reference signals that can be preset in the editing interface and can be saved to a user profile (.sta file) and loaded.
Page 184: Analog Modulation Analysis (Ama)
Analog Modulation Analysis (AMA) Used for modulation analysis of analog signals, a series of indicators such as carrier power, modulation rate, THD can be obtained through analysis. Analog modulation analysis includes AM, FM, PM modulation. The modulation mode, IF bandwidth, and equivalent filter can be selected, and the data can be averaged.
Page 185: Demod Type
5.2.1 Demod Type Analog modulation analysis includes AM, FM, PM modulation. Command format [:SENSe]:ADEMod:STYLe [:SENSe]:ADEMod:STYLe? Instructions Sets the analog demodulation type Get analog demodulation type (cannot be queried when not analog demodulation) Parameter type Enumeration Parameter Range AM: analog AM FM: analog frequency modulation PM: Analog phase modulation Return...
Page 186: Eqlpf
5.2.3 EqLPF The EqLPF specifies the equivalent low-pass filter bandwidth of the analyzed signal. If the setting is incorrect, it will affect the accuracy of the measurement results. EqLPF is an additional low-pass filter, which can be used to measure lower the modulation frequency of the modulation signal. The bandwidth of EqLPF is fractional times that of IFBW, and there are 6 gears to choose from, namely IFBW/6, IFBW/20, IFBW/60, IFBW/200, IFBW/600 and IFBW/2000.
Page 187: Freq
Freq 5.3.1 Freq & Span In MA mode, only the center frequency can be configured. Span cannot be set and is only used to show the equivalent channel bandwidth under the current configuration. Command Format [:SENSe]:FREQuency:CENTer [:SENSe]:FREQuency:CENTer? Instruction Sets the center frequency. Gets the center frequency.
Page 188: Eqbw
5.4.1 EQBW The MA mode does not support configuring the resolution bandwidth, and only displays the equivalent resolution bandwidth. Command Format [:SENSe]:BWIDth[:RESolution]? Instruction Querys equalization BW. Parameter Type None Parameter Range None Return Float, unit: Hz Example :BWIDth? 5.4.2 Window The EQBW filter offers several different window functions that you can switch in real-time based on your measurement needs.
Page 189: Sweep
BLAC Example :DDEMod:FFT:WINDow:TYPE BLAC Sweep 5.5.1 Measure/Sweep Control (Single/Continue/Restart) Sweep/Measure: Single/Continue controls the analyzer to perform a single sweep/measurement or continuous sweep/measurement. Restart: Restart the current sweep or measurement. In particular, in the continue mode, modifying some parameters will equivalently perform a restart sweep or measurement. Command Format :INITiat[:IMMediate] Instruction...
Page 190: Trigger
Command Format ABORt Instruction This command is used to stop the current measurement. It aborts the currentmeasurement as quickly as possible, resets the sweep and trigger systems, and puts the measurement into an "idle" state. If the analyzer is set for Continuous measurement, it sets up the measurement and initiates a new data measurement sequence with a new data acquisition (sweep) taken once the trigger condition is met.
Page 191: Trigger Level
When Periodic is selected, the analyzer uses the built-in period timer signal as a trigger. The trigger event is set by the period timer parameter, which is modified by the offset and periodic sync Src. Use this trigger when there is a periodic signal but no reliable signal to trigger. You can synchronize the periodic signal to an external event (using the periodic sync Src) to get closer to a reliable trigger signal.
Page 192: Trigger Slope
5.6.3 Trigger Slope Set the external trigger and video trigger trigger polarity. The options are rising edge trigger and falling edge trigger. Command format :TRIGger: {type}:SLOPe :TRIGger: {type}:SLOPe? Instructions sets the trigger edge. gets the trigger edge. {type}: " VIDeo ", " EXTernal " Parameter type Enumeration Parameter Range...
Page 193: Zero Span Trigger Delay Compensation (External Trigger )
5.6.5 Zero Span Trigger Delay Compensation (External Trigger ) Under normal circumstances, after the trigger is generated, the displayed data and the data at the same time as the trigger are displayed, but because the processing time of the trigger path and the data path are different, the data displayed at the trigger time is the previous data.
Page 194: Reset Offset Display(Period)
5.6.8 Reset Offset Display(Period) The reset period triggers the time offset display. Modifying this parameter does not modify the absolute value of the internal offset. Command format :TRIGger:FRAMe:OFFSet:DISPlay:RESet Instructions Reset Period trigger offset return to zero Example :TRIGger:FRAMe:OFFSet:DISPlay:RESet 5.6.9 Sync Source(Period) Set the sync source.
Page 195: Auto Trigger
Command format :TRIGger:FRAMe:SYNC :TRIGger:FRAMe:SYNC? Instructions Set/Query the type of periodic synchronization Parameter type Enumeration Parameter Range "OFF", "EXT" Return "OFF", "EXT" Example :TRIGger:FRAMe:SYNC EXT 5.6.10 Auto Trigger Automatic triggering is an auxiliary triggering method used in non-Free run mode. When the user needs continuous triggering but the triggering conditions of the selected triggering type are not satisfied, automatic triggering can be used.
Page 196: Hold Off
5.6.11 Hold Off In trigger inhibition, hold represents inhibition and off represents release. Trigger hold-off can be used for other trigger modes other than Free run mode. Intuitively, trigger hold-off can be understood as the strictening of trigger conditions, that is, the occurrence of a trigger must not only satisfy the trigger condition of the selected trigger, but also satisfy the additional conditions in trigger hold-off.
Page 197: Ampt
Command format :TRIGger:HOLDoff :TRIGger:HOLDoff? Instructions Set or query the trigger holdoff time Parameter type Float Parameter Range 0~500ms Return Float Example :TRIGger:HOLDoff 0.01s Command format :TRIGger:HOLDoff:TYPE :TRIGger:HOLDoff:TYPE? Instructions Set or query the trigger holdoff type Parameter type Enumeration Parameter Range "NORMal","ABOVe","BELOw"...
Page 198: Ref Level & Scale
Command Format [:SENSe]:POWer[:RF]:ATTenuation:AUTO OFF|ON|0|1 [:SENSe]:POWer[:RF]:ATTenuation:AUTO? Instruction Sets the input attenuator. Gets the input attenuator. Parameter Type Boolean Parameter Range OFF|ON|0|1 Return Example [:SENSe]:POWer[:RF]:ATTenuation:AUTO ON 5.7.2 Ref Level & Scale Displays and configures the reference and scale of the currently selected window. The unit is based on the unit of the trace data.
Page 199: Trace
Command Format :TRACe1|2|3|4:Y[:SCALe]:PDIVision :TRACe1|2|3|4:Y[:SCALe]:PDIVision? Instruction This command sets the per-division display scaling for the y-axis. Gets Scale/Div when scale type. The command is valid if the measurement mode is ASK, FSK, MSK, PSK, QAM and the data format is not Syms/Errs. Parameter Type Float Parameter Range...
Page 200: Layout
Example :CALCulate:PARameter:COUNt 4 5.8.2 Layout Select the layout of the screen windows. The layout types are as follows: ⚫ Single ⚫ Stacked 2 ⚫ Grid 1,2 ⚫ Grid 2x2 Command Format :DISPlay:LAYout Instruction Sets trace layout on screen. Currently, one row, two columns are not supported (1, 2) Parameter Type Integer (rows, columns) Parameter Range...
Page 201: Num Of Traces
by clicking on the trace mark displayed in the left status bar of the screen. 5.8.6 Num of Traces Set the upper limit of displayed trace numbers. Up to four traces can be displayed simultaneously in the screen window. 5.8.7 Data Select the displayed data of the trace.
Page 202 Command Format :TRACe[1]|2|3|4:FORMat[:Y] :TRACe[1]|2|3|4:FORMat[:Y]? Instruction Sets trace format Gets trace format Parameter Type Enumeration Parameter Range MLOG: Log Mag MLINear: Lin Mag REAL: Real IMAGinary: Imag IQ: I-Q CONStln: Constellation IEYE: I-Eye QEYE: Q-Eye WPHAse: Wrap Phase UWPHase: Unwrap Phase TRELlis: Trellis-Eye Return MLOG...
Page 203: Eye Length
5.8.9 Eye Length Set the length of the Eye diagram. Command Format :TRACe:DEMod:EYE:LENGth :TRACe:DEMod:EYE:LENGth? Instruction Sets eye length. Gets eye length. Parameter Type Integer Parameter Range 2 ~ 40 Return Integer Example :TRACe:DEMod:EYE:LENGth 4 5.8.10 Symbol Table Display the demodulation digital symbols (binary or hex). Command Format :TRACe:DEMod:TABLe:FORMat :TRACe:DEMod:TABLe:FORMat?
Page 204: Marker Type
trace setting). 5.9.2 Marker Type Marker supports 2 types : normal,delta,off. Depending on the type of marker, the reading and position of the marker are also different when the trace is refreshed: normal： The marker is attached to a trace point, the vertical position of the marker is refreshed ⚫...
Page 205: Marker X
Command Format :TRACe[1]|2|3|4:MARKer[1]|2|3|4:ENABle OFF|ON|0|1 :TRACe[1]|2|3|4:MARKer[1]|2|3|4:ENABle? Instruction Sets marker state. Gets marker state. Parameter Type Boolean Parameter Range OFF|ON|0|1 Return Example :TRACe1:MARKer1:ENABle ON Command Format :TRACe[1]|2|3|4:MARKer[1]|2|3|4:TYPE POSition|DELTa|OFF :TRACe[1]|2|3|4:MARKer[1]|2|3|4:TYPE? Instruction Sets marker mode. Gets marker mode. Parameter Type Enumeration Parameter Range POSition DELTa Return Enumeration: POS|DELT|OFF...
Page 206: Reset Delta
Command Format :TRACe[1]|2|3|4:MARKer[1]|2|3|4:Y? Instruction Gets marker Y value. Parameter Type None Parameter Range None Return Float Example :TRACe:MARKer:Y? 5.9.4 Reset Delta Pressing this control is exactly the same as pressing the “Delta” selection on the Marker Mode radio button. The selected marker becomes a Delta Marker . If the selected marker is already a Delta marker, the reference marker is moved to the current position of the selected marker, thus resetting the Delta to zero.
Page 207: Marker Couple
5.9.6 Marker Couple When this function is On, moving any marker causes an equal X Axis movement of every other marker which is Off. Command Format :CALCulate[:SELected]:MARKer:COUPle OFF|ON|0|1 :CALCulate[:SELected]:MARKer:COUPle? Instruction Sets marker couple state. Gets marker couple state. Parameter Type Boolean Parameter Range OFF|ON|0|1...
Page 208: Input And Output
6 Input and Output Freq Ref Input Frequency Reference Source include inside reference source, external reference source and auto-selection reference source. When external reference source is not connected, the button of external reference is not available. Defualt auto-selection reference source. Command Format [:SENSe]:ROSCillator:SOURce:TYPE [:SENSe]:ROSCillator:SOURce:TYPE?
Page 209: Correction
Correction Measured value can be corrected in specific x-axis and y-axis. Now, there are eight corrections, witch enter into force at the same time. Select Correction Select a correction (1-8) to operating. Correct Switch If the selected switch enter into force. Command Format [:SENSe]:CORRection:CSET#[:STATe] [:SENSe]:CORRection:CSET#[:STATe]?
Page 210 Command Format [:SENSe]:CORRection:CSET[1]2|3|...|8:ADD {x1,y1 } Illustration Add Correction Point Parameter Type Character String of Correction Data {Freq 1Hz, Amp 1dBm, Freq 2Hz, Amp 2dBm, ……} Parameter Range Menu Input/Output>Correction>Edit Correction example :CORRection:CSET1:ADD 10000000,-15, 15000000, -15 :CORRection:CSET1:ADD10000000,15 Command Format [:SENSe]:CORRection:CSET[1]2|3|...|8:POINt:DELete Illustration Delete a special correction point.
Page 211: System Settings
7 System Settings System 7.1.1 About Figure 7–1 about Area 1 Displays product information, including product name, serial number, Host ID, and IP address. Area 2 Displays firmware information including software version, FPGA version, CPLD version, and hardware version. Area 3 displays information about installed options. Command format :SYSTem:CONFigure:SYSTem? Instructions...
Page 212: Hardware
7.1.2 Hardware Figure 7–2 Hardware Area 1 displays the current operating status of the analyzer, including the RF board temperature, CPU temperature, and fan speed. Area 2 displays automatic alignment (temperature drift compensation) information, including calibration status, time of last calibration, temperature, and temperature difference. Area 3 shows information about installed options.
Page 213: Language
7.1.4 Language The analyzer supports a multi-language menu, Chinese and English built-in help and popup messages. Press this key to select the desired display language. Command format :SYSTem:LANGuage CHINESE|ENGLISH :SYSTem:LANGuage? Instructions Setting languages Acquire languages Parameter type Enumeration Parameter Range CHINESE ENGLISH Return...
Page 214 Command format :SYSTem:COMMunicate:LAN:IPADdress {“xxx.xxx.xxx.xxx”} :SYSTem:COMMunicate:LAN:IPADdress? Instructions Setting an IP Address Obtaining an IP Address Parameter type String Parameter Range The IP address Settings must comply with specifications （0-255:0-255:0-255:0-255） Return IP address string Example :SYSTem:COMMunicate:LAN:IPADdress “192.168.1.12” :SYSTem:COMMunicate:LAN:IPADdress? Command format :SYSTem:COMMunicate:LAN:GATeway {“xxx.xxx.xxx.xxx”} :SYSTem:COMMunicate:LAN:GATeway? Instructions Set the gateway...
Page 215 Web services 7.1.5.2 Analyzer supports web VNC remote access.The analyzer will display the content of the remote projection to the web page, at the same time support mouse and keyboard remote input parameters. VNC reset can be set to View only mode. In this case, the input on the web page is invalid. ⚫...
Page 216: Date And Time
7.1.6 Date and Time Switch the time and date display status in the upper right corner of the screen. Modify the system time display format, including YMD, MDY, and Dmy. Command format :SYSTem:TIME :SYSTem:TIME? Instructions Setting the System Time Obtaining system time Parameter type String Parameter Range...
Page 217: Upgrade
7.1.8 Upgrade Select from memory.The ADS file upgrades the firmware. After the firmware is upgraded, the machine will restart 7.1.9 Help Help documents are built-in manual documents, including function descriptions and remote command information. To use the Help document, select a menu button, then press the Help button on the keyboard or touch the “Help on this setting”.At this point, the analyzer will jump to the relevant chapter of the corresponding button in the manual.
Page 218: Preset Type
7.2.2 Preset Type Perform the reset operation based on the current reset type. Select a configuration type for the spectrum analyzer to reset and load.Reset Settings Preset types include default, last time, and User. ⚫ Default: Reset the default loading parameters ⚫...
Page 219: Power On
7.2.4 Power On Select the configuration to be loaded during power-on.Default configuration, last configuration, and User configuration are available Command format :SYSTem:PON:TYPE DFT|LAST|USER :SYSTem:PON:TYPE? Note Set the startup load configuration type Get the startup load configuration type Parameter type enumeration Parameter Range DFT：Default LAST：last...
Page 220: Alignments
The return value None Default Values None Example :SYSTem:FDEFault Alignments The alignment function is used to calibrate errors caused by temperature drift. Automatic alignment: After automatic alignment is turned on, the analyzer determines and triggers temperature error calibration logic based on temperature changes. Calibrate now: Perform a temperature error calibration immediately.
Page 221: File
File Activate the analyzer file operation dialog box to perform file-related operations.Include: File Browser, File Browser, and Recall File. Command format :MMEMory:STORe STA|TRC|COR|CSV|LIM|JPG|BMP|PNG, ”{file}” Note Different modes support different types of file formats Parameter type characterstring Example :MMEMory:STORe STA, ”ABC.sta” Command format :MMEMory:LOAD STA|TRC|COR|LIM, ”{file}”...
Page 222: Power
Example :DISPlay:WINDow:TRACe:GRATicule:GRID:BRIGhtness 50 Command format :DISPlay:WINDow:TRACe:SCREen:BRIGhtness :DISPlay:WINDow:TRACe:SCREen:BRIGhtness? Instructions Set screen Brightness Get screen brightness Parameter type Integer Parameter Range 0~100 Return Integer Example :DISPlay:WINDow:TRACe:SCREen:BRIGhtness 50 Command format :DISPlay:WINDow:BEEP:VOLUme :DISPlay:WINDow:BEEP:VOLUme? Instructions Set the volume of the buzzer Gets the buzzer volume Parameter type Integer Parameter Range...
Page 223: Self Test
When the power-on and power-on function is turned on, the analyzer is powered on and can be turned off. Command format :SYSTem:POWer:OFF Instructions Close the device Example :SYSTem:POWer:OFF Command format :SYSTem:POWer:OFF Instructions Restart the device (some machines may not support restart and need to be manually started after shutdown) Example :SYSTem:RESTart...
Page 224: Remote Control
8 Remote Control The analyzer features LAN, USB Device, and GPIB_USB module interfaces. By using a computer with these interfaces, and a suitable programming language (and/or NI-VISA software), users can remotely control the analyzer based on SCPI (Standard Commands for Programmable Instruments) command set, LabView and IVI (Interchangeable Virtual Instrument), to interoperate with other programmable instruments.
Page 225: Lan Port
8.1.2 LAN port Figure 8–1 LAN config Refer to the following steps to finish the connection via LAN: Install NI-VISA on your PC for VXI driver. Or without NI-VISA, using socket or telnet in your PC’s Operating System. Connect the analyzer to PC or the local area network with a LAN cable. Switch on the analyzer.
Page 226: Gpib-Usb Host Port
GPIB-USB Host port Refer to the following steps to finish the connection via USB: Install NI-VISA on your PC for GPIB driver. Connect the analyzer USB Host port to a PC’s GPIB card port, with SIGLENT USB-GPIB adaptor. Switch on the analyzer Figure 8–2 SIGLENT USB-GPIB Adaptor...
Page 227: Build Communication
Build Communication 8.2.1 VISA NI-VISA includes a Run-Time Engine version and a Full version. The Run-Time Engine version provides NI device drivers such as USB-TMC, VXI, GPIB, etc. The full version includes the Run-Time Engine and a software tool named NI MAX that provides a user interface to control the device.
Page 228 The NI-VISA installing dialog is shown above. Click Next to start the installation process. Figure 8–5 Set the install path, default path is “C:\Program Files\National Instruments\”, you can change it. Click Next, dialog shown as above. Figure 8–6 Click Next twice, in the License Agreement dialog, select the “I accept the above 2 License Agreement(s).”, and click Next, dialog shown as below: Figure 8–7 User Manual...
Page 229: Sockets/Telnet
Click Next to run installation. Figure 8–8 Now the installation is complete, reboot your PC. 8.2.2 Sockets/Telnet Through the LAN interface, VXI-11, Sockets and Telnet protocols can be used to communicate with the analyzer. VXI-11 is provided in NI-VISA, while Sockets and Telnet are commonly included in PC’s OS initially.
Page 230: Remote Control Capabilities
Remote Control Capabilities 8.3.1 User-defined Programming Users can use SCPI commands to program and control the analyzer. For details, refer to the introductions in “Programming Examples”. 8.3.2 NI MAX Users can control the analyzer remotely by sending SCPI commands via NI-MAX software. NI_MAX is National Instruments Measurement and Automation Explorer.
Page 231 Figure 8–10 Note: The “*IDN?” command (known as the Identification Query) returns the instrument manufacturer, instrument model, serial number, and other identification information. Using LAN 8.3.2.2 Select “Add Network Device”, and select “VISA TCP/IP Resource” as shown: Run NI MAX software. Click “Device and interface”...
Page 232 Figure 8–12 Note: Leave the LAN Device Name BLANK or the connection will fail. Figure 8–13 After a brief scan, the connection should be shown under Network Devices: Figure 8–14 User Manual...
Page 233 Right-click on the product and select Open NI-VISA Test Panel: Figure 8–15 Click “Input/Output” option button and click “Query” option button. If everything is OK, you will see the Read operation information returned as shown below. Figure 8–16 User Manual...
Page 234: Web Browser
8.3.3 Web browser The analyzer can be remotely controlled through PC or web browser of mobile terminal installing any driver.It mimics the touch screen/mouse clickable display function,just like a physical instrument.The browser also supports screenshot and firmware update functions. *It is recommended to use a web browser that supports HTML5,such as Chrome or Firefox. User Manual...
Page 235: Scpi Overview
9 SCPI Overview Command Format SCPI commands present a hierarchical tree structure containing multiple subsystems, each of the subsystems is made up of a root keyword and several subkeywords. The command string usually starts with “:”, the keywords are separated by “:” and the followed parameter settings are separated by space.
Page 236: Parameter Type
Vertical Bar | The vertical bar is used to separate multiple parameters and when sending the command, you can choose one of the parameters. For example, In the “[:SENSe]:FREQuency:CENTer:STEP:AUTO OFF|ON|0|1” command, the parameters available are “OFF”, “ON”, “0” or “1”. Braces { } The parameters in the braces are optional which can be ignored or set for one or more times.
Page 237: Command Abbreviation
[:SENSe]:DEMod:VOLume <value> The parameter < value > can be set to any integer between 0 and 10. Float The parameter could be any value within the effective value range according to the accuracy requirement (the default accuracy contains up to 9 digits after the decimal points). For example: :CALCulate:BANDwidth:NDB <value>...
Page 238: Ieee Common Commands
FPGA number and CPLD number. Menu None Example *IDN? Return: Siglent,SVA1015,1234567890,100.01.01.06.01 Command Format *RST Instruction This command presets the instrument to a factory defined condition that is appropriate for remote programming operation.
Page 239 Command Format *ESE <number> *ESE? Instruction Set the bits in the standard event status enable register. This register monitors I/O errors and synchronization conditions such as operation complete, request control, query error, device dependent error, execution error, command error and power on. A summary bit is generated on execution of the command. The query returns the state of the standard event status enable register.
Page 240 Command Format *STB? Instruction This query is used by some instruments for a self test. Menu None Example *STB? Command Format *WAI Instruction This command causes the instrument to wait until all pending commands are completed before executing any additional commands. There is no query form to the command.
Page 241: Scpi List
SCPI LIST 9.6.1 GPSA Mode/Meas :INSTrument[:SELect] :INSTrument:MEASure Freq [:SENSe]:FREQuency:CENTer [:SENSe]:FREQuency:STARt [:SENSe]:FREQuency:STOP [:SENSe]:FREQuency:CENTer:STEP[:INCRement] [:SENSe]:FREQuency:CENTer:STEP:AUTO [:SENSe]:FREQuency:OFFSet [:SENSe]:FREQuency:SPAN [:SENSe]:FREQuency:SPAN:FULL [:SENSe]:FREQuency:SPAN:ZERO [:SENSe]:FREQuency:SPAN:PREVious [:SENSe]:FREQuency:SPAN:HALF [:SENSe]:FREQuency:SPAN:DOUBle [:SENSe]:FREQuency:TUNE:IMMediate :DISPlay:WINDow:TRACe:X[:SCALe]:SPACing :CALCulate:MARKer:TRCKing[:STATe] [:SENSe]:BWIDth[:RESolution] [:SENSe]:BWIDth[:RESolution]:AUTO [:SENSe]:BWIDth:VIDeo [:SENSe]:BWIDth:VIDeo:AUTO [:SENSe]:BWIDth:VIDeo:RATio [:SENSe]:FILTer:TYPE Sweep [:SENSe]:SWEep:TIME [:SENSe]:SWEep:TIME:AUTO :INITiate:CONTinuous :INITiate[:IMMediate] [:SENSe]:SWEep:MODE [:SENSe]:SWEep:MODE:AUTO [:SENSe]:SWEep:TYPE:AUTO:RULes [:SENSe]:SWEep:SPEed [:SENSe]:SWEep:POINts User Manual...
Page 242 Ampt :DISPlay:WINDow:TRACe:Y[:SCALe]:RLEVel :DISPlay:WINDow:TRACe:Y[:SCALe]:PDIVision :DISPlay:WINDow:TRACe:Y[:SCALe]:SPACing :UNIT:POWer :DISPlay:WINDow:TRACe:Y:SCALe:RLEVel:OFFSet [:SENSe]:POWer[:RF]:ATTenuation [:SENSe]:POWer[:RF]:ATTenuation:AUTO [:SENSe]:POWer[:RF]:GAIN[:STATe] Trigger :TRIGger[:SEQuence]:SOURce :TRIGger[:SEQuence]:{type}:LEVel :TRIGger[:SEQuence]:{type}:DELay :TRIGger[:SEQuence]:{type}:SLOPe :TRIGger[:SEQuence]:EXTernal:DELay:COMPensation :TRIGger[:SEQuence]:FRAMe:PERiod :TRIGger[:SEQuence]:FRAMe:OFFSet :TRIGger[:SEQuence]:FRAMe:OFFSet:DISPlay:RESet :TRIGger[:SEQuence]:FRAMe:SYNC [:SENSe]:SWEep:EGATe:SOURce [:SENSe]:SWEep:EGATe[:STATe] [:SENSe]:SWEep:EGATe:VIEW [:SENSe]:SWEep:EGATe:DELay [:SENSe]:SWEep:EGATe:LENGth [:SENSe]:SWEep:EGATe:METHod [:SENSe]:SWEep:EGATe:VIEW:STARt Trace TRACe:SELEct :TRACe[1]|2|3|4|5|6:TYPE :TRACe[1]|2|3|4|5|6:DISPlay[:STATe] :TRACe[1]|2|3|4|5|6 [:DATA]? :FORMat[:TRACe][:DATA] [:SENSe]:DETector:TRACe[1]|2|3|4|5|6[:FUNCtion] [:SENSe]:DETector:TRACe[1]|2|3|4|5|6:AUTO [:SENSe]:DETector:TRACe:AUTO:ALL :TRACe[1]|2|3|4|5|6:MATH:X :TRACe[1]|2|3|4|5|6:MATH:Y :CALCulate[:SELected]:MATH:FUNCtion :TRACe[1]|2|3|4|5|6:MATH:OFFSet User Manual...
Page 243 :TRACe[1]|2|3|4|5|6:MATH:REFerence :CALCulate:NTData:STORE:REF :CALCulate:NTData[:STATe] :DISPlay:WINDow:TRACe:Y[:SCALe]:NRLevel :DISPlay:WINDow:TRACe:Y[:SCALe]:NRPosition :DISPlay:WINDow:NTTRace[:STATe] :TRACe:COPY :TRACe:EXCHange :TRACe:PRESet:ALL :TRACe:CLEar:ALL Marker :CALCulate:MARKer:SELEct :CALCulate:MARKer[1]|2|3|4|5|6|7|8:STATe :CALCulate:MARKer[1]|2|3|4|5|6|7|8:TRACe :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MODE :CALCulate:MARKer[1]|2|3|4|5|6|7|8:X :CALCulate:MARKer[1]|2|3|4|5|6|7|8:Y? :CALCulate:MARKer[1]|2|3|4|5|6|7|8:REFerence :CALCulate:MARKer:AOFF :CALCulate:MARKer:TABLe :CALCulate[:SELected]:MARKer:COUPle :CALCulate:MARKer[1]|2|3|4|5|6|7|8:X:READout :CALCulate:MARKer[1]|2|3|4|5|6|7|8:X:READout:AUTO :CALCulate:MARKer[1]|2|3|4|5|6|7|8:X:LINE:STATe :CALCulate:MARKer[1]|2|3|4|5|6|7|8:FUNCtion :CALCulate:MARKer[1]|2|3|4|5|6|7|8:BANDwidth[1]|2|3|4|5|6|7|8:NDB? :CALCulate:MARKer[1]|2|3|4|5|6|7|8:BANDwidth:RESult? :CALCulate:MARKer[1]|2|3|4|5|6|7|8:FCOunt[:STATe] :CALCulate:MARKer[1]|2|3|4|5|6|7|8:FCOunt:X? :CALCulate:MARKer[1]|2|3|4|5|6|7|8[:SET]:CENTer :CALCulate:MARKer[1]|2|3|4|5|6|7|8[:SET]:STEP :CALCulate:MARKer[1]|2|3|4|5|6|7|8[:SET]:START :CALCulate:MARKer[1]|2|3|4|5|6|7|8[:SET]:STOP :CALCulate:MARKer[1]|2|3|4|5|6|7|8[:SET]:RLEVel :CALCulate:MARKer[1]|2|3|4|5|6|7|8:DELTa[:SET]:SPAN :CALCulate:MARKer[1]|2|3|4|5|6|7|8:DELTa[:SET]:CENTer :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MAXimum User Manual...
Page 244 :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MINimum :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MAXimum:NEXT :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MAXimum:LEFT :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MAXimum:RIGHt :CALCulate:MARKer[1]|2|3|4|5|6|7|8:PTPeak :CALCulate:MARKer[1]|2|3|4|5|6|7|8:CPSearch[:STATe] :CALCulate:MARKer:PEAK:THReshold :CALCulate:MARKer:PEAK:THReshold:STATe :CALCulate:MARKer:PEAK:EXCursion :CALCulate:MARKer:PEAK:EXCursion:STATe :CALCulate:MARKer:PEAK:TABLe :CALCulate:PEAK:TABLe? :CALCulate:MARKer:PEAK:SORT :CALCulate:MARKer:PEAK:SORT:ORDER :CALCulate:MARKer:PEAK:TABLe:DTLimit:STATe :CALCulate:MARKer:PEAK:TABLe:DTLimit |1|2|3|4|5|6 Limit :CALCulate:LLINe[1]|2|3|4|5|6:STATe :CALCulate:LLINe[1]|2|3|4|5|6:TYPE :CALCulate:LLINe[1]|2|3|4|5|6:MARGin :CALCulate:LLINe[1]|2|3|4|5|6:MARGin:STATe :CALCulate:LLINe[1]|2|3|4|5|6:Offset:X :CALCulate:LLINe[1]|2|3|4|5|6:Offset:Y :CALCulate:LLINe[1]|2|3|4|5|6:DATA :CALCulate:LLINe[1]|2|3|4|5|6:ADD :CALCulate:LLINe[1]|2|3|4|5|6:POINt:DELete :CALCulate:LLINe[1]|2|3|4|5|6:DELete :CALCulate:LLINe:ALL:DELete :CALCulate:LLINe[1]|2|3|4|5|6:TRACe :CALCulate:LLINe[1]|2|3|4|5|6:FREQuency:INTerpolate:TYPE :CALCulate:LLINe[1]|2|3|4|5|6:FREQuency:CMODe :CALCulate:LLINe[1]|2|3|4|5|6:AMPLitude:INTerpolate:TYPE :CALCulate:LLINe[1]|2|3|4|5|6:AMPLitude:CMODe :CALCulate:LLINe[1]|2|3|4|5|6:COPY :CALCulate:LLINe[1]|2|3|4|5|6:BUILd :CALCulate:LLINe:TEST :CALCulate:LLINe:CONTrol:BEEP User Manual...
Page 245 :CALCulate:LLINe:FAIL:STOP :CALCulate:LLINe[1]|2|3|4|5|6:FAIL? Settings [:SENSe]:AVERage:TRACe[1]|2|3|4|5|6:COUNt [:SENSe]:AVERage:TRACe[1]|2|3|4|5|6? [:SENSe]:AVERage:TRACe[1]|2|3|4|5|6:CLEar [:SENSe]:AVERage:TYPE :COUPle:ALL :DISPlay:WINDow:TRACe:Y:DLINe:STATe? :DISPlay:WINDow:TRACe:Y:DLINe :DISPlay:WINDow:TRACe:X:FLINe:STATe? :DISPlay:WINDow:TRACe:X:FLINe [:SENSe]:DEMod [:SENSe]:DEMod:EPHone [:SENSe]:DEMod:VOLume [:SENSe]:DEMod:TIME :INSTrument:COUPle:FREQuency:CENTer [:SENSe]:CHPower:BWIDth:INTegration [:SENSe]:CHPower:FREQuency:SPAN:POWer :UNIT:CHPower:POWer:PSD :CHPower:MEASure:CHPower? :CHPower:MEASure:CHPower:CHPower? :CHPower:MEASure:CHPower:DENSity? [:SENSe]:CHPower:AVERage:TCONtrol [:SENSe]:CHPower:FREQuency:SPAN:POWer :UNIT:CHPower:POWer:PSD :CHPower:MEASure:CHPower? :CHPower:MEASure:CHPower:CHPower? :CHPower:MEASure:CHPower:DENSity? [:SENSe]:CHPower:AVERage:TCONtrol ACPR [:SENSe]:ACPRatio:BWIDth:INTegration [:SENSe]:ACPRatio:OFFSet:BWIDth[:INTegration] [:SENSe]:ACPRatio:OFFSet[:FREQuency] :MEASure:ACPRatio:ACPower:MAIN? :MEASure:ACPRatio:LOWer:POWer? :MEASure:ACPRatio:UPPer:POWer? :MEASure:ACPRatio:LOWer? User Manual...
Page 246 :MEASure:ACPRatio:UPPer? [:SENSe]:ACPower:AVERage:TCONtrol [:SENSe]:OBWidth:PERCent [:SENSe]:OBWidth:XDB :MEASure:OBWidth? :MEASure:OBWidth:OBWidth? :MEASure:OBWidth:CENTroid? [:SENSe]:OBWidth:PREFerence [:SENSe]:OBWidth:INTegration[:METHod] :MEASure:OBWidth:OBWidth:FERRor? [:SENSe]:OBWidth:AVERage:TCONtrol T-Power [:SENSe]:TPOWer:FREQuency:CENTer [:SENSe]:TPOWer:LLIMit [:SENSe]:TPOWer:RLIMit :MEASure:TPOWer? [:SENSe]:TPOWer:AVERage:TCONtrol :MEASure:TOI? :MEASure:TOI:IP3? [:SENSe]:TOI:AVERage:TCONtrol Sepctrum [:SENSe]:SPECtrogram:STATe Monitor [:SENSe]:SPECtrogram:RESTart [:SENSe]:SPECtrogram:AVERage:TCONtrol [:SENSe]:CNRatio:BANDwidth:INTegration [:SENSe]:CNRatio:BANDwidth:NOISe [:SENSe]:CNRatio:OFFSet :CNRatio:MEASure:CNRatio? :CNRatio:MEASure:CNRatio:CARRier? :CNRatio:MEASure:CNRatio:NOISe? [:SENSe]: CNRatio:AVERage:TCONtrol Harmonics [:SENSe]:HARMonics:FREQuency:FUNDamental [:SENSe]:HARMonics:FREQuency:FUNDamental:AUTO [:SENSe]:HARMonics:FREQuency:STEP[:INCRement] [:SENSe]:HARMonics:FREQuency:STEP[:INCRement]:AUTO [:SENSe]:HARMonics:NUMBer [:SENSe]:HARMonics:SELect User Manual...
Page 247: Rtsa
9.6.2 RTSA Freq [:SENSe]:FREQuency:CENTer [:SENSe]:FREQuency:STARt [:SENSe]:FREQuency:STOP [:SENSe]:FREQuency:CENTer:STEP[:INCRement] [:SENSe]:FREQuency:CENTer:STEP:AUTO [:SENSe]:FREQuency:OFFSet [:SENSe]:FREQuency:SPAN [:SENSe]:FREQuency:SPAN:FULL [:SENSe]:FREQuency:SPAN:ZERO [:SENSe]:FREQuency:SPAN:PREVious [:SENSe]:FREQuency:SPAN:HALF [:SENSe]:FREQuency:SPAN:DOUBle [:SENSe]:BWIDth[:RESolution] [:SENSe]:BWIDth[:RESolution]:AUTO [:SENSe]:FILTer:TYPE Sweep :INITiate[:IMMediate] :INITiate:CONTinuous [:SENSe]:ACQuisition:TIME :DISPlay:PAUSe Trigger :TRIGger[:SEQuence]:SOURce :TRIGger[:SEQuence]:LEVel:LEVel :TRIGger[:SEQuence]:LEVel:DELay :TRIGger[:SEQuence]:EXTernal:DELay :TRIGger[:SEQuence]:EXTernal:SLOPe :TRIGger[:SEQuence]:FMT:STATe :TRIGger[:SEQuence]:FMT:ACTion Ampt :DISPlay:WINDow:TRACe:Y[:SCALe]:RLEVel :DISPlay:WINDow:TRACe:Y[:SCALe]:PDIVision :UNIT:POWer [:SENSe]:POWer[:RF]:ATTenuation [:SENSe]:POWer[:RF]:ATTenuation:AUTO [:SENSe]:POWer[:RF]:GAIN[:STATe] User Manual...
Page 248 Trace :TRACe[1]|2|3 [:DATA]? :TRACe[:DATA]:SPECtrum? :TRACe[:DATA]:PVT? :TRACe[1]|2|3:TYPE :TRACe[1]|2|3DISPlay[:STATe] [:SENSe]:DETector:TRACe[1]|2|3|4|5|6[:FUNCtion] [:SENSe]:DETector:TRACe:PVTime [:SENSe]:DETector:TRACe:SPECtrogram Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8:TRACe :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MODE :CALCulate:MARKer[1]|2|3|4|5|6|7|8:X :CALCulate:MARKer[1]|2|3|4|5|6|7|8:Y? :CALCulate:MARKer[1]|2|3|4|5|6|7|8:REFerence :CALCulate:MARKer:AOFF :CALCulate:MARKer[1]|2|3|4|5|6|7|8[:SET]:CENTer :CALCulate:MARKer[1]|2|3|4|5|6|7|8[:SET]:START :CALCulate:MARKer[1]|2|3|4|5|6|7|8[:SET]:STOP :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MAXimum :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MINimum :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MAXimum:NEXT :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MAXimum:LEFT :CALCulate:MARKer[1]|2|3|4|5|6|7|8:MAXimum:RIGHt :CALCulate:MARKer[1]|2|3|4|5|6|7|8:PTPeak :CALCulate:MARKer[1]|2|3|4|5|6|7|8:CPSearch[:STATe] Linit :CALCulate:LLINe[1]|2|3|4|5|6:STATe :CALCulate:LLINe[1]|2|3|4|5|6:TYPE :CALCulate:LLINe[1]|2|3|4|5|6:MARGin :CALCulate:LLINe[1]|2|3|4|5|6:MARGin:STATe :CALCulate:LLINe[1]|2|3|4|5|6:Offset:X :CALCulate:LLINe[1]|2|3|4|5|6:Offset:Y :CALCulate:LLINe[1]|2|3|4|5|6:DATA :CALCulate:LLINe[1]|2|3|4|5|6:ADD :CALCulate:LLINe[1]|2|3|4|5|6:POINt:DELete :CALCulate:LLINe[1]|2|3|4|5|6:DELete :CALCulate:LLINe:ALL:DELete :CALCulate:LLINe[1]|2|3|4|5|6:TRACe User Manual...
Page 249 :CALCulate:LLINe[1]|2|3|4|5|6:FREQuency:INTerpolate:TYPE :CALCulate:LLINe[1]|2|3|4|5|6:FREQuency:CMODe :CALCulate:LLINe[1]|2|3|4|5|6:AMPLitude:INTerpolate:TYPE :CALCulate:LLINe[1]|2|3|4|5|6:AMPLitude:CMODe :CALCulate:LLINe[1]|2|3|4|5|6:COPY :CALCulate:LLINe[1]|2|3|4|5|6:BUILd Meas :AVERage:TRACe[1]|2|3|4|5|6:COUNt :DISPlay:VIEW[:SELect] :DISPlay:VIEW:DENSity:PERSistence :DISPlay:VIEW:DENSity:PERSistence:INFinite :DISPlay:VIEW:SPECtrogram:TRAC:STOP :DISPlay:VIEW:SPECtrogram:TRAC:OFFSet User Manual...
Page 250 9.6.3 [:SENSe]:AVERage[:STATe] [:SENSe]:AVERage:COUNt [:SENSe]:DDEMod:MODulation :DDEMod[:FORMat]:SRATe [:SENSe]:DDEMod[:FORMat]:SYMBol:POINts [:SENSe]:DDEMod[:FORMat]:RLENgth [:SENSe]:DDEMod:FILTer[:MEASurement] [:SENSe]:DDEMod:FILTer:REFerence [:SENSe]:STATistic:STATe :CALCulate:RESTart :READ:DDEMod? [:SENSe]:DDEMod:SYNC:BURSt[:STATe] [:SENSe]:DDEMod:SYNC:SLENgth [:SENSe]:DDEMod:SYNC:BURSt:THREshold [:SENSe]:DDEMod:SYNC:BURSt:MINLength [:SENSe]:DDEMod:SYNC:BURSt:MINGap [:SENSe]:DDEMod:SYNC:SWORd[:STATe] [:SENSe]:DDEMod:SYNC:SWORd:OFFSet [:SENSe]:DDEMod:SYNC:SWORd:PATTern [:SENSe]:DDEMod:SEGMent:BER:STATe [:SENSe]:DDEMod:SEGMent:BER:PATTern [:SENSe]:ADEMod:STYLe :CALCulate:IFBW:INDEx :CALCulate:EQLPf:INDEx :READ:ADEMod? Freq [:SENSe]:FREQuency:CENTer [:SENSe]:FREQuency:CENTer:STEP[:INCRement] [:SENSe]:FREQuency:SPAN? [:SENSe]:BWIDth[:RESolution] [:SENSe]:DDEMod:FFT:WINDow:TYPE Sweep :INITiate[:IMMediate] :INITiate:CONTinuous User Manual...
Page 251 Trigger :TRIGger[:SEQuence]:SOURce :TRIGger[:SEQuence]:{type}:LEVel :TRIGger[:SEQuence]:{type}:DELay :TRIGger[:SEQuence]:{type}:SLOPe :TRIGger[:SEQuence]:FRAMe:PERiod :TRIGger[:SEQuence]:FRAMe:OFFSet :TRIGger[:SEQuence]:FRAMe:OFFSet:DISPlay:RESet :TRIGger[:SEQuence]:FRAMe:SYNC :TRIGger[:SEQuence]:ATRigger:STATe :TRIGger[:SEQuence]:ATRigger :TRIGger[:SEQuence]:HOLDoff:STATe :TRIGger[:SEQuence]:HOLDoff :TRIGger[:SEQuence]:HOLDoff:TYPE Ampt [:SENSe]:POWer[:RF]:ATTenuation [:SENSe]:POWer[:RF]:ATTenuation:AUTO :TRACe1|2|3|4:Y[:SCALe]:RLEVel :TRACe1|2|3|4:Y[:SCALe]:PDIVision :TRACe1|2|3|4[:Y]:AUToscale [:SENSe]:POWer[:RF]:GAIN[:STATe] Trace :CALCulate:PARameter:COUNt :DISPlay:LAYout :TRACe[1]|2|3|4:DATA:NAME :TRACe[1]|2|3|4:FORMat[:Y] :TRACe:DEMod:EYE:LENGth :TRACe:DEMod:TABLe:FORMat Marker :TRACe[1]|2|3|4:MARKer[1]|2|3|4:ENABle :TRACe[1]|2|3|4:MARKer[1]|2|3|4:TYPE :TRACe[1]|2|3|4:MARKer[1]|2|3|4:X :TRACe[1]|2|3|4:MARKer[1]|2|3|4:Y? :TRACe[1]|2|3|4:MARKer[1]|2|3|4:REFerence :CALCulate[:SELected]:MARKer:COUPle User Manual...
Page 252: Other
9.6.4 Other [:SENSe]:ROSCillator:SOURce:TYPE [:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude] Correction [:SENSe]:CORRection:CSET#[:STATe] [:SENSe]:CORRection:CSET#:ADD [:SENSe]:CORRection:CSET:ALL:DELete [:SENSe]:CORRection:CSET#:DATA? [:SENSe]:CORRection:CSET#:DELete [:SENSe]:CORRection:CSET:ALL:DELete System :SYSTem:CONFigure:SYSTem? :SYSTem:LANGuage :SYSTem:COMMunicate:LAN:TYPE :SYSTem:COMMunicate:LAN:IPADdress :SYSTem:COMMunicate:LAN:GATeway :SYSTem:COMMunicate:LAN:SMASk :SYSTem:WEB:PSW :SYSTem:TIME :SYSTem:DATE :SYSTem:LKEY :SYSTem:COMMunicate:GPIB:ADDRess Reset :SYSTem:PRESet :SYSTem:PRESet:TYPE :SYSTem:PRESet:USER[1]|2|3|4|5|6|7:SAVE :SYSTem:PRESet:USER[1]|2|3|4|5|6|7:LOAD :SYSTem:PON:TYPE :SYSTem:FDEFault :SYSTem:CLEAr Calibration :CALibration:STATe :CALibration File :MMEMory:STORe :MMEMory:LOAD :MMEMory:DELete Display :DISPlay:WINDow:TRACe:GRATicule:GRID:BRIGhtness :DISPlay:WINDow:TRACe:SCREen:BRIGhtness User Manual...
Page 253 Power :SYSTem:POWer:OFF :SYSTem:RESTart Buzzer :DISPlay:WINDow:BEEP:STATe :DISPlay:WINDow:BEEP:VOLUme User Manual...
Page 254: 10 Service And Support
10 Service and Support 10.1 Service Summary SIGLENT warrants that the products that it manufactures and sells will be free from defects in materials and workmanship for a period of three years (accessories for a period of one year) from the date of shipment from an authorized Siglent distributor.
Page 255 Before calling SIGLENT, or returning an analyzer for service, perform the quick checks listed below. This check may eliminate the problem. If the problem remains still, please contact SIGLENT and provide your device information in the back of the analyzer.
Page 256 Check if the Correction is ON in SA or VNA mode. Calibrate the instrument regularly to reduce or avoid errors that might occur over time. If you need a specific calibration after the stated calibration period, contact SIGLENT or get paid service from authorized measurement agencies.
Page 257 Table 10-1 System Message User system message Message on screen System message description (1~199) SWT_OOR (1) Sweep time out of range RBW_OOR(2) RBW out of range SWT_CCOFM(3) Can't change the sweep time in FFT mode MRKT_UNDEF(4) Undefined marker type MRKFT_UNDEF (5) Undefined marker function type MRKDT_UNDEF (6) Undefined marker delta pair type...
Page 258 LAN_PLUG_IN (150) Ethernet cable plug in LAN_PLUG_OUT (151) Ethernet cable plug out IP_CONFLICT (152) IP address conflict IP_INVALID (153) IP address invalid NETM_INVALID (154) Netmask address invalid GWAY_INVALID (155) Gateway address invalid S21_NORMALIZE_DONE Normalization of S21 done (183) VNA_AUTO_CAL_DONE Auto calibration of VNA done (184) Execution error (400~599) LCF_DTFERR (400)
Page 260 Since its first oscilloscope was launched in 2005, SIGLENT has become the fastest growing manufacturer of digital oscilloscopes. We firmly believe that today SIGLENT is the best value in electronic test & measurement. Headquarters: SIGLENT Technologies Co., Ltd...

This manual is also suitable for:

Ssa5083a

SIGLENT SSA5085A User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for SIGLENT SSA5085A

Summary of Contents for SIGLENT SSA5085A

This manual is also suitable for:

Table of Contents
