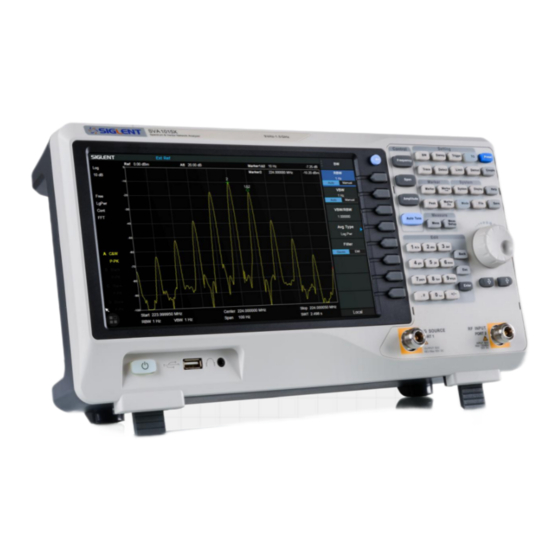

SIGLENT SVA1000X Series Quick Manual

Spectrum & vector network analyzer
Hide thumbs Also See for SVA1000X Series:

Advertisement

Quick Links

Download this manual
SVA1000X Series
Spectrum & Vector
Network Analyzer
Quick Guide
QG0701X-E02A

Advertisement

loading
Need help?

Need help?

Do you have a question about the SVA1000X Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIGLENT SVA1000X Series

Summary of Contents for SIGLENT SVA1000X Series

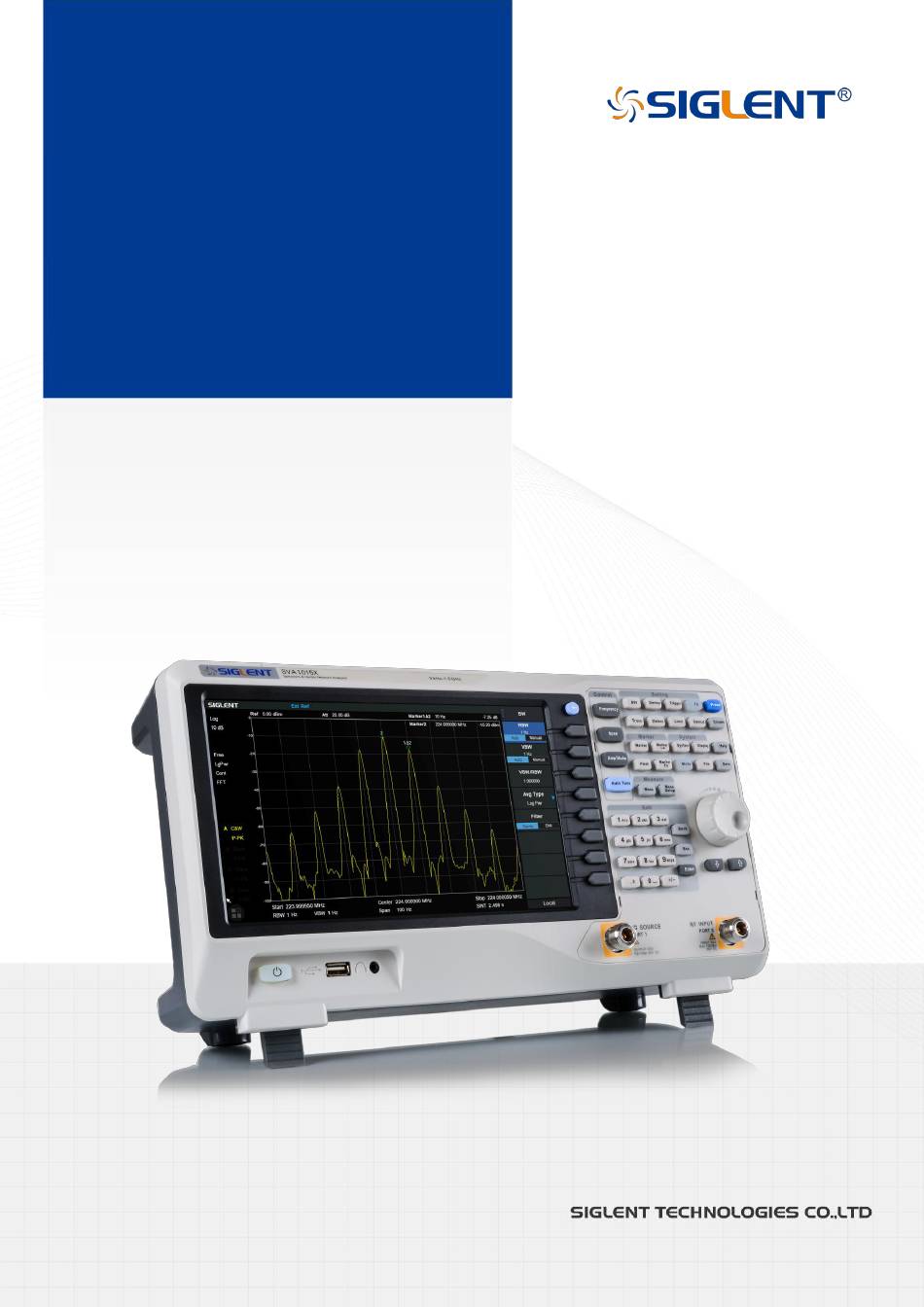

  • Page 1 SVA1000X Series Spectrum & Vector Network Analyzer Quick Guide QG0701X-E02A...

  • Page 3: Trademark Information

    Declaration  SIGLENT products are protected by patent law worldwide  SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at company’s sole decision.  Information in this publication replaces all previously corresponding material.
  • Page 4 Carefully read the following safety precautions to avoid any personal injury or damage to the instrument and any products connected to it. To avoid potential hazards, please use the instrument as specified. Use Proper AC Power Line Only the power cord designed for the instrument and authorized by local country should be used. Ground the Instrument The instrument is grounded through the protective earth conductor of the power line.
  • Page 5 Keep Product Surfaces Clean and Dry. To avoid the influence of dust and/or moisture in the air, please keep the surface of the device clean and dry. Do Not Operate in Wet Conditions. In order to avoid short circuiting to the interior of the device or electric shock, please do not operate the instrument in a humid environment.
  • Page 7 The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT will not provide free maintenance or replacement. Inspect the instrument If the instrument is found to be damaged, defective or fails in electrical or mechanical tests, please contact SIGLENT.
  • Page 8 Figure 2 Top View Adjust the supporting legs properly to use them as stands to tilt the analyzer upwards for stable placement as well as easier operation and observation of the instrument display. Figure 3 Before Adjusting Figure 4 After Adjusting The analyzer accepts 100-240V, 50/60Hz or 100-120V 400Hz AC power supply.
  • Page 9 Figure 6 Front Panel Table 1 Front Panel Description Description Description User Graphical Interface, touch support RF Input, VNA port 2 Menu Control Keys TG Output, VNA port 1 Function Keys 3.5 mm Earphone interface Knob USB Host Numeric / Letter Keyboard Power Switch Arrow Keys Figure 7 Function Keys area...
  • Page 10 Table 2 Function keys description (For Spectrum Analyzer Mode) Control Keys Description Set the parameters of frequency, and Peak→CF, CF→Step. Frequency Span Set the parameters of span, and X-scale (Log-Linear) setup. Amplitude Set the parameters of amplitude, including Ref Level, Attenuator, Preamp, etc.; and Correction setup.
  • Page 11 The on/off state and the color of the backlights of some keys at the front panel indicate the working state of the analyzer. The states are as listed below. Power Switch  Flash on and off alternatively, in a “breathing” state: indicate the unit is in stand-by. ...
  • Page 12 The analyzer can serve as a “host” device to connect external USB devices. This interface is available for USB storage devices, the SIGLENT GPIB-USB adapter, wireless or wired mouse and keyboard, and the SIGLENT Ecal electronic calibration module for the SVA series.
  • Page 13 Figure 10 Front Panel Connectors (2) TG SOURCE, VNA PORT 1  The TG SOURCE can be connected to a device-under-test (DUT) through a cable with a male N-type male connector.  In the VNA mode, this port is used as the single port of S11 and the output port of S21. CAUTION To avoid damage to the tracking generator, the reverse DC voltage cannot exceed 50 V...
  • Page 14 Figure 11 Rear Panel Handle Pull up the handle vertically for easy carrying of the instrument. When you do not need the handle, press it down. USB Device Interface The analyzer can serve as a “slave” device to connect external USB devices. Through this interface, a PC can be connected to control the analyzer.
  • Page 15 REF OUT 10 MHz The analyzer can use the internal or an external reference source.  When an internal reference source is used, the [10 MHz OUT] connector can output a 10 MHz clock signal generated by the analyzer. This signal can be used to synchronize other instruments. ...
  • Page 16 Figure 12 User Interface Table 3 User Interface labels Name Description SIGLENT SIGLENT logo Reference level UNCAL When the sweep time is less than the auto couple time, the measure result may have decreased accuracy, The display will indicate uncalibrated using the letters “UNCAL”...
  • Page 17 USB identification Displayed when a USB flash drive is inserted Menu touch logo Clicking this button will bring up or to the main menu Menu title Function of the current menu. Menu items Menu items of the current function Operation status Local is local mode, Remote is remote mode, Upgrade means the instrument is upgrading...
  • Page 18 Load the .lic file provided by pressing File ->“Load” from internal memory or USB stick. The option will be enabled after rebooting. Follow this procedure to update the instrument firmware: Download the firmware package from an official SIGLENT website. www.siglentamerica.com, http://www.siglent.com/ens, https://www.siglenteu.com Extract and copy the .ADS file into the root directory of an USB stick.
  • Page 19 You can also remote monitor and control the analyzer in Web Browser or EasySpectrum. For more details, refer to the ‘Programming Guide’ or contact your nearest SIGLENT office. The built-in help system provides information about every function key at the front panel and every menu soft key.
  • Page 20 If needed, you can use the security lock (please buy it yourself) to lock the Spectrum Analyzer to a fixed location. The method is as follows, align the lock with the lock hole and plug it into the lock hole vertically, turn the key clockwise to lock the Spectrum Analyzer and then pull the key out.
  • Page 21 SIGLENT warrants that the products that it manufactures and sells will be free from defects in materials and workmanship for a period of three years (accessories for a period of one year) from the date of shipment from an authorized Siglent distributor. If the product proves defective within the respective period, SIGLENT will provide repair or replacement as described in the complete warranty statement.
  • Page 22 (4) Calibrate the instrument regularly to reduce or avoid errors that might occur over time. If you need a specific calibration after the stated calibration period, contact SIGLENT or get paid service from authorized measurement agencies.
  • Page 23 China SIGLENT TECHNOLOGIES CO., LTD. Add: Bldg No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China. Tel: + 86 755 3661 5186 Fax: + 86 755 3359 1582 Email: sales@siglent.com; http://www.siglent.com/ens/ Website: SIGLENT Technologies America, Inc...
  • Page 24 SVA1000X Quick Guide...
