Summary of Contents for Slinex Sonik 7

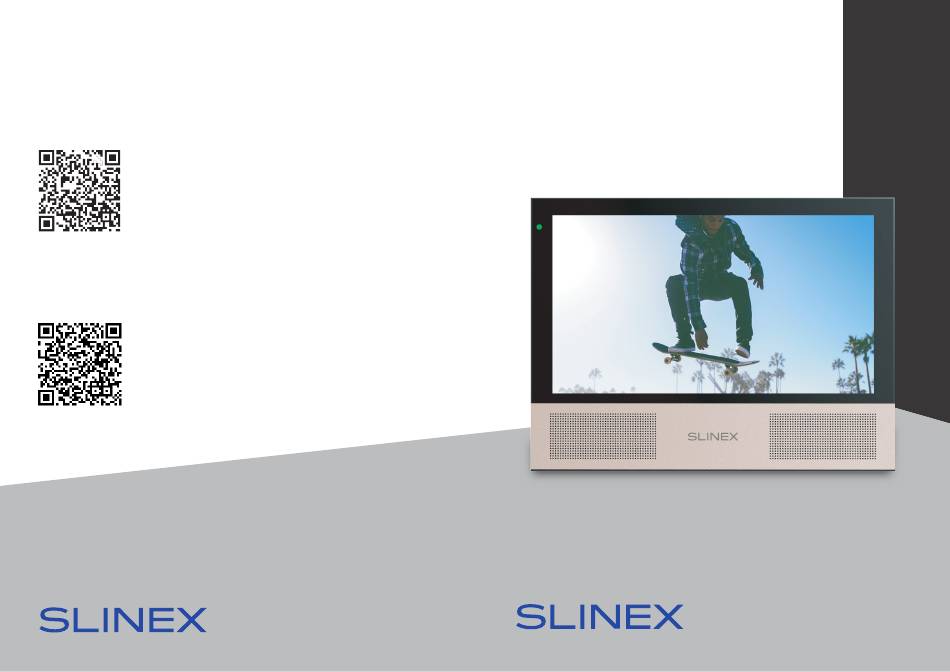

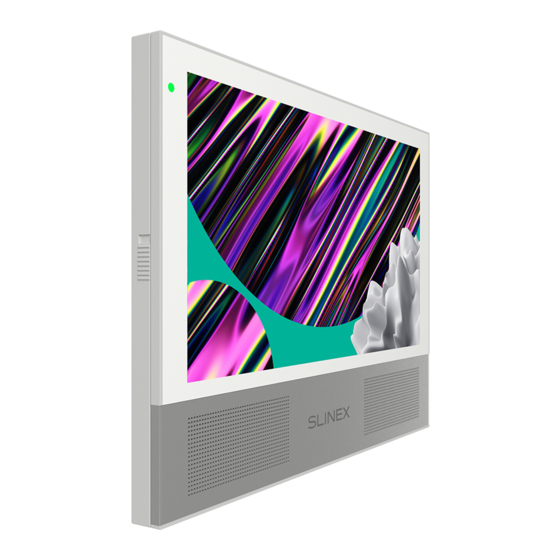

- Page 1 Design. Uniqueness. Innovations . Design. Uniqueness. Innovations . SONIK Technical support 7” video intercom with touch screen User manual download User manual Thank you for choosing our equipment...
-
Page 2: Table Of Contents
This manual can contain some inaccuracy or misprint. The owner reserves the right to make corrections to the information described in the user manual and device package. 3. Description..................................... The last revision of this manual is available on www.slinex.com 4. Installation....................................4.1. Cable requirements............................. -
Page 3: Package
SONIK 7 1. Package 3. Description Sonik 7 indoor monitor − 1 pc. Color panel − 1 pc. Wall mounting bracket − 1 pc. Connection wires − 7 pcs. Mounting screws and anchors − 1 pkg. User manual − 1 pc. -
Page 4: Cable Requirements
4.2. Schematic diagrams 4.1. Cable requirements Diagram 1. Sonik 7 outdoor panels, cameras and locks connection. Disconnect all power cables before device installation. able type that is used for device connection depends on the distance between the last indoor monitor in... -
Page 5: Unit Mount
SONIK 7 Diagram 2. Sonik 7 three monitors connection into one system. 4.3. Unit mount 1) Take the surface mount bracket from the kit and place it on 150-160 cm height. 2) Mark and drill four halls in the wall. -
Page 6: Operation
SONIK 7 5.2. Outdoor panels and cameras image view 5. Operation 5.1. Incoming call Standby mode Standby mode Press any part of the screen to enter main menu Visitor presses call button Visitor presses call button on the rst outdoor panel on the second outdoor panel Press «Door 1»... -
Page 7: Incoming Call Redirection
SONIK 7 Notes: 5.4. Intercom 1) If several monitors are connected into one system, the user can view the image from outdoor panels Two monitors connected into one system are used. and cameras on any monitor inside this system. The image will be transferred from the «Master» monitor outdoor panels and cameras to the «Slave»... -
Page 8: Settings
SONIK 7 7. Settings 18 . 09 . 2019 10 : 56 7.1. System settings System Home screen System Language English Main Ring Time 20.09.2019 14:02 Main menu Door 1 Door 2 CAM1 CAM2 menu Video Screen saver 3 min. -
Page 9: Ring Settings
SONIK 7 7.2. Ring settings 7.3. Video settings Ring Home screen Video Home screen System Door 1 melody Ring 01 System Door 1 1080P Main Main Ring Door 2 melody Ring 05 Ring Door 2 CVBS 720P NTSC menu menu... -
Page 10: Memory Settings
SONIK 7 7.4. Memory settings Main Motion detection Home screen menu Memory Home screen Software motion detection System System SD card capacity 7.33 GB Ring Source Door 1 Settings Main Ring Video menu Sensitivity Middle Free 7.33 GB Video Memory... - Page 11 SONIK 7 Area − motion detection area setting defines the part of the image in which motion detection Hardware motion detection can detect motion by means of external device (hardware motion sensor). performed; There are two types of sensors that can be connected to the monitor: sensor with normally opened contacts (NO) and sensor with normally closed contacts (NC).
-
Page 12: File Manager
SONIK 7 7.7. Photo frame settings 7.9. Factory reset Photo frame Home screen Factory reset Home screen System Enable photo frame Main Main System menu menu Ring 1 min. Working time Warning! Ring All parameters will be reseted to the factory defaults... -
Page 13: Video Playback
SONIK 7 8.1. Video playback 8.3. Custom MP3 ringtone Press «Files» icon in the main menu then press «Video» folder icon. Create «RING» folder in the root of microSD card, if it isn’t already created by the monitor. Paste MP3 files you would like to use as a ringtone into this folder. -
Page 14: Silent Mode
SONIK 7 9. Silent mode 12. Limited warranty Press «Silence on» or «Silence o » in the main menu to enable or disable silent mode. In that mode there is Manufacturer guarantees product normal functioning during the warranty period if the user keeps all no ringtone of incoming call on the monitor.
