User Codes - Electronics Line Penta Installation Manual

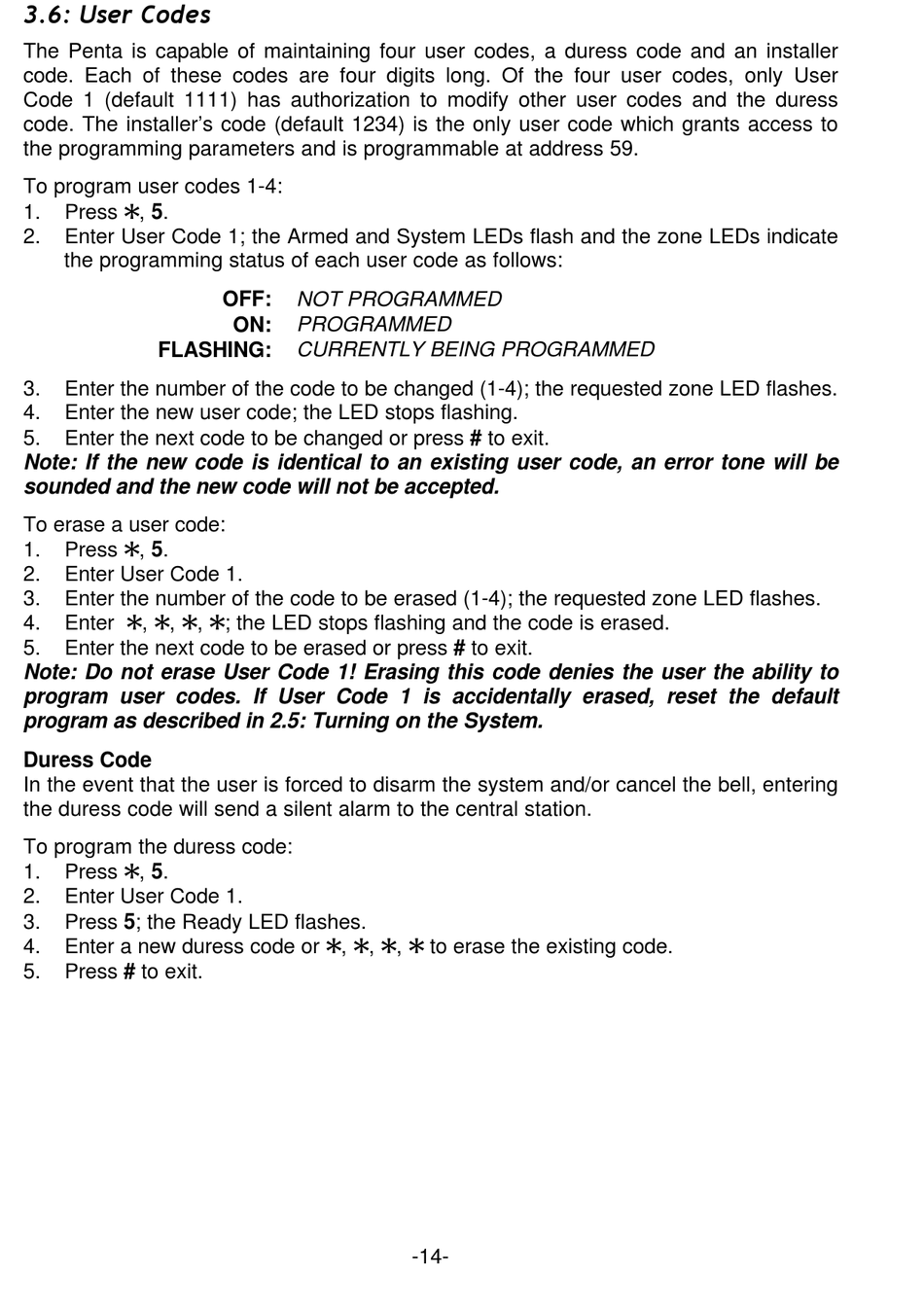

3.6: User Codes

The Penta is capable of maintaining four user codes, a duress code and an installer
code. Each of these codes are four digits long. Of the four user codes, only User
Code 1 (default 1111) has authorization to modify other user codes and the duress
code. The installer's code (default 1234) is the only user code which grants access to
the programming parameters and is programmable at address 59.
To program user codes 1-4:
Press Q, 5.
1.
2. Enter User Code 1; the Armed and System LEDs flash and the zone LEDs indicate
the programming status of each user code as follows:
FLASHING:
3. Enter the number of the code to be changed (1-4); the requested zone LED flashes.
4. Enter the new user code; the LED stops flashing.
5. Enter the next code to be changed or press # to exit.
Note: If the new code is identical to an existing user code, an error tone will be
sounded and the new code will not be accepted.
To erase a user code:
Press Q, 5.
1.
2. Enter User Code 1.
3. Enter the number of the code to be erased (1-4); the requested zone LED flashes.
Enter Q, Q, Q, Q; the LED stops flashing and the code is erased.
4.
5. Enter the next code to be erased or press # to exit.
Note: Do not erase User Code 1! Erasing this code denies the user the ability to
program user codes. If User Code 1 is accidentally erased, reset the default
program as described in 2.5: Turning on the System.
Duress Code
In the event that the user is forced to disarm the system and/or cancel the bell, entering
the duress code will send a silent alarm to the central station.
To program the duress code:
Press Q, 5.
1.
2. Enter User Code 1.
3. Press 5; the Ready LED flashes.
Enter a new duress code or Q, Q, Q, Q to erase the existing code.
4.
5. Press # to exit.
NOT PROGRAMMED
OFF:
ON: PROGRAMMED
CURRENTLY BEING PROGRAMMED
-14-
