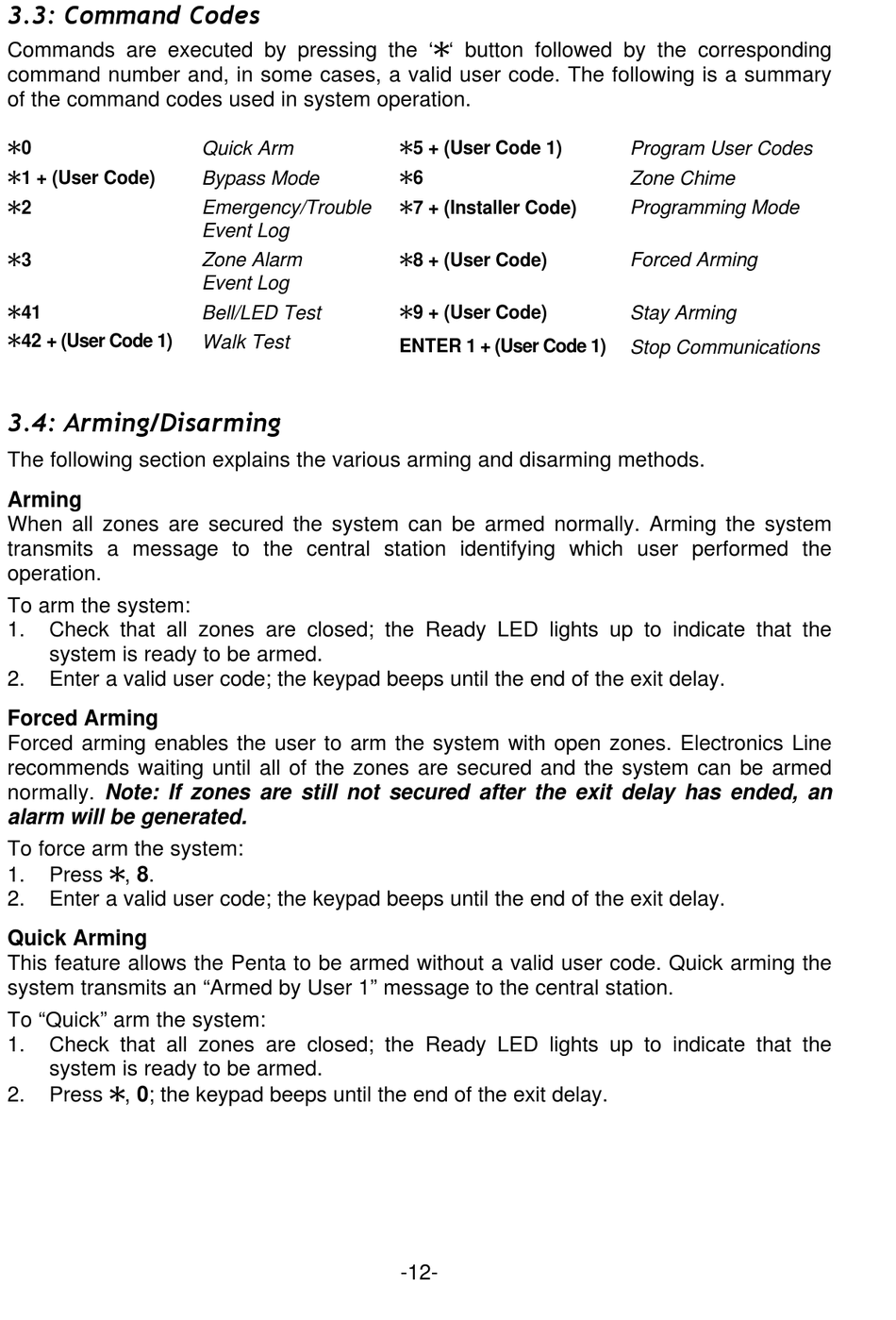

3.3: Command Codes

Commands are executed by pressing the 'Q' button followed by the corresponding
command number and, in some cases, a valid user code. The following is a summary
of the command codes used in system operation.
Q0
Q1 + (User Code)
Q2
Q3
Q41
Q42 + (User Code 1)

3.4: Arming/Disarming

The following section explains the various arming and disarming methods.
Arming
When all zones are secured the system can be armed normally. Arming the system
transmits a message to the central station identifying which user performed the
operation.
To arm the system:
1. Check that all zones are closed; the Ready LED lights up to indicate that the
system is ready to be armed.
2. Enter a valid user code; the keypad beeps until the end of the exit delay.
Forced Arming
Forced arming enables the user to arm the system with open zones. Electronics Line
recommends waiting until all of the zones are secured and the system can be armed
normally. Note: If zones are still not secured after the exit delay has ended, an
alarm will be generated.
To force arm the system:
Press Q, 8.
1.
2. Enter a valid user code; the keypad beeps until the end of the exit delay.
Quick Arming
This feature allows the Penta to be armed without a valid user code. Quick arming the
system transmits an "Armed by User 1" message to the central station.
To "Quick" arm the system:
1. Check that all zones are closed; the Ready LED lights up to indicate that the
system is ready to be armed.
Press Q, 0; the keypad beeps until the end of the exit delay.
2.
Quick Arm
Bypass Mode
Emergency/Trouble
Event Log
Zone Alarm
Event Log
Bell/LED Test
Walk Test
Q5 + (User Code 1)
Q6
Q7 + (Installer Code)
Q8 + (User Code)
Q9 + (User Code)
ENTER 1 + (User Code 1)
-12-
Program User Codes
Zone Chime
Programming Mode
Forced Arming
Stay Arming
Stop Communications
