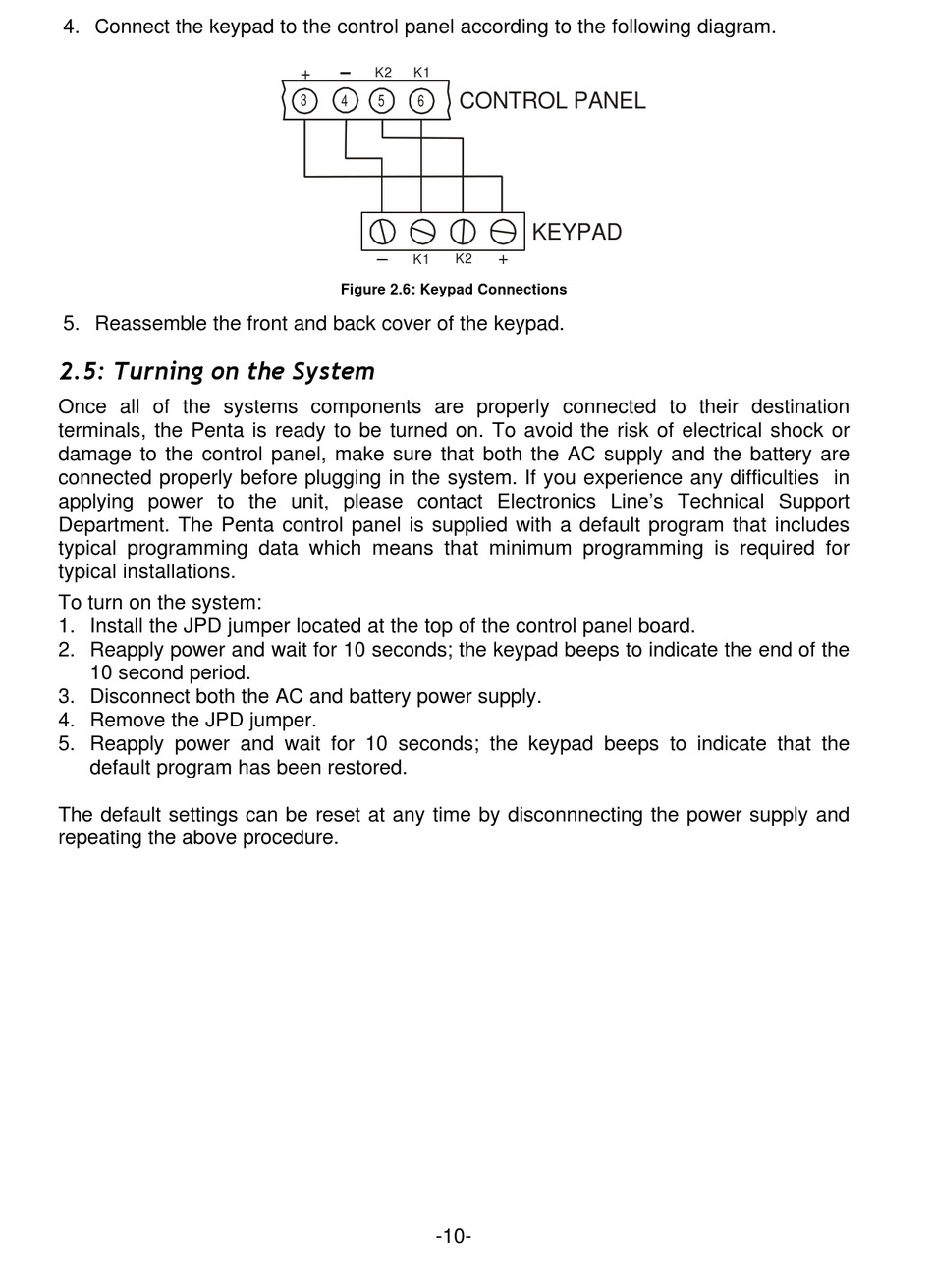

4. Connect the keypad to the control panel according to the following diagram.
5. Reassemble the front and back cover of the keypad.

2.5: Turning on the System

Once all of the systems components are properly connected to their destination
terminals, the Penta is ready to be turned on. To avoid the risk of electrical shock or
damage to the control panel, make sure that both the AC supply and the battery are
connected properly before plugging in the system. If you experience any difficulties in
applying power to the unit, please contact Electronics Line's Technical Support
Department. The Penta control panel is supplied with a default program that includes
typical programming data which means that minimum programming is required for
typical installations.
To turn on the system:
1. Install the JPD jumper located at the top of the control panel board.
2. Reapply power and wait for 10 seconds; the keypad beeps to indicate the end of the
10 second period.
3. Disconnect both the AC and battery power supply.
4. Remove the JPD jumper.
5. Reapply power and wait for 10 seconds; the keypad beeps to indicate that the
default program has been restored.
The default settings can be reset at any time by disconnnecting the power supply and
repeating the above procedure.
+
K2 K1
3
4 5 6 5
CONTROL PANEL
K2
K1
Figure 2.6: Keypad Connections
-10-
6
KEYPAD
+
