Setting Up Triggers

Use the trigger controls to set the conditions on which the oscilloscope will trigger
and acquire an input signal. You can set up a variety of trigger conditions. Edge
triggers and the parameters for edge triggering can be set up from the front panel.
Trigger configuration settings you make using the user interface are reflected in
the front panel Trigger status indicators, and will remain set unless you change
them or press [Default Setup].

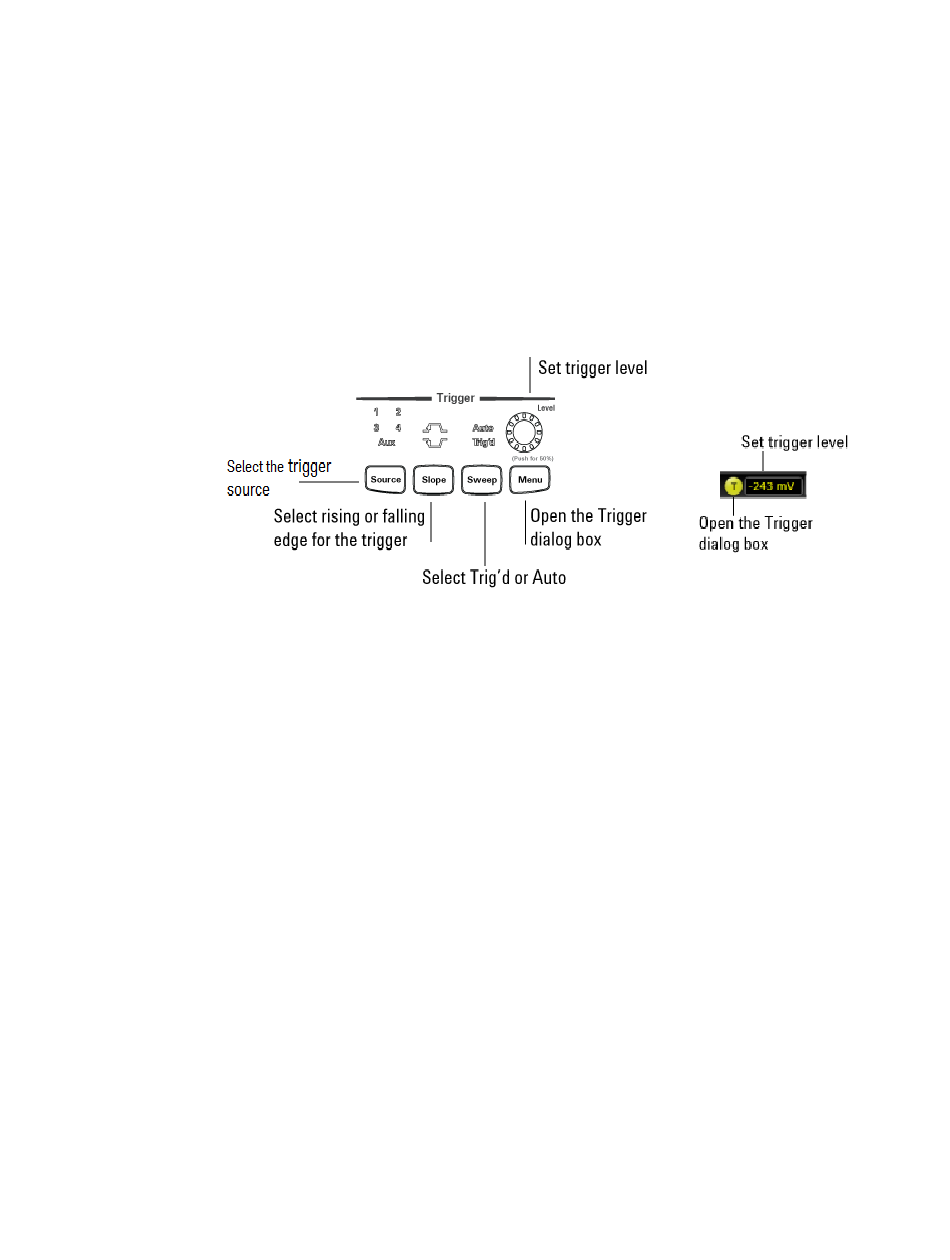

Figure 16 Trigger controls and indicators

Setting the oscilloscope to trigger on an edge

1
2
3
4
Use the Trigger dialog box to select any of the modes of triggering, the parameters
and conditions for each trigger mode, and advanced configuration items.
Keysight Infiniium S-Series Oscilloscopes User's Guide
Press [Source] until the desired source LED is lit.
You can choose any channel or the Aux Trig or Line input as the source for an
edge trigger.
Press [Slope] until the desired slope LED is lit.
You can have an edge trigger on a rising or falling edge, or both.
Press [Sweep] until the desired LED is lit (Trig'd or Auto).
When Trig'd is selected, the oscilloscope must find the trigger before saving and
displaying captured data.
When Auto is selected, if a trigger does not occur within a certain amount of
time, an acquisition is automatically saved and displayed. In Auto trigger mode,
you are able to see your signals while setting up the desired trigger.
Turn the Level knob to adjust the voltage level at which the oscilloscope will
trigger.
