Summary of Contents for Keysight Infiniium 9000 Series
Page 1

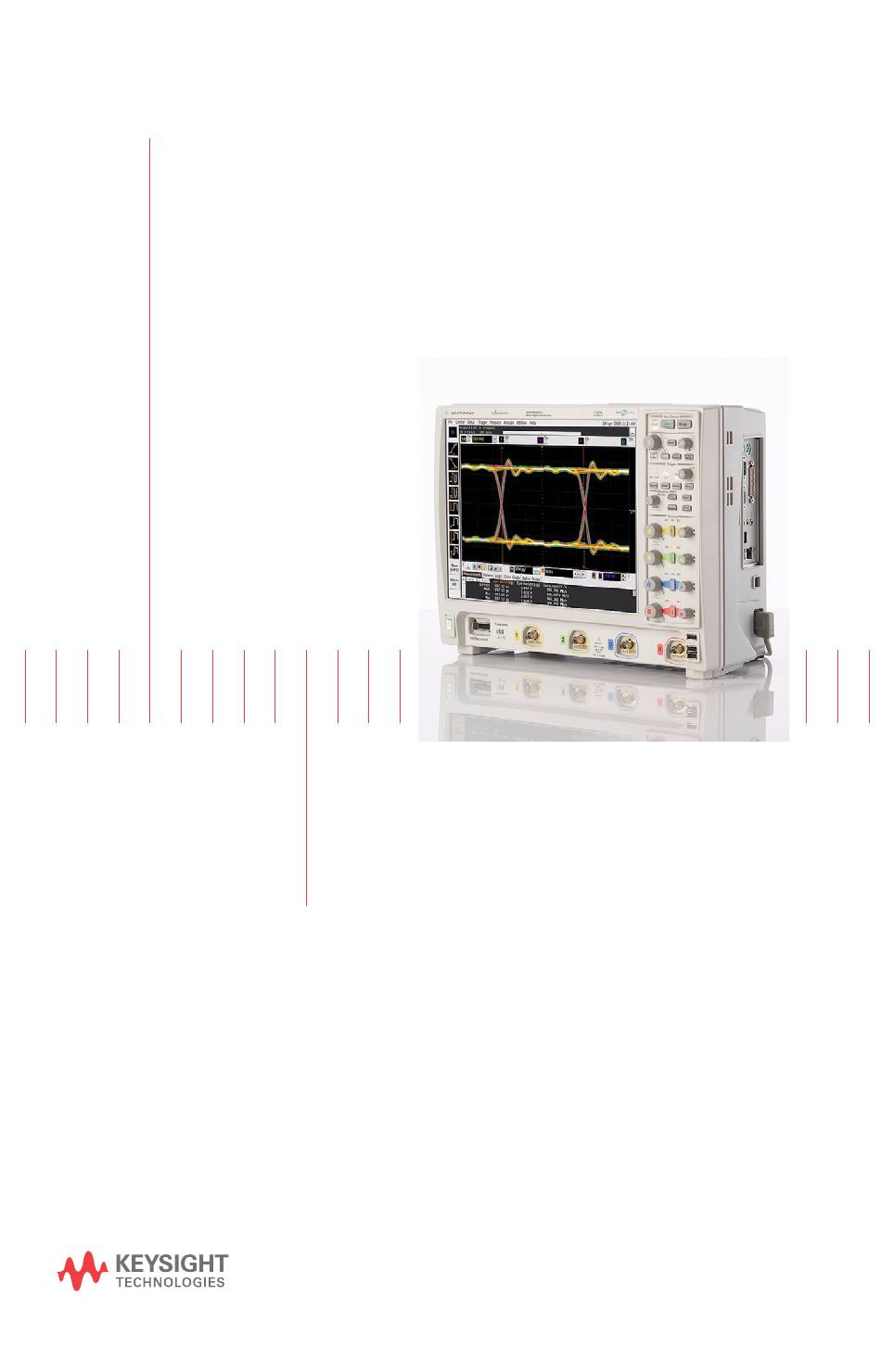

Keysight Infiniium 9000 Series Oscilloscopes Evaluation Guide The most recent PDF version of this guide will be placed on the Keysight web site at: http://literature.cdn.keysight.com/litweb/pdf/N2918-97003.pd f...
Limited Rights as defined in FAR a foreign language) without prior by applicable law, Keysight d is- 52.227-14 (June 1987) or DFAR agreement and written consent claims all warranties, either 252.227-7015 (b)(2) (November...
Page 3
Expand your oscilloscope’s capabilities with our powerful lineup of applications. Keysight wants to help you get fast, accurate answers to your measurement questions. That’s why the Infiniium 9000 Series oscilloscopes offer the largest range of software applications engineered to quickly and easily provide exceptional insight into technology-specific testing.
Demo kit with demo board and USB cable. Demo board connections: MSO Cable Power Power is provided via Connection USB or MSO cable. (Digital Inputs) MODE Action InfiniiMax Select Knob differential probe Oscilloscope Probe Connections Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
In This Guide If you are experiencing the Infiniium 9000 Series oscilloscope for the first time, begin with Lab , the Getting Started Guide. If you have a basic knowledge of the Infiniium 9000 Series oscilloscope’s front-panel controls, begin with Lab...
Page 6
Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Keysight Infiniium 9000 Series Oscilloscopes 1 Getting Started If you are not familiar with the Keysight Infiniium 9000 Series oscilloscopes, please first look over the main sections of the front panel as illustrated and then follow the exercises.
Page 8
Getting Started 15" XGA touch screen display Drag-and-drop measurements Status tab shows current settings Mixed-signal oscilloscope (MSO) cable connection AutoProbe interface Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 9
Time/div and position horizontal controls Trigger level knob and controls Digital button for mixed-signal oscilloscope (MSO) channels D0 – D15 Serial Decode button for quick decode access Color-coded controls for each oscilloscope channel USB ports Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 10
(Default Setup). This will make it easy to duplicate measurements as no special conditions will be set. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 11
Getting Started 5 Press [AutoScale]. The oscilloscope will analyze all active channels, turning them on and setting the time base, V/div, and trigger conditions for an initial display. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
6 Press the [Zoom] key again to return to the original display. Note: At any time, to return to the original setup, press [AutoScale]. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
2 Set the time base to 2 ms/div. 3 Press the [Single] key to make a single acquisition and stop the acquisition process. 4 Use the large Horizontal scale knob to zoom in on the waveform. Press for single run Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Getting Started Acquisition Controls 1 From the on-screen main menu, choose Setup>Acquisition..Note the sampling mode, manual memory depth, averaging, and manual sampling rate options. 2 Click Close. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Press [1] again to turn the channel on. 4 Turn the small channel 1 (yellow) Vertical position knob to control the offset position of the waveform, moving it up or down. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Trig’d mode when you want to set a specific trigger condition and capture waveforms only when those conditions are met. When waiting for trigger, only the white Arm’d LED is lit. When the oscilloscope finds the trigger event, the white Trig’d LED is also lit. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
1 Press [AutoScale] to return to a simple setup. 2 Drag a measurement icon from the left-hand side of the screen to a waveform. 3 When the icon border changes to the color of the desired waveform, drop the icon. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 18
You can also set up the [Mul ti Purpose] key to display quick measurements. To do this: 1 From the on-screen main menu, choose Utilities>Customize Mul tipurpose..Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 19
Getting Started 2 In the Customize Multipurpose dialog, select QuickMeas from the top drop-down; then, select the quick measurements you want, and click Close. 3 Now, press the [Mul ti Purpose] key. Press Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Close (or press [Markers] again). 3 Drag the Ax marker to the leading edge on the CH1 waveform. 4 Drag the Bx marker to the last edge on the CH1 waveform. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 21
From the on-screen main menu, choose File>Save> and then the type of file you want to save. You can also print to printers set up in the Windows operation system. For online assistance, choose Help>Contents..Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 22
Keysight Infiniium 9000 Series Oscilloscopes Evaluation Guide 2 Viewing Complex Signals Video signals have been the ultimate display challenge for digitizing oscilloscopes. These complex signals have long been considered the display standard by which the display performance of digitizing oscilloscopes have been compared to analog oscilloscope display technology.
Page 23
10 Adjust the volts/div setting to 500 mV/div. 11 Wave your hand over the demo board’s video camera lens to observe the good display update rate of the oscilloscope. Set acquisition options: 12 From the on-screen main menu, choose Setup>Acquisition..Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 24
Viewing Complex Signals 13 In the Acquisition Setup dialog, select: Then, click Close. 14 Press [Single] to obtain one acquisition using the maximum memory depth of the oscilloscope. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 25
Viewing Complex Signals 15 Using the large Horizontal scale knob, adjust the time base setting down to 2 µs/div to zoom in on the color burst. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 26
In this lab, we will capture an AM signal that includes an embedded anomaly (a glitch). With the Infiniium 9000 Series MegaZoom technology, the display system will clearly show this glitch while the deep memory will allow us to zoom in for detailed analysis of the glitch after capture.
Page 27
9 Set the time base to 100 µs/div. Note that there is a glitch present in every other envelope. 10 Press [Single] to capture a single shot acquisition of this complex waveform. Press Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 28
With up to 10 Mpts of deep memory you are able to see the big picture (envelope of the entire AM signal) as well as zoom in on the details of this anomaly while maintaining a high sample rate. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 29
Keysight Infiniium 9000 Series Oscilloscopes 4 InfiniiScan Triggering Capturing infrequent or hard to describe anomalies such as random glitches requires oscilloscopes with innovative technology. InfiniiScan is a software-based post-processing technology that makes it easy to isolate anomalies. This lab requires an InfiniiScan option license.
Page 30
InfiniiScan Triggering Then, click Close. 10 In the waveform area, draw a box around the area where an occasional glitch occurs. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 31
The oscilloscope now triggers and captures only waveforms where the glitch occurs. InfiniiScan can be extremely effective in isolating cycles such as DDR reads and writes, or in triggering on events that are difficult to describe with traditional oscilloscope triggers. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 32
Keysight Infiniium 9000 Series Oscilloscopes Evaluation Guide 5 Mixed-Signal Oscilloscope (MSO) In mixed analog and digital designs, it is often important to view multiple analog and digital channels, which is significantly beyond the capability of a 2- or 4-channel oscilloscope. With 2 or 4 oscilloscope channels plus 16 logic...
Page 33
Set up digital channels: 7 From the on-screen main menu, choose Setup>Digital..8 In the Digital Setup dialog’s Enable tab, disable the D7-D0 display by unchecking the D enable selection. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 34
9 In the Digital Setup dialog’s Bus 1 tab, select: Then, click Close. Set up the trigger: To trigger on a bus value: 10 Choose Trigger>Setup Trigger... (or press [Menu] in the front panel Trigger controls). Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 35
Mixed-Signal Oscilloscope (MSO) 11 In the Trigger Setup dialog, select: Then, click Close. 12 Set the time base to 20 µs/div. At center screen, notice the Bus 1 value. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 36
Keysight Infiniium 9000 Series Oscilloscopes Evaluation Guide 6 USB Keysight offers a USB compliance package as well as a USB protocol triggering and decode application. The compliance package tests for signal conformance to USB-IF industry standard while the protocol triggering and decode application targets rapid debug.
Page 37
9 Set the time base to 20 µs/div to see a single packet. Move the mouse and you can see additional traffic. Set up serial decode: 10 Choose Setup>Serial Decode..11 In the Serial Decode dialog, select: Then, click Auto Setup and Close. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 38
Full speed hubs or older thumb drives make ideal candidates. 14 Press [Defaul t Setup]. 15 Press [AutoScale]. You are now viewing full-speed serial traffic between the full-speed device and the PC in the oscilloscope. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 39
18 Copy any large file (a 100M file generates about 2 minutes of traffic works well) from a thumb drive (+full speed hub) plugged into the demo board to the Infiniium 9000 Series desktop (or vice versa). Note: Most new thumb drives are high speed USB. To convert the traffic into full speed, use a full speed hub.
Page 40
20 Click on either a Data 1 or a Data 0 packet row; then, select the Payload tab to see the packet contents. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 41
21 Choose Trigger>Setup Trigger... (or press [Menu] in the front panel Trigger controls). 22 In the Trigger Setup dialog, select: Then, click Close. 23 Press [Single] and note that the oscilloscope triggers when it sees the first DATA0 packet. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 42
This connection has built-in 82 ohm termination. The posts are 20 mil and they accept the socketed probe head adapter without any additional termination. 26 Press [Defaul t Setup]. 27 Press [AutoScale]. Set up serial decode: 28 Choose Setup>Serial Decode..Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 43
30 Copy any large file (a 100M file generates just a few seconds of traffic and works well) from a thumb drive plugged into the demo board to the Infiniium 9000 Series desktop (or vice versa). 31 Press [Single] to capture a single trace.
Page 44
33 Choose Trigger>Setup Trigger... (or press [Menu] in the front panel Trigger controls). 34 In the Trigger Setup dialog, select: Then, click Close. 35 Press [Single]. The oscilloscope triggers when it sees the first DATA0 packet. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 45
Keysight Infiniium 9000 Series Oscilloscopes To enable I C serial decode, your oscilloscope has to have the I C/SPI protocol option installed. (The installed options are listed in the Help>About Infiniium... dialog.) Make connections and perform initial setup: 1 To power the demo board, connect a USB cable between it and the Keysight Infiniium 9000 Series oscilloscope.
Page 46
As you move the blue vertical marker in the waveform display, it tracks in the protocol viewer window. As you click on rows in the protocol viewer, the blue marker shows the exact associated time in the waveform menu. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 47
Set up the trigger: 12 Choose Trigger>Setup Trigger... (or press [Menu] in the front panel Trigger controls). 13 In the Trigger Setup dialog, select: Then, click Close. 14 Press [Single] or [Run]. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 48
15 In the protocol decode viewer, select the Payload tab. 16 Select the Header tab to see a data sheet view of the acquired protocol. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 49
Keysight Infiniium 9000 Series Oscilloscopes 8 SPI To enable SPI serial decode, your oscilloscope has to have the I C/SPI option installed. (The installed options are listed in the Help>About Infiniium... dialog.) Make connections and perform initial setup: 1 Connect the MSO cable between the oscilloscope and the demo board’s 40-pin connector.
Page 50
7 In the Serial Decode dialog, select: Then, click Auto Setup and Close. Set up the trigger: 8 Choose Trigger>Setup Trigger... (or press [Menu] in the front panel Trigger controls). Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 51
10 Change the time base setting to 500 µs/div to easily see the serial decode. As you move the blue vertical marker in the waveform display, it tracks in the protocol viewer window. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 52
Keysight Infiniium 9000 Series oscilloscope. 2 Connect the scope analog channel probes to pins on the demo board’s 40-pin connector: 3 Turn the SELECT switch to position 6 (SPI). 4 Press [Defaul t Setup]. 5 Press [AutoScale]. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 53
6 Choose Setup>Serial Decode..7 In the Serial Decode dialog, select: Then, click Auto Setup and Close. Set up the trigger: 8 Set up the trigger the same as in the previous section. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 54
9 Change the time base setting to 500 µs/div to easily see the serial decode. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 55
Keysight Infiniium 9000 Series Oscilloscopes 9 CAN To enable CAN serial decode, your oscilloscope has to have the CAN/FlexRay serial bus protocol option installed. (The installed options are listed in the Help>About Infiniium... dialog.) Make connections and perform initial setup: 1 To power the demo board, connect a USB cable between it and the Keysight Infiniium 9000 Series oscilloscope.
Page 56
10 In the Decode window, click Search..11 In the Serial Search dialog, enable searching and triggering on error frames: Then, click Close. 12 Press [Run]. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 57
Keysight Infiniium 9000 Series Oscilloscopes 10 RS-232 The RS-232/UART serial triggering and decode option displays responsive, time-aligned, on-screen decode of RS-232 and other UART serial buses. It provides triggering capabilities on specified transmit or receive values, as well as on parity errors.
Page 58
RS-232 Set up serial decode: 7 Choose Setup>Serial Decode..8 In the Serial Decode dialog, select: Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 59
Then, click Auto Setup and Close. 9 In the Decode window, select the ASCII display format. Set up the trigger: 10 Choose Trigger>Setup Trigger... (or press [Menu] in the front panel Trigger controls). Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 60
RS-232 11 In the Trigger Setup dialog, select: Then, click Close. 12 Press [Run]. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Keysight Infiniium 9000 Series Oscilloscopes 11 Segmented Memory Keysight’s segmented memory feature can optimize your oscilloscope’s acquisition memory, allowing you to capture more selective signal details with less memory and then easily view all captured waveforms and scroll through each individual waveform segment.
Page 62
Then, click Close. 12 Press [Single] to capture the desired number of segments. After the acquisition completes, notice the bottom portion of the screen has a tab for navigating through the segmented memory waveforms. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 63
13 Use the forward, back, start, and end buttons to play through the acquired segments one by one. 14 Enter a play rate of 100 ms, and click Play to play back all the captured segments. Note that time tags are kept for each segment. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 64
5 Wait a minute, and then re-apply power to the demo board. When you finish acquiring segments, you will have acquired over a minute of capture with the help of segmented memory. Time tags between segments time out at 6.5 days. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 65
Keysight Infiniium 9000 Series Oscilloscopes 12 Histograms Histograms give you an easy way to evaluate statistics associated with waveforms. The low-cost demo board produces noise that appears as thick traces for any oscilloscope that captures its signals. Use a histogram to measure the amount of this noise.
Page 66
Histograms 11 In the Histogram dialog, select: Then, click Close. Note the standard deviation and the number of total hits analyzed. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 67
Keysight Infiniium 9000 Series Oscilloscopes A Using Trigger Holdoff to Synchronize Acquisition/Display on Complex Signals Triggering on simple repetitive signals is easy using standard edge triggering. But if you need to synchronize your oscilloscope’s acquisitions/display on more complex signals, such as an amplitude-modulated signal, you will need to use your oscilloscope’s trigger hold-off capability unless there is an external...
Page 68
This will stop acquisitions and display the last acquisition on screen—the expected AM signal is now displayed on a single acquisition when stopped. Now let’s set up the holdoff trigger value to achieve a stable trigger. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 69
Set up the trigger: 12 From the on-screen main menu, choose Trigger>Setup Trigger... (or press [Menu] in the front panel Trigger controls). 13 In the Trigger Setup dialog, click Cond itioning..Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
Page 70
The idea is that the trigger will arm on the first edge of the small envelope and will then ignore the rising edges of the large envelope as it will not rearm until 400 µs later and then trigger on the second small envelope. Keysight Infiniium 9000 Series Oscilloscope Evaluation Guide...
