Operator's Manual
"Caution: Federal law restricts this device to sale or
rental by or on order of a physician, or any other
practitioner licensed by the law of the State in which
he/she practices to use or order the use of this device."
Dealer: This manual MUST be given to the end
user.
User: Before using this cylinder, read this
manual and save for future reference.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com

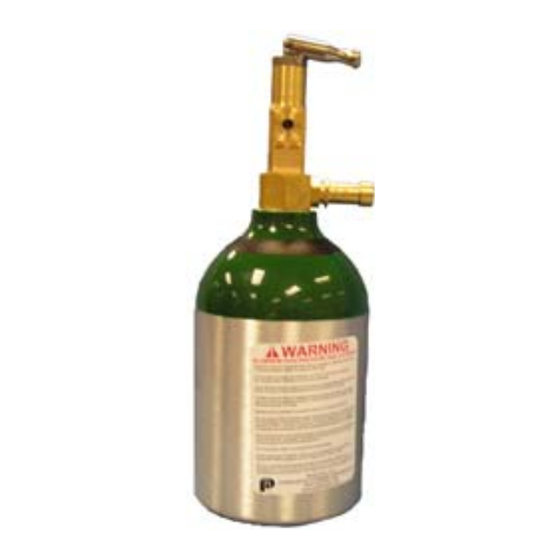

HomeFill
Oxygen Post Valve
Cylinder
HF2POST6
HF2POST9
HF2POSTD
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Invacare HomeFill HF2POST6
Summary of Contents for Invacare HomeFill HF2POST6
- Page 1 Dealer: This manual MUST be given to the end user. User: Before using this cylinder, read this manual and save for future reference. For more information regarding Invacare products, parts, and services, please visit www.invacare.com...
- Page 2 TO USE THIS EQUIPMENT - OTHERWISE INJURY OR DAMAGE MAY RESULT. WARNING Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare. DANGER DO NOT SMOKE while using this device. Keep all...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS SPECIAL NOTES ..........4 RECEIVING INSPECTION ........4 INTENDED USE ..........4 SECTION 1—GENERAL GUIDELINES ....5 SECTION 2—FEATURES ........8 SECTION 3—TYPICAL PRODUCT PARAMETERS ..........9 SECTION 4—INSPECTION AND COMPRESSOR INTERFACE ........... 10 Cylinder Prefill Inspection ............... -
Page 4: Special Notes
To store supplemental oxygen for use with a CGA 870 post valve compatible conserver or regulator to be used by patients who may have difficulty extracting oxygen from the air they breathe. NOTE: Updated versions of this manual are available on www.invacare.com. HomeFill Part No 1148114 ™... -
Page 5: Section 1-General Guidelines
SECTION 1—GENERAL GUIDELINES SECTION 1—GENERAL GUIDELINES WARNING SECTION 1 - IMPORTANT SAFEGUARDS contains important information for the safe operation and use of this product. DO NOT use this product or any available optional equipment without first completely reading and understanding these instructions and any additional instructional material such as Owner’s Manuals, Service Manuals or Instruction Sheets supplied with this product or optional equipment. - Page 6 Example of items to avoid are hand creams or lotions, cooking oils, suntan oils or sunblocks and similar oily products. If you use these types of products Invacare suggests you wash your hands prior to using this product. If the cylinder fitting should come in contact with such substances it should be cleaned off with a damp cloth prior to connecting it to the compressor.
- Page 7 SECTION 1—GENERAL GUIDELINES WARNING NEVER oil or lubricate the cylinder fittings. NEVER use any penetrating oil or lubricant such as WD-40 or 3 in One. If connection difficulty is experienced verify that the cylinder fitting is being inserted straight down into the compressor coupler.
-
Page 8: Section 2-Features
SECTION 2—FEATURES SECTION 2—FEATURES Toggle Valve Cylinder Fill Port FIGURE 2.1 Product Diagram HomeFill Part No 1148114 ™... -
Page 9: Section 3-Typical Product Parameters
SECTION 3—TYPICAL PRODUCT PARAMETERS SECTION 3—TYPICAL PRODUCT PARAMETERS DIMENSIONS: HF2POST6: Weight 4.0 lbs (1.81 kg) HF2POST6: Overall Length 11.1 in. (2.8 cm) HF2POST6: Diameter 4.4 in. (11.1 cm) HF2POST9: Weight 5.0 lbs (2.27 kg) HF2POST9: Overall Length 14 in (35.5 cm) HF2POST9: Diameter 4.4 in (11.1 cm) HF2POSTD: Weight... -
Page 10: Section 4-Inspection And Compressor Interface
SECTION 4—INSPECTION AND COMPRESSOR INTERFACE SECTION 4—INSPECTION AND COMPRESSOR INTERFACE NOTE: Refer to the HomeFill ™ Compressor Owner’s Manual for compressor operating instructions. Cylinder Prefill Inspection WARNING All cylinders MUST be inspected before attempting to fill; otherwise, injury or damage may occur. NEVER smoke in an area where oxygen is being administered. - Page 11 SECTION 4—INSPECTION AND COMPRESSOR INTERFACE External Examination NOTE: For this procedure, refer to FIGURE 4.1 on page 12. 1. Examine the outside of the cylinder for the following conditions and replace the cylinder if they exist: • Dents or dings •...
- Page 12 "Not to be filled for resale or use by professional users". OXYGEN This cylinder is to be used with the Invacare Venture HomeFill system. This cylinder contains 93 + 3% oxygen produced by an oxygen concentrator using the pressure swing adsorption process.
-
Page 13: Filling The Cylinder
SECTION 4—INSPECTION AND COMPRESSOR INTERFACE 2. Ensure toggle valve is open. Open the toggle valve by rotating counterclockwise. 3. Examine the gauge on the connected conserver or regulator. Perform one of the following: • If the cylinder pressure is less than 1500 psig, fill the cylinder. - Page 14 SECTION 4—INSPECTION AND COMPRESSOR INTERFACE CONSERVER/REGULATOR CONSERVER/REGULATOR INSTALLED REMOVED Gauge Toggle Valve Conserver/ Regulator Cylinder FIGURE 4.2 Component Identification 4. Remove the post valve cover (located on the cylinder) and the connector fillport covers (located on the compressor) (FIGURE 4.3). Connector Post Valve Cover Fillport Cover...
- Page 15 SECTION 4—INSPECTION AND COMPRESSOR INTERFACE NOTE: If the outer ring (sleeve) is in the UP position (GREEN dots not visible), the connector fillport will not be able to accept the cylinder fillport. Pushing DOWN momentarily will reset the connector fillport (GREEN dots visible) to accept the cylinder fillport.
- Page 16 SECTION 4—INSPECTION AND COMPRESSOR INTERFACE NOTE: Refer to Cylinder Fill Times on page 20 for the length of time it will take to fill the cylinder. DETAIL “B” DETAIL “A” Cylinder Cylinder Assembly Outer Ring Fillport (Sleeve) Compressor DETAIL “C” Power Switch Cylinder...
- Page 17 SECTION 4—INSPECTION AND COMPRESSOR INTERFACE 11. After the cylinder is full, press the compressor power switch to the Off (O) position (FIGURE 4.6). 12. Grasp the cylinder assembly (FIGURE 4.6). 13. With the other hand, grasp the outer ring (sleeve) of the connector fillport and push DOWN (FIGURE 4.6).
- Page 18 SECTION 4—INSPECTION AND COMPRESSOR INTERFACE WARNING The fillport cover on the connector fillport and the post valve fillport MUST be replaced after filling and whenever not in use. If either of the fillport covers are missing contact your healthcare provider before using. 17.
-
Page 19: Section 5-Maintenance
2. Store product in a clean area free from grease, oil, and other sources of contamination. CAUTION DO NOT use cleaning solutions. DO NOT immerse product in any kind of liquid. All repairs MUST be done by Invacare Corporation. Part No 1148114 HomeFill ™... -
Page 20: Section 6-Cylinder Fill Times
SECTION 6—CYLINDER FILL TIMES SECTION 6—CYLINDER FILL TIMES NOTE: All filling times are approximate and may vary on environmental conditions. Cylinder Concentrator Flow Rate to Patient: Filling (Platinum 5 up to 3 L/min. and Platinum 10 up to 5 Times L/min) HF2POST6 HF2POST9... - Page 21 NOTES NOTES Part No 1148114 HomeFill ™...
-
Page 22: Limited Warranty
Upon receiving notice of an alleged defect in a product, Invacare will issue a serialized return authorization. It shall be the responsibility of the purchaser to pack the product(s) or part(s) in an appropriate manner to avoid shipping damage and return the product(s) or part(s), at the purchaser’s expense, to either... - Page 23 COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE; PRODUCTS DAMAGED BY CIRCUMSTANCES BEYOND INVACARE’S CONTROL; OR PRODUCTS REPAIRED BY ANYONE OTHER THAN INVACARE OR AN INVACARE SERVICE CENTER. SUCH EVALUATION SHALL BE SOLELY DETERMINED BY INVACARE. THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE...
- Page 24 All rights reserved. Trademarks are One Invacare Way identified by the symbols ™ and ®. Elyria, Ohio USA All trademarks are owned by or 44036-2125 licensed to Invacare Corporation 800-333-6900 unless otherwise noted. Technical Services © 2007 Invacare Corporation 800-832-4707...
