Lutron Electronics AuroRA ARMC-5T Installation Instructions For Replacement

Operating the Tabletop Master Control
1
2
Buttons - Turn individual
3
dimmers on to local
4
dimmer slider level
5
All on - Turns All off - Turns
all dimmers on all dimmers off
to full

Troubleshooting

Symptom Possible Cause
The Tabletop Master Control is not Tabletop Master Control has not been activated in the system.
communicating with the system.
• Activate Tabletop Master Control in the system, following the instructions
on page 3.
A maximum of one (1) Tabletop Master Control can be activated in the
Cannot activate Tabletop Master Control
system.
• Call the Lutron Technical Support Center at +1.800.523.9466 for
assistance.
Warranty: For Warranty information, please see the Warranty enclosed with the
product, or visit www.lutron.com/resiinfo.
These products may be covered under one or more of the following U.S. pat-
ents: 5,838,226; 5,848,054; 5,905,442; 6,687,487; 6,803,728 and correspond-
ing foreign patents. U.S. and foreign patents pending.
Lutron, AuroRa and the sunburst logo are registered trademarks of Lutron
Electronics Co., Inc.
© 2007 Lutron Electronics Co., Inc.
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
Made and printed in the U.S.A. 2/08 P/N 044-109 Rev. A
Installation Instructions for
Replacement Tabletop Master Control
Read all instructions completely before installation.
Overview
The ARMC-5T Tabletop Master Control is for use
with AuroRa systems in conjunction with the Central
Antenna (AR-CA-WH) or Security Interface (AR-SI-
WH), and allows the wireless activation of AuroRa
Dimmers / Switches.
Important Notes
Environment: Ambient operating temperature: 32 °F
to 104 °F (0 °C to 40 °C). 0% to 90% humidity, non-
condensing. Indoor use only.
Finish: Do not paint the Tabletop Master Control.
Cleaning: To clean, wipe with a clean damp cloth.
Do noT use any chemical cleaning solutions.
Power: Use only the adapter provided by Lutron
(T120-9DC-3-WH) with your Tabletop Master Control.
Using an adapter not rated at the following specifica-
tions could damage the control and possibly overheat
the adapter.
• Input: 120 V 60 Hz
• output: 9 V 300 mA nEC Class 2; IEC PELV
®
Radio Frequency Range: The Tabletop Master
Control should be located within 30 feet (10 m) of
the Central Antenna or Security Interface. The per-
formance of the Tabletop Master Control is highly
dependent upon a variety of
complex factors such as:
• Distance
• Construction of walls
• Electrical equipment nearby
System Control: Before the Tabletop Master Control
may be used to control lights in the AuroRa system, it
must be activated.

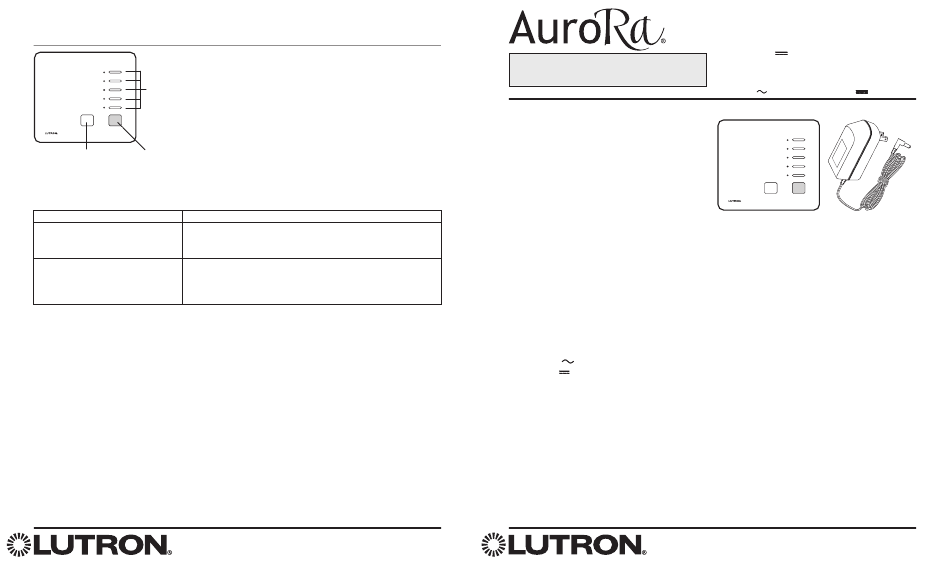

AuroRA Tabletop Master Control
®
ARMC-5T
DC Adapter: 9 V 300 mA
DC Adapter for Tabletop Master Control
T120-9DC-3-WH
Input 120 V 60 Hz 6.5 W; Output 9 V 300 mA
ARMC-5T T120-9DC-3-WH
1
2
3
4
5
FCC Information
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. Operation is subject to the following: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may
cause undesired operation.
1
