Fleck 7000 Sediment Filter Installation & Startup Guide

Fig 5

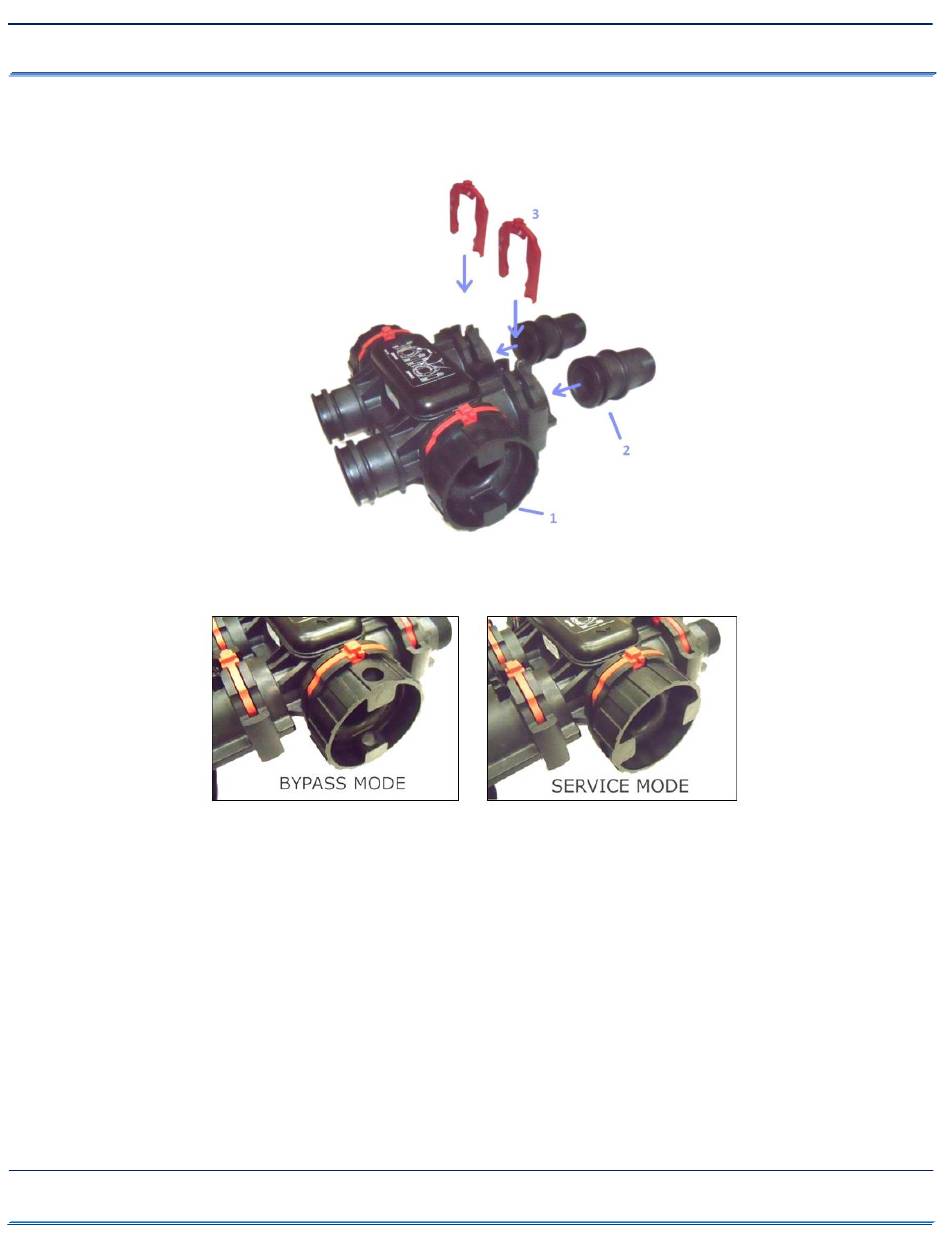

: Fleck 7000 By-Pass (1) and Pipe Connectors (2)
7. Lubricate the by-pass valve o-rings with some vegetable oil or silicone grease and connect the bypass
assembly to the Fleck 7000 control by sliding the bypass valve firmly into the body of the Fleck 7000.
Once bypass is in far enough, you will be able to insert the red connector clips.
8. Next lubricate the end-connectors (#2 in Fig 3) with some silicone grease or vegetable cooking oil and
insert them into the bypass valve and then insert the red clips (#3).
9. Note that the Fleck 7000 is usually shipped in the bypass position. There is a bypass valve knob on
both the inlet and the outlet (Fig 3 #1). You can easily tell if it is in bypass because the two holes on
the bypass knob will be in the vertical position. If the valve is in the Service position (by which is the
filtering position or 'in service' position) the holes will be in the horizontal position. Make sure both
sides are in the by-pass position.
