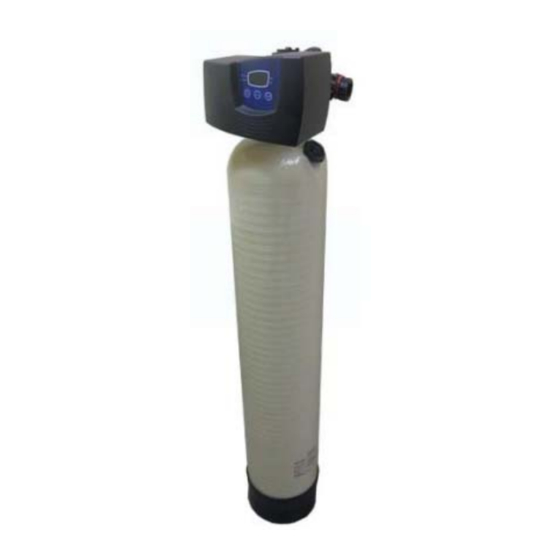

Fleck 7000 Neutralizer Installation & Startup Guide
For Neutralizers with Vortech Distributor Screen
Thank you for purchasing a Clean Water System! With proper installation and a little
routine maintenance your system will be providing neutral pH water for many
years.
For best results, please review this start‐up guide entirely before beginning to install
your system and follow the steps outlined.
CALCITE MEDIA CONTAINS DUST. USE PAPER MASK AND VENTILATE TO AVOID
BREATHING DUST.
IMPORTANT: YOU MAY NOT NEED TO ADD ALL THE FILTER MEDIA YOU RECEIVED.
THE FILTER TANK SHOULD NOT BE FILLED MORE THAN 2/3 FULL.
Questions?
Call us toll-free: 1-888-600-5426 or 1-831-462-8500
Email us:
support@cleanwaterstore.com
See more information on our website:
www.cleanwaterstore.com/resources

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fleck 7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clean Water Systems Fleck 7000

Summary of Contents for Clean Water Systems Fleck 7000

  • Page 1 Clean Water Made Easy www.cleanwaterstore.com Fleck 7000 Neutralizer Installation & Startup Guide For Neutralizers with Vortech Distributor Screen Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing neutral pH water for many years.

  • Page 2: Table Of Contents

    User Programming ................................15 Master Programming ................................15 Fleck 7000 Metered Flow Sensor Filter System Programming Guide ..................16 User Programming ................................16 Master Programming Mode (for Flow Sensor type)......................17 How to Remove the Red Clips from Fleck 7000 Control Valves without Breaking Them ............19...

  • Page 3: Packing List

    Fleck 7000 Neutralizer Installation & Startup Guide Packing List  Fleck 7000 Backwash Control Valve + Pipe connector kit 1” + Top Basket  Neutralizer filter tank with Vortech distributor tube installed & Media funnel We include two extra red clips with the pipe connector kit.

  • Page 4: Pre-Installation

    1. See typical installation (see Fig 2). The system is installed after the pressure tank. 2. Make sure to connect the IN pipe to the Fleck 7000 inlet and the OUT pipe to the outlet (see Fig 2). As you face the Fleck 7000 control from the front, the water enters on the right and exits on the left.

  • Page 5: How Your Neutralizer Works

    Fleck 7000 Neutralizer Installation & Startup Guide have to drain down as the filter backwashes under line pressure from your well pump. Most plumbing codes require an air-gap connection, so that if your sewer or septic tank backs up it cannot cross connect with the drain tubing.

  • Page 6: Fig 2 - Calcite Neutralizer Full Installation Diagram

    Fleck 7000 Neutralizer Installation & Startup Guide Fig 2 - Calcite Neutralizer Full Installation Diagram Page 5 www.cleanwaterstore.com Rev 120215...

  • Page 7: Assembly And Installation Instructions

    Assembly and Installation Instructions 1. By hand, unscrew the entire Fleck 7000 control valve from the top of the tank (if it was shipped screwed on). If not already done, make sure the blue cap is on top of the distributor tube, or wrap the top of distributor tube with electrical or duct tape.

  • Page 8: Fig 3 - Bypass Assembly

    (#3 in Fig 4). 10. Note that the Fleck 7000 is usually shipped in the bypass position. There is a bypass valve knob on both the inlet and the outlet (#1 in Fig 4). You can easily tell if it is in bypass because the two holes on the bypass knob will be in the vertical position.

  • Page 9: Fig 4 - Bypass And Service Modes

    13. Connect some flexible tubing from the drain connection on the Fleck 7000 control valve to a suitable drain such as a septic tank or sewer drain. It is OK to run the drain line up and over the Fleck 7000 Neutralizer filter up to 4 feet above the top of the tank.

  • Page 10: Fig 5 - Stainless Steel Backwash Drain Flow Control (2.5 & 3.0 Cubic Foot Systems Only)

    Teflon tape on the threads. 15. Plug your Fleck 7000 control valve into an outlet. Your Neutralizer 7000 control valve is already pre- programmed. All you need to do is to set the time of day, and then set the number of days the Neutralizer filter will run before it backwashes and regenerates automatically.
  • Page 11 Inlet Side of the bypass valve. Second slowly open the Outlet Side of the bypass until it is in the full service position. The Fleck 7000 bypass valve knobs are a little stiff, so you can use a screw driver placed in the holes to turn the knobs.

  • Page 12: Maintaining Your Neutralizer 7000 Filter System

    6. Put the top fill plug back in. You can lubricate the threads with some vegetable oil or silicone grease, but do not use Teflon tape or plumbing grease. 7. Plug the control valve back in and press the Extra Cycle button so the Fleck 7000 control is in a backwash cycle.

  • Page 13: When To Use Calcite Blends

    Fleck 7000 Neutralizer Installation & Startup Guide When to Use Calcite Blends If the water pH is less than 6.0, Calcite alone may not be enough to bring the pH up to the desired range of 7.0 to 7.8. In this case, a blend of Calcite and Corosex should be used. Calcite is a calcium media consisting of calcium carbonate and will raise the pH slowly.

  • Page 14: Neutralizers 2.5 Cubic Foot: Use 200 Lbs Calcite And 20 Lbs Corosex

    Fleck 7000 Neutralizer Installation & Startup Guide Your new 2.0 Cubic foot Neutralizer Blend filter includes:  Calcite150 lbs (3 50-lb boxes) 1.65 cu ft  Corosex20 lbs (2 10 lb boxes) .26 cu ft Neutralizers 2.5 Cubic Foot: use 200 lbs Calcite and 20 lbs Corosex Your new 2.5 Cubic Foot Neutralizer Blend filter includes:...

  • Page 15: Backwash Flow Rate

    You can verify the backwash flow rate by running the drain line into a bucket and timing it when the Fleck 7000 is in Cycle 1 or backwash.

  • Page 16: Fleck 7000 Filter System (Non Flow Sensor) Standard

    Master Programming Perform a Master Reset: Unplug the Fleck 7000 from the electrical wall outlet. Hold the Extra Cycle button while plugging in and powering up the unit. This resets all of the parameters in the unit. Enter Master Programming Mode: Set the Time of Day display to 12:01 P.M. Press the Extra Cycle button to exit Setting Time of Day mode.

  • Page 17: Fleck 7000 Metered Flow Sensor Filter System Programming Guide

    Fleck 7000 Metered Flow Sensor Filter System Programming Guide This is for Fleck 7000 backwash filters that have are equipped with the optional built-in flow sensor only. There are two types of programming, standard USER PROGRAMMING, where you can set the time of day and gallons of water used and/or days between backwashes.

  • Page 18: Master Programming Mode (For Flow Sensor Type)

    Valve Type (Display code VT): Set to DF2b. This means it is set for standard Down-flow mode, similar to a water softener so that we can take advantage of the flow meter in this Fleck 7000 5-cycle valve, but we won’t be using all 5 cycles that the water softeners use.
  • Page 19 Cycle button Flow Meter Type (Display Code FM): Set to t1.2 (this is standard Fleck 7000 meter). Press the Extra Cycle button. Press the Extra Cycle button to save all settings and exit Master Programming Mode. Note that the control valve may take several minutes to re-home and re-set after the Master Programming steps, do not unplug the control during this process.

  • Page 20: How To Remove The Red Clips From Fleck 7000 Control Valves Without Breaking Them

    Step 1: Turn off water to the Fleck 7000 and relieve the water pressure by opening up a faucet in the house. You can also put the Fleck 7000 on bypass, by turning the bypass valves to bypass. Either way, the 7000 control valve must be depressurized before removing the red clips.
  • Page 21 Fleck 7000 Neutralizer Installation & Startup Guide How To Remove Media From Control Head Sometimes, when doing the Initial Backwash, the media gets lifted up into the control head. You can tell this happened because you will have little or no flow, either going out to drain while in the backwash positon, or when in the service positon.
