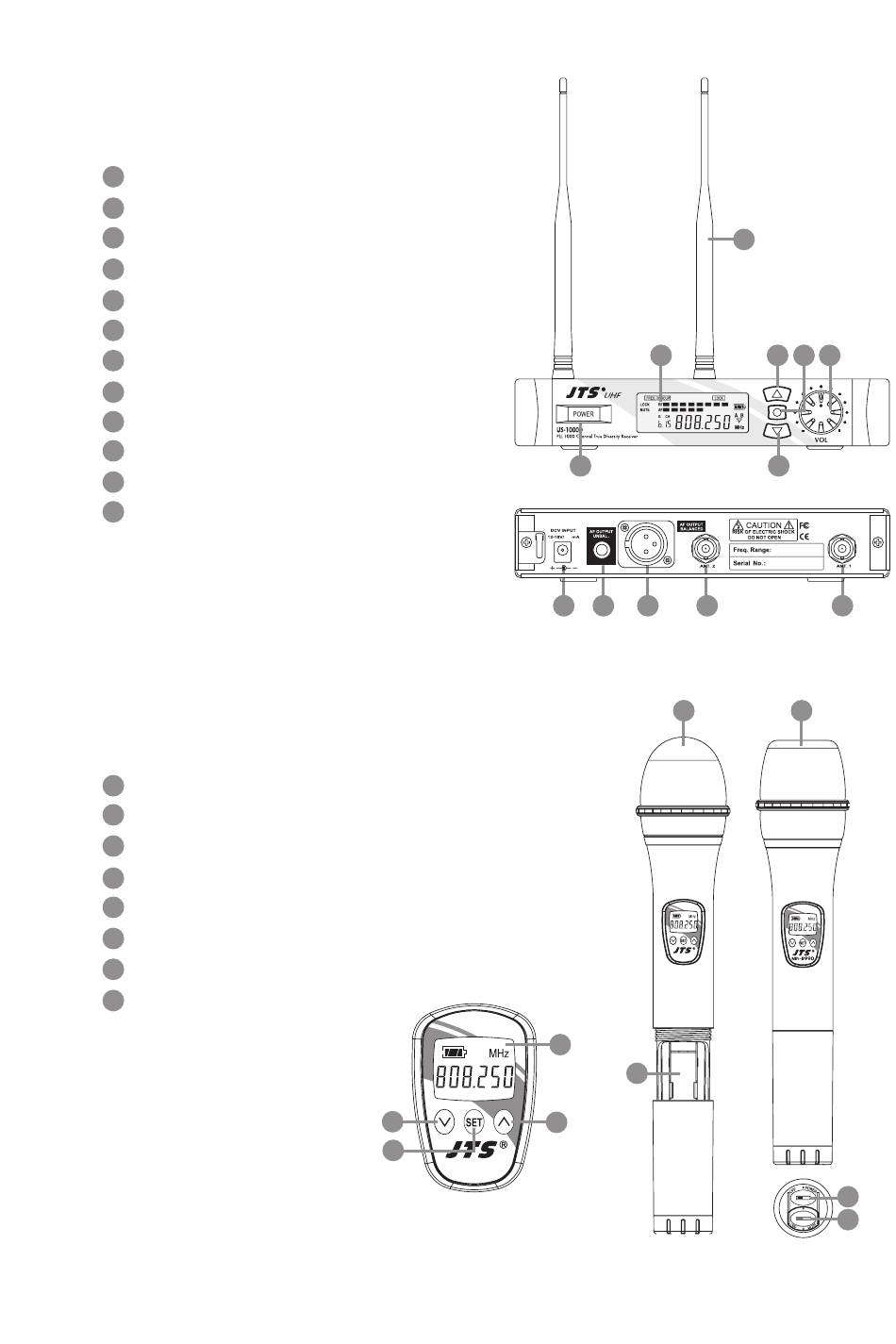

4. Parts Identification & Accessories
4-1 Receiver // US-1000D
Power On/Off switch
1
Up button (frequency adjustment)
2
Down button (frequency adjustment)
3
Set button (frequency adjustment)
4
LCD Display
5
Volume control
6
DC socket for connection of main unit
7
AF output, jack socket (AF UNBAL)
8
Balanced XLR socket
9
Antenna II input socket
10
Antenna I input socket
11
Antenna
12

4-2 Handheld Transmitter // Mh-8990(i)

Interchangeable dynamic capsule
1
LCD display
2
Down button
3
UP button
4
Set button
5
Battery tray
6
Power On/Off switch
7
Mute On/Off switch
8
2
3
4
5
Mh-8990i
5
1
250
7
8
9
10
1
Mh-8990i
6
12
2
4
6
3
11
1
7
8
6
