ChargePoint Charging Stations
Conduit locations
The CPE200 accommodates service wiring through conduit installed either underground or above ground.
Above ground conduit is to be used only in locations such as a parking garage where it is impossible to
accommodate service wiring from underground.
Underground conduit
These are the basic steps for using underground conduit with a CPE200. See Appendix A for detailed instructions.
1
Fabricate a plywood template using template pattern 75-001152-01 stapled into the canter of this guide.
Be sure template is printed 1:1 by verifying measurements on pattern.
NOTE:
For your convenience you can also purchase a prefabricated plywood template directly from
ChargePoint (Part Number CPE200T-BT).
2
Locate mounting studs and conduit within .05" tolerance.
3
The 1-1/4" threaded female coupling must be flush with the surface of the pad and precisely located relative to
the mounting studs.
Do not pull wiring at this time. It will be pulled after the conduit run is terminated into the unit.

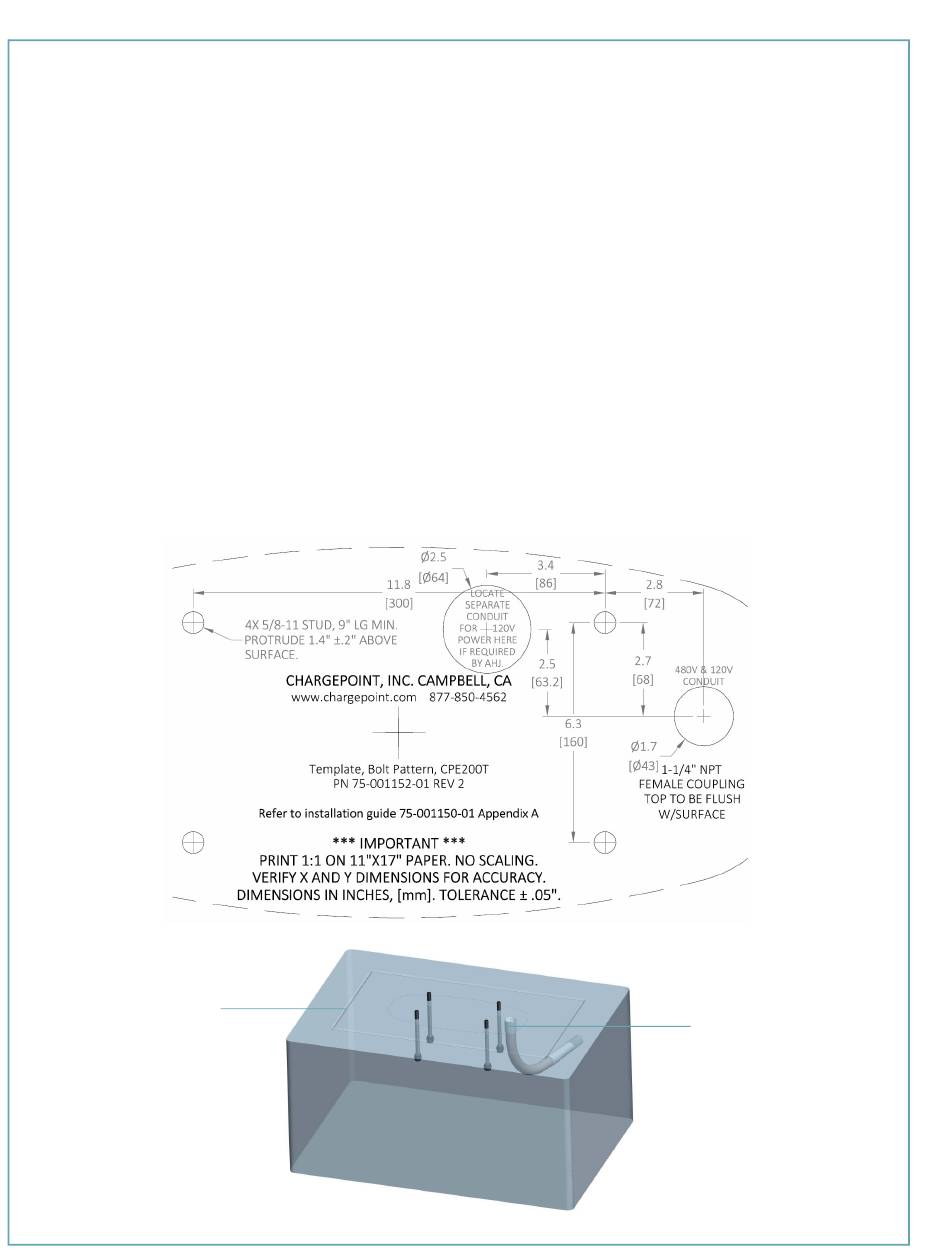

TEMPLATE GUIDE (NOT TO SCALE)
Score Line
2-2
Conduit Coupling
