Summary of Contents for Norco EMB-3503

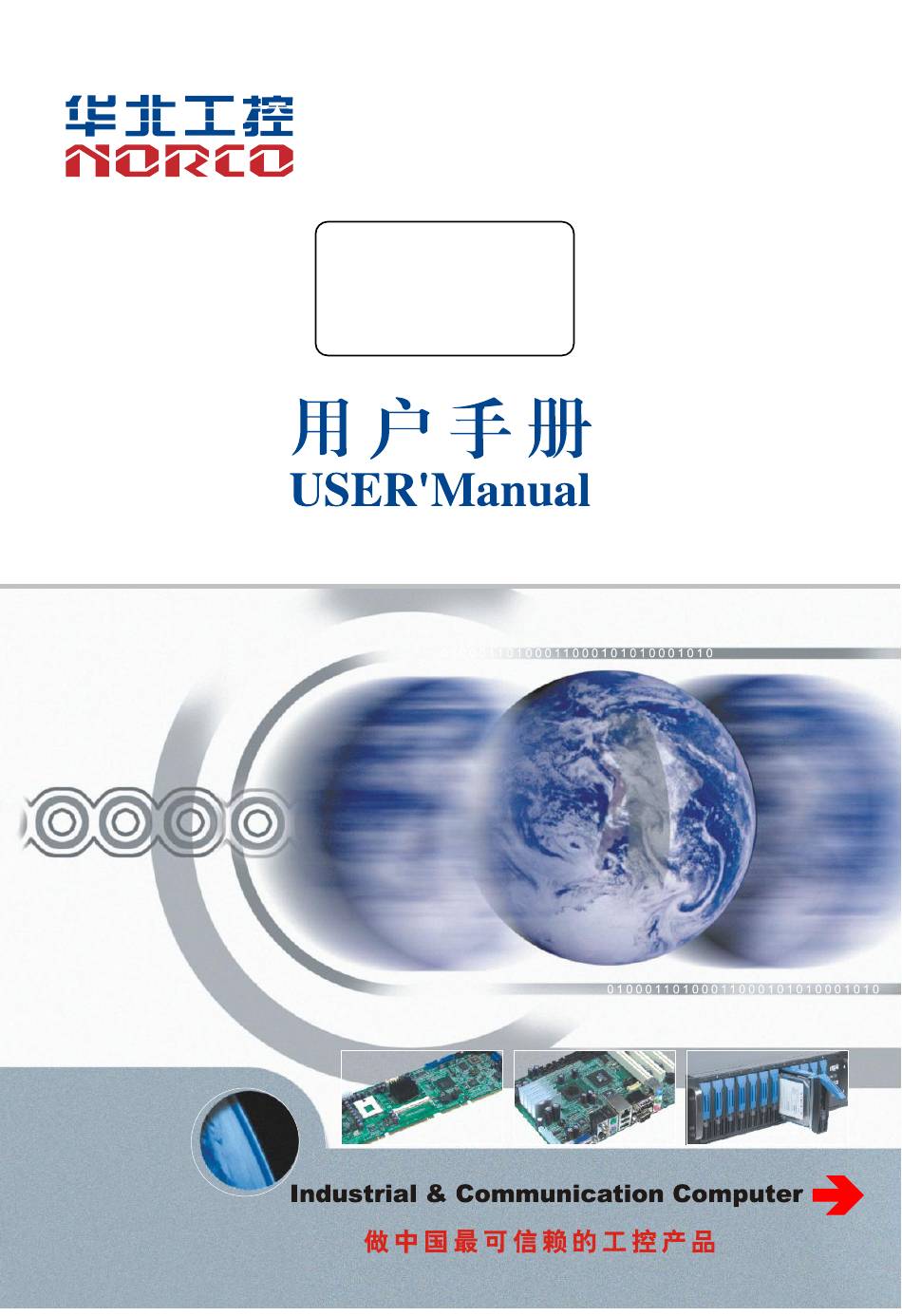

- Page 1 EMB-3503 USER' Manual V1.0...
- Page 2 EMB-3503 USER' Manual V1.0 SZ HQ: 0755-27331166 Beijing Office: 010-82671166 Shanghai Office: 021-61212081 Chengdu Office: 028-85259319 Shenyang Office: 024-23960846 Xi’an Office: 029-88338386 Nanjing Office: 025-58015489 Wuhan Office: 027-87858983 Tianjin Office: 022-23727100 Singapore: 65-68530809 Netherland: 31-040-2668554 For more information, please visit：www.norco.com.cn...
- Page 4 Before ordering products, please learn about the product performance from the distributors to see if it is in line with your needs. NORCO is a registered trademark of Shenzhen NORCO Intelligent Technology CO., LTD. The ownership of other trademarks involved in this manual is owned by its respective owners.
-
Page 5: Safety Instructions
Safety Instructions 1． Please read the product manual carefully before using this product. 2．Put all the unused or uninstalled boards or electronic components in a static dissipative surface or static shielding bag. 3．Always ground yourself to remove any static discharge before touching the board, to place your hands on grounding metal object for a while or wear a anti-static wrist strap at all times. -
Page 6: Table Of Contents
Content Chapter One Product Introduction ........... 1 1.1 Hardware Specification ....................1 Chapter Two Hardware Function ............ 3 2.1 Interface Location and Dimensional Drawing .............. 3 2.2 Installation ........................3 2.3 Jumper Settings ......................4 2.3.1 COM2 Jumper settings（J1，J2） ..............5 2.3.J DOWNLOAD..................... - Page 7 3.1.6 TF card ......................22 3.1.7 WIFI ........................ 22 3.1.8 3/4G ....................... 22 3.1.9 Ethernet ......................22 3.2.0 Sound Card ....................23 3.2.1 ADC ........................ 23 4.1 Linux Deabin System ....................23 Function test dittos Yocto file system ............... 23 5.1 Linux Ubuntu server System ..................
-
Page 8: Packing List
Packing List Thanks for purchasing NORCO products. Please check the accessories as per the packing list when you open the package. If you find any components/parts defected, damaged or lost, please contact your vendor ASAP. ■ EMB-3503 V1.0 motherboard 1pcs... -
Page 9: Chapter One Product Introduction
Chapter One Product Introduction... -
Page 10: Hardware Specification
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard Chapter One Product Introduction 1.1 Hardware Specification Size ●Size: 120mmX120mm Processor ●CPU: Onboard, supports i.MX6UL System Memory ●Onboard Memory: onboard 512MB DDR3L Display ●Provides 1xHDMI port, 1x24BIT RGB TTL electrical level LCD expansion port Storage ●SD: Supports Micro SD... - Page 11 EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard ●Supports 15x GPIO port Expansion Port ●1xMinipcie, supports WiFi、3/4G module ●Onboard SIM card slot, supports 3/4G netwrk, and MINI PCIe 3/4G module is needed Power Supply ●5V single power supply watchdog ●Supports hardware reset function Operating Environment ●Operating Temperature: 0℃~60℃...
-
Page 12: Chapter Two Hardware Function
Chapter Two Hardware Function... -
Page 13: Interface Location And Dimensional Drawing
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard Chapter Two Hardware Function 2.1 Interface Location and Dimensional Drawing Following is the front interface location and dimensional drawing of EMB-3501 V1.0. Please be careful during the installation. Improper installation may lead to system failure. -
Page 14: Installation
Motherboard 2.2 Installation Please refer to following steps to assemble your computer: 1．Adjust all jumpers on board EMB-3503 V1.0 according to the user manual 2．Install other expansion card. 3．Connect all signal line, cable, ,panel control circuit, and power supplier. Key components of this motherboard are Integrated circuit and these components could be easily damaged by electrostatic influence. -
Page 15: Com2 Jumper Settings（J1，J2
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard 2.3.1 COM2 Jumper Settings（J1，J2） J1、J2 J1、J2: COM2 AS RS232 PORT COM2 AS RS485 PORT 1-3 2-4 3-5 4-6 3-4 5-6... -
Page 16: Jdownload
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard 2.3.2 JDOWNLOAD JDOWNLOAD JDOWNLOAD: JDOWNLOAN NORMAL BOOT MODE DOWNLOAD MODE... -
Page 17: Bootjumpers（Jcfg
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard 2.3.2 BOOTJunper（JCFG） JCFG JCFG： JCFG 3-4，5-6 EMMC BOOT TF BOOT 2.4 Interfaces Description Please read this manual carefully before installing any external connectors, in case of any damage to the motherboard! 2.4.1 Serial Ports（COM_DB，COM2-COM6））... -
Page 18: Usb Ports（Usb12
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard COM_DB、COM2-COM6 COM_DB、COM2-COM6： Signal Name Signal Name 2.4.2 USB Port（USB12） 5x USB port, and two of them are USB2.0 port, 2x 2X5Pin USB port and 11X5Pin connector. - Page 19 EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard USB12 USB34 USB5 USB12： Signal Name 1、2 3、4 USB DATA- 5、6 USB DATA+ 7、8 USB34： Signal Name Signal Name DATA- DATA+ DATA+ DATA-...
-
Page 20: Ethernet Port（Lan1、Lan2
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard USB5: Signal Name DATA- DATA+ 2.4.3Ethernet Port（LAN1、LAN2）） Provides 2xRJ45 ethernet port, and the yellow one indicates data transmission status, and the green one indicates network connection status. LAN1、LAN2 RJ45 LAN LED Status Description: Function Function LILED（Green）Status... -
Page 21: Audio Port（Audio，Speaker
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard 2.4.4 Audio Port（AUDIO，SPEAKER） EMB-3503 V1.0 employs SGTL5000-XNAA3 audio control chip, and an onboard 2Ω power amplifier chip. AUDIO SPEAKER AUDIO： Signal Name Signal Name MIC1*P 管脚 LIN_L LIN_R HeadPh_R HeadPh_L ： SPEAKER Signal Name... - Page 22 EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard 2.4.5 Display Port（HDMI） Provides 1x HDMI high definition display port. HDMI HDMI： D2 Shield D1 Shield D0 Shield CK Shield CE Remote DDC CLK DDC DATA HP DET...
-
Page 23: Jgpio
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard 2.4.6 JGPIO JGPIO JGPIO(ADC,PWM,SPI and GPIO signal reuse)： Signal Name Signal Name 管脚 3.3V 3.3V ADC1_IN4 GPIO4_IO10(PWM3 ADC1_IN5 GPIO4_IO11 ADC1_IN1 GPIO4_IO12 ADC1_IN9 GPIO4_IO13 GPIO4_IO25(spi1 clk) GPIO4_IO14 GPIO4_IO26(spi1 ss0) GPIO4_IO15 GPIO4_IO27(spi1 mosi) GPIO4_IO16(PWM5 GPIO4_IO28(spi1 miso) -
Page 24: Can
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard 2.4.7 （CAN） CAN： Signal Name CAN1_H CAN1_L... -
Page 25: Ports（Otg、Sim
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard 2.4.8（TP） TP： Signal Name 2.4.9 Port（OTG、SIM） Provides a standard MICRO-USB OTG ports and a SIM card slot. -
Page 26: Power Port（Pwr
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard ） 2.4.10 Power Port（ Provides a green European power socket and a 3x1Pin connector. -
Page 27: Front Panel Port（Jfp
EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard PWR: Signal Name 2.4.11 接口（I2C） I2C： Signal Name Signal Name +3.3V 管脚 2.4.12 Front Panel Port（JFP） JFP connects power button and indicator on the front panel. - Page 28 EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard JFP： Signal Name Signal Name LED+ 管脚 RST+ PWRSW+ Please connect following chart below, and pay attention to the anode (+) and cathode (-). If it is falsely connected, it may not function well.
-
Page 29: Mini Pcie Port
Provides 1x MINI PCIe slot, you are able to expand MINI PCIe device according to your requirement, like 3G/4G module. 2.4.14 LCD Port EMB-3503+AFC-424 small board card, supports AT070TH92 7 inch; EI080HA-05B 8 inch; AT043TH24 4.3 inch; EMB-3503+AFC-427 small board card, supports XR-T035C54001 3.5 寸（320X240）;... - Page 30 EMB-3503 V1.0 Freescale i.MX6UL Platform Motherboard VCC5 BACKLIHGT_EN PCLK HSYNC VSYNC DATA23 DATA22 DATA21 DATA20 DATA19 DATA18 DATA17 DATA16 DATA15 DATA14 DATA13 DATA12 DATA11 DATA10 DATA9 DATA8 DATA7 DATA6 DATA5 DATA4 DATA3 DATA2 DATA1 DATA0...
-
Page 31: Chapter Three Software Function
Chapter Three Software Function... -
Page 32: Linux Yocto System
EMB-3503 V1.0 Freescale i.MX6 Platform Motherboard Chapter Three Software Function 3.1 Linux YOCTO System 3.1.1 HDMI Supports HDMI output Instruction: Use HDMI cable to connect mainboard and display, and you can see Linux interface when you turn on computer. setenv mmcargs 'setenv bootargs ${bootargs} root=/dev/mmcblk3p2 rootwait rw video=mxcfb0:dev=hdmi,1024x768M@60,if=RGB24' 3.1.2 LCD... -
Page 33: Can
Motherboard 3.1.5 CAN device nodes： can0 （you can check via ifconfig -a） Instruction: Prepare two EMB-3503 motherboad, and connect two motherboards with CAN1_H CAN1_L directly Check in the system if there is: cansend canecho command, and execute command below in... -
Page 34: Sound Card
EMB-3503 V1.0 Freescale i.MX6 Platform Motherboard Allocate WLAN card static IP address ifconfig ethX X.X.X.X or use dynamic allocation: dhclient ethX Ping route：ping xx.xx.xx.xx 3.2.0 Sound Card Supported, it needs to be tested with alsa-untis tool Instruction: Check sound card device:aplay -l Run alsamixer, and turon HeardPhone and PCM to maximum, and play audio files: aplay XX.wav... -
Page 35: Appendix
Appendix... -
Page 36: Appendix One Glossary
Appendix Appendix: Glassory ACPI Advanced Configuration and Power Management. ACPI specifications allow operating system to control most power of the computer and its add-ons. Windows 98/98SE，Windows 2000 and Windows ME supports this specification. BIOS Basic input/output system. It is software including all in/out control code interface in PC. The software will detect hardware when it auto boot, operate OS, and provide an interface between OS and hardware. - Page 37 which usually store 1 bit with a transistor and a capacitance. With the development of the technology, more and more types of DRAM with different specifications exist in computer applications. For example: SDRAM/DDR SDRAM/RDRAM. Network interface. Network grouped by correlative computers in a small area, generally in a company or a building.
