Endurance Zone

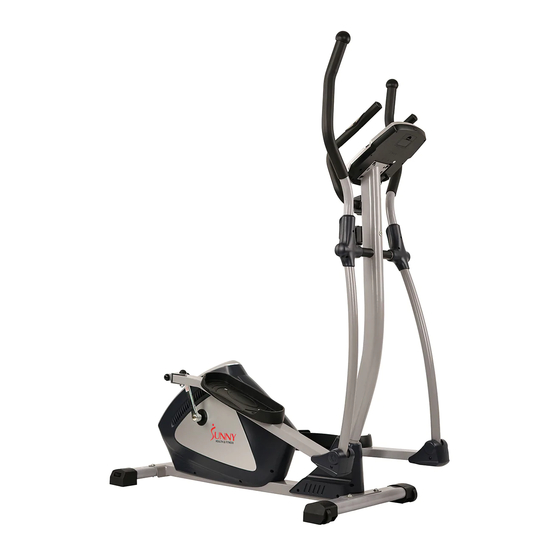

Magnetic Elliptical Trainer
SF-E3804
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness Endurance Zone SF-E3804
Summary of Contents for Sunny Health & Fitness Endurance Zone SF-E3804
- Page 1 Endurance Zone Magnetic Elliptical Trainer SF-E3804 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 4 EXPLODED DIAGRAM 2...
-
Page 5: Hardware Package
HARDWARE PACKAGE #39 M8*50 4PCS #50 M8*75 2PCS #34 d8*Φ20*1.5 12PCS #52 M8*45 4PCS #35 M8*16 4PCS #16 M8*40 4PCS #10 d8 2PCS #17 d8*Φ16*1.5*R30 4PCS #11 M8*30 2PCS #18 M8 10PCS #60 1/2" 2PCS # 57/64 L/R 1/2" 2PCS #58 d17 2PCS #63 S19 2PCS # 62/65 L/R 1/2"... -
Page 6: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Computer Tension Cable Link Wire Sensor Wire Computer Handlebar (L/R) Main Frame 2L/R End Cap Screw M8*50 Foam Grip Washer D10*Φ20*2 End Cap Φ25 Front Stabilizer Middle Handlebar Left End Cap Foam Grip Right End Cap Pulse Φ25... - Page 7 Spec. Spec. Description Qty. Description Qty. 72L/R Chain Cover (L/R) Axle C-clip Spring Washer Bearing Washer D6*Φ12*1 Spacer C-clip Crank Cover 2 Axle Belt Wheel Tension Spring Steel Bracket Magnetic Board Screw M8*25 Magnet Idler Wheel Hexagon Bolt M6*16 End Cap Nylon Nut Belt Hexagon Bolt...
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: Remove 2 Shipping Tubes (No. 108) from Main Frame (No. 38) by removing 4 Screws (No. 39) and 4 Hexagon Nuts (No. - Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 3: #35 M8*16 4PCS Connect Trunk Wire (No. 29) and Sensor Wire (No. 37) together. #34 d8*Φ20*1.5 4PCS CAUTION: Please make sure the Tension Control Knob (No.
- Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 5: #57/64 L/R 1/2" 2PCS Attach Pedal Tubes (No. 51) onto Swing Rods (No. #60 1/2"...
- Page 11 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 7: #16 M8*40 4PCS Attach Handlebars (No. 2L/R) to the Swing Rods #17 d8*Φ16*1.5*R30 4PCS (No.
- Page 12 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 9: #69 S17 2PCS #63 S19 2PCS Attach the Left & Right Handlebar Covers (No. 15A/B &...
-
Page 13: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT Battery Battery Cover BATTERY INSTALLATION: 1. Take out 2 AA batteries from computer box. 2. Press the buckle of the battery cover on the back of the Computer (No. 1), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Computer (No. 1). Pay attention to the battery + and –... - Page 14 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the stability of the elliptical is secured. If you notice that the elliptical is unbalanced during use, you should adjust the End Caps (No. 45) located on the rear stabilizer until the elliptical becomes level with the floor surface.
-
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Remove the computer and verify that the wire from the computer is properly connected to the wire that comes from the upright post. Check if the batteries are correctly positioned There is no display on the computer. and battery springs are in proper contact with batteries. - Page 16 EXERCISE COMPUTER FUNCTION BUTTONS MODE 1. Press the button to select hour, minute, year, month, and date for setting. 2. Press the button to select TIME, DISTANCE, CALORIES, and PULSE to preset. 3. Press the button for selection function display on main LCD or enter after setting.
- Page 17 DISTANCE: Accumulates total distance from 0.00 up to 99.99 m (mile). The user may preset target distance data by pressing SET & MODE button. Each increase setting is 0.5 m (mile). CALORIES: Accumulates calories burned during training from 0 to max. 999 calories. The user may also preset the target calorie before training by pressing SET &...
- Page 18 9. Body Fat - 9-1. Press the BODY FAT key to enter body fat measurement. 9-2. Press MODE & SET buttons to input your personal data. Each personal data available is described as the following: AGE: 10 ~ 99 years HEIGHT: 100 ~ 250 cm (or 3’03”...
