  • Page 1 HIMax ® Digital Input Module for Proximity Switches and Wired Contact Makers Manual X-DI 32 02...
  • Page 2 HIMA directly. HIMA appreciates any suggestion on which information should be included in the manual. Equipment subject to change without notice. HIMA also reserves the right to modify the written material without prior notice. For further information, refer to the CD-ROM and our website http://www.hima.de and http://www.hima.com.

  • Page 3: Table Of Contents

    X-DI 32 02 Table of Contents Table of Contents Introduction ............5 Structure and Use of this Manual................. 5 Target Audience..................... 5 Formatting Conventions ..................6 1.3.1 Safety Notes ......................6 1.3.2 Operating Tips ......................7 Safety ..............8 Intended Use ......................8 2.1.1 Environmental Requirements...................
  • Page 4 1 Introduction X-DI 32 02 Start-up ..............30 Mounting ....................... 30 4.1.1 Wiring Inputs Not in Use..................30 Mounting and Removing the Module..............31 4.2.1 Mounting a Connector Board ................. 31 4.2.2 Mounting and Removing the Module..............33 Configuring the Module in SILworX..............35 4.3.1 Tab: Module ......................

  • Page 5: Introduction

    HI 801 103 E Table 1: Additional Relevant Manuals The latest manuals can be downloaded from the HIMA website at www.hima.com. The revision index on the footer can be used to compare the current version of existing manuals with the Internet edition.

  • Page 6: Formatting Conventions

    1 Introduction X-DI 32 02 Formatting Conventions To ensure improved readability and comprehensibility, the following fonts are used in this document: To highlight important parts Bold: Names of buttons, menu functions and tabs that can be clicked and used in SILworX. Italics: System parameter and variables Literal user inputs...

  • Page 7: Operating Tips

    X-DI 32 02 1 Introduction 1.3.2 Operating Tips Additional information is structured as presented in the following example: The text corresponding to the additional information is located here. Useful tips and tricks appear as follows: The tip text is located here. HI 801 017 E Rev.

  • Page 8: Safety

    2 Safety X-DI 32 02 Safety All safety information, notes and instructions specified in this manual must be strictly observed. The product may only be used if all guidelines and safety instructions are adhered to. This product is operated in accordance with SELV or PELV. No imminent danger results from the module itself.

  • Page 9: Residual Risk

    X-DI 32 02 2 Safety Residual Risk No imminent danger results from a HIMax module itself. Residual risk may result from: Faults in the engineering Faults in the user program Faults in the wiring Safety Precautions Observe all local safety requirements and use the protective equipment required on site. Emergency Information A HIMax controller is a part of the safety equipment of a system.

  • Page 10: Product Description

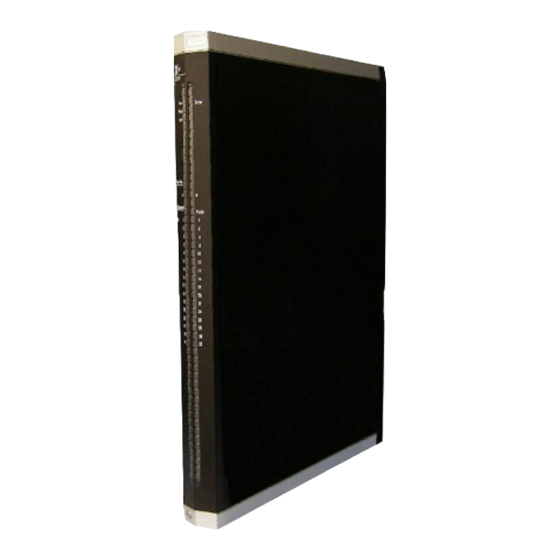

    3 Product Description X-DI 32 02 Product Description The X-DI 32 02 digital input module is intended for use in the programmable electronic system (PES) HIMax. The module can be inserted in any of the base plate slots with the exception of the slots reserved for system bus modules.

  • Page 11: Type Label

    X-DI 32 02 3 Product Description Type Label The type label specifies the following important details: Product name Mark of conformity Bar code (2D or 1D code) Part number (Part-No.) Hardware revision index (HW Rev.) Software revision index (SW Rev.) Operating voltage (Power) Ex specifications (if applicable) Production year (Prod-Year:)

  • Page 12: Block Diagram

    3 Product Description X-DI 32 02 3.4.1 Block Diagram The following block diagram illustrates the structure of the module. Field Zone: Proximity Switches and Contact Safety-Related Processor System Makers System Busses Interface Figure 2: Block Diagram Page 12 of 56 HI 801 017 E Rev.

  • Page 13: Indicators

    X-DI 32 02 3 Product Description 3.4.2 Indicators The following figure shows the LED indicators for the module. Figure 3: Indicators HI 801 017 E Rev. 4.00 Page 13 of 56...

  • Page 14: Module Status Indicators

    3 Product Description X-DI 32 02 The LEDs indicate the operating state of the module. The LEDs on the module are divided into three groups: Module status indicators (Run, Error, Stop, Init) System bus indicators (A, B) I/O indicators (DO 1...32, Field) When the supply voltage is switched on, a LED test is performed and all LEDs briefly flash simultaneously.

  • Page 15: System Bus Indicators

    X-DI 32 02 3 Product Description 3.4.4 System Bus Indicators The system bus LEDs are labeled Sys Bus. Color Status Description Green Physical and logical connection to the system bus module in slot 1. Blinking1 No physical connection to the system bus module in slot 1.

  • Page 16: Product Data

    3 Product Description X-DI 32 02 Product Data General Supply voltage 24 VDC, -15 %...+20 %, r ≤ 5 %, SELV, PELV Current input min. 450 mA (without channels/proximity switch supplies) max. 1 A (in case of short-circuit of the proximity switch supplies) Current input per channel min.
  • Page 17 X-DI 32 02 3 Product Description Digital inputs Number of inputs (number of 32 unipolar with reference pole DI-, channels) Non-electrically isolated from each other Type of input Digital signal inputs for safety proximity switches (e.g., P+F), proximity switches in accordance with EN 60947-5-6 (NAMUR) or connected contacts.
  • Page 18 3 Product Description X-DI 32 02 CAUTION If three-fold redundant modules (TMR) are used, reverse polarity on the safety proximity switches is no longer detected as short-circuit. Proximity switch supply Number of proximity switch 4 with 8 outputs each supplies Output voltage for proximity 8.2 VDC, ±...

  • Page 19: Connector Boards

    X-DI 32 02 3 Product Description Connector Boards A connector board connects the module to the field zone. Module and connector board form together a functional unit. Insert the connector board into the appropriate slot prior to mounting the module. The following connector boards are available for the module: Connector board Description...

  • Page 20: Coding Of X-Cb 005 Connector Boards

    3 Product Description X-DI 32 02 Male Connector Recess Coding Wedge Possible Male Connector Recess Guideway for Coding Wedge Figure 5: Coding Example Coded I/O modules can be plugged in to uncoded connector boards. Uncoded I/O modules cannot be plugged in to coded connector boards. 3.6.2 Coding of X-CB 005 Connector Boards Table 12: Position of Coding Wedges...

  • Page 21: Connector Boards With Screw Terminals

    X-DI 32 02 3 Product Description 3.6.3 Connector Boards with Screw Terminals Mono Redundant Threefold redundant X-CB 005 01 X-CB 005 02 X-CB 005 06 I/O Module Plug Connection to the Field Zone (Screw Terminal Connector Block) Figure 6: Connector Boards with Screw Terminals HI 801 017 E Rev.

  • Page 22: Terminal Assignment For Connector Boards With Screw Terminals

    3 Product Description X-DI 32 02 3.6.4 Terminal Assignment for Connector Boards with Screw Terminals Pin no. Designation Signal Pin no. Designation Signal DI1+ DI2+ DI3+ DI4+ DI5+ DI6+ DI7+ DI8+ Pin no. Designation Signal Pin no. Designation Signal S10+ DI9+ DI10+ S11+...
  • Page 23 X-DI 32 02 3 Product Description Cable plugs attached to the connector board pin headers are used to connect to the field zone. The cable plugs feature the following properties: Connection to the field zone Cable plugs 8 pieces, with 8 poles Wire cross-section 0.2…1.5 mm (single-wire)

  • Page 24: Connector Boards With Cable Plug

    3 Product Description X-DI 32 02 3.6.5 Connector Boards with Cable Plug Mono Redundant Threefold redundant X-CB 005 03 X-CB 005 04 X-CB 005 07 X-CB X-CB X-CB 005 03 005 04 005 07 I/O Module Plug Connection to the Field Zone (Cable Plug in Row 32) Connection to the Field Zone (Cable Plug in Row 1)

  • Page 25: Pin Assignment For Connector Boards With Cable Plug

    3 Product Description 3.6.6 Pin Assignment for Connector Boards with Cable Plug HIMA provides ready-made system cables for use with these connector boards, see Chapter 3.7. The cable plug and the connector boards are coded. Connector pin assignment! The following table describes the connector pin assignment of the system cable plug.

  • Page 26: Connector Board Redundancy Using Two System Base Plates

    3 Product Description X-DI 32 02 3.6.7 Connector Board Redundancy using Two System Base Plates X-CB 005 05 edcba I/O Module Plug Connection to the Field Zone (Cable Plug in Row 32) Connection to the Field Zone (Cable Plug in Row 1) Coding for Cable Plugs Figure 8: Connector Board with Cable Plug, Variant X-CB 005 05 Page 26 of 56...

  • Page 27: Pin Assignment For X-Cb 005 05

    3 Product Description 3.6.8 Pin Assignment for X-CB 005 05 HIMA provides ready-made system cables for use with this connector board, see Chapter 3.7. The cable plug and the connector boards are coded. Connector pin assignment! The following table describes the connector pin assignment of the system cable plug.

  • Page 28: System Cable

    3 Product Description X-DI 32 02 System Cable Depending on the type of connector board, system cable X-CA 002 or X-CA 009 is available. Identical Cable Plugs Figure 9: System Cable 3.7.1 System Cable X-CA 002 The X-CA 002 system cable is used to wire the X-CB 005 03/04/07 connector boards to the field termination assemblies.

  • Page 29: System Cable X-Ca 009

    X-DI 32 02 3 Product Description The system cable is available in three variants, see Table 18. System cable Description Length X-CA 002 01 8 Coded cable plugs on both sides X-CA 002 01 15 15 m X-CA 002 01 30 30 m Table 18: Available System Cables X-CA 002 3.7.2...

  • Page 30: Start-Up

    - On the module side, the shielding must be connected to the cable shield rail (use SK 20 shield connection terminal block or similar). - When using stranded wires, HIMA recommends fastening ferrules to the wire ends. The terminals must be suitable for fastening the cross-sections of the cables in use.

  • Page 31: Mounting And Removing The Module

    X-DI 32 02 4 Start-up Mounting and Removing the Module When replacing an existing module or mounting a new one, follow the instructions given in this chapter. When removing the module, the connector board remains in the HIMax base plate. This saves additional wiring effort since all field terminals are connected via the connector board of the module.
  • Page 32 4 Start-up X-DI 32 02 Figure 11: Securing the Connector Board with Captive Screws Page 32 of 56 HI 801 017 E Rev. 4.00...

  • Page 33: Mounting And Removing The Module

    X-DI 32 02 4 Start-up 4.2.2 Mounting and Removing the Module This chapter describes how to mount and remove the HIMax module. A module can be mounted and removed while the HIMax system is operating. NOTICE Damage to bus and power sockets due to module jamming! Failure to observe this can damage the controller.
  • Page 34 4 Start-up X-DI 32 02 Inserting and Removing a Module Securing and Releasing a Module Swiveling a Module in and out Figure 12: Mounting and Removing a Module If the HIMax system is operating, do not open the cover plate of the fan rack for more than a few minutes (<...

  • Page 35: Configuring The Module In Silworx

    X-DI 32 02 4 Start-up Configuring the Module in SILworX The module is configured in the Hardware Editor of the SILworX programming tool. Observe the following points when configuring the module: To diagnose the module and channels, both the statuses and the measured value can be evaluated within the user program.

  • Page 36: Tab: Module

    4 Start-up X-DI 32 02 4.3.1 Tab: Module The Module tab contains the statuses and parameters for the module. Name Description Enter these statuses and parameters directly in the Hardware Editor. Name Module name Spare Module Activated: The module missing in the redundancy group is not considered as a fault.

  • Page 37: Tab: I/O Submodule Di32_02

    X-DI 32 02 4 Start-up 4.3.2 Tab: I/O Submodule DI32_02 The I/O Submodule DI32_02 tab contains the following statuses and parameters: Name Description Enter these statuses and parameters directly in the Hardware Editor. Name Module name Show Signal Overflow Show signal overflow with Field LED (activated/deactivated).
  • Page 38 4 Start-up X-DI 32 02 Name Data type Description Supply 1 OK BOOL The proximity switch supplies are monitored for overvoltage, low voltage and overcurrent. TRUE: Proximity switch supply faultless FALSE: The proximity switch supply is faulty. Supply 2 OK BOOL Such as Supply 1 OK Supply 3 OK...

  • Page 39: Tab: I/O Submodule Di32_02: Channels

    X-DI 32 02 4 Start-up 4.3.3 Tab: I/O Submodule DI32_02: Channels The I/O Submodule DI32_02: Channels tab contains the following parameters and statuses for each digital input. Global variables can be assigned to the statuses and parameters with -> and used in the user program. The value without -> must be directly entered.

  • Page 40: Submodule Status [Dword]

    4 Start-up X-DI 32 02 Name Data type Description Toff [µs] UDINT Time off delay The module only indicates a level change from HIGH to LOW if the LOW level is present for longer than the configured time t Important: The maximum reaction time T (worst case) for this channel is extended by the delay time, since a signal change is not detected until the delay time has expired.

  • Page 41: Diagnostic Status [Dword]

    X-DI 32 02 4 Start-up 4.3.5 Diagnostic Status [DWORD] Coding of Diagnostic Status Description Diagnostic values (100...2004) are indicated consecutively. Bit-coded temperature status 0 = normal Bit0 = 1 : Temperature threshold 1 has been exceeded Bit1 = 1 : Temperature threshold 2 has been exceeded Bit2 = 1 : Fault in temperature measurement Measured temperature (10 000 digits/ °C) Bit-coded voltage status...

  • Page 42: Connection Variants

    4 Start-up X-DI 32 02 Connection Variants This chapter describes the correct wiring of the module in safety-related applications. The connection variants specified here are permitted. The contact makers must be connected to a resistor combination, e.g., 1 kW and 10 kW, to detect open-circuits and short-circuits, see also Chapters 3.4.1 and 3.5.
  • Page 43 X-DI 32 02 4 Start-up When redundantly wired as specified in Figure 14:, the modules are inserted in the base plate next to each other and on a common connector board. Connector boards X-CB 005 02 (with screw terminals) or X-CB 005 04 (with cable plug) can be used. Connector Board DI_R+ X-DI 32 02...

  • Page 44: Wiring Transmitters Via Field Termination Assembly

    4 Start-up X-DI 32 02 4.4.2 Wiring Transmitters via Field Termination Assembly Proximity switches are connected via the X-FTA 002 01 as described in Figure 15: . For further information, refer to the X-FTA 002 01 Manual (HI 801 117 E). Field Termination Connector Board Assembly...

  • Page 45: Redundant Connection Via Two Base Plates

    X-DI 32 02 4 Start-up 4.4.3 Redundant Connection via Two Base Plates The figure shows the connection of one proximity switch or wire contact maker if the redundant modules inserted in different base plates or are not located in the base plate adjacently.

  • Page 46: Operation

    5 Operation X-DI 32 02 Operation The module runs within a HIMax base plate and does not require any specific monitoring. Handling Direct handling of the module is not foreseen. The module is operated from within the PADT, e.g., for forcing the digital inputs. For more details, refer to the SILworX documentation.

  • Page 47: Maintenance

    6.1.1 Loading the Operating System HIMA is continuously improving the operating system of the module. HIMA recommends to use system downtimes to load the current version of the operating system into the module. For detailed instructions on how to load the operating system, see the system manual and the online help.

  • Page 48: Decommissioning

    7 Decommissioning X-DI 32 02 Decommissioning To decommission the module, remove it from the base plate. For more information, see Mounting and Removing the Module. Page 48 of 56 HI 801 017 E Rev. 4.00...

  • Page 49: Transport

    X-DI 32 02 8 Transport Transport To avoid mechanical damage, HIMax components must be transported in packaging. Always store HIMax components in their original product packaging. This packaging also provides protection against electrostatic discharge. Note that the product packaging alone is not suitable for transport.

  • Page 50: Disposal

    X-DI 32 02 Disposal Industrial customers are responsible for correctly disposing of decommissioned HIMax hardware. Upon request, a disposal agreement can be arranged with HIMA. All materials must be disposed of in an ecologically sound manner. Page 50 of 56...

  • Page 51: Glossary

    X-DI 32 02 Appendix Appendix Glossary Term Description Address Resolution Protocol: Network protocol for assigning the network addresses to hardware addresses Analog Input Connector Board Connector board for the HIMax module Communication module Cyclic Redundancy Check Digital Input Digital Output Electromagnetic Compatibility European Norm ElectroStatic Discharge...

  • Page 52: Index Of Figures

    Appendix X-DI 32 02 Index of Figures Figure 1: Block Diagram Figure 2: Indicators Figure 3 Views Figure 4: Coding Example Figure 5: Connector Boards with Screw Terminals Figure 6: Connector Boards with Cable Plug Figure 7: Connector Board with Cable Plug, Variant X-CB 005 05 Figure 8: System Cable Figure 9: Single-Channel Proximity Switch or Wired Contact Maker Figure 10: Redundant Proximity Switch or Wired Contact Maker...

  • Page 53: Index Of Tables

    X-DI 32 02 Appendix Index of Tables Table 1: Product Data Table 2: Specifications for Digital Inputs Table 3: Standard Values for the Digital Inputs Table 4: Product Data of the Proximity Switch Supply Table 5: Available Connector Boards Table 6: Position of Coding Wedges Table 7: Terminal Assignment for Connector Boards with Screw Terminals Table 8: Cable Plug Properties Table 9: Pin Assignment for the System Cable Plug...

  • Page 54: Index

    Appendix X-DI 32 02 Index block diagram...........12 module status indicators......14 connector board ........19 safety function ......... 10 with cable plug........24 specifications with screw terminals ......21 initiators..........18 diagnosis inputs ........... 17 I/O indicators ........15 module ..........16 system bus indicators......15 Page 54 of 56 HI 801 017 E Rev.
  • Page 56 HI 801 017 E © 2011 HIMA Paul Hildebrandt GmbH + Co KG HIMax and SILworX are registered trademark of: HIMA Paul Hildebrandt GmbH + Co KG Albert-Bassermann-Str. 28 68782 Brühl, Germany Phone +49 6202 709-0 +49 6202 709-107 HIMax-info@hima.com...
