1 Check Contents
The camera kit includes:
·
one rubber multiple-cable gland
·
a T10 Torx Security wrench
·
a T20 Torx Security wrench
·
Mounting template sticker
·
Printed installation guide (this
document)
·
Back Box with hole caps, plugs, and
washers attached
If any of these items are missing or damaged, contact your dealer or
FLIR
Support.
CB-650x Quick Install Guide Revision 100

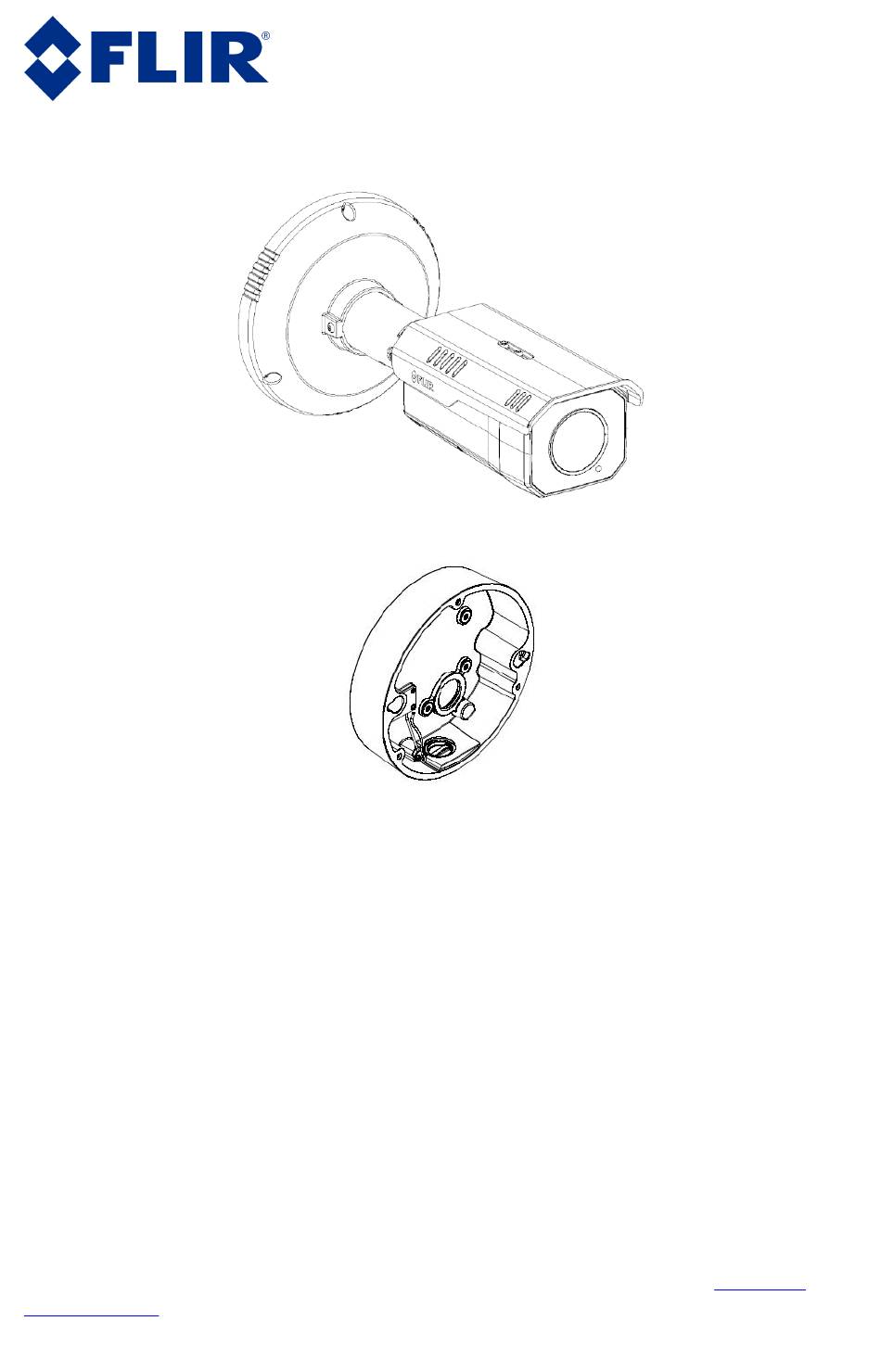

Camera Body, Assembly, and Sun Shield
This document does not contain any export-controlled information.
Quasar™ Premium Bullet AI
with FLIR Edge AI Video
Analytics Camera Quick Install
Back Box
·
one two-pin connector for the 12V DC /
24V AC terminal block
·
two four-pin connectors for the alarm
and I/O terminal blocks
·
two TP4x20 tapping screws for
attaching the CB-650x back box to the
mounting surface
·
two plastic screw anchors for attaching
the CB-650x back box to the mounting
surface
Guide
Teledyne
December 2024
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FLIR Quasar CB-650 Series
Summary of Contents for FLIR Quasar CB-650 Series
- Page 1 Quasar™ Premium Bullet AI with FLIR Edge AI Video Analytics Camera Quick Install Guide Camera Body, Assembly, and Sun Shield Back Box 1 Check Contents The camera kit includes: · · one rubber multiple-cable gland one two-pin connector for the 12V DC / ·...
-
Page 2: Select A Location
16.6 W 14.6 W 15 W without IR (with heater) 17.9 W 15.6 W 16.3 W For assistance with purchasing a power supply, contact Teledyne FLIR. CB-650x Quick Install Guide Revision 100 December 2024 This document does not contain any export-controlled information. -
Page 3: Connect The Camera
3 Connect the Camera Connector Connection Attach an Ethernet cable from the network switch to the RJ45 connector for a 10/100/1000 Mbps Ethernet and PoE+ IEEE 802.3at connection. Ethernet is RJ-45 required for streaming video and for configuring the camera. The orange Two LEDs LED indicates the status of a 1000 Mbps connection. - Page 4 4 Configure for Networking To discover the camera on the network, Teledyne FLIR recommends using the FLIR Discovery Network Assistant (DNA) tool, which does not require a license to use, and is a free download from the product's web page on the Teledyne FLIR website.
- Page 5 VMS automatically assigns the camera an IP address. If the camera is managed by FLIR Latitude VMS or is on a network with static IP addressing, you can manually specify the camera’s IP address using the DNA tool or the camera's web page.
- Page 6 If the admin user's password is not the default password, you need to authenticate the camera. 1. In the DNA Discover List, select the camera and then click Login 2. In the DNA - Login window, type admin or the name of any user assigned the admin role;...
- Page 7 6 Install the Back Box Dimensions (in mm) The CB-650x Back Box provides a 3/4" side conduit hole for routing cables into the camera. You can attach the CB-650x Back Box to a secure, flush, and vibration-free surface or to a standard single gang or double gang electrical box. You can route cables into the back box in two ways: ·...
- Page 8 To help make sure the camera pans and tilts through its entire range; that is, to make sure the camera's mechanical stoppers do not interfere with aiming the camera, Teledyne FLIR recommends: · Wall mounting—Attach the back box with the text facing up.
-
Page 9: Route The Cables
For example, if you are attaching the bracket to a single gang electrical box, remove the rubber plugs from the holes marked A on the back box. Leave the seals in place. Using truss head screws (not included), attach the back box to the electrical box. 7 Route the Cables To route cables through the side conduit hole: a. - Page 10 To route cables through the rear cable entry hole: a. Route an unterminated Ethernet cable through a hole in the cable gland included in the CB-650x kit. b. (Optional) Route an unterminated power, alarm, and audio cable through the other hole in the gland. c.
- Page 11 The example at right shows the CB- 650x Back Box attached to a wall, with an Ethernet cable and a power, alarm, and audio cable routed through the side cable entry hole and connected to the camera. The safety wire and clip is enlarged. When attaching the camera assembly to the back box, align the triangle on the exterior of the camera assembly...
-
Page 12: Assemble The Camera
For information about other mounting options, including the list of Teledyne FLIR mounting accessories that support the camera, see the camera's installation and user guide. - Page 13 Aiming the Camera (Wall Mounting) 1. Retaining ring for pan adjustment (range 355°) 2. Bracket for tilt adjustment (range 90°) 3. Retaining ring for spin rotation (range 355°) Adjust the pan position to make sure the camera tilts towards the scene and can be rotated to face upright towards the scene.
- Page 14 f. Make sure analytics are enabled. g. Make sure that a person about 1.8m (5" 11') tall is in the camera's field of view. h. Click Display Target. A box simulating a 1.8m (5" 11') person appears in the live video. Make sure the height of the box corresponds to the size of the person standing in the camera's...
- Page 15 To access the camera's web page: a. Do one of the following: o In the Teledyne FLIR Discovery Network Assistant (DNA) tool, double-click the camera in the Discover List. o Type the camera’s IP address in a browser’s address bar (when the PC and the camera are on the same network).
-
Page 16: Register The Product
After mounting the camera and discovering or defining its IP address, use VMS Discovery/Attach procedures to attach the camera to a supported VMS. Camera Dimensions (in mm) Register the Product Register the product at https://customer.flir.com. For warranty information, see https://www.flir.com/support- center/warranty/security/flir-security-product-warranties/.
