Queen
Storage
Bed
Assembly
Installation
Guide

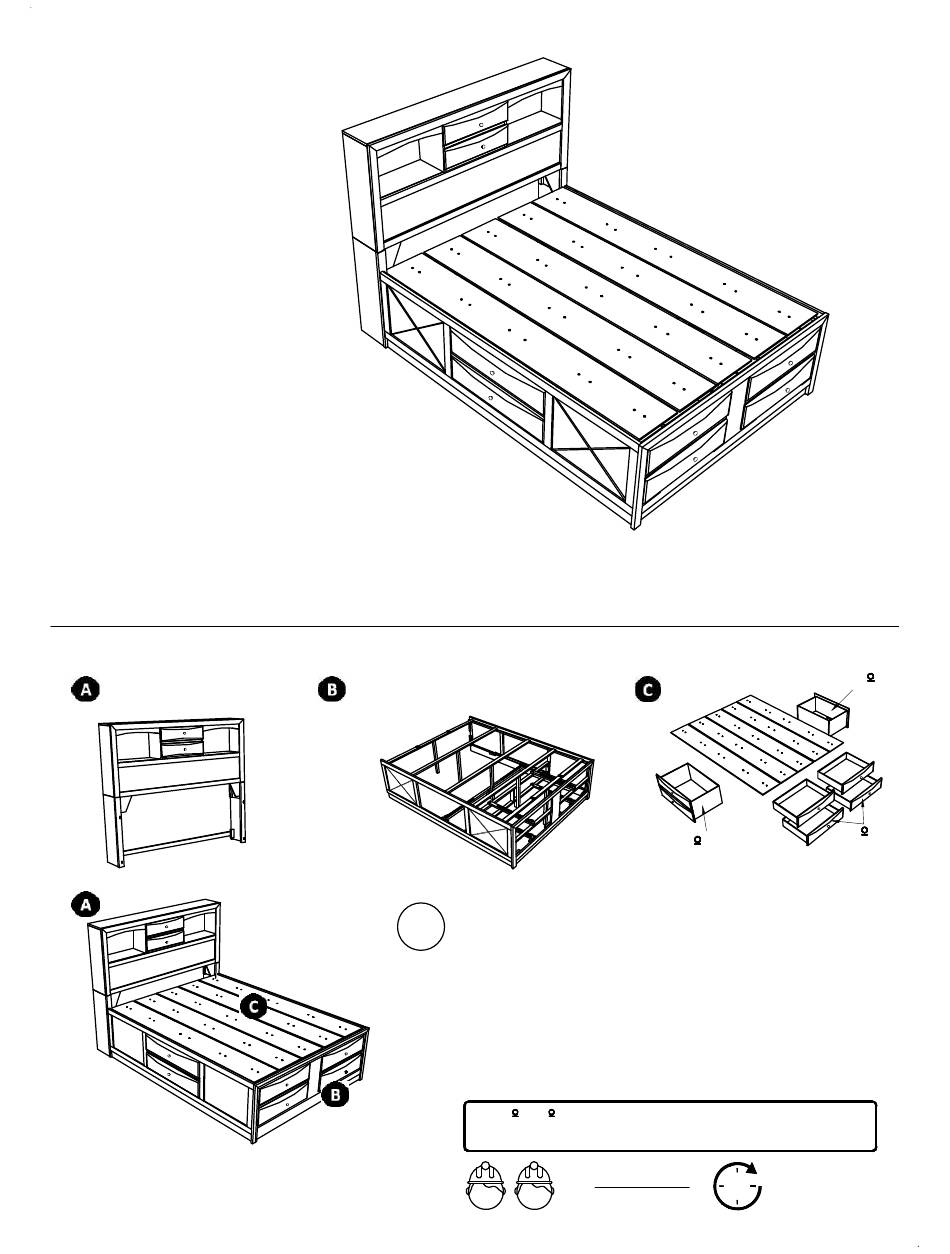

DESCRIPTION:
Queen Headboard
Queen Footboard
Queen Side Rails
Queen Slat & Support Legs
Storage Drawer
A
=
INSTALLATION AREA
+
!
C
B
+
Caution : Please read instructions thoroughly before unpacking assembly parts.
Sharp, exposed staple tips can cause injury, therefore, for your protection,
please remove any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person ;
this will make assembly easier, and will help to eliminate damage to the product or injury to
persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside
the carton during shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non - abrasive floor before assembly. and follow the assembly step to
assemble your newly purchased product correctly and efficiently .
Drawer N Q & N R are identical & compatible, to each other regardless left or right.
During assembly, do not tighten any hardware until the complete unit has beeb assembled.
2 PERSON
installation recommended
N :R
N :Q
N :R
20 - 25
20 - 25
mins
minutes for installation
PAGE 1 OF 11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ACME 21610Q-11
Summary of Contents for ACME 21610Q-11
- Page 1 Queen Storage Assembly Installation Guide DESCRIPTION: Queen Headboard Queen Footboard Queen Side Rails Queen Slat & Support Legs Storage Drawer INSTALLATION AREA N :R N :Q N :R Caution : Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed staple tips can cause injury, therefore, for your protection, please remove any exposed staples used in packing.
-
Page 2: Hardware List
BOX 1 Box of Headboard & Footboard Hardware List N A1 Headboard Footboard Headboard Drawer Flat Head Chipboard Pan Head Chipboard JCBC Bolt JCBC Bolt 255 x 1420 x 1593 mm 42 x 570 x 1591mm Screw Screw m6 x 35mm m6 x 50mm m4 x 32mm RBW m3.5 x 20mm BLK... - Page 3 Rotate the Headboard (A) down and Attach and tighten the Headboard Leg turn to back. L/R (C) to the Headboard (A). Box 1 : N A Box 1 : N C(L) + N C(R) N C(R) Headboard Assembly Right N C(L) Installation Right Left...
- Page 4 Attach and tighten the triangle Support Panel (D) to the Headboard and tighten the Panhead screw (2) using screw driver . (Not included) Box 1 : N D + N 2 Headboard Assembly Installation Attach Headboard Back Support (L) & (O) as picture shown. Tighten the CSK screw (1) using a screw driver.
- Page 5 Attach the Side Rail (H) to the Headboard Leg L/R (C). Insert Spring Washer (12) , Flat Washer (13) , tighten JCBC (10) using an Allen Key (15). N 10 N 11 Box 2 : N H + N 10 + N 12 + N 13 + N 15 N 13 Footboard N 10...
- Page 6 Attach Support Leg (G) to the Footboard Drawer Frame (J). Insert Spring Washer (12) , Flat Washer (13) , & tighten JCBC (10) using an Allen Key(15). Box 1 : N G N 10 N 11 Box 2 : N J + N 10 + N 12 + N 13 + N 15 Footboard Structure Assembly...
- Page 7 Attach the Drawer Support Rail (E) to the Footboard (B) using CSK Screw (8) and tighten with Screw Driver. ( Not included) Box 1 : N E Box 2 : N 8 Footboard Structure Assembly Installation Attach the Drawer Support Rail (E) to the Footboard Drawer Frame (J). Insert Spring Washer (12), Flat Washer (13) &...
- Page 8 Attach Support Leg 2 (F) to the Drawer support Rail (M). Tighten JCBC Bolt (11) using an Allen Key (15) Box 1 : N F N 10 N 11 Box 2 : N M + N 11 + N 15 Footboard Structure Assembly...
- Page 9 Attach Bed Slat (I) & (P) to the Bed Slat Support (N) . Tighten JCBC Bolt (11) using an Allen Key (15). ( Loosen and tighten the Adjuster to stability of bed) N 10 N 11 Box 2 : N I + N N + N O + N P + N 11 + N 15 N 15 Footboard Structure...
- Page 10 Slide Drawer - 2 (R) into position over Draer Support Rail -1 (M). Then slide Drawer - 1 (Q) into position over Drawer Support Rail - 2 (E). Adjust the adjuster for alignment of drawer box. Box 3 : N Q + N R Conceal Panel &...
- Page 11 Attention! Screw on this markings on concealed panel slat (K). Conceal Panel & Drawer Assembly Installation Realign the Concealed Panel Slat (K) as shown. Box 2 : N K Attach Concealed Panel (K) over the Bed Slat (I) using Panhead Screw (9) and tighten with Screw Driver.
