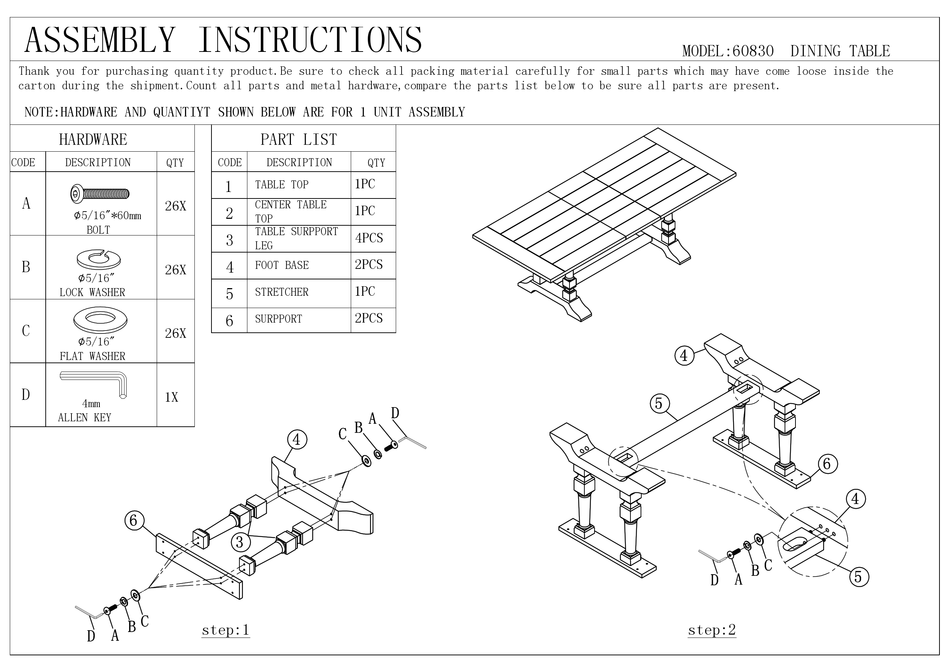

ASSEMBLY INSTRUCTIONS
Thank you for purchasing quantity product.Be sure to check all packing material carefully for small parts which may have come loose inside the
carton during the shipment.Count all parts and metal hardware,compare the parts list below to be sure all parts are present.
NOTE:HARDWARE AND QUANTIYT SHOWN BELOW ARE FOR 1 UNIT ASSEMBLY
HARDWARE
CODE
DESCRIPTION
QTY
A
26X
∅
5/16"*60mm
BOLT
B
26X
∅
5/16"
LOCK WASHER
C
26X
∅
5/16"
FLAT WASHER
D
1X
4mm
ALLEN KEY
PART LIST
CODE
DESCRIPTION
QTY
1PC
1
TABLE TOP
CENTER TABLE
1PC
2
TOP
TABLE SURPPORT
4PCS
3
LEG
2PCS
4
FOOT BASE
1PC
5
STRETCHER
2PCS
6
SURPPORT
step:1
MODEL:60830 DINING TABLE
step:2
