ACME Keva 97768 Assembly Instructions

TIP STRAP FITTING INSTRUCTIONS

Cabinet Top
Wall
STEP : 2
Make a mark on
the wall through
the strap .
Cabinet Top
Rawl Plug
STEP : 3
Insert screw through
washer into hole in wall
Cabinet Top
NOTE:
Wall Fixings are not supplied with this product as different
wall materials require different types of fixing devices (such as
Rawl plugs on brick work) You must use fixing devices suitable for
the type of wall you intend to mount this product to. Please ensure
that the head of any screw used has a diameter greater than the
diameter of the mounting hole on the product and that the fixing is
safe and secure before use.
The strap and screw which to fix the strap on to the
furniture are provided only.
Drill a hole in the
wall and insert the
rawl plug .
Wall
Cabinet
Wall
Top

HARDWARE LIST

2 X
Strap
2 X
2 X
Screw
Washer
PAGE 4/4
ASSEMBLY
INSTRUCTIONS
0.25 HOURS
APPROXIMATE ASSEMBLY TIME 2 PERSON ASSEMBLY
HARDWARE
16 Pieces
H2
H1 16 Pieces
CARCASE :- 1 PIECES
ACME FURNITURE - 97768

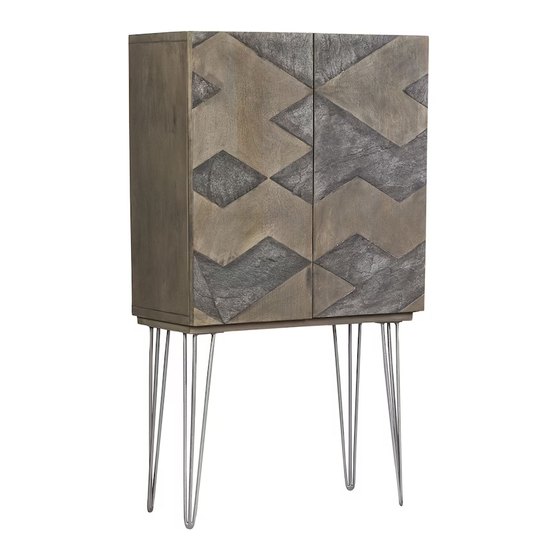

DESCRIPTION:- CAEN TALL CABINET
CEILING HEIGHT
3 M
REQUIRED ASSEMBLY SPACE
REQUIRED ASSEMBLY TOOLS
1 Piece
T1
LEGS :- 4 PIECES
PAGE 1/4
