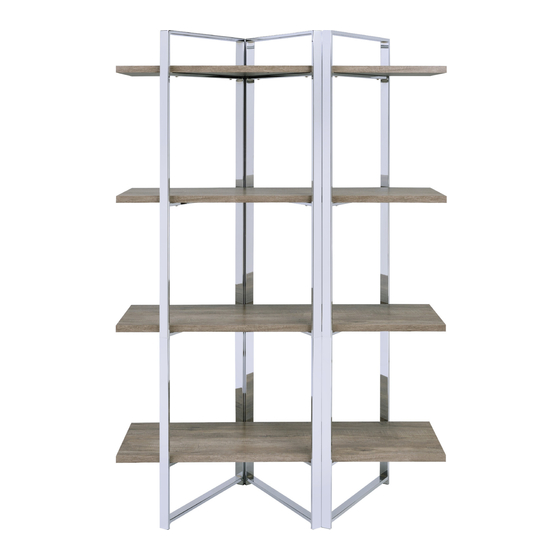

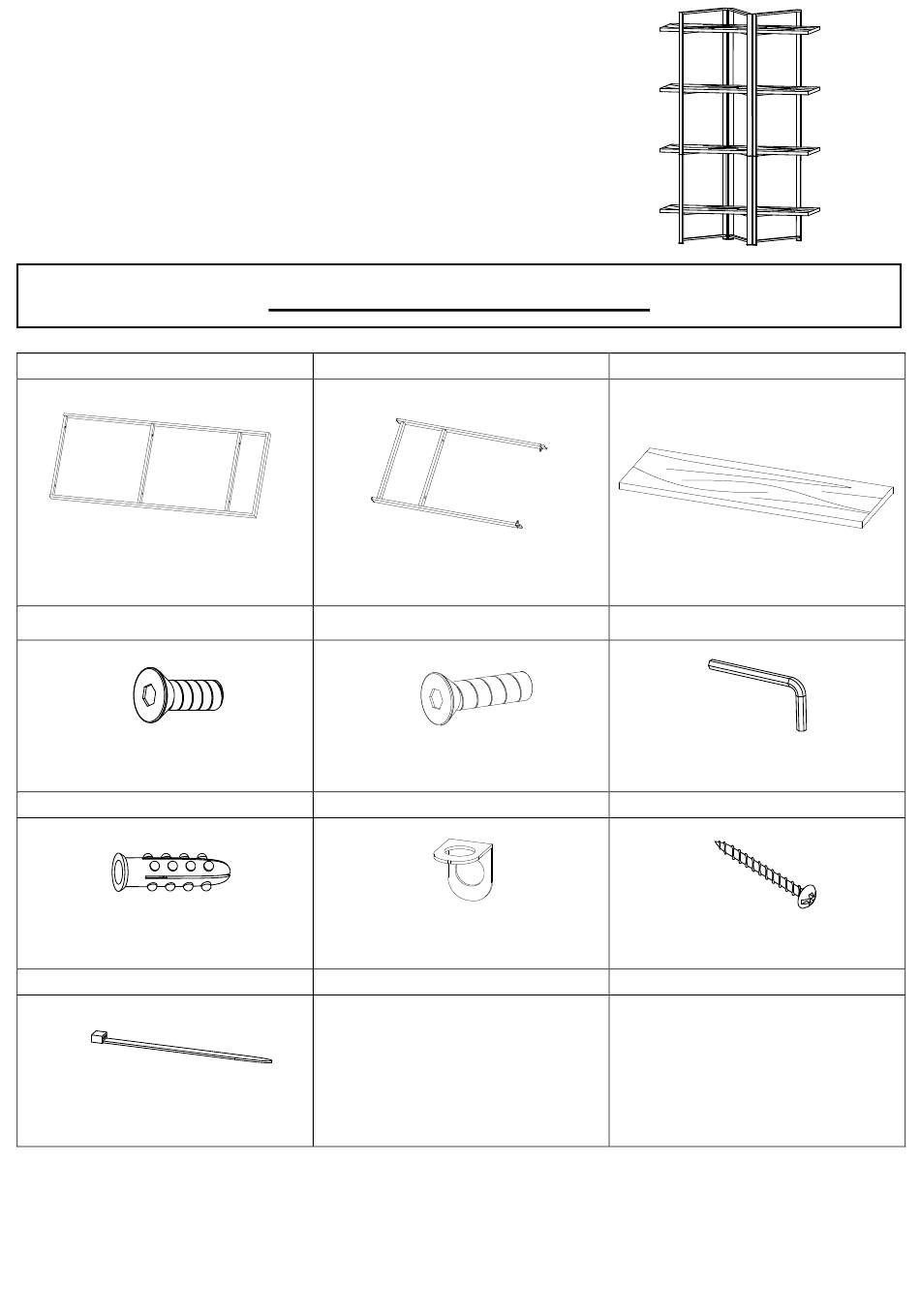

- Page 1 ITEM NO. 92545 DISPLAY RACK ASSEMBLY INSTRUCTIONS LARGE SIDE PANEL SMALL SIDE PANEL WOOD SHELF 3PCS 3PCS 4PCS BOLT 1/4" X 1/2" BOLT 1/4" X 1" ALLEN WRENCH 6PCS 24PCS WALL ANCHOR L BRACKET SCREW 2PCS 2PCS 2PCS PASTIC STRAP 2PCS...
- Page 2 *** Do not tighten screws & bolts until the entire unit is completely assembled. *** STEP 1 Attach large side panel (A) to small side panel (B) using bolts (1) as shown. There are total 3 pieces of side panel. STEP 2 Attach wood shelf (C) to one large side panel (A)
- Page 3 STEP 3 Attach another large side panel (A) to wood shelf (C) using bolts (2). STEP 4 Attach the large side panel (A) to wood shelf (C) using bolts (2).
- Page 4 STEP 5 Attach the wood shelf (C) to the assembled unit using bolts (2) as shown. STEP 6 Attach the wood shelf (C) to the assembled unit using bolts (2) as shown.
- Page 5 STEP 7 Attach the wood shelf (C) to the assembled unit using bolts (2) as shown. STEP 8 Wall 20” Select a location where you want the shelf mounted. Mark on the wall the two locations where the wall anchors (4) will be placed.
- Page 6 STEP 9 Insert each end of the plastic strap (7) into L brackets (5), then secure and tighten. Wall...
