26670Q/26667EK-HF - QUEEN / E.KING BED HEADBOARD FOOTBOARD
26671Q/26669EK-DRW - QUEEN / E.KING BED FOOTBARD W/2 DRAWERS
26672Q/26669EK-R - QUEEN / E.KING BED - RAIL
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during the shipment .
PART LIST
HARDWARE
DESCRIPTION
CODE
QTY
A
6X
M6 x35MM
JCBC BOLT
10X
B
M6 x 45MM
JCBC BOLT
C
11X
M6 x 13
SPRING WASHER
Headboard Leg - L -1pc
D
6X
M6 x 13
FLAT WASHER
E
5X
M6 x 19
FLAT WASHER
F
2X
M10 x 30
WOOD DOWEL
G
28X
M4 x 30
CHIPBOARD SCREW
Bed Slat ( 3 holes ) - 3pcs
H
8X
M4 x 12
CHIPBOARD SCREW
1X
I
M4 x 60
ALLEN KEY
1 OF 6
NOTE : MUST TIGHTEN SCREWS PERIODICALY WITH USE SCREW WILL BECOME LOOSE CHECK TIGHTNES OF ALL SCREW EVER 6-8WEEKS.
ASSEMBLY INSTRUCTIONS

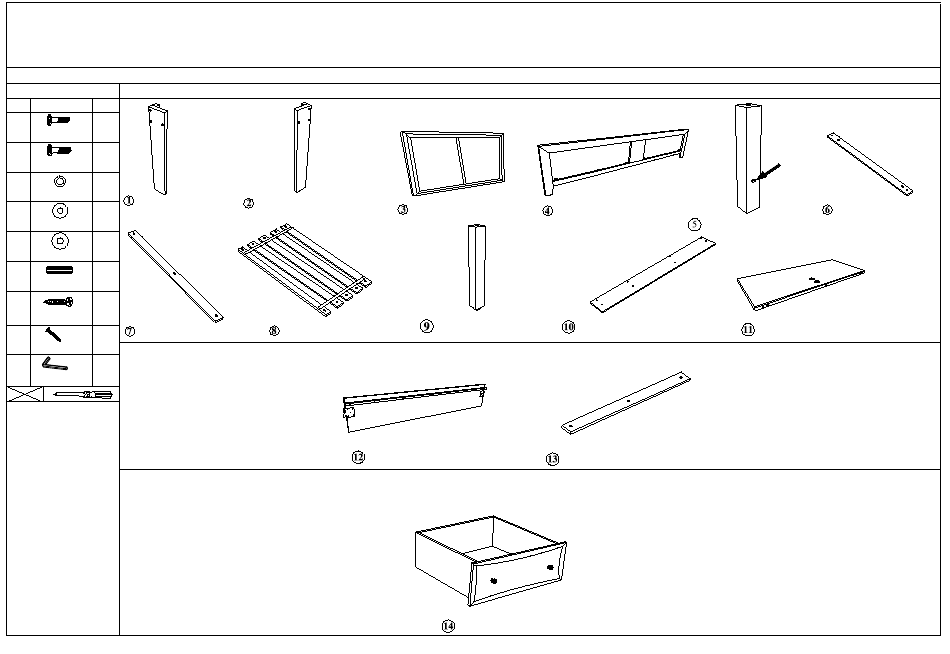

PART IN BOX 1
Headboard Leg - R - 1pc
Headboard - 1pc
Slat Support Leg - 3pcs
Bed Slat / 2SET - 10pcs
PART IN BOX 2
Side Rail - L&R - 2pcs
PART IN BOX 3
HARDWARE INSIDE
Footboard - 1pc
Bed Sheet Holder Panel - 1pc
Center Rail = 1pc
Drawer - 2pcs
( 1 HOLE )
Bed Slat ( 4 holes ) - 1pc
Storage Support Leg -2pcs
Storage Panel ( 2holes ) - 1pc
