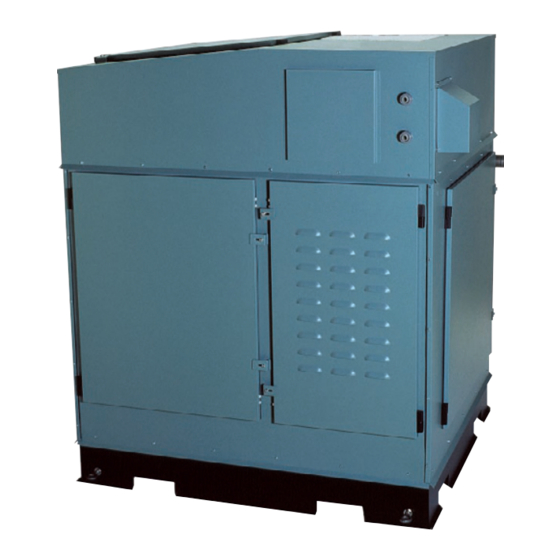

- Page 1 - c series gasfired steam humidifier operating instructions...
-
Page 3: Table Of Contents
Contents Introduction 4.1.4 Setting the capacity limitation 4.1.5 Water management settings 1.1 Notes on the operating instructions 4.1.5.1 Selecting the type of drain water cooling 1. Safety 4.1.5. Setting the tank draining rate 4.1.5. Switching on and off Operating the full tank draining function Condair GS/GS...OC control 4.1.5.4 Setting the time of day for .1 Function of the display and operating full tank draining elements 4.1.5.5 Setting the period of time in . Switching on and off the operation for full tank draining Condair GS/Condair GS...OC 4.1.5.6 Setting the idle mode . Operating of the operating and display unit 6 4.1.5.7 Setting the period of time in .4... -
Page 4: Introduction
Introduction 1.1 Notes on the operating instructions Limitation These operating instructions are an addendum to the installation, commissioning and service instruc- tions for the Condair GS C series and for the Condair GS...OC C series and describe the operation of the Condair GS/GS...OC - C series control. These operating instructions are meant for well trained personnel being sufficiently qualified. Safekeeping Please safeguard these operating instructions in a safe place, where they can be immediately accessed. If the equipment changes hands, the documentation must be passed on to the new operator. If the documentation gets mislaid, please contact your Condair supplier. Language versions These operating instructions are available in various languages. Please contact your Condair sup- plier for information. Copyright protection The present operating instructions are protected under the Copyright Act. Passing-on and reproduc- tion of the manual (or part thereof) as well as exploitation and communication of the contents are prohibited without written permission by the manufacturer. Violation of copyright terms is subject to legal prosecution and arises liability for indemnification. The manufacturer reserves the right to fully exploit commercial patent rights. 1.2 Safety Every person working with the Condair GS or Condair GS...OC must have read and understood these operating instructions as well as the installation, commissioning and service instructions of the corresponding unit (particularly the safety instructions). Knowing and understanding the contents of the operating instructions of the Condair GS/GS...OC - C series control and the installation, commissioning and service instructions of the corresponding unit is a basic requirement for protecting the personnel against any kind of danger, to prevent faulty operation, and to operate the Condair GS/Condair GS...OC safely and correctly. -
Page 5: Operating The Condair Gs/Gs
Operating the Condair GS/GS...OC control 2.1 Function of the display and operating elements Display and control unit Function: Configuration of the Condair GS/GS...OC. Indication of operating parameters. Reset of maintenance counter. red LED “Fault” Function: The LED flashes in case of a temporary malfunction of the unit (Warning status). Further operation of the unit is still possible. The warning message is shown in the display, see chapter 6). The LED lights in case of a severe malfunction of the unit (Fault status). Further operation is not possible any longer. The fault message is shown in the display, see chapter 6). The LED flashes alternately with the red LED if the external safety chain (ventilation interlock has triggered) is open. As soon as... -
Page 6: Switching On And Off The
2.2 Switching on and off the Condair GS/Condair GS...OC Note: For putting the Condair GS/GS...OC into operation and out of operation please follow the procedures described in the chapters 7. and 7.4 of the installation, commissioning and service instructions for the Condair GS/Condair GS...OC. • Switching on the Condair GS/Condair GS...OC: • Switch on the external service switch in the power supply line. • Switch on the unit via the unit switch. The control carries out a system and level test, during which all the LEDs Condair GS 240 light up. -
Page 7: Menu Overview
2.4 Menu overview Indication level Condair GS 240 Condair GS 240 Condair GS 240 Condair GS 240 Demand :50% Software :1.00LA00 Power Limit :100 Burners Controlsign.:0-10V Sys. Request:50% Active Limitsignal :0-10V Out./Burner :30kg/hr Lead Buner Modbus Addr.:1 Total Steam :120kg/hr Disabled :------ 03.03.2009 12.00.00... -
Page 8: Interrogation Functions
Interrogation functions 3.1 Interrogation of the operating information in the indication level In the normal operating mode the operating and display unit is in the indication level. The indication level forms a loop that includes several pages holding operating information which can be accessed with the arrow keys. The various displays of the indication level are shown below. Info page 1: Standard operating display The appearance of the standard operating display (info page 1) depends on the actual operating status and the configuration of the Condair GS/Condair GS...OC. The following displays are possible. Standard operating display when the unit is controlled via an external controller: Condair GS 240 – Standby (no humidity demand) or Demand in % (humidity demand present) Demand :100% Limiter : 70% – Supply air limitation in %rh * 03.03.2009 12.00.00 * this parameter appears only if external supply air limitation is activated Menu Standard operating display when the unit is controlled via the internal controller: Condair GS 240 – Actual humidity in %rh Act.Humidity:75% Hum.Setpoint:50% – Set nominal humidity %rh Lim.Humidity:60% Lim.Setpoint:80% – Actual humidity of supply air in %rh ** Menu – Set supply air limitation in %rh **... - Page 9 Info Page 6: Drain settings – Current setting for standby operation (IdlDrain: Idle drain function is activated, Condair GS 240 the tank is drained after the set idle time, KeepWarm: keep warm function is Idle Mode :IdlDrain BD rate activated, IdleOnly: No function is activated for standby operation) FTBD – Set draining rate per hour in % of the maximum steam capacity related to 100 % Menu steam production – Actual status of full tank draining (On: Tank is fully drained an refilled after the set operation time, Off: Full tank draining function deactivated) Info Page 7: RPM indications of the fans RPM indications of the fans. Condair GS 240 Blower RPM...
-
Page 10: Interrogation Of Unit Information
3.2 Interrogation of unit information Select the list with the unit information: Path: Main menu > Info > Unit Status Condair GS 240 Main Menu Info Operation Hours Info :Set Unit Status :Set 300h Demand :50% User :Set ErrorHistory:Set Weighted Operat.Hours Servicelist :Set 270h Remote Steam 03.03.2009 12.00.00 Menu Remote Service Remote Error Water Level... -
Page 11: Interrogation Of The Malfunction History List
3.3 Interrogation of the malfunction history list The warning or error messages generated by the last 0 malfunctions that occurred are saved in a malfunction history list and can be interrogated. Select the malfunction history list: Path: Main menu > Info > ErrorHistory Condair GS 240 Main Menu Info Error History Info :Set Unit Status :Set 19.01.09 12:02 SLO Demand :50% User :Set ErrorHistory:Set 13.01.09 16:22 OTF Servicelist :Set 13.01.09 17:56 FCF 03.03.2009 12.00.00... -
Page 12: Interrogation Of The Maintenance History List
3.4 Interrogation of the maintenance history list Each time the maintencance message is reset an entry is automatically generated in the maintenace history list. The last 0 entries are saved in the maintenace history list of the Condair GS/Condair GS...OC and can be interrogated. Select the maintenance history list: Path: Main menu > Info > Servicelist Condair GS 240 Main Menu Info Service History Info :Set Unit Status :Set 27.02.09 2000 SER Demand :50% User :Set ErrorHistory:Set 02.11.08 0500 SER Servicelist :Set 03.03.2009 12.00.00... -
Page 13: Configuration
Configuration 4.1 Unit settings 4.1.1 Launching the unit settings menu Select the unit settings menu: Path: Main menu > User > Password entry: 0335 > Settings Condair GS 240 Main Menu User Settings Info :Set Maintenance :Set Language :English Demand :50% User :Set Settings :Set Controls :Set ModBus :Set Power Limit :100 Water Mngm. -
Page 14: Control Settings
4.1.3 Control settings Select “Controls” in the unit settings menu, then press the <Set> key. Controls Settings Language :English Source :Analog Controls :Set Reg Mode :Int.(PI) Power Limit :100 Mod Mode :Dual Water Mngm. :Set Unit Type :Set Remote Test :Set Controlsign.:0-10V Date :01.10.08 Limitsignal :0-10V Short CD CD Time :300 Time Prop. MultiModeOp :Set Int.Settings:Set The display with control settings appears. The settings available depend on the selected signal... -
Page 15: Selecting The Modulation Mode
4.1.3.3 Selecting the modulation mode Select “Mod Mode” in the control settings menu, then press the <Set> key. Settings Controls Modulation Mode Language :English Source :Analog Single Controls :Set Reg Mode :External Single Power Limit :100 Mod Mode :Single Dual Water Mngm. :Set Unit Type :Set Remote Test :Set Controlsign.:0-10V Date :01.10.08 Short CD :Off In the upcoming modification dialogue select the desired modulation mode. -
Page 16: Selecting The Limit Signal
4.1.3.6 Selecting the limit signal Note: This setting is available only if the internal P or PI controller or external (continuous) control- ler is activated and the modulation mode (Mode Mode) is set to “Dual” (see chapters 4.1.. and 4.1..). Select “Limitsign.” in the control settings menu, then press the <Set> key. Settings Controls Limit Signal Language :English Mod Mode :Dual 0-10V Controls :Set Unit Type :Set 0-5V Power Limit :100 Controlsign.:0-10V 1-5V Water Mngm. :Set Limitsignal :0-10V 0-10V Remote Test :Set Short CD :Off 2-10V Date :01.10.08 Time Prop. -
Page 17: Switching On And Off The Time
4.1.3.9 Switching on and off the time proportioning function The time proportioning function allows to produce steam below 5% system request (or less than 10kg/h) with an ON/OFF control. Select “Time Prop” in the control settings menu, then press the <Set> key. Settings Controls Time Proportioning Language :English Reg Mode :External Controls :Set Mod Mode :Single Power Limit :100 Unit Type :Set Water Mngm. :Set Controlsign.:0-10V Remote Test :Set Short CD :Off Date :01.10.08 Time Prop. :Off In the upcoming modification dialogue you can switch on or off the time proportioning function. -
Page 18: Configuring Internal Control Settings
4.1.3.11 Configuring internal control settings Note: The menu item internal settings is available only if the regulation mode is set to “Int. (P)” or “Int. (PI)” (see chapter 4.1..). Select “Int.Settings” in the control settings menu, then press the <Set> key. Settings Controls Internal Settings Language :English Unit Type :Set HumSetPoint :40 Controls :Set Controlsign.:0-10V P-Band Power Limit :100 Limitsignal :0-10V Integr. Time:5 Water Mngm. :Set Short CD :Off Lim.Setpoint:80 Remote Test :Set Time Prop. :Off Limit-Band Date :01.10.08... -
Page 19: For The Internal Pi Controller
4.1.3.11.3 Setting the integral time in minutes for the internal PI controller Note: This setting is available only if the internal PI controller is activated (see chapter 4.1..). Select “Integr. Time” in the internal control settings menu, then press the <Set> key. Settings Controls Internal Settings Control Integral Time Language :English Unit Type :Set HumSetPoint :40 5 min Controls :Set Controlsign.:0-10V P-Band 5 min Power Limit :100 Limitsignal :0-10V Integr. Time:5 Water Mngm. :Set Short CD :Off Lim.Setpoint:80 Remote Test :Set Time Prop. -
Page 20: Humidity Alert Function 0
4.1.3.11.6 Setting the damping time for the limit signal in seconds Note: This setting is available only if the modulation mode is set to “Dual” (see chapter 4.1..). Select “Lim-Damp” in the internal control settings menu, then press the <Set> key. Settings Controls Internal Settings Limit Damping Language :English Unit Type :Set Lim.Setpoint:80 Controls :Set Controlsign.:0-10V Limit-Band Power Limit :100 Limitsignal :0-10V Lim-Damp Water Mngm. :Set Short CD :Off RH Alerts Remote Test :Set Time Prop. :Off RH High Date :01.10.08 Int.Settings:Set... -
Page 21: Setting The Capacity Limitation 1
4.1.3.11.9 Setting the upper humidity alarm value Note: This setting is available only if the humidity alert function is activated (see chapter 4.1..11.7). Select “RH Low” in the internal control settings menu, then press the <Set> key. Settings Controls Internal Settings RH Low Language :English Unit Type :Set Lim.Setpoint:80 33 %rH Controls :Set Controlsign.:0-10V Limit-Band 33 %rH Power Limit :100 Limitsignal :0-10V Lim-Damp Water Mngm. :Set Short CD :Off RH Alerts Remote Test :Set Time Prop. -
Page 22: Selecting The Type Of Drain Water Cooling
4.1.5.1 Selecting the type of drain water cooling This function lets you specify the type of drain water cooling according to local plumbing codes. Select “Drain Cool” in the water management menu, then press the <Set> key. Settings Water Management Drain Cool Controls :Set Drain Cool :Smart Smart Power Limit :100 BD rate Water Mngm. :Set FTBD Remote Test :Set FTBD Time :23:30 Smart Date :01.10.08 FTBD Hours :100 Time :12:12 Idle Mode :Set In the upcoming modification dialogue you can select the type of drain water cooling. -
Page 23: Setting The Time Of Day For Full Tank Draining
4.1.5.4 Setting the time of day for full tank draining Note: This setting is available only if the full tank draining function is activated (see chapter 4.1.5.). Select “FTBD Time” in the water management menu, then press the <Set> key. Settings Water Management FullTankBlowDownTime Controls :Set BD rate 23:30 Power Limit :100 FTBD 23:30 Water Mngm. :Set FTBD Time :23:30 Remote Test :Set FTBD Hours :100 Date :01.10.08 Idle Mode :Set Time :12:12 Idle Drain In the upcoming modification dialogue set the time of day at which the full tank draining should be started (format: hh:mm). -
Page 24: Setting The Period Of Time In
4.1.5.7 Setting the period of time in idle mode for tank draining Note: This setting is available only if Idle Mode is set to “Idle Drain” (see chapter 4.1.5.6). Select “Idle Drain” in the water management menu, then press the <Set> key. Settings Water Management Idle Drain Time Controls :Set FTBD :Off 72 h Power Limit :100 Idle Mode :Set 72 h Water Mngm. :Set Idle Drain Remote Test :Set Fill Corr :100 Date :01.10.08 Drain Corr :100 Time :12:12 Float Check :23:30... -
Page 25: Configuring Float Check Function 5
4.1.5.10 Configuring float check function With this functions you can activate and deactivate the float check function and if activated specify the hour of the day at which a float check takes place. Float checks are important to ensure the water level detection system is operating correctly. The float check also tests the fill and drain system and will report any problems detected. Select “Float Check” in the water management menu, then press the <Set> key. Settings Water Management Float Check Status Controls :Set FTBD :Off Status Power Limit :100 Idle Mode :Set Time :23:30 Water Mngm. :Set Idle Drain Remote Test :Set Fill Corr :100 Date :01.10.08 Drain Corr :100 Time :12:12... -
Page 26: Setting The Date 6
4.1.7 Setting the date Select “Date” in the settings menu, then press the <Set> key. Settings Date Water Mngm. :Set 01.10.08 Remote Test :Set 01.10.08 Date :01.10.08 Time :12:12 Unit Steam :kg/hr Contrast In the upcoming modification dialogue set the actual date (format:“dd.mm.yy”). 4.1.8 Setting the time Select “Time” in the settings menu, then press the <Set> key. Settings Time Water Mngm. :Set 12:12 Remote Test :Set 12:12 Date :01.10.08 Time :12:12 Unit Steam :kg/hr Contrast In the upcoming modification dialogue set the actual time (format:“hh.mm”). -
Page 27: Modbus Settings 7
4.2 Modbus settings Note: For detailed information on Modbus settings please also consult the separate documentation on Modbus communication of the Condair GS/ Condair GS...OC (available from you Condair sup- plier). Select the Modbus menu: Path: Main menu > User > Password entry: 0335 > Modbus Condair GS 240 Main Menu User ModBus Address Info :Set Maintenance :Set Modbus Addr.:1 Demand :50% User :Set Settings :Set Parity :Even ModBus :Set... -
Page 28: Setting The Timeout 8
4.2.3 Setting the timeout Select “Timeout” in the Modbus settings menu, then press the <Set> key. ModBus Address Timeout Modbus Addr.:1 Parity :Even Timeout :300s Rem Disable :On In the upcoming modification dialogue select the desired time out time for the data transmission. Factory setting: Setting range: 1 ... 600 s 4.2.4 Swichting on and off the remote disabling function Select “Rem Disable” in the Modbus settings menu, then press the <Set> key. ModBus Address Remote Disable Modbus Addr.:1 Parity :Even Timeout :300s Rem Disable :On In the upcoming modification dialogue you can switch On (remote disabling activated) or Off (remote disabling activated) the remote disabling function. Factory setting: Options: On (remote disabling activated), Off (remote disabling deactivated) -
Page 29: Service Functions
Service functions 5.1 Launching the maintenance settings menu Select the maintenance settings menu: Path: Main menu > User > Password entry: 0335 > Maintenance Condair GS 240 Main Menu User Maintenance Info :Set Maintenance :Set Burner :Set Demand :50% User :Set Settings :Set Service Int.:500h ModBus :Set Tank Drain :Set... -
Page 30: Performing The Tank Drain Function 0
5.4 Performing the tank drain function With the tank drain function you can initiate a tank draining cycle. The tank drain function activates the drain pump in order to drain the tank for a fixed time (depending on unit size). Select “Tank Drain” in the maintenance settings menu, then press the <Set> key. Maintenance Burner :Set Interrupt Operation Manual Drain Manual Drain Service Int.:500h and Drain Tank Tank Drain :Set 19m 18s Complete TankPreClean:Set ServReminder:Set ErrorHistory:Set Stop You are asked whether you want to stop operation and drain the tank. Press the <Yes> key. The tank draining starts. During the tank drain cycle the display confirms the tank is drained along with the time remaining to complete the cycle. A corresponding message is displayed when the tank is empty. To interrupt the drain cycle press the <Stop> key. Press the <Esc> key several times to quit the tank draining function and to return to the standard operating display. 5.5 Performing the tank pre-clean function With the tank pre-clean function you can initiate a tank cleaning cycle. The tank pre-clean function activates the drain pump in order to drain the tank for a fixed time (depending on unit size), then the fill valve is activated to partially fill the tank with cold water. Upon completion of the fill cycle the tank is drained once again. This removes any accumulated minerals and cools down the tank for maintenance. -
Page 31: Resetting The Maintenance Counter 1
5.6 Resetting the maintenance counter After completing maintenance work, the maintenance counter must be reset with this function Select “ServReminder” in the maintenance settings menu, then press the <Set> key. Maintenance Reset Service Burner :Set Reminder Service Int.:500h Tank Drain :Set Are you sure? TankPreClean:Set ServReminder:Set ErrorHistory:Set The reset dialogue shows up in the display. Press the <Yes> key to reset the maintenance coun- ter. Note: Press the <No> key if you wish to abort the reset procedure. To return to the standard operating display press the <Esc> key several times. 5.7 Resetting the error history The error history can help you to find the cause of a malfunction. Therefore, use the error history reset function carefully. Select “ErrorHistory” in the maintenance settings menu, then press the <Set> key. Maintenance Reset Error Burner :Set History? Service Int.:500h Tank Drain :Set Are you sure? TankPreClean:Set... -
Page 32: Fault Elimination
Fault elimination 6.1 Fault indication Malfunctions during operation are indicated by a corresponding Warning or Fault message in the display of the control unit (each warning and fault message is stored in the error list): – Warning messages (additionally to the warning message the red LED flashes) Warning IMW-1:Ignition Module Menu Info Further operation is still possible. The control of the Condair GS/Condair GS...OC checks whether there is a temporary problem (e.g. gas supply interrupted for a short time) or whether it can re- solve the problem by taking necessary measures. If the cause of the malfunction disappears of its own accord or if the control can repair the malfunction, the alarm message will automatically switch off. If the cause of the malfunction does not disappear even after a longer period of time, a fault message is triggered. – Fault message (additionally to the fault message the red LED lights) Fault OTF: Over Temperature Lockout Menu Info Further operation is not possible any longer, the unit is blocked. To eliminate the malfunction see chapter 6.. Note: After eliminating the malfunction the fault message must be reset (see chapter 6.4). By pressing the <Info> key additional information can be displayed for each warning and/or fault message. OTF: Over Temperature The exhaust or tank safety sensor has exceeded the safety limit. -
Page 33: Warning Messages
6.2 Warning messages Warning message Description of malfunction Trouble shooting IMW-X: Ignition Module The ignition module X has not ignited 1. Check problematic burner through within 4 minutes after activation. combustion chamber sight port for red hot igniter and flame. Corrective action by unit: the unit will . If igniter is not red hot check igniter index the next available burner in the connection. Replace igniter if neces- sequence. sary. . If igniter is red hot but now flame is vis- ible, check for 4 VAC at gas valve. 4. Verify that gas supply line is connected and gas line open. 5. If flame is visible, check electric con- nection of flame sensor. Ensure supply voltage L1 is not wired to N. - Page 34 Warning message Description of malfunction Trouble shooting BLW-X: Blower RPM low The speed of blower X has been lower 1. Make sure blower in question is cor- than the speed of the leading blower for rectly connected and it is receiving more than five seconds. correct voltage. . Check operation of blowers in the diag- Corrective action by unit: the unit con- nostic output test for abnormalities. tinues to monitor the blower speed . Set blower in question as lead blower and see if other blowers get Blower High Warning.
- Page 35 Warning message Description of malfunction Trouble shooting NSW: Extended missing There is no communication between mas- 1. Check that one of the units is configured ter and extension unit. as master. . Check connection between master and Corrective action by unit: the operation extension unit. is interrupted until a signal is received. RDW: Modbus disable The unit has been intentionally disabled 1. Enable unit through building manage- through the Building Management Sys- ment system (BMS) tem. . If unit cannot be enabled remotely, try enabling unit under Modbus Corrective action by unit: none. The unit was intentionally disabled. NBW: No bruners All burners have been disabled via the Activate burners via the control software.
-
Page 36: Fault Messages 6
6.3 Fault messages Fault message Description of malfunction Trouble shooting IMF-X: Ignition failed All burners have produced an ignition 1. Make sure gas supply is connected module failure. No burners are available and open. to produce steam. . Check for correct gas supply pressure as indicated on the rating plate. Unit unsafe to operate. Recover the prob- . Check that igniter turns red hot during lem before restarting unit. ignition sequence. 4. If igniter is red hot but no flame is vis- ible, check for 4 VAC at gas valve. 5. If flame is visible, check connection to flame sensor. Ensure supply voltage L1 is not wired to N. AOF-X: AirProving open The corresponding air proving switch did 1. Make sure air proving switch is properly not close during blower start-up after connected to driver board. - Page 37 Fault message Description of malfunction Trouble shooting FTF: Fill timeout The fill valve has been activated for an 1. Make sure that drain pump, auxiliary extended period of time without reaching drain valve or manual drain switch are float level 1. The unit cannot operate with- not activated. out accurate float level reading. . Make sure that the water supply line is open and the water supply meets the Unit unsafe to operate. Recover the prob- requirements (10 L/min ; -8bar). lem before restarting unit. . Check fill valve using the diagnostic output test. 4. Check wiring to float board and fill valve. DCF: Drain check Drain pump is activated for extended period 1. Back pressure from drain lines can of time without changing float level. Unit slow draining of unit.
-
Page 38: Resetting The Fault Indication
Unit cannot operate in such to operate damage of unit components condition. may result. Flash R/W CPU can’t write or read any data on the Check if battery is low or CPU board is CPU. defective Clock R/W CPU can’t get any clock data. Check if battery is low or CPU board is defective 6.4 Resetting the fault indication (red LED lights) To reset the fault indication: Disconnect the Condair GS/ Condair GS...OC from the mains. Wait approx. 5 seconds, then reconnect the unit to the mains. Note: If the malfunction has not been eliminated, the fault indication reappears after a short while. - Page 39 © Walter Meier (climate international) Ltd. 2009, printed in switzerland technical modifications reserved...
- Page 40 consuLting, saLes and service: solutions for indoor climate reg.no. 40002-2 Manufacturer: Walter Meier (climate international) Ltd. talstr. 35-37, p.o. Box, cH-8808 pfäffikon (switzerland) phone +41 55 416 61 11, Fax +41 55 416 62 62 www.waltermeier.com, international.climate@waltermeier.com...
