Ignition Safety Shutoff Test 5.2.3 Starting the Humidifier 5.2.4 Remote Monitoring 5.2.5 Inspections During Operation 5.2.6 Manually Initiate Tank Draining 5.2.7 Full Tank Blowdown 5.2.8 Shutting Down 5.2.9 Restarting After Shutdown Maintenance General Mandatory Maintenance Schedule List of Consumables Condair GS Contents xxxxxxx_A_EN_1905_Condair-GS_OM...
Page 4
Installing Software Updates Fault Isolation General Fault Indication General Troubleshooting Warning and Fault List Resetting Fault Status Decommissioning General Removal from Service for Disposal or Long-term Storage Disposal/Recycling Performance and Operating Data Performance Data Operating Data Condair GS Contents xxxxxxx_A_EN_1905_Condair-GS_OM...
General Limitations The subject of this manual is the Condair GS humidifier. The various options and accessories may only be described in-so-far as is necessary for proper installation and operation of the equipment. Additional information on available options and accessories can be obtained in the instructions that are supplied with them.
Page 6
If the manual is lost or misplaced, contact your Condair representative for a replacement copy. Language Versions This manual is also available in other languages – contact your Condair representative. Introduction xxxxxxx_A_EN_1905_Condair-GS_OM...
All labels, signs and markings applied to the Condair GS humidifier must be observed and kept in a readable state. Personnel Qualifications All procedures described in this manual must only be performed by personnel who are adequately quali- fied, well trained and are authorized by the customer.
Page 8
WARNING! Risk of severe burns from contact with hot steam vapours! The Condair GS humidifier produces hot steam vapours for humidification. Bare skin in contact with hot steam vapours can result in severe burns. Prevention: Never perform any work on the steam system (including the steam lines, steam dis- tributors, etc.) while the humidifier is operating.
Page 9
Prevention: Do not restart a damaged or improperly secured humidifier. Preventing Unsafe Operation and if it is suspected that the Condair GS steam humidifier cannot be operated safely for any of the reasons listed below, shut it down immediately as described in "Shutting Down"...
Page 10
Always use original Condair replacement parts and accessories available through your Condair representative. The location of the various safety labels on the Condair GS humidifier is shown below. Figure 1: Safety Labels Label, gas safety warning Label, keep cabinet closed warning...

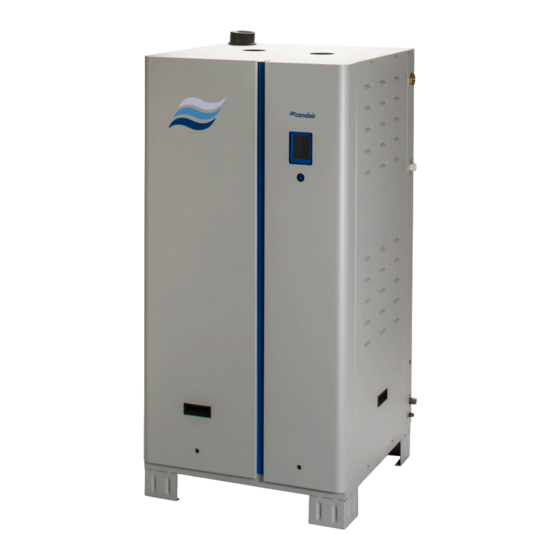

Product Overview General Description The Condair GS series is a completely new design of gas-fired steam humidifiers. It is designed to provide clean steam humidification at an economical price. The Condair GS humidifier is available in condens- ing high-efficiency (CS) and standard-efficiency models in capacities ranging from 23 kg/h to 260 kg/h.
Fault" if three consecutive warnings occur. At the same time, if the over-temperature switch is open, the fault message "Over-Temperature Fault" appears. In addition, if any of the blowers fail to operate during this time, the fault message "Blower Not Operating" appears. When the Product Overview xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Page 13
3. When the test is complete, the dual fill valves activate and the water level should rise to level L3. 4. If a demand signal is present, the humidifier begins the combustion sequence. 5. The drain pump and dual fill valves maintain the water level between levels L2 and L5. Condair GS Product Overview xxxxxxx_A_EN_1905_Condair-GS_OM...
Page 14
Drain line, condensate (with trap) (dedicated) 26 Double check valve backflow preventer Funnel, ar gap (with optional trap) 18 Drain line (supplied by others) Supply line, gas 19 Drain line, exhaust condensate (CS Nalve, manual gas shutoff model only) Product Overview xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Operator Interface Controls The operator interface in the Condair GS humidifier is located on the front of the unit – refer to Figure It consists of a touchscreen display with a LED status indicator, and an On/Off switch. Refer to Table 2 for a description of each of these elements.
The humidifier is stopped because a condition with a "Fault" status is active. Disabled The Condair GS humidifier is disabled by the BMS (building management system). Safety Loop One or more contacts in the external security loop is open, so the humidifier has stopped producing steam.
A condition with a "Warning" status is active. Typically, these conditions are of a temporary nature, or conditions that cannot cause damage to the system. Depending on the condition, the Condair GS humidifier may be stopped or remains operable (unless the warning relates to a control signal). If the cause of the condition clears on its own accord, the warning message is automatically reset.
Page 18
Capacity Timers: allow you to enable or disable the timer func- – tion, and configure up to eight different events with different output capacities. The event timers for the capacity set in Configuration > Features > Operation > Capacity Timers Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Page 19
Setpoint Channel 2: shows the high limit setpoint value for the unit. Select the field to adjust the value. Note: This field appears only if Control Mode is set to "RH P" or "RH PI", and Control Channels is set to "Dual". Condair GS Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM...
Page 20
Modbus: shows if Modbus communication is enabled. – Modbus Address: shows the Modbus address. – BACnet MSTP MAC: shows the MAC address assigned to the humidifier. – IP Address: shows the IP address assigned to the humidifier. Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
"Software Settings Tab" on page 39 4.2.6.1 Configuration Menu > The Configuration menu lets you configure the operation of the Condair GS humidifier. The menu and Table 6 on page 21 sub-menu items are discussed below. Refer to for the menu structure.
Page 22
DWC (Drain Water Cooling) Source: allows you to select the – water source used in drain water cooling. Options: Internal – use the fill valve in the unit to sup- ply water for drain water cooling setting: Internal Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Page 23
Fill Correction 1: allows you to adjust all the parameters for the – high volume fill valve(s) to compensate for valve tolerances, as well as site-specific conditions. CAUTION! Do not adjust this value unless instructed to do so by a Condair representative. Setting range: 0.1-10.0 Factory setting: –...
Page 24
JP1 needs to be moved to position 2-3. Options: On or Off Off – When set to OFF, all of the above is ignored. JP1 should be in position 1-2.. – Factory setting: Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Page 25
Note: This setting is ignored if signal Source is not set to "Analog". Channel 2 applies only when Control Channels is set to "Dual". Options: 0-5V, 1-5V, 0-10V, 2-10V, 0-20V, 0-16V, 3.2- 16V, 0-20mA, 4-20mA Factory setting: 0-10V Condair GS Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM...
Page 26
100% output. Note: Band channel 2 setting appears only if Control Channels is set to "Dual". CAUTION! Do not adjust this value unless instructed to do so by a Condair representative. Setting range: 6-65% Factory setting: – ITime Channel 1: allows you to set the integral time for error cor- rections by the internal P/PI controller.
Page 27
If the signal value drops below this setting, the sensor is assumed to be damaged or disconnected. The RH Signal warning message is triggered when the signal value drops below this limit, and humidification stops. Setting range: 1-10% Factory setting: Condair GS Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM...
Page 28
Sequence Rotation: allows you to enable or disable the function – that manages the starting order to balance operating hours of all linked humidifiers. Note: This setting is available only if Linkup Type is set to "Series". Options: On or Off. Factory setting: Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Page 29
0-100% Factory setting: 100% Note: This setting can only be modified if more than one unit is physically connected to the Linkup chain. "Configuring for Multi-Unit Operation" on page 40 Refer to for setup procedure. Condair GS Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM...
Page 30
Date Format: allows you to select the date format. – Options: MM/DD/YY or DD/MM/YY Factory setting: MM/DD/YY Clock Format: allows you to select the time format. – Options: 12 hour or 24 hour Factory setting: 12 hour Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Page 31
DNS only if is set to "Fixed" – MAC Address: displays the MAC (media access control) ad- dress for the Condair GS humidifier. Host Name: displays the host name for the Condair GS – humidifier. Condair GS Operator Interface...
Page 32
Options: BACnet/IP – enables BACnet/IP over the RJ45 (Ethernet) interface. MSTP – enables BACnet MSTP over the RS485 interface. Note: The Condair GS hu- midifier is a slave-only BACnet MSTP device. Off – disables BACnet communications protocol. Factory setting:...
Page 33
BACnet/IP protocol. – MSTP Mode: Master or Slave When set to BACnet MSTP the Condair GS humidifier com- municates as a BACnet slave only. BACnet master functionality requires installation of optional hardware. Baud Rate: Determines the speed of data transmission for –...
Page 34
If Service is selected, the RFB will activate the service output only for service warnings. Options: Warning, Service Factory setting: Warning Safety Loop: when enabled the remote fault board will activate the – service relay upon the security loop opening Options: Yes, No Factory setting: Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Burner "n": allows you to enable or disable the individual burn- – er; where "n" represents the burner number (1 to 4, depending on the number of blowers in the unit). Options: On or Off Factory setting: Condair GS Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM...
Page 36
Fault History: allows you to view the fault history list. – Service History: allows you to view the service history list. Reset Fault History: (contact your Condair representative) allows – you to reset the fault history. A warning message is displayed ask- ing you to confirm the reset.
– Output Diagnostics: (contact your Condair representative) allows you to ac- cess the Output Diagnostics menu to enable or disable various system com- ponents. Note: The diagnostic menu will only be displayed after you acknowl- edge the warning message that the humidifier will be placed in standby mode.
Refer to "Installing Software Updates" on page 58 for detailed instructions. Driver A/B Update: allows you to update the driver board firmware – for steam cylinder A/B Operator Interface xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Software Configuration The Condair GS humidifier is shipped fully configured from the factory to suit your site-specific require- ments, but this can be modified as needed. This section provides the necessary instructions to recon- figure the control software.
Configuring for Multi-Unit Operation Set up the control software for multi-unit operation as described below. A maximum of four humidifiers can be set up in a "Main-Extension" configuration using Condair's Linkup system to satisfy large hu- midification needs. IMPORTANT! This procedure should only be used to control multiple humidifiers that are using the same control signal inputs from the same conditioned environment.
5.2.1 Filling the System Fill the Condair GS humidifier as follows. The control software also performs the float test to ensure that the fill system, the water level controls and the drain pump(s) are functioning properly. 1. Close the manual gas shutoff valve in the supply line.
The blower(s) then performs a post-purge of the combustion chamber(s), and then shuts off. If there is no humidity demand, the humidifier goes into standby mode to await the next humidity demand signal. Operation xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
5.2.4 Remote Monitoring The Condair GS humidifier can be monitored remotely through the remote fault board wired to a remote monitoring system. Table 7 describes the function of each relay when triggered. Table 7: Remote Relay Function Remote Relay Description...
During periods of inactivity, such as off-season or periods of low demand, drain the water from the tank. To drain the tank in the Condair GS humidifier, manually initiate draining as follows. Refer to . 1. Select the <Drain> button on the Home screen. If more than one humidifier is connected in a Linkup chain, select the appropriate tank, then press the check mark.
5.2.9 Restarting After Shutdown Restart the Condair GS humidifier as follows after it has been shut down for maintenance or at the start of the season: 1. Examine the humidifier and other system components for damage. Do not use the applicance if any part of the humidifier has been under water.
The exhaust vent connected to the Condair GS humidifier does not require cleaning, but needs to be inspected regularly for leaks, blockages, sagging and proper condensate removal.
Mandatory Maintenance Schedule Table 8 lists the mandatory maintenance schedule for the Condair GS humidifier. Table 8: Mandatory Maintenance Schedule 30 Days End of After Mid- Task Season Maintenance Initial season (2000 hrs) Start-up Inspect drainage. Perform a visual check of the drainage system, including the air gap funnel and drainage into the building drain.
Table 10) are not covered by warranty. The Condair GS humidifier periodically drains water from the tank to reduce the concentration of dis- solved minerals that accumulate during long-term operation. This is achieved in two ways – through a partial blowdown and a full tank blowdown (FTBD).
12, and make a note of the recommended minimum blowdown rate for the chloride level in the feed water. c. Set the Blowdown Rate on the Condair GS humidifier to the higher of the two noted values. 3. Set the FTBD interval as follows: a.
15-25 25-40 40-50 > 50 Not recommended for the humidifier without treatment of the water. Contact your local Condair representative. Maintenance Procedures 6.5.1 Removal and Installation of Access Panels Removal 1. Turn the captive screw at the bottom of the door panel (control cabinet/plumbing cabinet) counter- clockwise with a screwdriver.
3. Disconnect the fill hose from the drain fitting. 4. Remove and discard the tank gasket (Condair does NOT recommend reusing the tank gasket). 5. Use a soft-bristled or plastic brush or scraper (not wire brush, not metal) to remove all scale build-up on the inside surfaces of the tank, the outside of the primary heat-exchanger coils, and inside of the drain fitting.
6. Disconnect the condensate trap from the secondary heat-exchanger and flush out any scale build-up. 7. Reconnect the condensate trap, and prime the trap with water. 8. Re-start the humidifier – refer to "Restarting After Shutdown" on page 45 and check for leaks. Maintenance xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Rinse with clean tap water. 5. Visually check each float for cracks or other damage. Place the two floats in a container filled with clean water, and check that they both have equal buoyancy. If necessary, replace the floats. Condair GS Maintenance xxxxxxx_A_EN_1905_Condair-GS_OM...
6. Use a rubber mallet to knock out any scale build-up in the fill and drain hoses. Rinse the hoses thoroughly with hot tap water before installing the hoses. Secure the hoses with clamps. 7. Re-start the humidifier – refer to "Restarting After Shutdown" on page 45. Check for leaks. Maintenance xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Drain pump adapter 6.5.6 Cleaning the Burner Assembly The burner(s) in the Condair GS humidifier does not require maintenance. However, if the burner(s) is not operating properly, clean the burner(s) and spark-igniter as described below. Refer to Figure 1. Shut down the humidifier. Remove the plumbing cabinet door panel and make sure that the tank has been emptied.
Page 56
Check the electrode gap is 3 ± 1.5 mm (1/8 ± 1/16 in). DO NOT adjust the gap – replace the spark- igniter, if necessary. 8. Assemble the burner assembly in reverse order. Always use a new burner gasket. Maintenance xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
2. Replace the fuse with a 10 A slow-acting fuse. 3. Close the front panel, and install the door panel, making sure that it is fastened securely. 4. Remove the lock and tag from the external disconnect switch, and restore power to the humidifier. Condair GS Maintenance xxxxxxx_A_EN_1905_Condair-GS_OM...
2. Select the <Yes> button on the confirmation screen. Select the <No> button to abort the reset. 6.5.10 Installing Software Updates All software updates can be downloaded from www.condair.com. Download the file and extract it to a USB memory stick that has been formatted to 32-bit FAT system. The software update file (ending with .bin) should be located at the root level on the USB stick.
Fault Isolation General Troubleshooting of the Condair GS humidifier must only be performed by well qualified and well trained personnel. Electrical repairs must only be performed by a licensed electrician authorized by the customer or by Condair service technicians. Troubleshooting the Condair GS humidifier may require personnel to access the inside of the control cabinet in the humidifier which may expose personnel and equipment to the hazards described in "For...
An Extension unit has a fault condition which was communicated to the Main unit. Alarm condition in the Extension unit(s). – Check the Extension unit(s). – CTRLR Fault Flash memory read/write fault. (or) – Contact your Condair representative. Memory (or) CTRLR Reset Fault Isolation xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Page 61
The maximum wait time without any communications from the BMS has out) been exceeded. If the signal Source is set to "Analog", the humidifier will continue operating; otherwise it stops producing steam until communications with the BMS is re-established. Condair GS Fault Isolation xxxxxxx_A_EN_1905_Condair-GS_OM...
Page 62
J12 on the integrated control board. – With the unit powered up, check that LED1 and LED10 on the driver board are flash- ing. Otherwise, contact your Condair representative. Unspecified driver board fault. – Check that the heartbeat LED10 on the driver board is blinking. Otherwise, contact your Condair representative.
Page 63
– Check the status LED on the ignition control module – three flashes of the red LED indicate problem with the supply, or gas valve, or a loose connection. Contact your Condair representative if further assistance is required. Faulty ignition control module.
Page 64
– Check for voltage at locations labelled "TH" and "V2" on the ignition control module after the blower has completed pre-purging the system. If 24 VAC voltage is detected at "V2" but not at "TH", replace the gas valve. Contact Condair to order a replacement gas valve.
Page 65
– Restart the unit, and check the blower rpm in Input Diagnostics in the control software. If the rpm is low, contact your Condair representative. Restrictions at blower, or damaged blower. – Visually inspect the blower and blower inlet for restrictions.
3. Set the On/Off button to the Off position. Wait approximately for 5 seconds, then set the On/Off but- ton to the On position. If the alarm condition has been eliminated, the fault message is automatically reset; otherwise the fault message reappears after a short while. Fault Isolation xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
7. Disconnect and remove the intake and exhaust vents. 8. Remove the humidifier from its mounting surface. 9. If the Condair GS humidifier is to be put into long-term storage, store the humidifier in its original packaging inside a protected area that meets the following requirements: •...
5-40 °C Relative humidity 5-80% (non-condensing) Combustion Air: Combustion air maximum temperature 30 °C Backpressure: Maximum permissible backpressure 1.49 kPa compact unit (duct static pressure and line backpres- 2.49 kPa full-size unit sure) Performance and Operating Data xxxxxxx_A_EN_1905_Condair-GS_OM Condair GS...
Page 69
Pn max. in kW In max. in A section (mm Slow acting (aM) GS 23-CS 0.23 GS 45-CS 0.23 GS 65-CS 0.35 GS 90-CS 0.32 GS130-CS 0.53 GS 195-CS 0.72 GS 260-CS 0.92 Condair GS Performance and Operating Data xxxxxxx_A_EN_1905_Condair-GS_OM...
Page 71
Warranty Condair Group AG (hereinafter collectively referred to as THE COMPANY), warrant for a period of two years after installation or 30 months from manufacturer’s ship date, whichever date is earlier, that THE COMPANY’s manufactured and assembled products, not otherwise expressly warranted, are free from defects in material and workmanship.
Page 72
CONSULTING, SALES AND SERVICE: Condair Group AG Talstrasse 35-37, 8808 Pfäffikon SZ, Switzerland Tel. +41 55 416 61 11, Fax +41 55 416 62 62 info@condair.com, www.condair-group.com...
