Important: Read and save these instructions. This guide to be left with equipment.

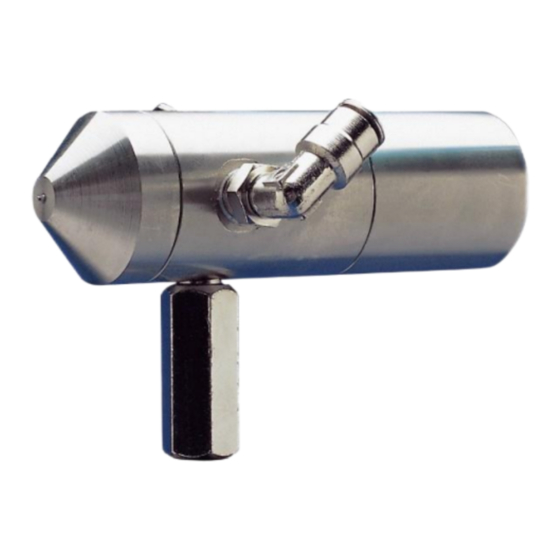

Nortec
AIRFOG
Series
Installation and
Operation Manual
Includes installation, operation
maintenance and troubleshooting
information for your Nortec AirFog Series
Atomizing humidifier
1502247-H | 19 SEP 2018
