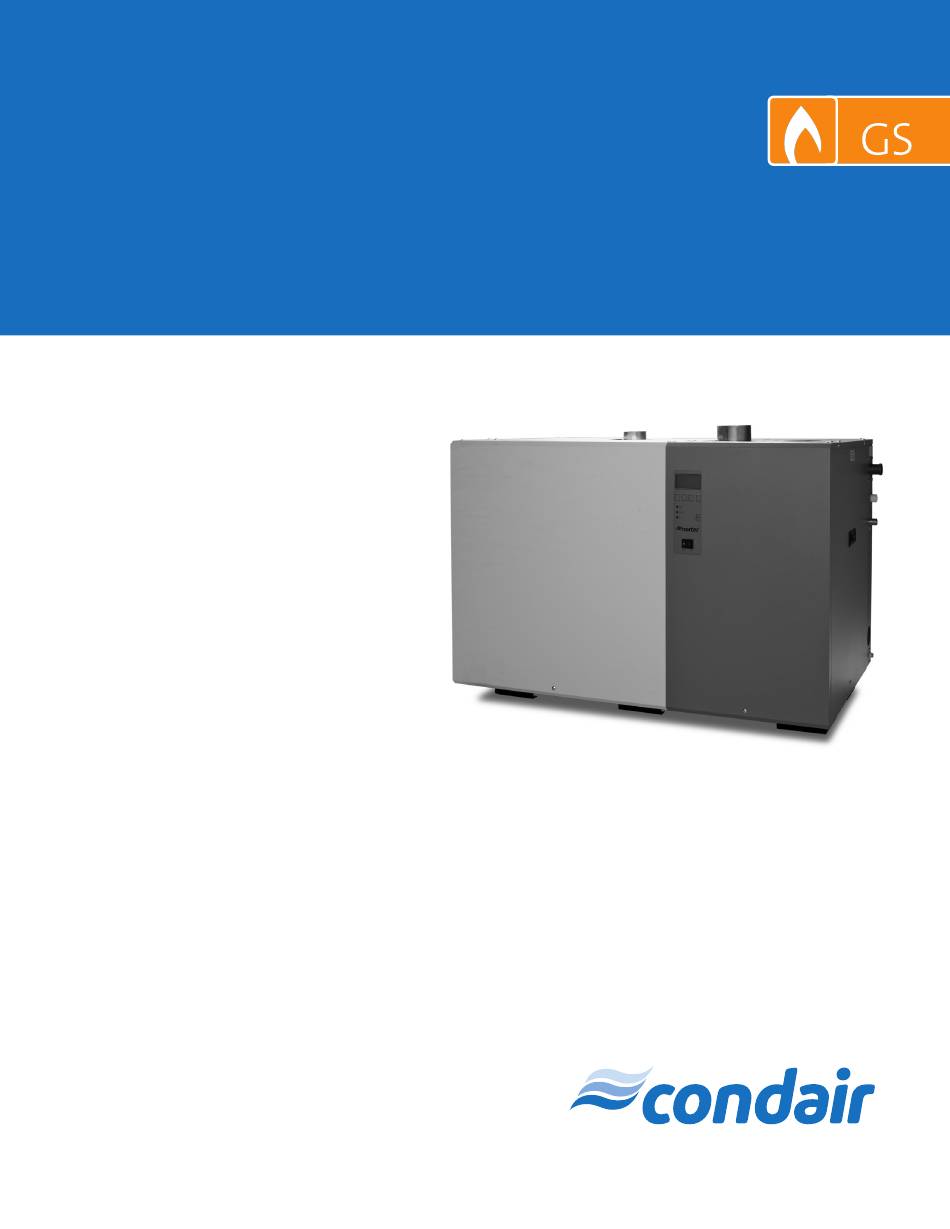

- Page 1 NORTEC Quick Start Installation Guide Venting...
- Page 2 Venting General 1. The Nortec GSTC are classed category I and III fan assisted must be installed with the proper clearances from gas appliances. This allows two methods of venting. combustible materials, and venting manufactures fire 2. Listed below are instructions for both venting systems, stop equipment.
- Page 3 70’ (21 m). Each 90° elbow is equivalent to 10’ and each 45° elbow equals 5’. The vent run should be as direct as possible with no more than 6 elbows in the system. Contact Condair Technical Services if you have any questions.
- Page 4 6 elbows in the c. Nortec GS 300/400 5” P/N 1507320 system. Contact Condair technical service if you have any d. Nortec GS 500/600 6” P/N 1507321 questions This category installation may not be common vented with any other natural draft gas appliance or 5.
- Page 5 Venting Options Vertical with B-Vent Vertical with B-Vent and Sealed Combustion...
- Page 6 Venting Options Vertical or Horizontal with BH-Vent Horizontal exhaust terminal must be certified and can be ordered from Condair. If BH venting used, orient vertically, 6 in from wall. Vertical or Horizontal with BH-Vent and Sealed Combustion...
- Page 7 Venting Options Direct Vent Terminate exhaust and intake horizontally only in same face of building. - Install Condair or by other certified terminals, - orient vertically, - 6 in from wall. Vertical Co-Venting Using B-Type...
- Page 8 All water supply and drain line connections must be installed in accordance with local plumbing codes by a licensed plumber. Condair does not accept any liability for installations of humidity equipment installed by unqualified personnel or the use of parts/ components/equipment that are not authorized or approved by Condair.
