Page 20
Assembly & Adjustments
3

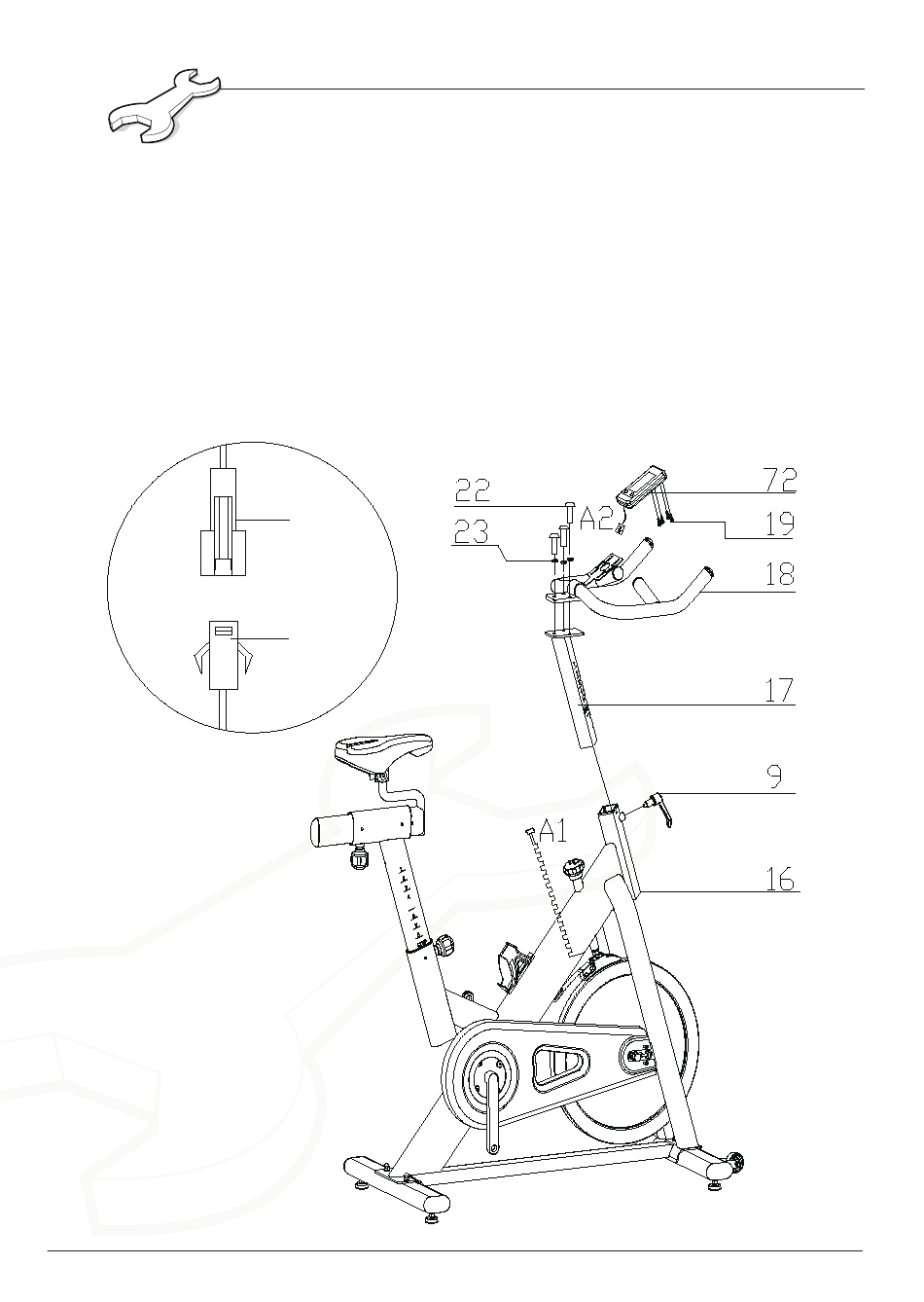

Remove the 3 x M8 x 20mm Allen Bolts (22), 3 x M8 Spring Washers
(23) from the Handlebar (18).
Assemble the Handlebar Support (17) to the Handlebar (18) using
the fittings previously removed. Securely tighten all 3 Bolts.
Insert the assembled Handlebar & Support into the Main Frame(16).
Select the desired height and lock with
Fit the Exercise Monitor (72) to the Handlebar (18) using
4 x M5 x 10mm Allen Bolts (19). Then connect the Sensor Wire
(A1) to the back of the Monitor (A2).
A2
A1
L Shape Knob
(9).
