V-fit AL-16/1U Assembly & User Manual

V-fit AL-16/1U Assembly & User Manual

Magnetic upright cycle

Advertisement

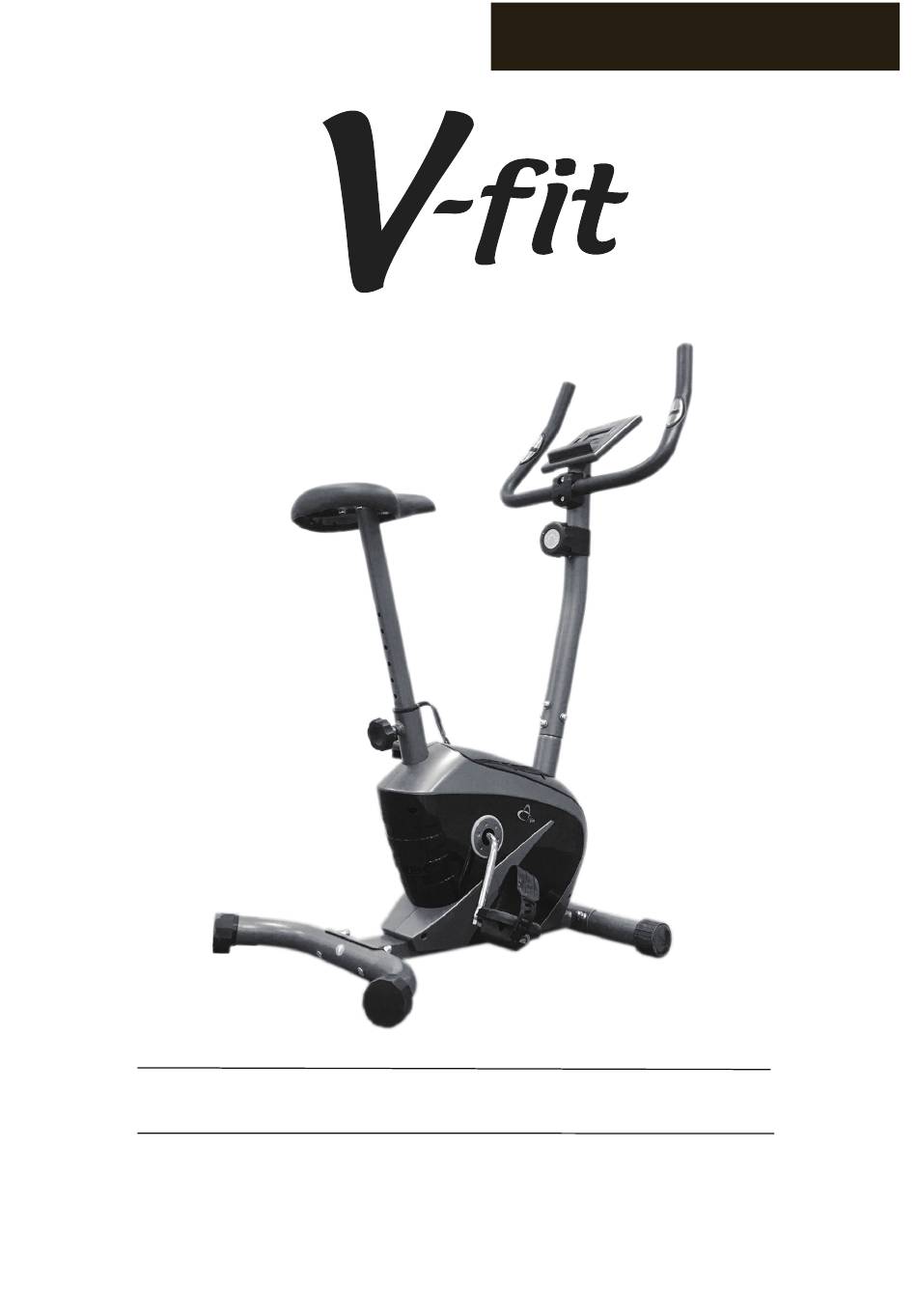

SERIAL NO. FC 2800 - UK
AL-16/1U Magnetic Upright Cycle
Assembly & User Manual
Please ensure that you read this manual
carefully before attempting to assemble or
use your new product and retain for future use

Advertisement

loading

Summary of Contents for V-fit AL-16/1U

  • Page 1 SERIAL NO. FC 2800 - UK AL-16/1U Magnetic Upright Cycle Assembly & User Manual Please ensure that you read this manual carefully before attempting to assemble or use your new product and retain for future use...
  • Page 3: Table Of Contents

    Contents Section Page General Information ..4 Before You Start ..5 Safety ....6 Exercise Information .
  • Page 4: General Information

    General Information Quality Guarantee This exercise product has been designed and This product is guaranteed for DOMESTIC USE ONLY for manufactured to comply with the latest (BS EN 957) a period of 1 YEAR from the original certified date of British and European Safety Standards.
  • Page 5: Before You Start

    Before you Start Tools If required, most of our products are supplied with basic tools, which will enable you to successfully assemble your product. However, you may find it beneficial to have a soft-headed hammer and perhaps an adjustable spanner handy as this may help. Prepare the Work Area It is important that you assemble your product in a clean, clear, uncluttered area.
  • Page 6: Safety

    Safety Before you undertake any programme of exercise that will increase cardiovascular activity please be sure to consult with your doctor. Frequent strenuous exercise should be approved by your doctor and proper use of your product is essential. Please read this manual carefully before commencing assembly of your product or starting to exercise.
  • Page 7: Exercise Information

    Exercising Information Beginning How you begin to exercise will vary from person to person. If you have not exercised for a long period of time, have been inactive for a while, or are severely overweight you MUST start slowly, increasing your exercise time gradually, by perhaps only a few minutes for each session per week.
  • Page 8 Exercising Information Warm Up A successful exercise programme consists of three parts, Warm Up, Aerobic Exercise and Cool Down. Never start a training session without warming up. Never finish one without cooling down correctly. Perform between five and ten minutes of stretching before starting your workout to prevent muscle strains, pulls and cramps.
  • Page 9 Exercising Information Target Zone (con't) USERS UNCONDITIONED CONDITIONED TARGET ZONE - A TARGET ZONE - B (Years) (Beats per Minute) (Beats per Minute) 20-24 145 - 165 155 - 175 25-29 140 - 160 150 - 170 30-34 135 - 155 145 - 165 35-39 130 - 150...
  • Page 10 Exercising Information Shoulder Lif t Rotate and lift your right shoulder up towards your ear for one count. Relax then repeat for the left shoulder. Repeat 3 - 4 times. Calf / Achilles Stretch Turn towards the wall and place both hands on it. Support yourself with one leg while the other is placed behind you with the sole flat on the floor.
  • Page 11 Exercising Information Basic Aerobic Training Programme For your basic Aerobic Exercise routine we suggest that you try the following. Remember, breathe correctly, exercise at your own pace and do not over-train as injury may result. Week 1 & 2 Exercise 4 minutes at 'A' Rest 1 minute Warm Up 5 - 10 Minutes Exercise 2 minutes at 'A'...
  • Page 12 EXERCISE MONITOR USER INSTRUCTIONS Your Exercise Monitor has been specially designed to help you plan and view your exercise performance. MODE MONITOR FUNCTION SPECIFICATIONS SCAN SHOWS EACH FUNCTION EVERY 4 SECONDS (CHANGING FROM FUNCTION TO FUNCTION) TIME 0.00 - 99.59 Minutes and Seconds (MINUTES AND SECONDS - COUNT UP / DOWN) SPEED 0.00 - 999.9 Kilometres per Hour...
  • Page 13 EXERCISE MONITOR USER INSTRUCTIONS BATTERY INSTALLATION fit the necessary BATTERIES - (NOT SUPPLIED) to your Exercise Monitor, remove the BATTERY COVER at the REAR r o t arefully fit the batteries by fitting between the exposed contacts in the battery compartment.
  • Page 14: Assembly & Adjustments

    Assembly & Adjustments OPERATING ADJUSTMENTS and GENERAL USER INFORMATION Note LEVELLING THE CYCLE For security and stability, your Magnetic Cycle has a factory Incorrect or excessive welded frame and once fully assembled correctly, should training may damage your not need further alignment. However, in the interest of safety, health.
  • Page 15 Assembly & Adjustments LUBRICATION and MAINTENANCE The moving pa rts in your Magnetic Cycle are all pre-lubricated at assembly and should not require further attention. We recommend however that the trainer is used inside and stored in a dry condition. To clean the metal and plastic components, a general household cleaner can be used, but please be sure to dry the trainer and any attachments before use.
  • Page 16: Assembly

    Assembly ACCESSORY FITMENT LIST These are all the accessories you will need to complete the assembly of your product. The following accessories are supplied in a pack and should be checked before attempting assembly. Item 28 Item 27 Item 26 Item 25 Qty 4 Qty 4...
  • Page 17 Assembly & Adjustments Carefully unpack each component, checking against the parts list that you have all the necessary parts to complete the assembly of your product. Beny Sports Co. UK Ltd Please note that some of the parts may be pre-fitted to major Unit 8, Riparian Way, components, so please check carefully before contacting our The Crossings, Cross Hills,...
  • Page 18 Assembly Assemble the Pedals (Left and Right) (15L/15R) to the Pedal Crank (6). Fasten the Pedal Straps ensuring a snug, but not tight fit with your normal footwear. Note One Pedal is supplied with a RIGHT HAND THREAD for the RIGHT HAND SIDE of the cycle and must be fitted by turning CLOCKWISE.
  • Page 19 Assembly A-1.Hold the Tension Cable (44) below the metal bracket. Guide the lower part of the INNER Cable of the Tension Control Knob (50) into the formed metal loop on the INNER Cable of the Tension Cable. A-2.Still holding the Tension Cable (44), pull the Tension Control Knob INNER Cable (50) away from the Metal Bracket (you will notice some resistance at this stage) and guide the INNER Cable through the open slot in the Metal Bracket.
  • Page 20 Assembly Attach the Handlebar (55) to the Handlebar Upright (51) with 2 x M8 x 30mm Allen Bolts (61), 2 x M8 Spring Washers (26) and 2 x M8 Flat Washers (36). Attach the Handlebar Cover (60) to the Handlebar (55) and push until it clicks into place.
  • Page 21 Assembly Remove 2 x M5 x 12mm Screws (62) from the back of the Exercise Monitor (59). Connect the Exercise Monitor Link Wire (42) and the Pulse Sensor Wires (58) to the Exercise Monitor (59). Matching like for like and feeding any excess wire back into the upright.
  • Page 22 Assembly Page 22...
  • Page 23 Assembly MASTER PARTS & ACCESSORY LIST PART No. DESCRIPTION ....QTY Crank Cover Round Cap ..Sensor ..... . . M4 x 20mm Self Tapping Screw .
  • Page 24 Beny Sports Co. UK Ltd. Unit 8, Riparian Way, The Crossings, Cross Hills, West Yorkshire BD20 7BW CUSTOMER SUPPORT is open from 9.00am to 5.00pm from Monday to Friday Tel: 01535 637711 Fax: 01535 637722 E-mail: support@benysports.co.uk Website: www.benysports.co.uk © Copyright BSCL - JANUARY 2018...
