INSTALLATION MANUAL
Z109TC2
-1

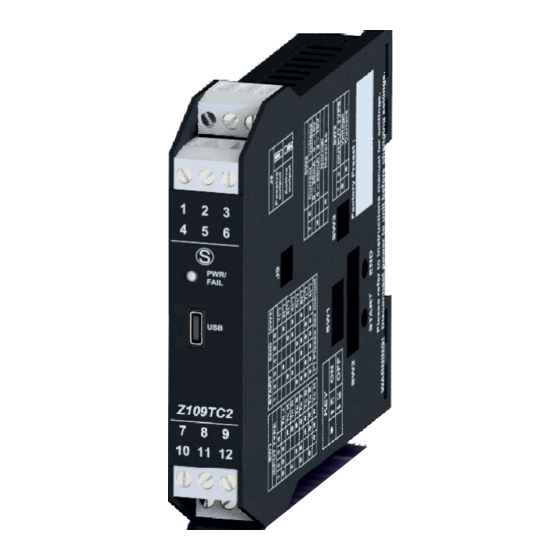

Galvanic separation thermocouple converter module
EN
SENECA s.r.l.
Via Austria, 26 – 35127 – PADOVA – ITALY
Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287
For manuals in other languages and the configuration software, visit www.seneca.it/products/z109tc2-1
This document is the property of SENECA srl. Copies and reproduction are prohibited unless authorised. The
content of this document corresponds to the described products and technologies. Stated data may be modified
or supplemented for technical and/or sales purposes.
THE ORIGINAL VERSION IS IN ITALIAN LANGUAGE
ENGLISH - 1/8
MI00429-3-EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Seneca Z109TC2-1
Summary of Contents for Seneca Z109TC2-1
- Page 1 For manuals in other languages and the configuration software, visit www.seneca.it/products/z109tc2-1 This document is the property of SENECA srl. Copies and reproduction are prohibited unless authorised. The content of this document corresponds to the described products and technologies. Stated data may be modified or supplemented for technical and/or sales purposes.
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS EN61000-6-4 Electromagnetic emissions, industrial environment. EN61000-6-2. Electromagnetic immunity, industrial environment. EN61010-1 Safety STANDARDS Notes: use copper conductors; use in environments with pollution level 2; the power supply must belong to Class 2. A fuse with 2.5 A maximum capacity must be installed in series at the power supply connection near the module. -
Page 3: Module Layout
WARNING: The full content of this manual must be read before operation. The module must only be used by qualified electricians. Specific documentation is available from www.seneca.it/prodotti/ Z204-1 The module must be repaired and damaged parts replaced by the Manufacturer. The product is sensitive to electrostatic discharges. -
Page 4: Types Of Errors
• otherwise the module will be damaged. USB INTERFACE The module has a microUSB connector on the front panel and can be configured using applications and/or software programs. For more information, visit www.seneca.it/products/z109tc2-1 Android APP PC software configuration configuration CU-A-MICROB... - Page 5 ELECTRICAL CONNECTIONS THERMOCOUPLE INPUTS POWER SUPPLY 10-40 Vdc 19-28 Vac 2.5 W Max TC input ANALOGUE OUTPUT Applied External Voltage current (1) power supply current (2) mA output mA output V output (1) Already powered active output to be connected to passive inputs (2) Non powered passive output to be connected to active inputs UL electrical standards: Output: 10 Vdc, 20 mA;...
- Page 6 SETUP USING THE DIP-SWITCHES The type of input is selected using DIP-switch SW1 at the side of the module. Each type of input corresponds to a certain number of scale start and end values that can be selected through the Sw2 group. The table below shows the possible START and END values based on the selected input type;...
-
Page 7: Output Selection
SETUP OF CUSTOM MEASURE START AND END The START and END buttons underneath the SW2 DIP-switch group can be used to set the scale start and end as desired, within the scale set using the DIP-switches. In order to do this, it is necessary to have an appropriate signal generator capable of providing the desired scale start and end values. -
Page 8: Contact Information
Out of scale, Burn Out or internal fault Green Flashing ( 2 flashes/sec.) DIP-switch setup error "' ACCESSORIES Code Description CU-A-MICROB USM - microUSB 1 metre communication cable CU-A-MICRO-OTG Mobile phone adapter cable CONTACT INFORMATION Technical support supporto@seneca.it Product information commerciale@seneca.it ENGLISH - 8/8...
