2 - INTRODUCING THE PRODUCT

2.1 - Description of the control unit

Control unit for a motor in alternatine current with torque adjuster, output
contact for limit switch or open/close bottons, selectable, output contact
for photo dispositive, stop button, step-by-step, with radio modular and
8
9
5
6
7

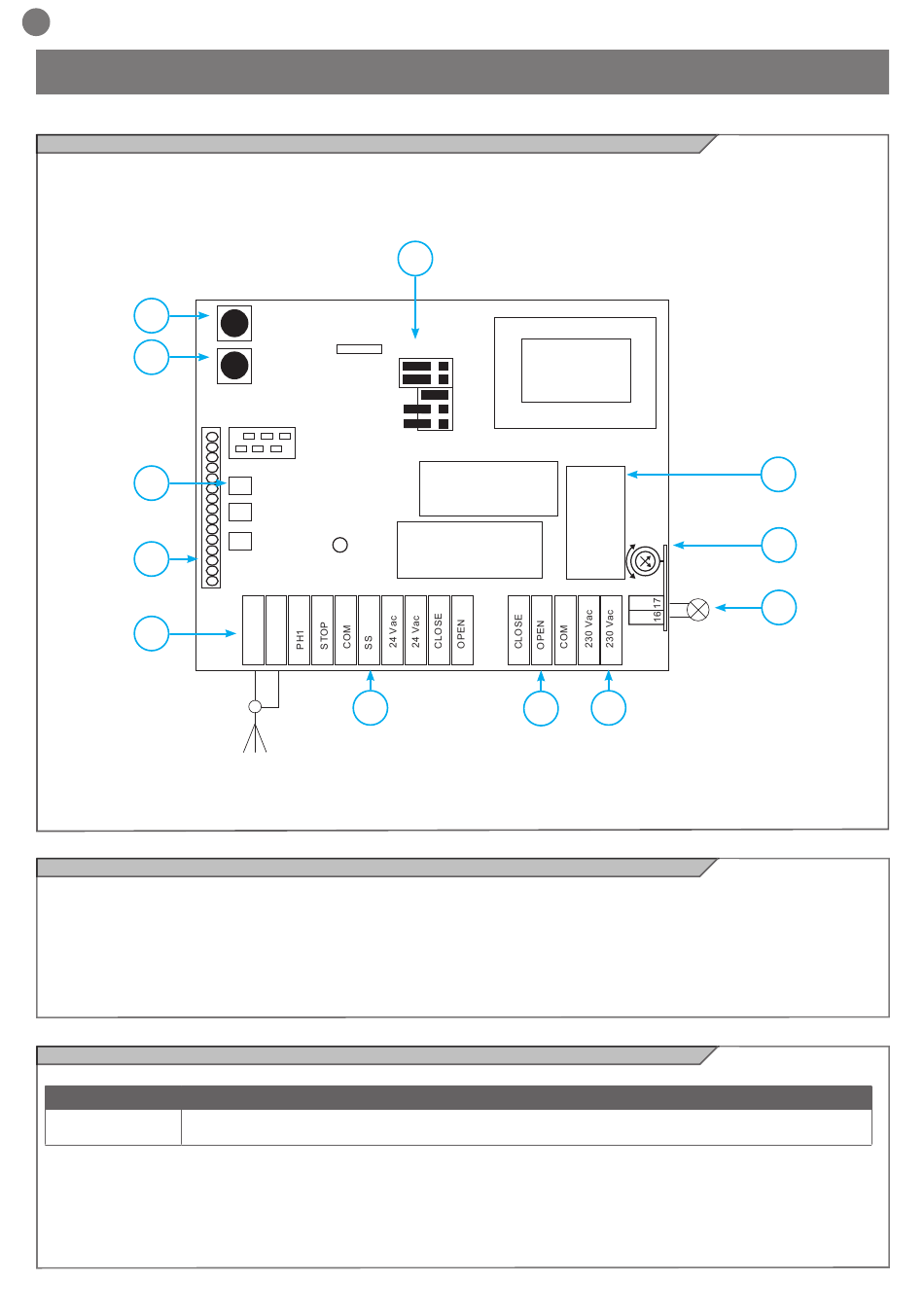

2.2 - Description of the connections

1- Motor power supply connections
2- 230 Vac power supply connections (50-60 Hz)
3- Connection to flashing light
4- 24 Vdc power supply connection to controls and safety devices
5- RED programming LEDs
6- Radio module

2.3 - Models and technical characteristics

CODE DESCRIPTION
900CT1RD 230 Vac control unit for one motor for rolling shutter or sliding gate with electric clutch, limit switch and receiver
4
10
SELECTION
MODE
MEMORY
A.R
W.T
CD.
1
2 3 5 6
7
4 8
4
memory extractable. This control unit has been designed for the auto-
mation of rolling shutters, shutters and sliding doors.
J1
J2
J3
J4
J5
FUSE
6,3 A
11 12 13 14 15
9 10
2
1
7- Antenna connector
8- SELECTION button
9- MODE button
10- Jumpers functions
11- 6.3 A rapid fuse protecting the line
12- Trimmer adjustment of torque
11
12
MIN
MAX
3
