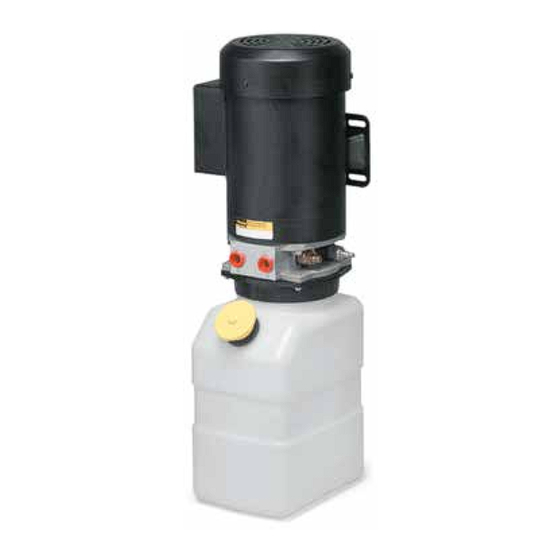

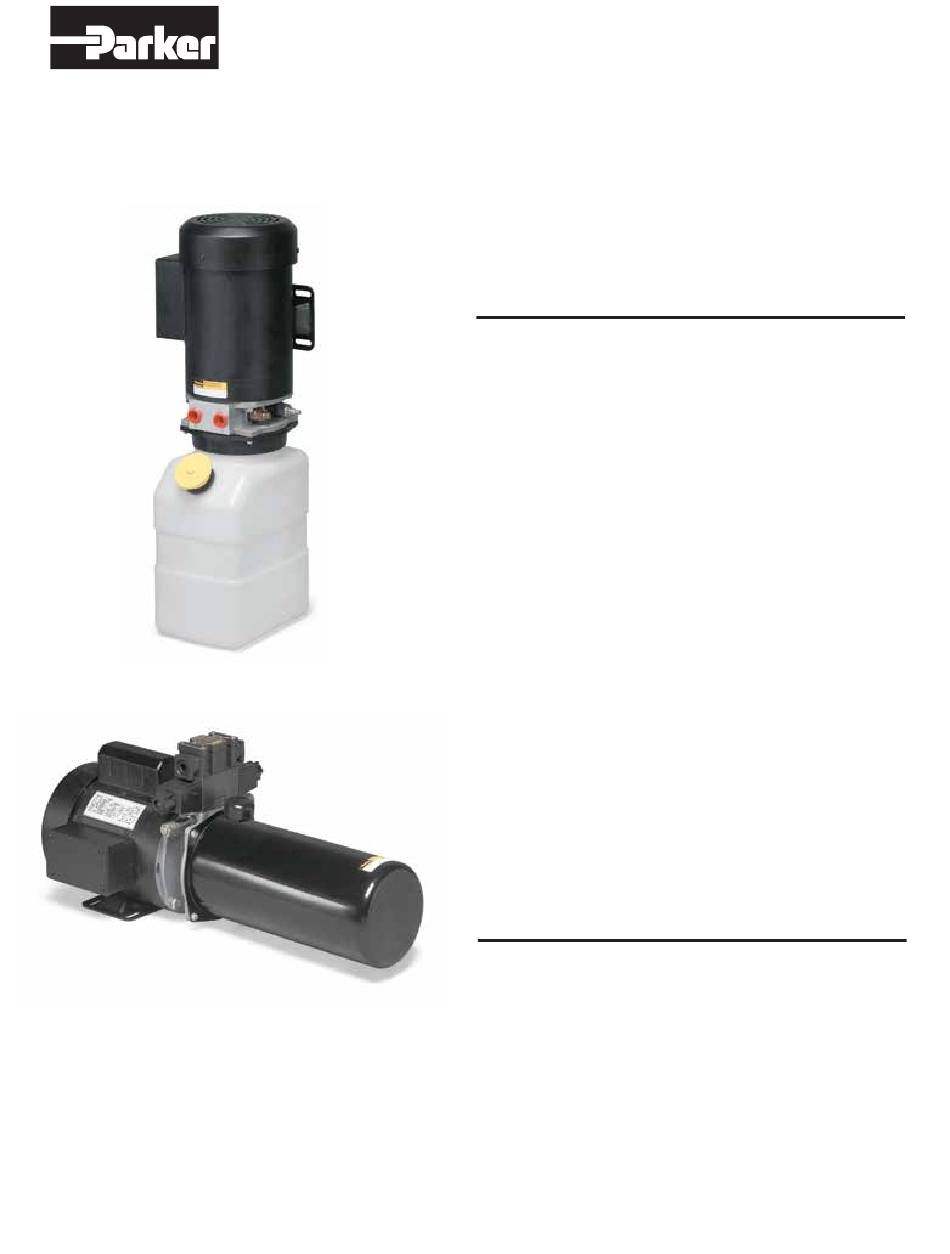

- Page 1 Bulletin HY22-3220A/US Instruction Manual Effective: August 01, 2011 Oildyne 550 Series Hydraulic Power Units 416181...
- Page 2 Parker or its subsidiaries or authorized distributors. To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
- Page 3 For hydraulic schematics, please see pages 7 and 8. Temperature Ranges: Operating: -7 to 60°C (+20 to 140°F) The life expectancy of Parker Oildyne power units is directly tied Storage: -10 to 60°C (+14 to 140°F) to the frequency of use, the product in which it is incorporated and the application.
- Page 4 6.50 THIRD ANGLE 101.6-169.1 76.2 3.00 (4.00-6.50) PROJECTION 65.0 2.56 4X 8.6 (.34) SLOT Motor foot dimensions are common to all 550 Series electric motors Note: All dimensions in mm (inches). Parker Hannifin HPS Division New Hope, MN 55428 USA...
- Page 5 (0.95) (16.00) 101.3 PROJECTION 1-1/2 GAL (3.99) (5.6 LITER) THIRD ANGLE PROJECTION 140.4 (5.53) 550 Series shown with optional solenoid 2-way valve and steel reservoirs Note: All dimensions in mm (inches). Parker Hannifin HPS Division New Hope, MN 55428 USA...
- Page 6 4X Ø 50.8 304.8 2.00 (12.00) RESERVOIR MNT HOLES 14.25 387.4 15.25 550 Series shown with 19 liter (5 gallon) steel reservoir and NG6/D03 valves Note: All dimensions in mm (inches). Parker Hannifin HPS Division New Hope, MN 55428 USA...
- Page 7 Instruction Manual Bulletin HY22-3220A/US Power Unit Schematics 550 Series Hydraulic Power Units Hydraulic Schematics “SW” CIRCUIT “SA” CIRCUIT “S1-S4, P1-P4” CIRCUITS “S5-S8, P5-P8” CIRCUITS Parker Hannifin HPS Division New Hope, MN 55428 USA...
- Page 8 CONTROL F1 OR F2 CLOSED CENTER FLOAT CENTER SINGLE SOLENOID OPEN CENTER TANDEM CENTER “D1” CIRCUIT INCLUDES MANAPAK DUAL P0 “D0” CIRCUIT (D03 VALVE TO BE SELECTED) CHECK VALVE (D03 VALVE TO BE SELECTED) Parker Hannifin HPS Division New Hope, MN 55428 USA...
-
Page 9: Preparation For Use
Supply and Return Connections 550 Series Power Units incorporating an NG6/D03 valve Parker Oildyne products should not be installed where they are surface, regardless of the valve being supplied by Oildyne or at risk of objects falling from overhead or where there is any risk not, will include two JIC-6 (9/16-18) extensions fittings onto of impact with external objects. - Page 10 10 micron improper fluids being used or operating without the reservoir filter installed. A Parker-manufactured filter cart is available for being full of an approved fluid will result in voiding the warranty.
- Page 11 Power Unit successfully extends and/or retracts the system actuator(s). Additional Testing If required, any tests for radiated and conducted emissions should be performed in accordance with the Electromagnetic Compatibility (EMC) Generic Emissions standards for Parker Hannifin HPS Division New Hope, MN 55428 USA...
- Page 12 240 VAC, Normally Closed, DIN Connector and horizontal ready 12 VDC, Normally Open, DIN Connector 24 VDC, Normally Open, DIN Connector 120 VAC, Normally Open, DIN Connector 240 VAC, Normally Open, DIN Connector Parker Hannifin HPS Division New Hope, MN 55428 USA...
- Page 13 Tandem Center, 24 VDC, Hirschmann w/out Plugs Single Solenoid, 120 VAC, Hirschmann w/out Plug Single Solenoid, 240 VAC, Hirschmann w/out Plug Single Solenoid, 12 VDC, Hirschmann w/out Plug Single Solenoid, 24 VDC, Hirschmann w/out Plug Parker Hannifin HPS Division New Hope, MN 55428 USA...
-
Page 14: Operation And Maintenance
Once the suction strainer has been installed, replace the reservoir using the same four hex head screws. Ensure the filler port on the reservoir is oriented to face UP. Torque the Parker Hannifin HPS Division New Hope, MN 55428 USA... -
Page 15: Performance Data
2 ½ 1.0 HP 2.0 HP 3.0 HP 1 ½ .50 HP 1.0 HP 1.5 HP 2.0 HP 1.0 HP 2.0 HP 3.0 HP Note: Performance data is for reference only Parker Hannifin HPS Division New Hope, MN 55428 USA... - Page 16 Parker Oildyne. parts. Acceptable fluids include standard Automatic 8. Parker offers an oil sampling kit which can be used to Transmission Fluid (ATF) and most mineral based hydraulic ascertain the condition of the system fluid.
- Page 17 Parker distributor or the Oildyne Division directly to arrange for warranty replacement/repair if within the warranty Recommended Spare Parts period.
- Page 18 Reservoir sized too small Contact your Parker Oildyne distributor for a larger reservoir Fluid conductors are too small for system flow Increase the fluid conductor sizes to reduce fluid...
- Page 19 Part B of Annex VII of Machinery Directive 2006/42/EC and is available to European national authorities on written request. If a request is received documentation will be transmitted either electronically or by post. Description: Oildyne 550 Series Power Units Model Number: As Applies...
- Page 20 Tel: +358 (0)20 753 2500 parker.portugal@parker.com Free phone: 00 800 27 27 5374 parker.finland@parker.com www.parker.com © 2011 Parker Hannifin Corporation. All rights reserved. Bulletin HY22-3220A/US .1M, 11/11 BG Parker Hannifin Corporation Hydraulic Pump and Power Systems Division Oildyne Business Unit...
