Summary of Contents for Parker ChromGas Zero ZAG-3.5L

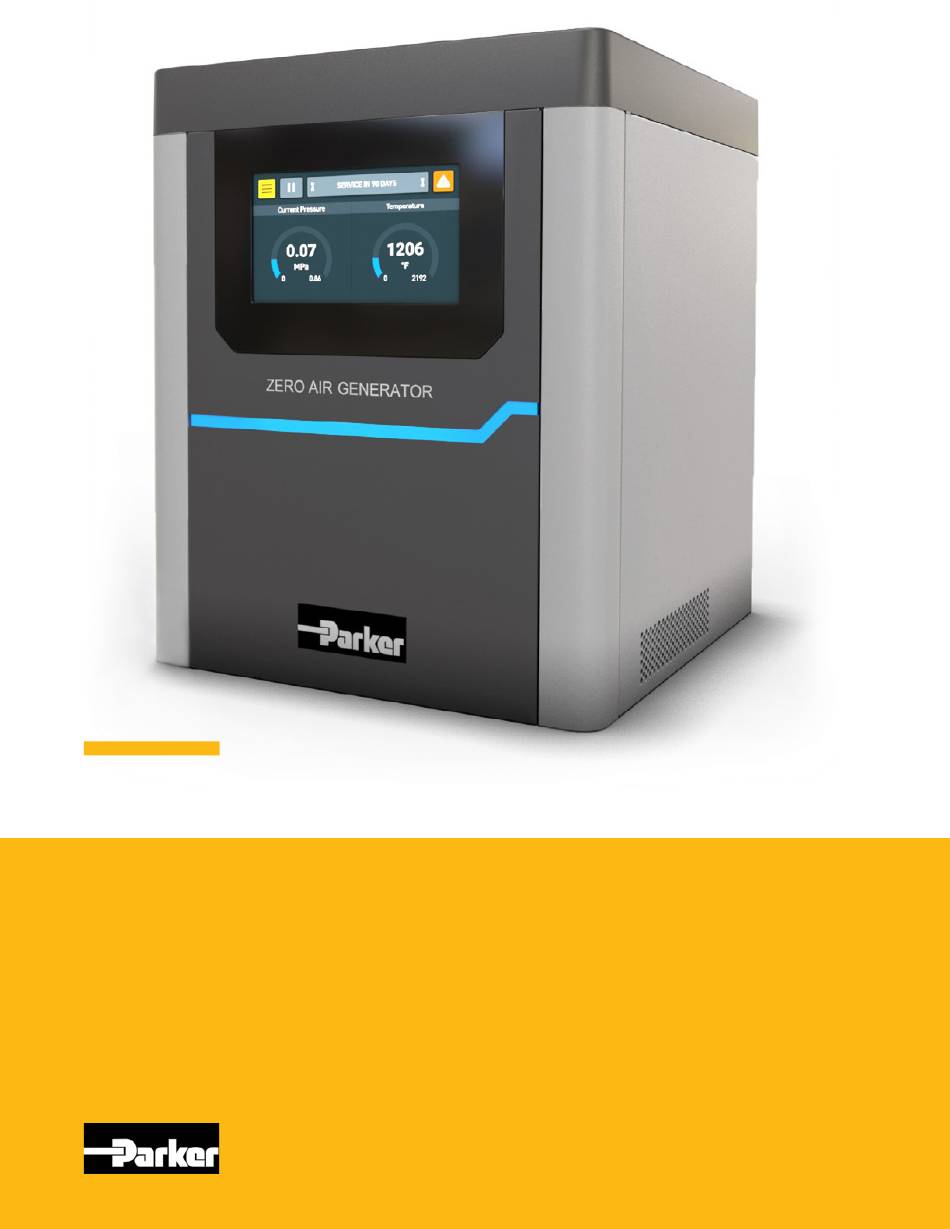

  • Page 1 CHROMGAS ZERO ™ AIR GAS GENERATOR ZAG-3.5L | ZAG-7L | ZAG-18L | ZAG-30L User Guide...
  • Page 2: General Description

    Modification of the unit will result in voiding the warranty. If you have any questions or concerns, please call the Technical Services Department at 800-343-4048, 8AM to 5PM Eastern Time or email at GSFsupport@parker.com (North America only). For other locations, please contact your local representative.
  • Page 3 Prefiltration Two stages of high efficiency coalescing prefiltration are incorporated into the Parker Chromgas Zero Air Generator ™ to protect the catalyst bed from potential oil and particulate contamination. The pre-filters are located on the back side of the unit. They remove liquids and particulate matter from the incoming air supply down to 0.01 micron.
  • Page 4: Installation

    40 psig and 125 psig (2.8 barg and 8.6 barg). Maintaining a constant inlet air pressure will minimize any system pressure fluctuations. Parker offers a pressure regulator, complete with a pressure gauge, as an accessory (P/N 72-130-V883). Refer to Figure 4 for a recommended installation.
  • Page 5: Piping Components

    To control the supply air pressure to the Zero Air Generator, a pressure regulator is needed. The 72-130-V883 Pressure The Parker Zero Air Generator may be operated by a supply of: 120 VAC 50/60 Hz (NA Models) or 220 VAC 50/60 Hz (WD Models).
  • Page 6: Operation

    Air Generators should be performed by suitable personnel allow the catalyst module to reach operating temperature using reasonable care. and stabilize. Once this is function is completed, the Parker Chromgas Zero Air Generator is ready to be brought online ™...
  • Page 7 4. Referring to Figure 9, using two wrenches (one as an at the bottom and carefully remove the filter cartridge/element. anchor to hold the elbow), disconnect the catalyst Parker Chromgas filter cartridges are sealed in place by module at the inlet and outlet fittings at the elbow (A ™...
  • Page 8: Troubleshooting

    13. Once the system has been confirmed to be leak tight, Replacement prefilter cartridges, final filter replacement replace the internal heat shield using the five allen screws. cartridges, and catalyst modules may be ordered through Next, re-install the front bezel and secure using the two a local representative.
  • Page 9 Symptom Course of Action Overflow error (on display) - Check downstream flow demand. If flow capacity of generator is exceeded, an “Overflow” error message will appear on the main display. An excessive pressure drop (greater than 4 psig/0.3 bar) may accompany an overflow situation. - If demand exceeds capacity, install a flow controller downstream from the generator to insure the rated capacity of the generator is not exceeded.
  • Page 10: Optional Accessories

    ZAG-3.5LNA-PMPLUS ZAG-3.5LNA ZAG-7LNA-PMPLUS ZAG-7LNA Preventive Maintenance Plan Service by Certified Technician. Includes 12 & 36 month (36 Month) service kits. Consult Parker for details. ZAG-18LNA-PMPLUS ZAG-18LNA ZAG-30LNA-PMPLUS ZAG-30LNA Extended Warranty Plans Consult Parker for Options Figure 6 - Maintenance Items...
  • Page 11: Serial Numbers

    (FOR INFORMATION CONTACT YOUR LOCAL REPRESENTATIVE) Parker Hannifin guarantees to the original purchaser of this product, that if the product fails or is defective within 12 months from the date of purchase, when this product is operated and maintained according to the instructions provided with the product, then Parker guarantees, at Parker’s option, to replace the product, repair the product, or refund the original price for the product.
  • Page 12 Figure 8 - Removing Internal Heat Shield Figure 9 - ZAG Internals with Cover, Internal Heat Shield, and Front Bezel Removed...
  • Page 13 Figure 10 - Zero Air Generator - Electrical Schematic Figure 11 - Thermocouple wires on Limit Controller...
  • Page 14 Figure 12 - Resetting Service Timers...
  • Page 15 NOTES...
  • Page 16 Parker Hannifin Corporation Industrial Gas Generation and Filtration Division 242 Neck Road Haverhill, MA 01835 phone 800 343 4048 www.parker.com/labgas TI-ZAG-001 © 2024 Parker Hannifin Corporation...
