From Se r ial Numbe r : 07PHG1001 to Date

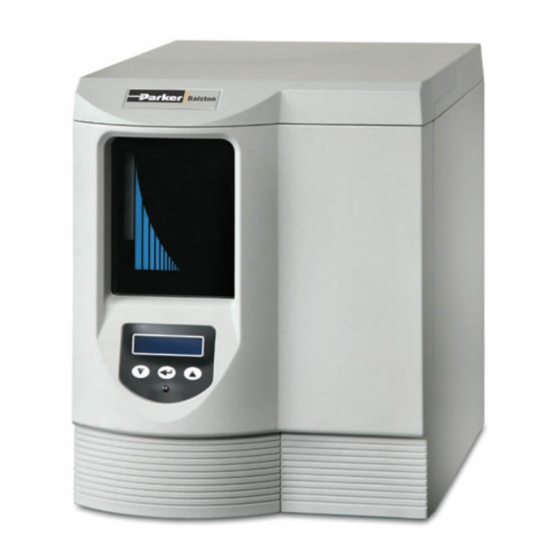

Hydrogen Gas Generator
H2PEM-100 / H2PEM-165 / H2PEM-260 / H2PEM-510
Parts Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H2PEM-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Parker H2PEM-100

Summary of Contents for Parker H2PEM-100

  • Page 1 From Se r ial Numbe r : 07PHG1001 to Date Hydrogen Gas Generator H2PEM-100 / H2PEM-165 / H2PEM-260 / H2PEM-510 Parts Manual...

  • Page 2: How To Use This Manual

    Introduction This manual identifies the kits available for both preventative maintenance and unforeseen breakdown repairs on the Parker Balston range of ultra high purity hydrogen generators. How to use this manual: Identify the model of generator from the rating plate.

  • Page 3: Service Intervals

    Service Intervals Component Operation Generator Check the power ON indicator is illuminated. Generator Check the STATUS / FAULT Indicator on the control panel. Generator Check the water level. Generator Check the water conductivity. Generator Check the water bottle spillage drains Generator Check for leaks.

  • Page 4: Service Kits

    MKH2PEM-D (8) Cartridge spanner Note: The desiccant cartridge should be changed as and when required, however it is recommended that it is changed at least every 6, 4, and 2 months on the H2PEM-100 / H2PEM-165, H2PEM-260 and H2PEM-510 respectively.

  • Page 5: Repair Kits

    Refer to “Case Assembly” on page 6 for R454970404 Case Assembly component breakdown. R454970206 Single cell assembly (H2PEM-100, H2PEM-165, H2PEM-260) Refer to “Cell Assembly” on page 7 for component breakdown. R454970208 Double cell assembly (H2PEM-510) Refer to “Chassis Assembly” on page 8 for...
  • Page 6 Facia Assembly Ref. Kit number Description Kit Qty Comments R284971738 Front facia R284971742 Accessory drawer R284971780 Parker display R284971760 Display membrane R284971746 Front cover R284971744 Top cover R276270520 M5 x 10mm Button head screw R284971782 No.4 x 10mm Thread forming screw...

  • Page 7: Case Assembly

    Case Assembly Ref. Kit number Description Kit Qty Comments R276261730 Mounting feet R276261038 M3x20 pozi pan head screws R276261052 M5 Internal tooth washer R284970594 M5 serrated flange nut R275110845 M5 washer R275110644 M5 nut R284971810 Drawer insert Note. The case is shown as a phantom image as it is not shipped with the complete case assembly. If you require the case please refer to “Metalwork Set”...

  • Page 8: Cell Assembly

    Cell Assembly Ref. Kit number Description Kit Qty Comments R276261050 M5x10mm pozi pan head screw R276261052 M5 internal tooth washer R276261053 M5 zinc plate washer R284971124 M5 male - female spacer R276261058 M5 x 8mm pozi pan head screw R284970594 M5 serrated flange nut R284970322 1/8Ý...

  • Page 9: Chassis Assembly

    Chassis Assembly Ref. Kit number Description Kit Qty Comments R284971464 Power supply Includes the fan R276261054 M5 x 12mm Pozi pan head zinc plated screw R274172300 M5 Nylon washer S284971754 H2 Control Board R276261031 M3 x 6mm Pozi pan head zinc plated screw R284970420 Drain bulkhead R284971802...

  • Page 10: Water Bottle Assembly

    Water Bottle Assembly Ref. Kit number Description Kit Qty Comments Refer to “Separation Chamber Assembly” S454970414 Separation chamber assembly on page 10 for component breakdown. S454970416 Dryer manifold assembly R284971752 LED board R284971806 LED board loom Not illustrated above. R276262166 M5 Nylon washer R284971748 Water bottle...
  • Page 11 Separation Chamber Assembly Ref. Kit number Description Kit Qty Comments This assembly includes the fixings S454972143 Manifold assembly (item numbers R454972154 H2 Float Assembly R454972317 H2 Float chamber bowl assembly R454972152 Nafion tube assembly R274971794 22mm P-Clip R275111701 M5 x 30mm hex head screw R276261052 M5 Internal tooth washer R275110845...

  • Page 12: Back Panel Assembly

    Back Panel Assembly Ref. Kit number Description Kit Qty Comments R276270520 M5 x 10mm butt head socket head screw S284971496 12v Fan R284970412 80mm fan guard R275110643 M4 nylok nut R284971426 M4 x 35mm pozi pan head screw R276261052 M5 internal tooth washer R284970594 M5 serrated flange nut Note.
  • Page 13 Metalwork Set Ref. Kit number Description Kit Qty Comments R284971762 External case R284971764 Internal case R284971768 Back panel...
  • Page 15 (from AT, BE, CH, CZ, DE, DK, ES, FI, FR, IE, parker.finland@parker.com IT, NL, NO, PL, PT, RU, SE, UK, ZA) Parker Hannifin Corporation © Parker Hannifin Corporation. All rights reserved. Catalogue: 174971756 03/11 Rev: B Filtration and Separation Division...
