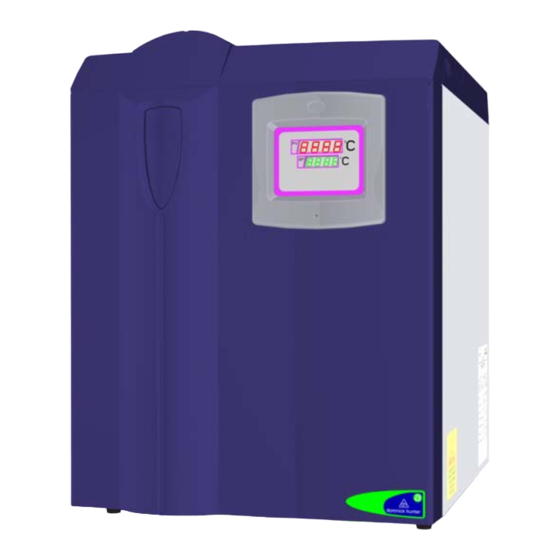

- Page 1 aerospace Zero Air Generator climate control electromechanical filtration UHP-10ZA-S - UHP-300ZA-S fluid & gas handling User Guide hydraulics pneumatics Original Language process control sealing & shielding...
- Page 2 Warranty This warranty applies to the generator and associated parts (the equipment) manufactured and supplied by Parker Hannifin Manufacturing Limited., domnick hunter Filtration and Separation (the company). Use of the generator without the recommended inlet air quality or genuine parts will expressly invalidate the warranty.
-
Page 3: Table Of Contents
CONTENTS 1 Safety Information ......................................1 1.1 Markings and Symbols ..................................2 2 Description ........................................3 2.1 Technical Specification..................................3 2.2 Approvals ......................................4 2.3 Materials of Construction ..................................4 2.4 Weight and Dimensions ..................................5 2.5 Receiving and Inspecting the Equipment ............................6 2.5.1 Storage......................................6 2.5.2 Unpacking ....................................6 2.5.3 Overview of the equipment ................................6 2.6 Locating the Equipment..................................7 2.6.1 Environment ....................................7... -
Page 5: Safety Information
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Parker Hannifin the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 6: Markings And Symbols
CAUTION CAUTION Do not place loads on this surface Caution DO NOT PLACE LOADS ON SURFACE Replace the covers unless the Parker dh Hot Surface REPLACE COVERS UNLESS PARKER DH HOT SURFACE hydrogen generator is mounted. HYDROGEN GENERATOR IS MOUNTED... -
Page 7: Description
2 Description Parker Hannifin zero air generators are designed to produce a supply of hydrocarbon free air from a clean, dry (IS0 8573-1:2010 class 2.2.1) compressed air source so eliminating the need for high pressure gas storage and disruption due to bottle changes and subsequent re- calibrations. -
Page 8: Approvals
2.2 Approvals Safety and Electromagnetic Compatibility (EMC) This equipment has been tested and complies with the following European Standards: EN61010-1: 2001 — Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory use - Part 1: General Requirements. EN61326: 2006 — Electrical Equipment for Measurement, Control, and Laboratory use, EMC Requirements. EN61000-3-2: 2006 —... -
Page 9: Weight And Dimensions
2.4 Weight and Dimensions The dimensions and weight of the equipment are specified below. Weight Model (in) (in) (in) (in) (lb) 10.2 10ZA-S (12.8) (13.4) (16.7) (8.6) (22.5) 14.2 35ZA-S (17.9) (13.4) (16.7) (13.0) (31.3) 14.2 50ZA-S (17.9) (13.4) (16.7) (13.0) (31.3) 14.2... -
Page 10: Receiving And Inspecting The Equipment
Note. Only one supply cable is supplied with 120 V generators. If any items are missing or damaged please contact your local Parker Hannifin office. Do not attempt to power up the generator. -
Page 11: Locating The Equipment
In each cubic metre of compressed air, not more than 0.01 mg of oil is allowed. Note. This is the combined level for aerosol, liquid and vapour. ISO 8573-1:2010 Class 2.2.1 can be achieved with the following combination of Parker Hannifin purification products: General Purpose filter Grade AO... -
Page 12: Installation & Commissioning
1/4" OD Copper Tube (Grade B-280) (50 FT) X50CT-4-30 Installation Parts display Parker Master Catalogue part number and may ordered through your local authorised Parker Sales Company. Please note gas bottle and/or gas bottle regulator are not supplied by Parker Hannifin. -
Page 13: Connecting The Generator
3.2.2 Stacking the Generator The generator may be re-configured so that the Parker Hannifin H and HMD range of hydrogen generators may be stacked safely on top of it. To re-configure the generator, unlock the two retaining screws and remove the top service lid panel (1). Remove the two retaining screws on the rear of the top lid panel (2). -
Page 14: Operating The Equipment
4 Operating the equipment 4.1 Overview of the generator Key: Actual Temperature Set Temperature: 10ZA-S 35ZA-S — 75ZA-S 150ZA-S — 300ZA-S 4.2 Starting the generator The generator should only be operated when the inlet isolation valve is open and air is flowing at the pressure and flow rate specified in section 2.1 of this guide. -
Page 15: Servicing
5 Servicing The recommended service procedures identified below, along with all other repair and calibration work, should be undertaken by a Parker Hannifin approved engineer. 5.1 Cleaning Clean the equipment with a damp cloth only and avoid excessive moisture around any electrical sockets. If required you may use a mild detergent, however do not use abrasives or solvents as they may damage the warning labels on the equipment. -
Page 16: Service Kits
5.2 Service Kits 5.2.1 Recommended Service A - Required every 8000Hrs (12 months) Description Catalogue Number Technical Reference Contents 005 AO Filter element Inlet Filter Service Kit 005AO 504421055 Capillary ring 005 AA Filter element Outlet Filter Service Kit 005AO 504431055 Capillary ring 5.2.2 Recommended Service B - Required every 16000Hrs (24 months) -
Page 17: Service Record
5.3 Service Record Generator Details Model Number: Serial Number Supply Voltage Commissioned By: Company Name Address: Telephone: Fax: Contact Name: Date of Commission: Serviced By Service Interval Date Comments Months (Hours) Print Sign 6 (4,000) 12 (8,000) 18 (12,000) 24 (16,000) 30 (20,000) 36 (24,000) 42 (28,000) -
Page 18: Troubleshooting
In the unlikely event that a problem occurs on the equipment, this troubleshooting guide can be used to identify the probable cause and remedy. Troubleshooting should only be attempted by competent personnel. All major repair, and calibration work should be undertaken by a Parker Hannifin trained, qualified and approved engineer. 6.1 Fault Indicators Under certain fault conditions the following messages may be displayed on the controller. -
Page 19: The Controller Display Will Not Illuminate
IEC320 socket and the fuse in the plug of the supply cable (UK only). the electrical supply cable is not damaged. Contact Parker Hannifin. Faulty controller or internal wiring fault. Contact Parker Hannifin. 6.4 Excessive downstream temperature... - Page 20 (from AT, BE, CH, CZ, DE, DK, EE, ES, FI, FR, IE, IL, IS, IT, LU, MT, NL, NO, PL, PT, RU, SE, SK, UK, ZA) Parker Hannifin Manufacturing Limited © Parker Hannifin Corporation. All rights reserved. Catalogue: 176271121 03/11 Rev: B domnick hunter Filtration and Separation Division...
