Thermoswitch
ECO
Design
DESCRIPTION OF
build-in
temperature
sensor
Fce
= selection of functions
(AUTO, MANU, CL:O,
PROG, PA:r, OF:F)
= selection of temperatures
(comfort, economic)
= confirmation (ENTER),
i
information about actual
temperatur (tE:A), present
time (CL:O), sum of
operating hours (SU:MA)
and day (dE:n)
-
= setting of temperature,
/
+
time, functions
Temperature regulation of appliance
socket
CONTROLS
TS10
Utilization examples:
electrical
heating
plates
directheating
bodies
electrical
tubular
radiators
Advertisement
Table of Contents
Related Manuals for ELEKTROBOCK TS10
Summary of Contents for ELEKTROBOCK TS10

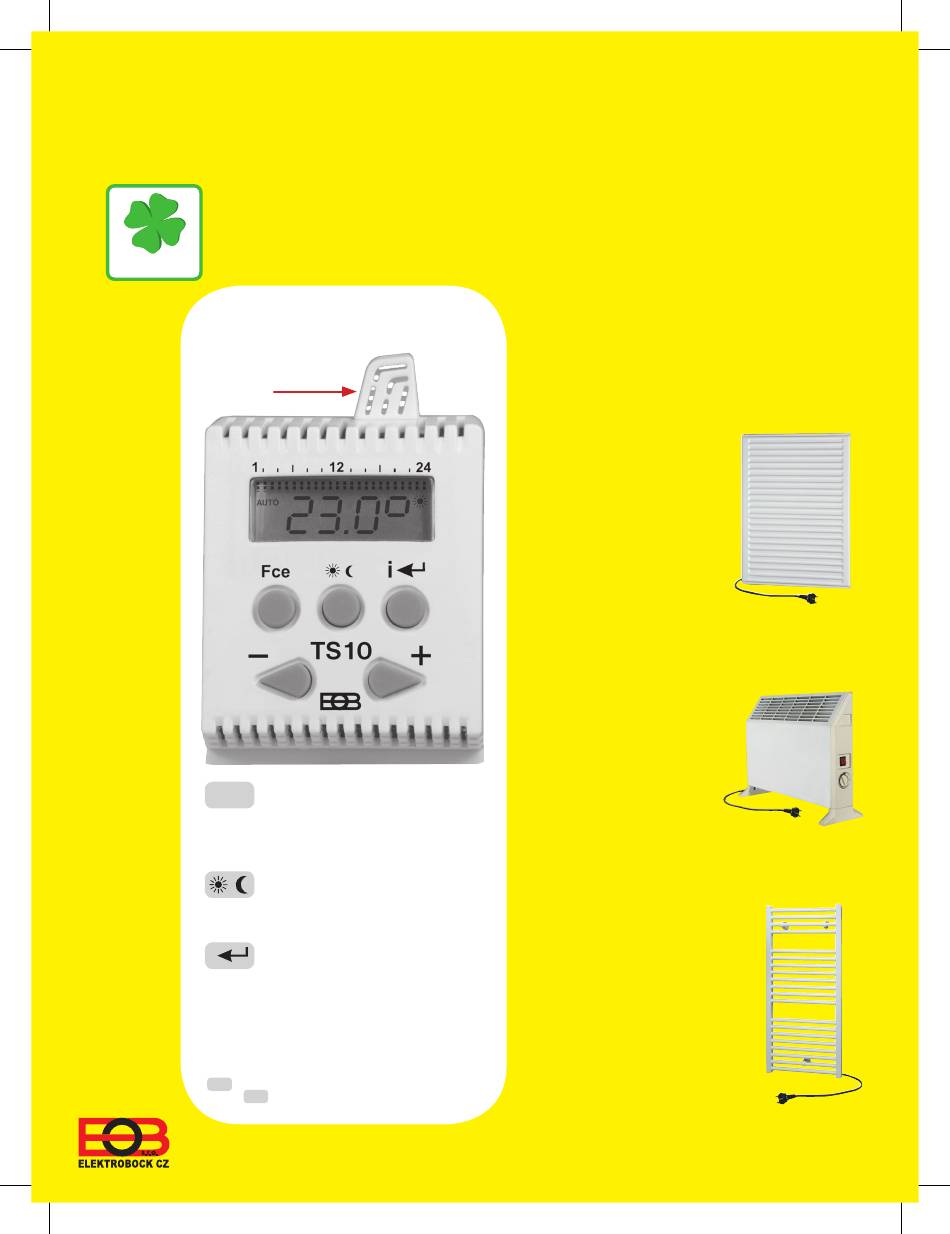

- Page 1 Thermoswitch socket TS10 Design DESCRIPTION OF CONTROLS build-in Utilization examples: temperature sensor electrical heating plates directheating bodies = selection of functions (AUTO, MANU, CL:O, PROG, PA:r, OF:F) = selection of temperatures (comfort, economic) = confirmation (ENTER), information about actual temperatur (tE:A), present...
- Page 2 (the colon symbol will not be flashing) and the buttons will be functionless. The activation of the buttons you can make by pressing the button. If the TS10 is not in 230V-socket the showed temperature is 2 °C lower than real actual temperature. 1. FUNCTIONS OF TS10...
- Page 3 2. PROCEED DURING PROGRAMMING Before the programming itself, it is necessary to set present day, time and parameters (constants), namely in following way. Setting of current day and time - “ CL:O “ function Press the button, by pressing select CL:O (CLOCK) function and confirm by .
- Page 4 • leave the programming regime by pressing and by select the AUTO function and TS10 starts to work according to the program set. Status indication of TS10: AUTO (or MANU) is shown = connected device is switched on AUTO (or MANU) flashes = connected device is switched off...
- Page 5 Antifreeze protection: If the room temperature is lower than 3 °C, TS10 switch on automatic the connected device. As soon as the temperature rise the TS10 comes back to the preset mode.
- Page 6 Message LO:C (LOCK) is shortly displayed on the display. The function can be cancelled, e.g. the keyboard unblocked by simultaneous pressing of Installation: 1. Connect TS10 in 230V/50 Hz socket. 2. Program it according to instructions. 3. Connect the heating body you want to control.

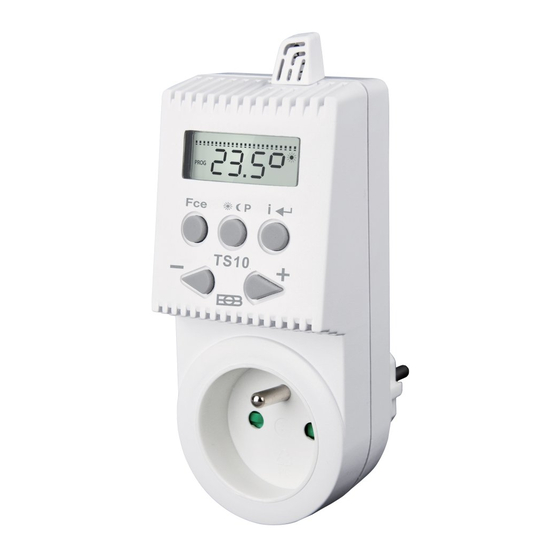

- Page 8 Thermo-switch socket TS10 TS10 is a digitally switched socket for automatic regulation of electrical heating systems (direct heating bodies, towel driers, infrared heatings) in family houses, fl ats, offi ces. Up to four time intervals with two temperature levels can be set for each day.
