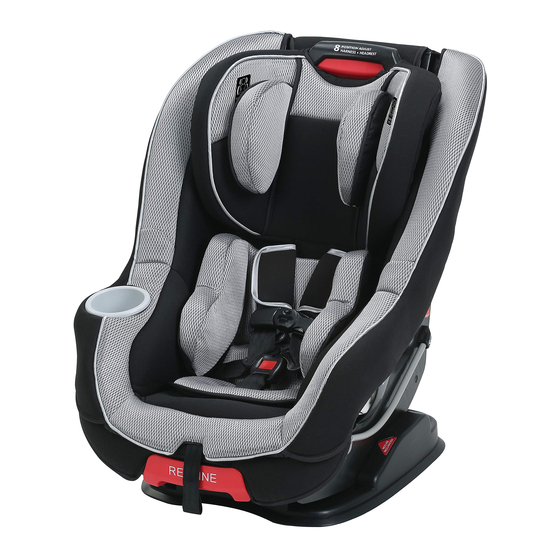

Graco Size4Me Series Replacement Manual

Graco Size4Me Series Replacement Manual

Buckle replacement

Advertisement

To Remove Existing Harness Tongues and Buckle and Attach Replacement Buckle

You will receive ONE of
these Graco approved
replacement buckles.
Follow instructions for
proper installation.
4
Pull harness straps
through seat back and
seat pad.
7
Remove and
discard tongues.
11
Re-insert straps back onto splitter plate.
Size4Me
MySize
®
Buckle Replacement Guide
1
Squeeze handle and
pull up on headrest to
highest position.
5
Remove chest clip.
DO NOT DISCARD
the chest clip.
8
Slide NEW buckle
onto harness straps.
MAKE sure not to
twist straps.
Fit4Me
®
®
2
To loosen straps,
lift lever and pull
harness straps.
6
9
Re-attach chest clip.
MAKE sure not to
twist straps.
Turn page over to
the assembly
Steps 12 to 21
for the buckle
replacement.
Headwise
®
©2014 Graco PD246350C 3/14
Remove harness
3
strap loops from
splitter plate.
Unbuckle harness
by tilting top of
buckle down,
press top of
red button, and
pull tongues
out of buckle.
10
Re-insert straps through slots
in seat pad and seat back.
See carseat owner's manual
for proper height setting for
your child.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Size4Me Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Graco Size4Me Series

  • Page 1 Fit4Me Headwise ® ® ® ® Buckle Replacement Guide ©2014 Graco PD246350C 3/14 To Remove Existing Harness Tongues and Buckle and Attach Replacement Buckle Remove harness strap loops from splitter plate. You will receive ONE of these Graco approved To loosen straps, Squeeze handle and replacement buckles.
  • Page 2 • Make sure the chest clip is Insert NEW tongues properly threaded as shown into buckle. in Step 9. Graco Children’s Products Any questions please contact us at : 3 Glenlake Parkway Atlanta, GA 30328 1-800-345-4109 www.gracobaby.com...
  • Page 3 Guide de remplacement de la boucle Comment retirer la boucle et les languettes existantes et installer la boucle de rechange Vous allez recevoir UNE de ces boucles de rechange Graco approuvées. Suivre les directives pour une installation adéquate. 1. Comprimer la poignée et soulever l’appuie-tête à sa position la plus élevée.
