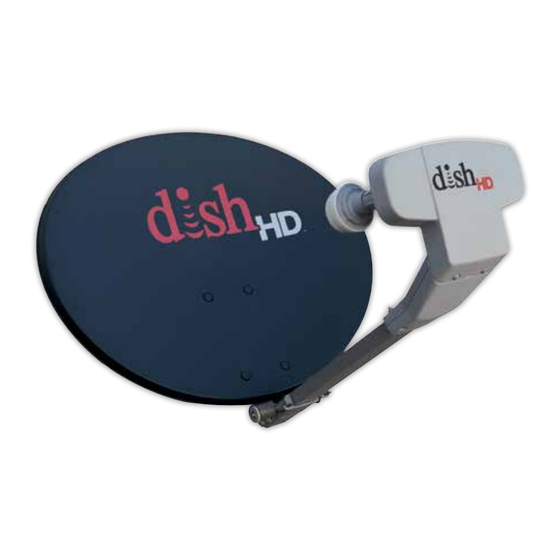

- Page 1 ® Replacement DISH 1000 LNB Assembly www.winegard.com/mobile For Technical Services, email help@winegard.com or call 1-800-788-4417 2452138 Rev6 3-17...
- Page 2 Raising the Antenna Follow the steps below to raise the antenna for reflector, bracket, and LNB assembly removal. Pay attention to the pinch points as the antenna raises. See below. Top View Side View Pinch Point Pinch Point Press [POWER], and hold for two seconds to turn on the TRAV’LER interface box.
- Page 3 NOTE If you are replacing an existing Reflector and Assembly, follow the instructions below, otherwise proceed to “Installing the DISH Reflector and LNB Assembly” section. Removing the Reflector and LNB Assembly If converting a DIRECTV SWM Slimline antenna to a DISH TRAV’LER antenna, remove the power inserter and SWM splitter;...
- Page 4 Remove the bolts holding the reflector bracket to the skew housing. Reflector bracket Skew housing Stiffener plate NOTE If replacing a Slimline assembly with a DISH assembly, remove and set aside the stiffener plate inside the reflector bracket. Remove the LNB arm assembly, and set aside. NOTE If replacing a Slimline assembly with a DISH assembly, remove the four bolts from the adaptor plate, and remove the adaptor plate.
- Page 5 Align the four holes on the inside of the reflector bracket with the four marked holes in the adaptor plate. See image below for the holes to align with the reflector bracket and adaptor plate. The numbers on the reflector bracket and adaptor plate should match.
- Page 6 Setting the IDU for DISH 1000 Press and hold [POWER] for two seconds or until the TRAV’LER interface displays “POWER ON.” Now that the power is on, release the [POWER] button. Press and hold the [ENTER] button for two seconds. The TRAV’LER interface will ask if you wish to enter the User Menu.
- Page 7 Company at 3111 Kirkwood St., Burlington, IA 52601. Re-packaging the Removed LNB for OE-DISH Users NOTE Only the LNB and cables need to be returned to Winegard. Remove the LNB and cables from the arm assembly, then follow the steps below. Using the smaller cardboard box,...
- Page 8 Return the package to 3111 Kirkwood St., Burlington, IA 52601. If a label has not been provided, use Winegard’s UPS shipping account, 530400, to return the package to Winegard Company. Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601 1-800-288-8094 •...
