Winegard DS-4248 Instructions

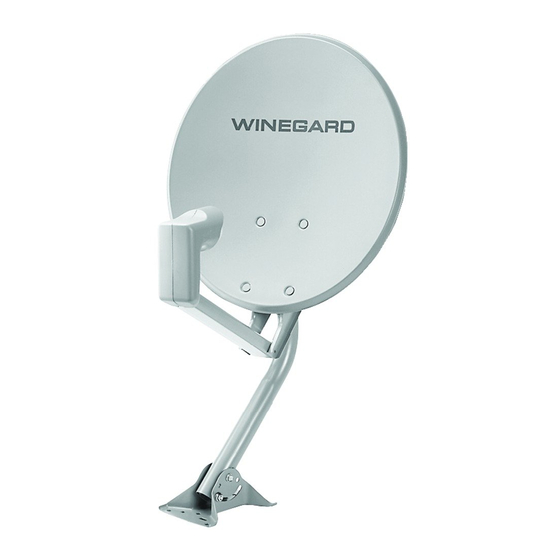

HOME DIGITAL SATELLITE ANTENNA

SAFETY INFORMATION

WARNING:
WHEN INSTALLING THIS ANTENNA, AVOID
CONTACT WITH OVERHEAD POWER LINES,
LIGHTS AND POWER CIRCUITS. CONTACT
WITH POWER LINES, LIGHTS, AND CIRCUITS
MAY BE FATAL.
ANTENNA GROUNDING
The antenna and coax cable that connects to the receiver
are required to comply with local installation codes and
the appropriate sections of the National Electrical Code
(NEC), especially article 820.
MOUNT DISCLAIMER
To insure maximum safety, Winegard recommends
no roof or wall installations be attempted without a
professional engineer's structural analysis. Local zoning
and/or building codes and insurance companies may
require architect or structural engineering approval prior
to installation. It is the purchaser's responsibility to verify
that the above steps are taken.
Inspect the package and confirm that all parts are present.
If any parts are missing, please contact Winegard
Company at 1-800-288-8094.
Printed in U.S.A. Winegard Co. • 3000 Kirkwood St. • Burlington, IA 52601-2000 • 319/754-0600 • FAX 319/754-0787 ©Winegard Co. 2002, 2005 2451687 Rev2, 2/12
WINEGARD
Model DS-4248, DS-3118
®
PARTS LIST
CODE QTY PART #
A 1 2745265
B 1 2745441
C not supplied
D 1 2745404
E 1 2780197
1 2780185
1 2762417
HARDWARE PACKAGE PART #3762449
CODE QTY PART #
[1] 4 2160228
[2] 4 2160340
[3] 1 2160217
[4] 1 2160346
DESCRIPTION
18" (46 cm) Reflector
Back-up/Feed Support Assy.
RG-6 Coaxial Cable
Mount Pipe/Roof Bracket
Single LNBF Models Only
Dual LNBF Models Only
Hardware Package
DESCRIPTION
1/4-20 Hex Nut
1/4-20 x 5/8" Carriage Bolt
10-32 Flange Hex Nut
10-32 x 1-1/4" Carriage Bolt
