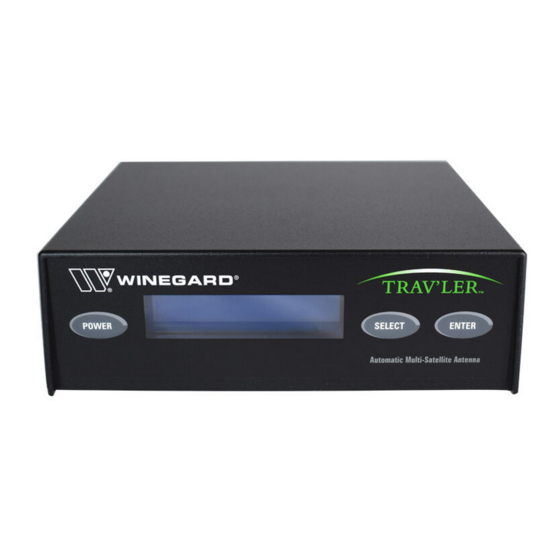

SK-73UP
MPEG-4 Upgrade Instructions
for TRAV'LER

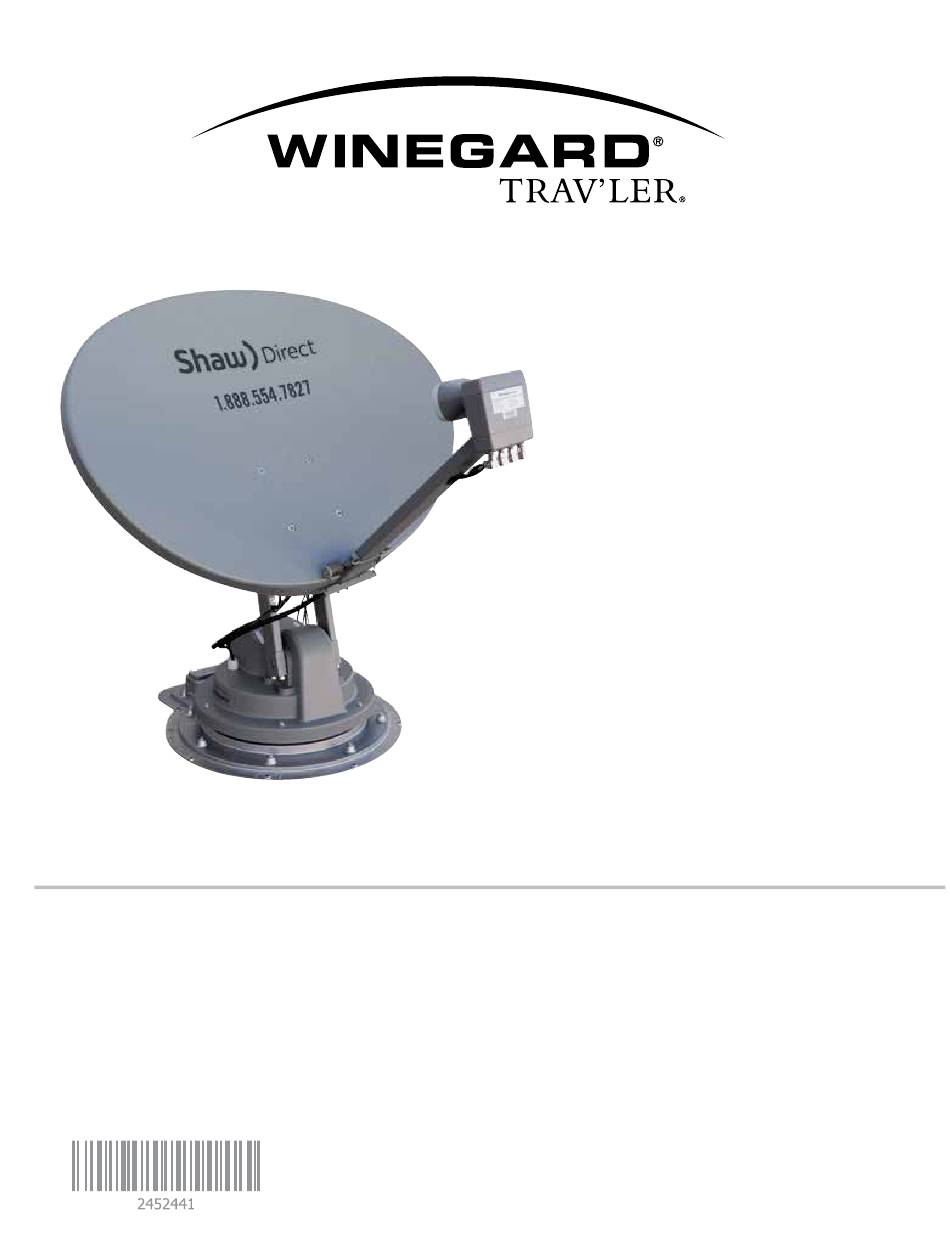

Shaw Direct Antenna
®
Model SK-7003
Manuel disponible en français au www.winegard.com/travler-shaw
For Technical Services, email help@winegard.com or call 1-800-788-4417
Product Registration:
Please register your Winegard product by completing the online registration form
at http://www.winegard.com/registration.
2452441
Rev1 8-19
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Winegard TRAV'LER SK-73UP
Summary of Contents for Winegard TRAV'LER SK-73UP
- Page 1 TRAV’LER Shaw Direct Antenna ® Model SK-7003 Manuel disponible en français au www.winegard.com/travler-shaw For Technical Services, email help@winegard.com or call 1-800-788-4417 Product Registration: Please register your Winegard product by completing the online registration form at http://www.winegard.com/registration. 2452441 Rev1 8-19...
-
Page 2: Included Parts
The SK-73UP is compatible with any Shaw Trav’ler manufactured prior to August 23, 2017. However, if you have a Winegard SK-7002 you need to contact Shaw (888-472-2222) to upgrade your LNB to the required triple xKU LNB before completing this upgrade process. - Page 3 1. IDU Reset E) Press SELECT once until “Raise Antenna” is on the A) Power on IDU by pressing and holding the Power top line with an asterisk and press ENTER. button for 3 seconds, then press and hold ENTER to enter the user menu.
-
Page 4: Reflector Removal
2. Reflector Removal Once the IDU has been powered off and the data cable and power cord have been disconnected you will need to get on top of the coach. The tools needed are a ½" and 7/16" wrench, 3/16" Allen wrench, adjustable wrench, and the provided 5/16"... -
Page 5: Disconnecting Cables
3. Disconnecting Cables A) Remove the four 5/16" screws from the cable cover, and remove the cable cover (Figure 4). B) Loosen the exterior nut for the 30' power/control cable (Figure 5). NOTE: You may need to use the adjustable wrench to loosen the exterior nut. - Page 6 4. Motor Mount Removal WARNING: DO NOT remove the screws around the edge of the transition plate or the screws on A) Remove the nine 5/16" the top side of the turret assembly; these areas screws around the edge of are marked in red on the image below.
- Page 7 Motor Mount Removal cont. D) From center of ODU moving right, remove Gray 6-Pin connector (#1), Black 8-Pin connector (#2), and the Black 12-Pin connector (#3) from the ODU. Be sure to press down on the locking tab to remove connectors.
- Page 8 5. Install New Electronics A) Install the new electronics (do not screw down the electronics at this point) and reattach rubber grommet to housing. Once completed, reinsert the Black 12-Pin connector (#1), Black 8-Pin connector (#2), and Gray 6-Pin connector (#3). Make sure all 3 connectors are fully inserted into the mating connector.
- Page 9 Install New Electronics cont. D) Once complete you need to make sure the base seal and gasket are properly seated on the mounting plate (Figure 16). E) You can now reinstall the nine 5/16” screws to the transition plate (Figure 17). Figure 16 Base seal and gasket 5/16"...
- Page 10 7. Install Reflector, LNBF Feed Arm A) Insert the two longer screws into the top two holes in the front of the reflector. B) Slide a wedge-shaped clamp onto each screw sticking out the back of the reflector (Figure 21). C) Thread a nut onto each screw;...
- Page 11 Product is within the warranty period. Winegard Company will (at its option) repair or replace the defective product at no charge to you. This warranty does not cover any costs incurred in removal or reinstallation of the product.
- Page 12 Winegard and TRAV’LER are registered trademarks of Winegard Company. Shaw Direct is a trademark of Shaw Satellite G.P. Disclaimer: Although every effort has been made to ensure that the information in this manual is correct and complete, no company shall be held liable for any errors or omissions in this manual.
