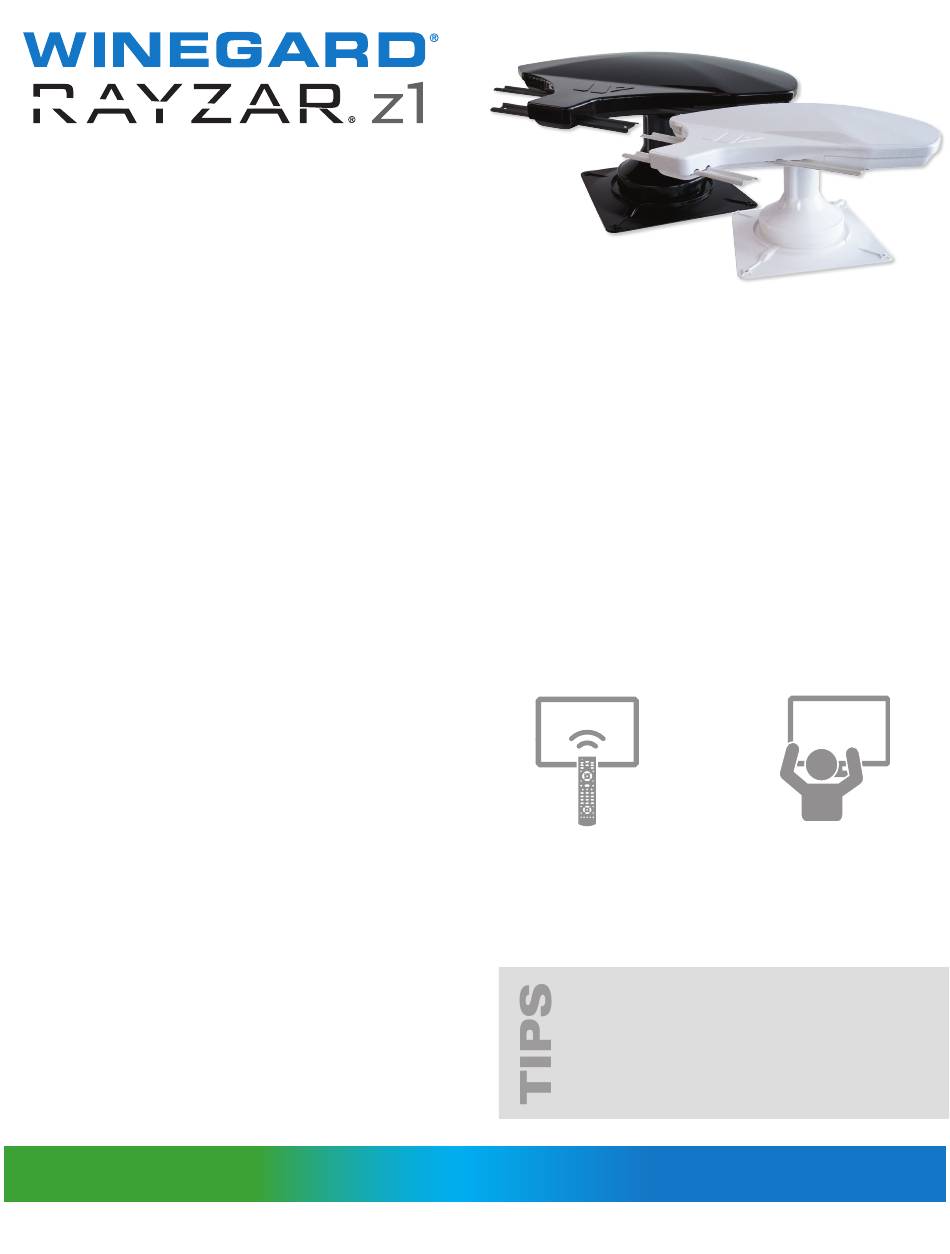

Winegard RAYZAR z1 Operation Manual

Amplified Local HD and Digital Broadcast TV antenna
for VHF & UHF digital and HD TV channels
Operation Guide
Models RZ-6000 White and RZ-6035 Black
OPERATION
1. Ensure the antenna power supply is in the "ON"
position and the green indicator light is illuminated.
2. Rotate the directional handle counter-clockwise
until it hits the hard stop (Travel Position). In this
position the antenna will be pointing toward the
rear of the RV. Follow the instructions from the TV
manufacturer to perform a channel scan on the TV.
Make certain to scan in Air or Antenna mode.
3. If few or no channels are found, push up on the
handle, and rotate the handle 90 degrees counter-
clockwise. Perform a second channel scan
according to instructions in step 2. Repeat
as needed until channels are found.
4. To improve the number of received channels and/or
picture quality, fine-tune between and around the
two scan points by slowly rotating the handle and
performing additional channel scans.
5. When finished using the antenna, place the
antenna in Travel Position by rotating the handle
counter-clockwise as indicated by the arrow on
the ceiling plate. Rotate until the antenna hits the
hard stop and will not rotate any further. Turn off
the antenna power supply.
HOW TO RUN A CHANNEL SCAN
Using the television remote, select "Menu" and then
"Settings." Then, select "Channel Setup." Select
"Antenna" or "Air," depending on your TV. Make sure
you are not on "Cable." Select "Channel Search" or
"Channel Scan." Keep in mind that steps to perform
a channel scan may vary. If the wording in your TV
differs from the options shown, refer to your TV user
manual for help.
Scan.
Perform Channel Scan:
Select Menu, then
Channel Search
Check out antennaweb.org to help locate or fine-tune
specific channels in your area by inputting the zip code
of your current location.
Running a channel scan is NOT the same as pressing
Channel UP/DOWN on your remote.
Watch.
Move antenna and rescan
to find the most channels
within range. Scan monthly
for programming updates.
2452370
Rev3 4-17
