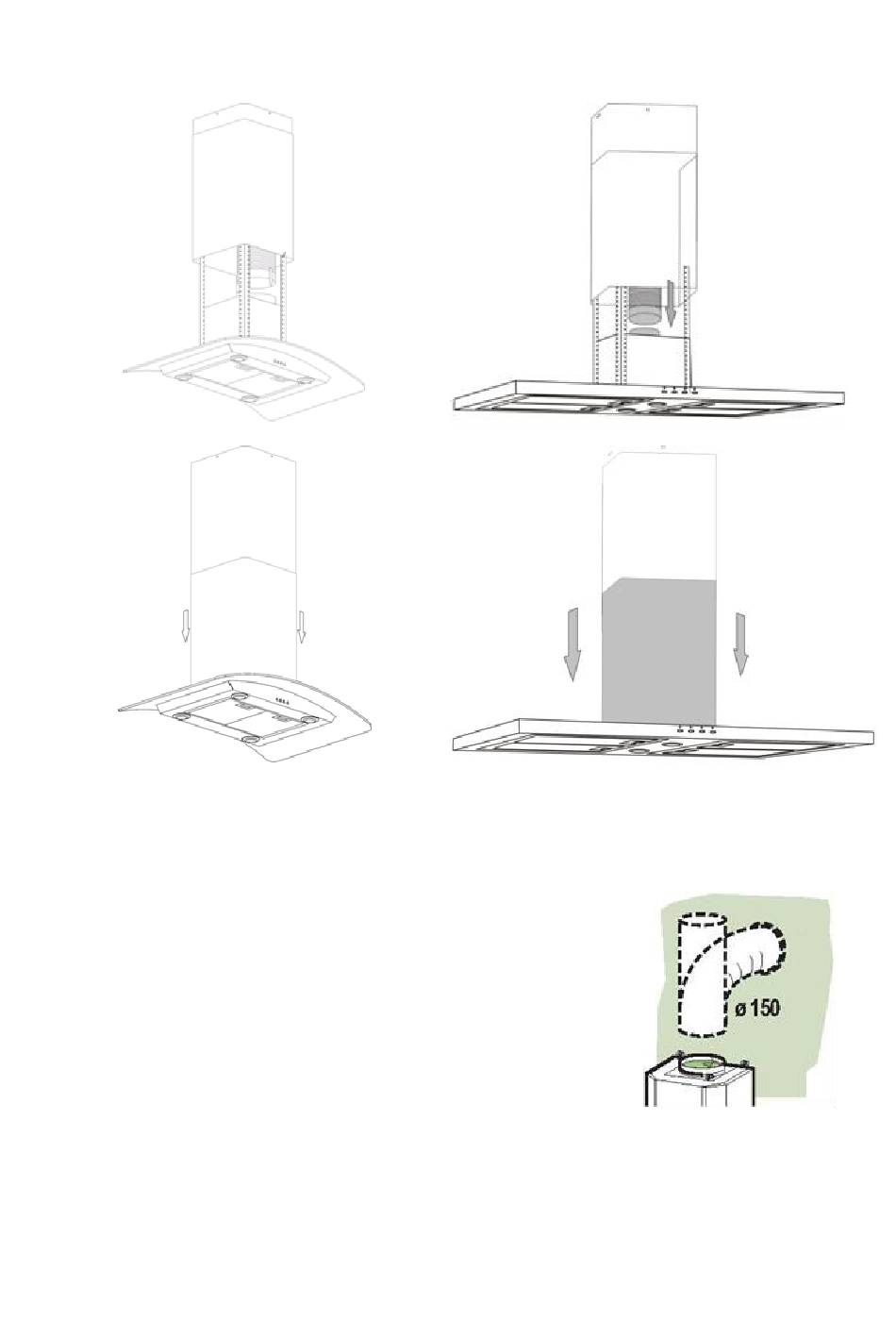

10. Insert the extensiblepipe to the spigot if it will use the duc ting system / exhaust, then lower down the
chimney off the hook and make sure the chimney is attached properly to the suction hoodbody.
WORK METHOD
MODE NA Hood has 2 (two) work methods as follows:
DUCTING SYSTEM:
In this mode, the hood operat es by sucking the smoke / cooking odor
and then discharging it out of the vent through the exhaust system.
To connect the hood with the discharge duct, use "spigot/ flange" is
designed wit h a diameter of 150 mm.
Several things which require attention in installing the ducting system vent hood:
1. Carbon filter must be removed. Only use the aluminum filter.
2. If t he hood is to be installed in a multi-storied building or an apartment, consult with the pers on in charge
of the building / apartment prior to installing the ex haust system.
3. Hood with ducting system should be used in an open -air room with good air circulation.
