Electric Height Adjustable Tables
ASSEMBLY INSTRUCTIONS
Rectangular or Square Columns
CORNER UNIT + 1200 TOPS
1.
Align two thru holes in control box with pre-
drilled holes on bottom side of worksurface.
•
Align two thru holes in control
2.
Use (2) #8 x 2" pan head screws to secure to
box with pre-drilledholes on
worksurface.
bottom side of work surface.
3.
To attach control panel, determine if control
panel is to be on the left or right side of the
worksurface.
•
Use (2) #8 x 2" pane head screws
4.
Align control panel mount plate with pre-
to secure to work surface.
drilled holes.
5.
Use (2) X8 x 5/8" pan head screws to secure
•
To attach control panel, determine
to worksurface.
•
Align two thru holes in control
if control panel is to be on the
box with pre-drilledholes on
left or right side of the work surface.
bottom side of work surface.
•
Align control panel mount plate
•
Use (2) #8 x 2" pane head screws
with pre-drilled holes.
to secure to work surface.
•
Use (2) X8 x 5/8" pan head screws
•
To attach control panel, determine
to secure to work surface.
if control panel is to be on the
left or right side of the work surface.
•
Align control panel mount plate
with pre-drilled holes.
•
Use (2) X8 x 5/8" pan head screws
to secure to work surface.
NOTE: When attaching control box, use
the grooves on the upper face to help
manage motor cables.
NOTE: When attaching control box, use
the grooves on the upper face to help
manage motor cables.
NOTE: When attaching control box,
use the grooves on the upper face to
help manage motor cables.
Series:
8 | OFS BRANDS

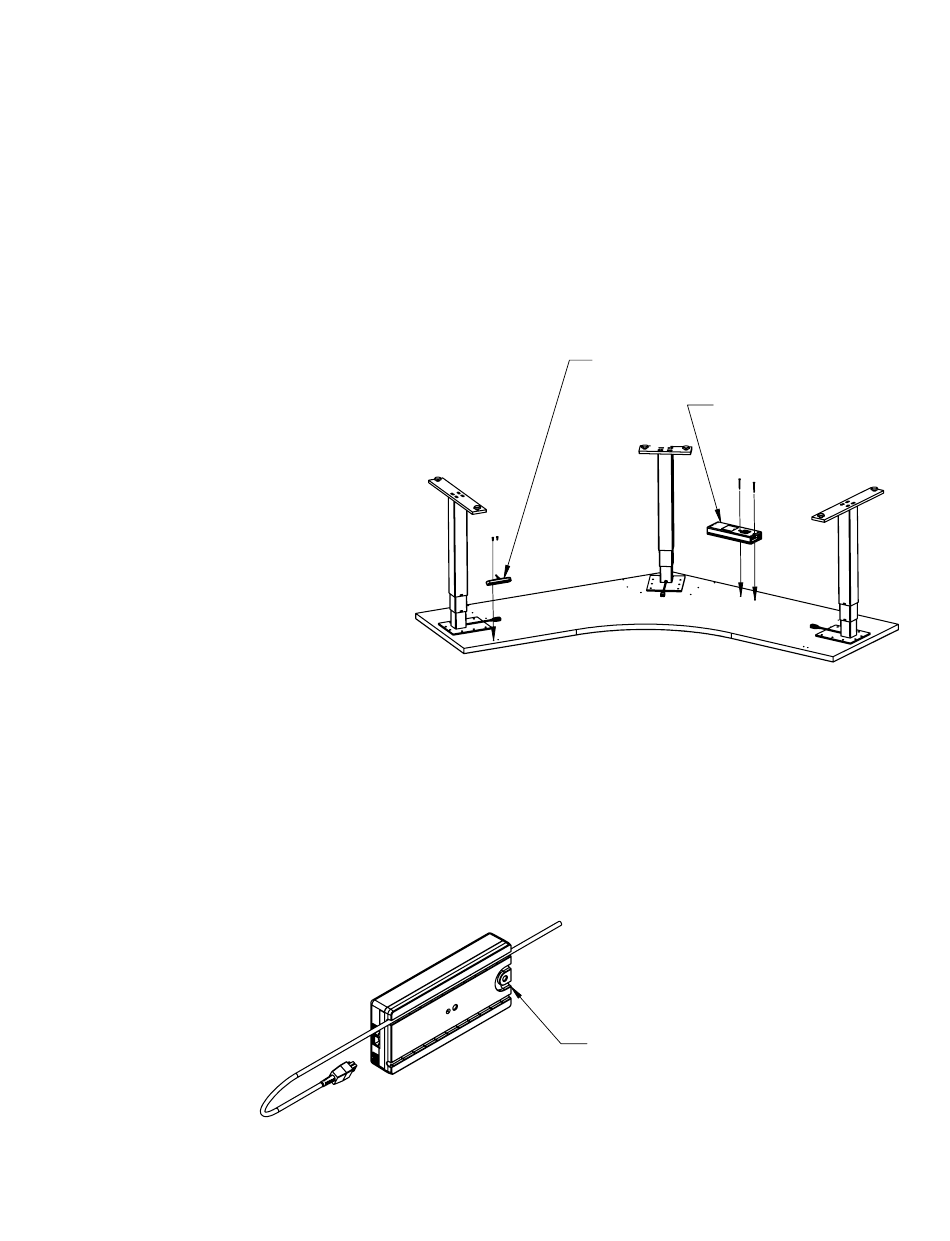

ELECTRIC ADJUSTABLE HEIGHT
BASE ASSEMBLY
(CORNER UNIT AND 120° TOPS)
RECTANGULAR OR SQUARE COLUMNS
ELECTRIC ADJUSTABLE HEIGHT
BASE ASSEMBLY
(RECTANGULAR TOPS)
RECTANGULAR OR SQUARE COLUMNS
CONTROL PANEL
CONTROL BOX
CONTROL PANEL
CONTROL PANEL
CONTROL BOX
CONTROL BOX
Use "hook" for mains cable
(power cord) relief.
Use "hook" for mains cable
Use "hook" for mains cable
(power cord) relief.
(power cord) relief.
Part #:
