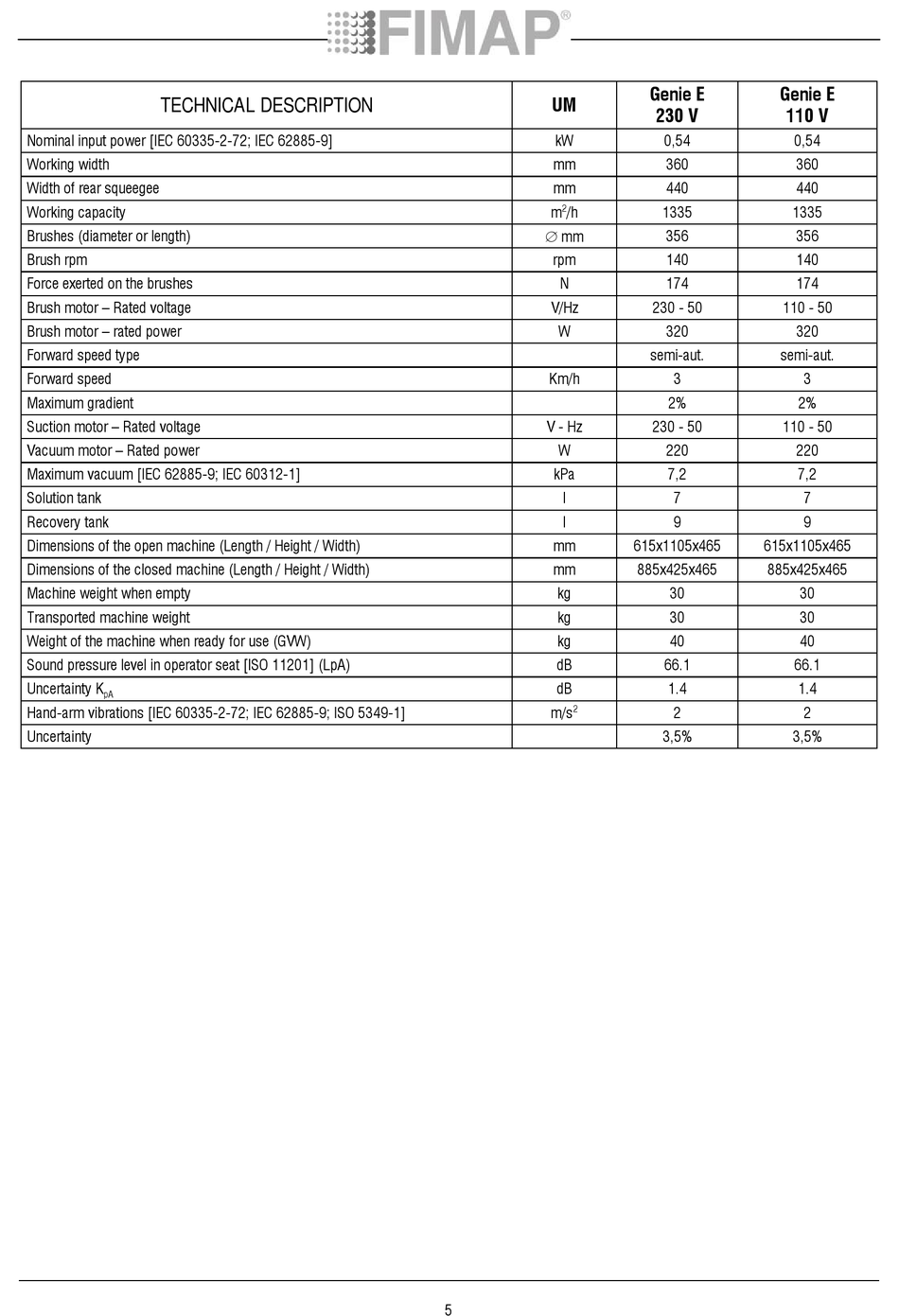

TECHNICAL DESCRIPTION

Nominal input power [IEC 60335-2-72; IEC 62885-9]
Working width
Width of rear squeegee
Working capacity
Brushes (diameter or length)
Brush rpm
Force exerted on the brushes
Brush motor – Rated voltage
Brush motor – rated power
Forward speed type
Forward speed
Maximum gradient
Suction motor – Rated voltage
Vacuum motor – Rated power
Maximum vacuum [IEC 62885-9; IEC 60312-1]
Solution tank
Recovery tank
Dimensions of the open machine (Length / Height / Width)
Dimensions of the closed machine (Length / Height / Width)
Machine weight when empty
Transported machine weight
Weight of the machine when ready for use (GVW)
Sound pressure level in operator seat [ISO 11201] (LpA)
Uncertainty K
pA
Hand-arm vibrations [IEC 60335-2-72; IEC 62885-9; ISO 5349-1]
Uncertainty
UM
kW
mm
mm
m 2 /h
 mm
rpm
N
V/Hz
W
Km/h
V - Hz
W
kPa
l
l
mm
mm
kg
kg
kg
dB
dB
m/s 2
5
Genie E Genie E
230 V 110 V
0,54 0,54
360 360
440 440
1335 1335
356 356
140 140
174 174
230 - 50 110 - 50
320 320
semi-aut. semi-aut.
3 3
2% 2%
230 - 50 110 - 50
220 220
7,2 7,2
7 7
9 9
615x1105x465 615x1105x465
885x425x465 885x425x465
30 30
30 30
40 40
66.1 66.1
1.4 1.4
2 2
3,5% 3,5%
