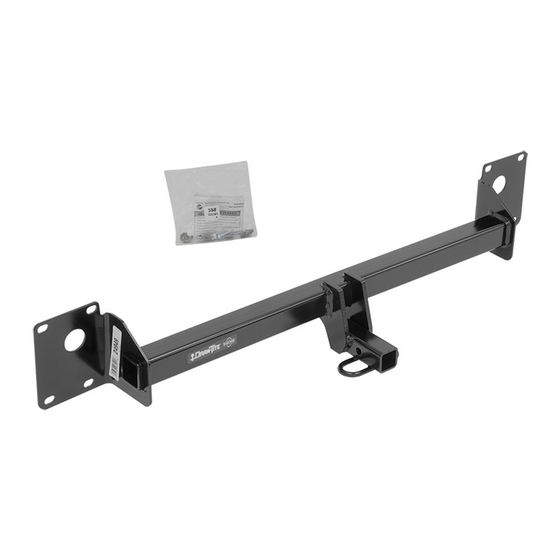

Cequent 77949 Installation Instructions Manual

Cequent 77949 Installation Instructions Manual

Volkswagen golf sportwagen 2015-current

Advertisement

Quick Links

Cequent
Performance Products, Inc.
To prevent SERIOUS INJURY, DEATH or PROPERTY DAMAGE:
ALWAYS read, understand and follow warnings and instructions
for your hitch BEFORE installation. Keep for future reference.
DO NOT cut, weld or modify this receiver.
CHECK all fasteners are tight and your hitch is securely mounted
to your vehicle periodically.
ALWAYS read, understand and follow all warnings and
instructions for your vehicle and for other accessories you will use
with your hitch BEFORE use.
LOAD the trailer heavier in front.
DO NOT exceed lower of towing vehicle manufacturer's rating or:
Hitch Type
Max Gross Trailer
Weight Carrying
2000 lb. (908 kg)
Weight Distributing
ALWAYS wear your seatbelt.
SLOW DOWN when towing, NEVER exceed any posted speed limit.
If EXCESS SWAY occurs, take your foot off the gas pedal and hold
the steering wheel as steady as possible. DO NOT apply your
brakes and DO NOT speed up.

Installation Instructions

PART NUMBERS: 24949, 77949, CQT24949
Max Tongue
Weight
Weight
200 lb. (90 kg)
X
X

LIMITED LIFETIME WARRANTY

1.
Limited Lifetime Warranty ("Warranty"). Cequent Performance Products, Inc. ("We",
"Us" or "Our") warrants to the original consumer purchaser only ("You" or "Your") that the
product will be free from material defects in both material and workmanship, ordinary wear
and tear excepted. The Warranty is valid only if (a) the products are returned to Us for
inspection and testing; (b) Our inspection discloses to Our satisfaction that any alleged
nonconformance are material and have not been caused by misuse, neglect, wear and tear,
improper installation, unsuitable storage, improper repair, alteration, or accident; and (c) the
products were installed, maintained and used in accordance with Our instructions. THE
WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED (OTHER THAN THE WARRANTY OF TITLE AS PROVIDED BY THE
UNIFORM COMMERCIAL CODE IN EFFECT IN MICHIGAN), INCLUDING
WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, SAID WARRANTIES BEING EXPRESSLY
DISCLAIMED.
2.
Obligations of Purchaser. Any returned product that is replaced by Us becomes our
property. You may be responsible for return shipping costs. Please retain your purchase
receipt to verify date of purchase and that You are the original consumer purchaser. The
product and the purchase receipt must be provided to Us in order to process Your Warranty
claim.
3.
Exclusive Remedy. Product replacement is Your sole and exclusive remedy under this
Warranty. We shall not be liable for service or labor charges incurred in removing or
replacing a product. IN NO EVENT WILL WE BE RESPONSIBLE FOR ANY INDIRECT,
SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES.
4.
Assumption of Risk. You acknowledge and agree that any use of the product for any
purpose other than the specified use(s) stated in the product instructions is at Your own risk.
5.
Governing Law. This Warranty gives You specific legal rights, and You also may have
other rights which vary from state to state. This Warranty is governed by the laws of the
State of Michigan, without regard to rules pertaining to conflicts of law. The state courts
located in Oakland County, Michigan shall have exclusive jurisdiction for any disputes
relating to this Warranty.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 77949 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cequent 77949

  • Page 1: Installation Instructions

    PART NUMBERS: 24949, 77949, CQT24949 LIMITED LIFETIME WARRANTY Limited Lifetime Warranty (“Warranty”). Cequent Performance Products, Inc. ("We", “Us” or “Our”) warrants to the original consumer purchaser only ("You" or “Your”) that the To prevent SERIOUS INJURY, DEATH or PROPERTY DAMAGE: product will be free from material defects in both material and workmanship, ordinary wear •...
  • Page 2: Equipment Required

    Cequent Cequent Cequent Performance Products, Inc. Performance Products, Inc. Performance Products, Inc. Performance Products, Inc. Installation Instructions PART NUMBERS: 24949, 77949, CQT24949 Applications: Installation Time: 60 Min. Years Make Models The time listed above is the average time for professional installers. If you do not...
  • Page 3 Fastener Kit : 24949F Always wear SAFETY GLASSES Installation Instructions when installing hitch ① Qty. (7) Bolt M8x1.25x30 CL8.8 PART NUMBERS: 24949, 77949, CQT24949 ② Qty. (7) Conical washer 3/8’’ Authorized Drawbar Kit: (Sold Separately) (Conical Washer) 3590 Drawbar must be used in the...
  • Page 4 1. Remove tail lights: Open tailgate and remove panels (each side) to gain 2. Remove appearance panel: Loosen (2) plastic bolts (M10 socket) attached to access to tail light wiring. Disconnect wiring to tail lights (push red connector spare tire well. Remove (4) screws (T20) holding appearance panel in place. to disconnect).
  • Page 5 4b. Remove rear fascia: Carefully pulling the fascia away from the vehicle. Use care at lower part of wheel well there are (2) fixed pins (see figure 3a), carefully work fascia over pins. If present disconnect any wiring harness or sensor from fascia. Both sides. Note: Use trim tool or screwdriver near corner – tight fit. See figure 3. Figure 3 Figure 3a 5.
  • Page 6 7. Install hitch and bumper: Lift hitch into position, resting on bolt installed in step 6. Raise bumper into 8. Tighten all M8 CL8.8 fasteners with torque wrench position over hitch and install bolts (item 1) and conical washer (item 2) as shown in figure 1. Once the hitch to 20 Lb.-Ft.
