CYBEX Arc Trainer 425A A/V Installation Instructions Manual

Kit No. 425AK016
NOTE: This instruction sheet describes how to
install the Audio/Visual mount on the Arc
Trainer 425A.
Tools Required
• 5/32" Allen wrench
• 7/32" Allen wrench (2)
• Phillips screwdriver
1. Read and understand all instructions
thoroughly before installing this kit.
2. Verify kit contents.
A. Console monitor mount (1), 425A-219
B. Coax and power cable (1), AW-18460
C. Controller mount bracket (1), 425A-516
D. BHSCS .250-20 X 1.250 SS (4), HX620420
E. Lockwasher .250 SS (4), HS307400
F. Cable Tie (3), EW000028
G. Poster (1), 425A-518 (not shown)
H. Loctite (1), YA000201
I. Strain relief bushing (1), PP740000
A
C
D

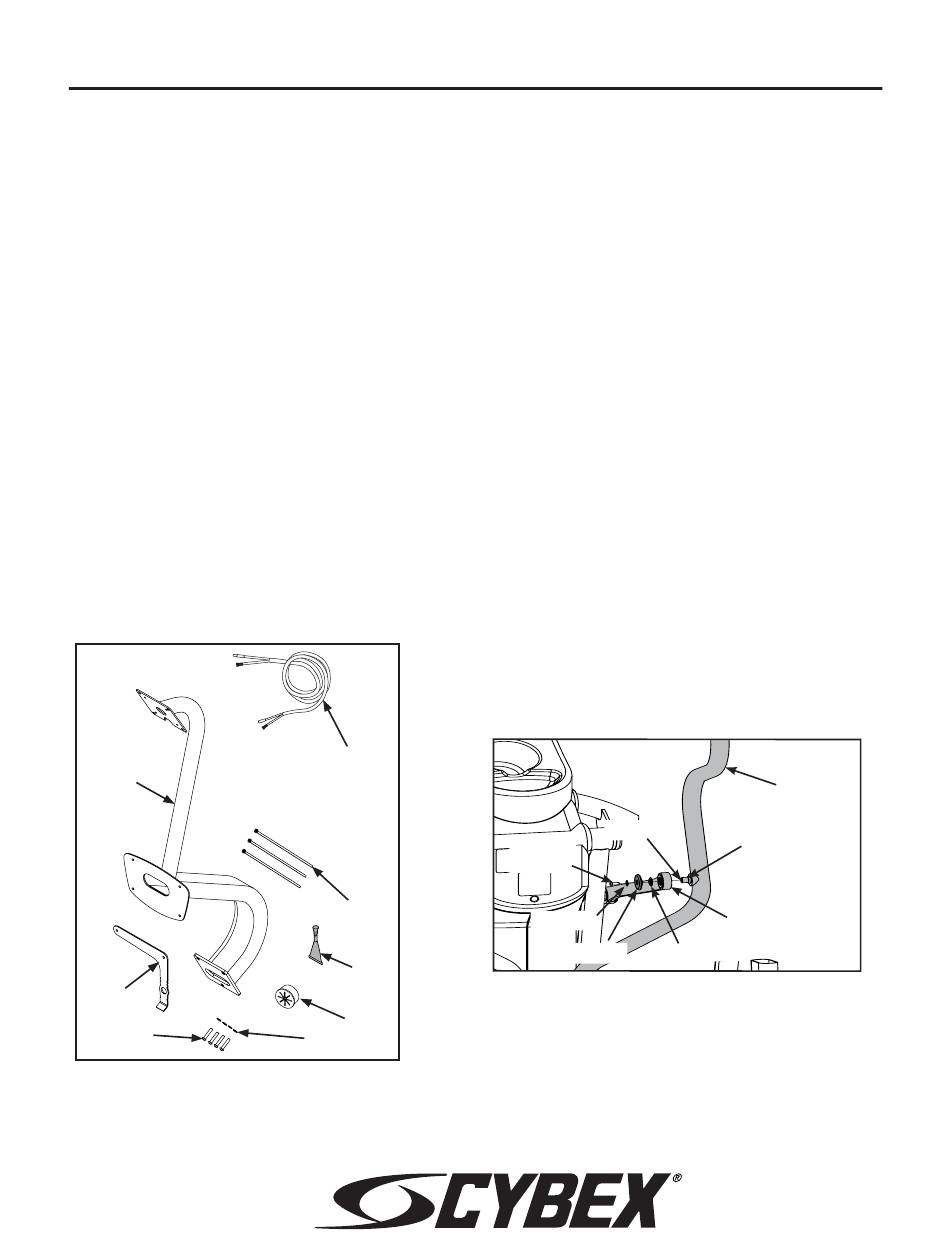

Figure 1
Arc Trainer
• Side cutter
• Cloth
B
F
H
I
E
®
425A A/V
NOTE: Monitor and controller is not included in kit.
3. Verify you have the monitor, controller with
cables and power supply (not included in
this kit).
4. Elevate the unit and disconnect the power
source.
A. Elevate the unit to level 10 incline.
B. While the unit is elevated, unplug the power
cord from the power outlet.
! WARNING: Disconnect the power cord before
continuing this procedure. Keep wet
items away from inside parts of the
unit. Electrical shock could occur
even if the unit is unplugged.
NOTE: To protect paint, place a cloth over upper
frame before removing handles.
5. Remove the input handles.
A. Using a 5/32" Allen wrench, remove the
Button Head Socket Cap Screw (BHSCS),
washer, end cap and spacer securing the
S-link to the input handles. See Figure 2.
Loctite
BHSCS/
Loctite
Washer
End Cap
Figure 2
B. Unplug the heart rate cable. See Figure 3.
C. Using two 7/32" Allen wrenches, remove the
BHSCS and washer from the pivot shaft.
See Figure 3.
Installation Instructions
Input
Handle
Grease
S-Link
Spacer
