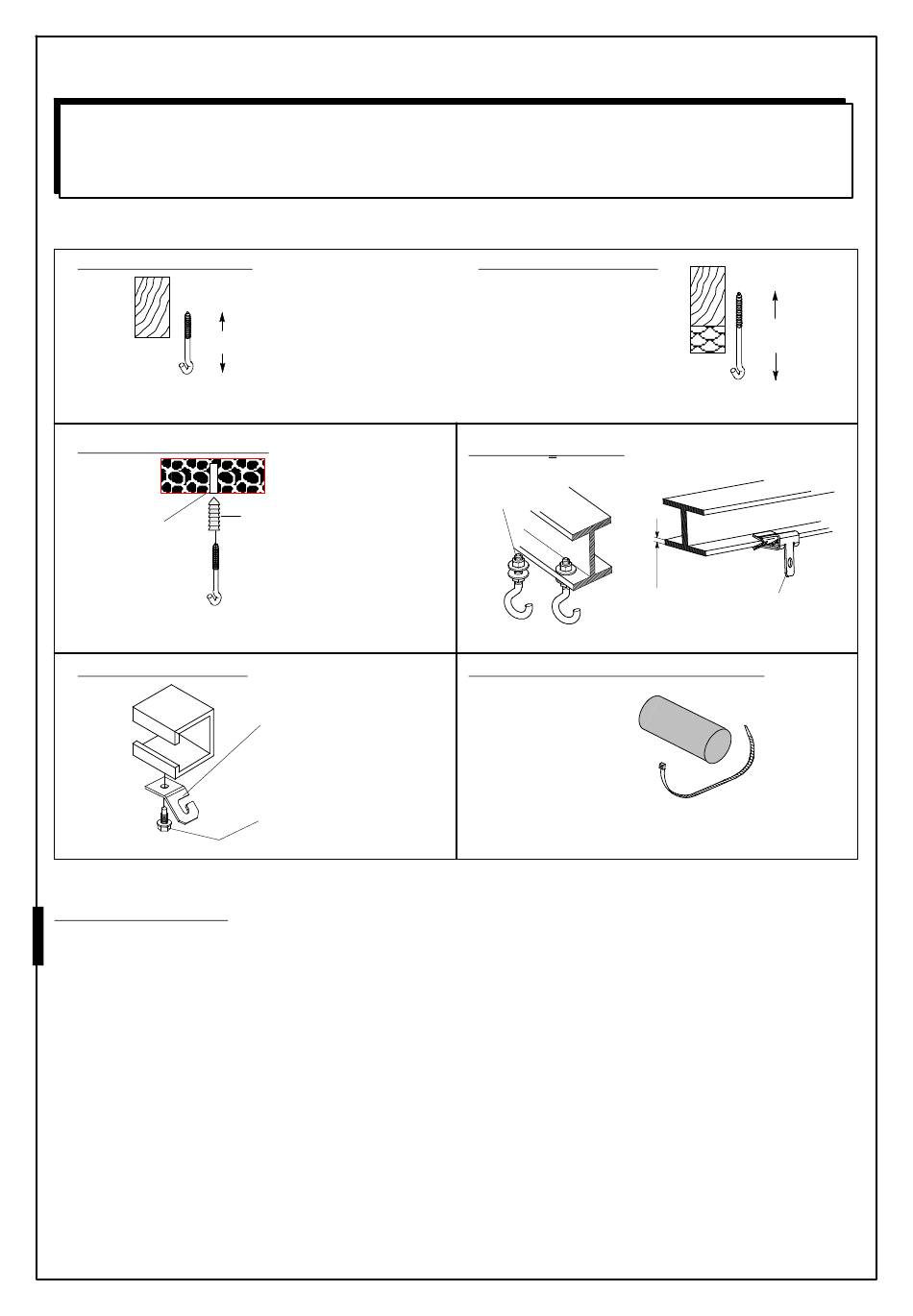

MINIMAX LINE - - INSTALLATION INSTRUCTIONS
THE SUSPENSION OF THE SYSTEM IS VERY IMPORTANT : IT MUST BE DONE CAREFULLY AND
ACCURATELY ! CLOSELY STUDY THE INSTRUCTIONS BEFORE STARTING THE SUSPENSION.
IN A WOODEN BEAM :
90mm
05000872 Screw hook 90mm
FIGURE 25.
IN A CONCRETE BEAM :
Drill a hole dia.
10mm
Screw hook 90mm
FIGURE 27.
IN A METAL GIRDER :
FIGURE 29.
OPTION FOR DUCKS :
05000484 - - SCREW HOOK 90 MM STAINLESS STEEL
05000492 - - SCREW HOOK 160 MM STAINLESS STEEL
III- -12
FEEDER LINE SUSPENSION
Drill a small hole in HARD WOOD.
This will prevent screw hooks from breaking off.
Use a drilling machine with our special driver forscrew
hooks. (See page 3).
Plug dia. 10mm.
20102034
05000872
00103069
Suspension plate
00103077
Self drilling screw
WOOD : + INSULATION
05000237
FIGURE 26.
I
IN METAL GIRDER
05000302
Suspension hook
assy. M6X60
FIGURE 28.
CONCRETE STEEL OR METAL TUBE :
04001137
Cable tie
FIGURE 30.
ROXELL - 001 - 2112
160mm
Screw hook 160mm
8- -13mm
20104220
Caddy clip
