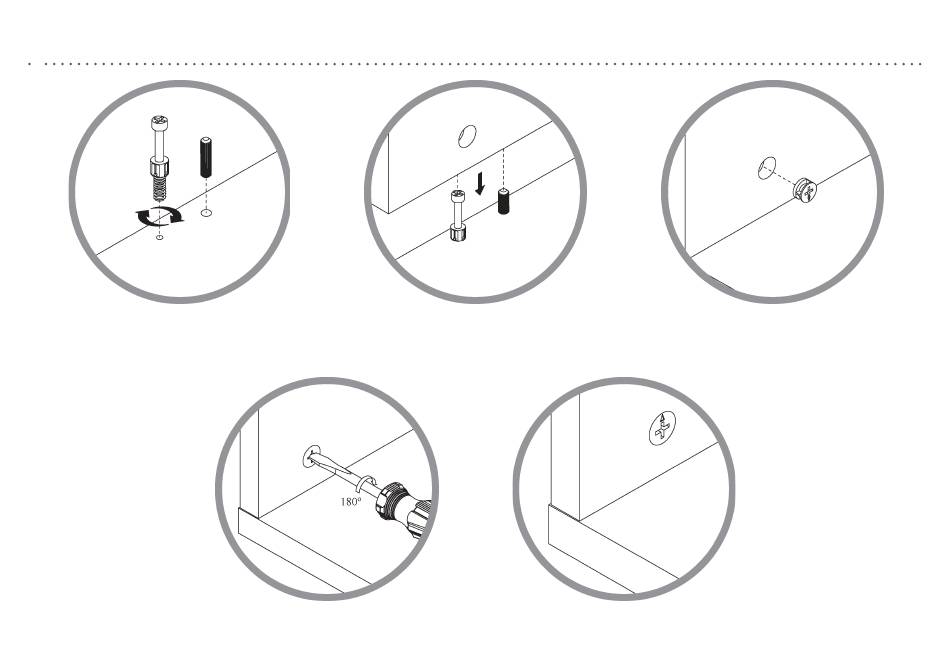

how to use the cam lock system
1.
1.
Screw cam bolt into panel
6
2.
2.
Align cam bolt(s) with cam(s)
4.
4.
Rotate cam(s) clockwise 180° to
lock panels together
and insert all the way into
cross-bored hole(s)
5.
5.
Panels should be tight against each
other and connection should be rigid
3.
3.
Push cam into panel - arrow feature
on cam top points to panel edge
