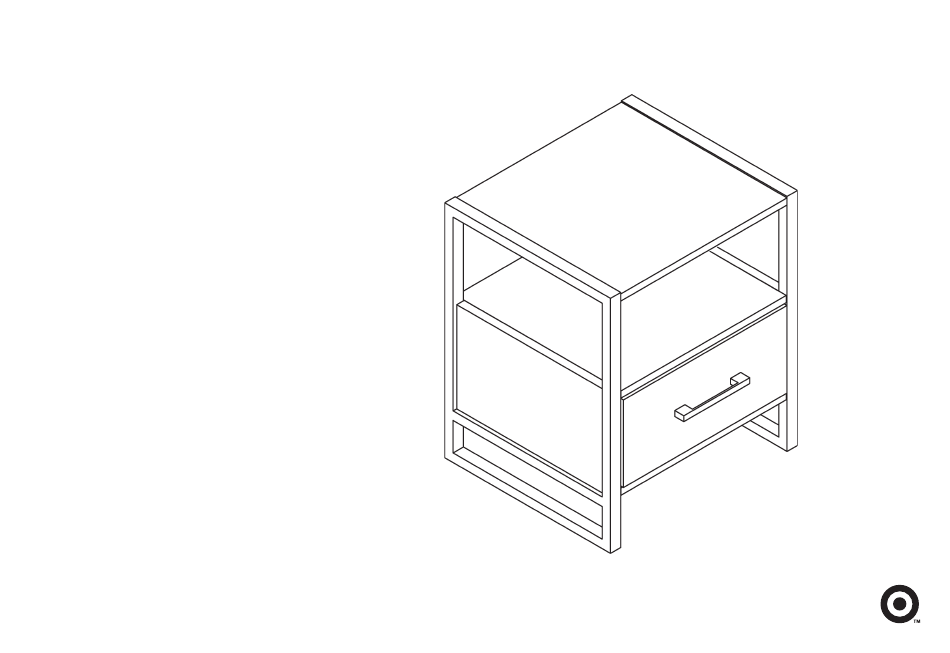

paulo
side table
style # TGELSDTBWH (weathered white)
dpci # 249-16-9754
tcin # 53281502
style # TGELSDTBGY (weathered smoke)
dpci # 249-16-9755
tcin # 53281503
style # TGELSDTBBR (midtone)
dpci # 249-16-9756
tcin # 53281504
>>
assembly instructions
© 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target Paulo TGELSDTBWH
Summary of Contents for Target Paulo TGELSDTBWH
- Page 1 # TGELSDTBGY (weathered smoke) dpci # 249-16-9755 tcin # 53281503 style # TGELSDTBBR (midtone) dpci # 249-16-9756 tcin # 53281504 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-13 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 6 (H2) x 10 (H3) x 10 (H4) x 10 (H5) x 4 wooden dowel cam bolt flat head screw short round head bolt (H6) x 1 (H7) x 4 (H8) x 2 (H9) x 1 (H10) x 4 allen wrench flat head bolt long round head bolt...
-
Page 5: Exploded Diagram
exploded diagram ITEM DESCRIPTION QUANTITY top panel left side frame right side frame shelf left side panel right side panel back panel bottom panel drawer face drawer front drawer left side drawer right side drawer back drawer bottom... -
Page 6: How To Use The Cam Lock System
how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cross-bored Push cam into panel - arrow feature hole(s) and insert all the way until on cam top points to panel edge panels are flush Rotate cam(s) clockwise 180°... - Page 7 step 1: attach cam bolts to left side panel, right side panel, and shelf (H2) x 10 cam bolt 1.1. Screw-In cam bolts must be screwed down flush in left side panel, right side panel, and shelf. 1.2. Refer to page 6 for instructions on how to use the cam lock system. 1.3.
- Page 8 step 2: attach back panel to shelf and bottom panel (H1) x 2 (H3) x 2 (H4) x 2 wooden dowel cam bolt flat head screw 2.1. Carefully tap small wooden dowels into place in back panel. Leave 1/2” of the dowels sticking out. 2.2.
- Page 9 step 3: attach left side panel and right side panel (H1) x 4 (H3) x 8 wooden dowel 3.1. Carefully tap small wooden dowels into place in left side panel and right side panel. Leave 1/2” of the dowels sticking out. 3.2.
- Page 10 step 4: attach top panel, left side frame, and right side frame (H12) (H5) x 4 (H6) x 1 short round allen wrench head bolt (H7) x 4 (H10) x 4 (H12) x 2 flat head bolt washer short round head screw (H7) 4.1.
- Page 11 step 5: attach drawer left side to drawer front and drawer back (H11) (H4) x 4 (H11) x 2 flat head long round screw head screw 5.1. Align long round head screws with pre-drilled holes to attach drawer face to drawer front. Do not over tighten screws. 5.2.
- Page 12 step 6: attach drawer bottom and drawer right side (H4) x 4 flat head screw 6.1. Slide drawer bottom into drawer back, drawer front, and drawer left side. 6.2. Align long round head screws with pre-drilled holes to attach drawer right side to drawer front. Do not over tighten screws.
- Page 13 step 7: attach drawer handle and install drawer adjustable leg leveler (H8) x 2 (H9) x 1 long round handle head bolt 7.1. Align long round head bolts with pre-drilled holes to attach handle to door. Do not over tighten bolts. 7.2.
- Page 14 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 15 LIFETIME GUARANTEE AND LIMITED WARRANTY* Salice America, Inc., warrants that all hinges and/or Salice products contained in Quality That Lasts A Lifetime this product, (but not the product itself) against defects in material and workman- ship for as long as the original consumer purchaser owns the products. Salice will send the original consumer purchaser a new Salice hinge to replace any defective Salice hinge subject to this warranty without charge.
- Page 16 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
